Description
Purpose-Built Gaming UPS Protects Your Equipment and Provides Pure Sine Wave Output
This 120V line-interactive UPS provides pure sine wave output in both AC and battery backup modes to keep your gaming PC or gaming console reliably powered. It also protects connected equipment against blackouts, brownouts, surges and line noise that can damage valuable electronics or destroy data. The SMART600PSGLCD is ideal protection for high-end gaming systems powered by Active PFC power supplies, as well as routers, modems and other network equipment in your computer room, game room or home theater.
Reliable Battery Backup Keeps You Playing Through Power Outages
The field-replaceable, hot-swappable internal battery keeps your gaming rig fully operational without interruption during power failures and other severe power conditions. With a typical 250W gaming system connected, the SMART600PSGLCD provides 7.5 minutes of independent runtime. This allows you to play through short power failures, avoid streaming interruptions and safely save your game and shut down your system in case of a prolonged blackout.

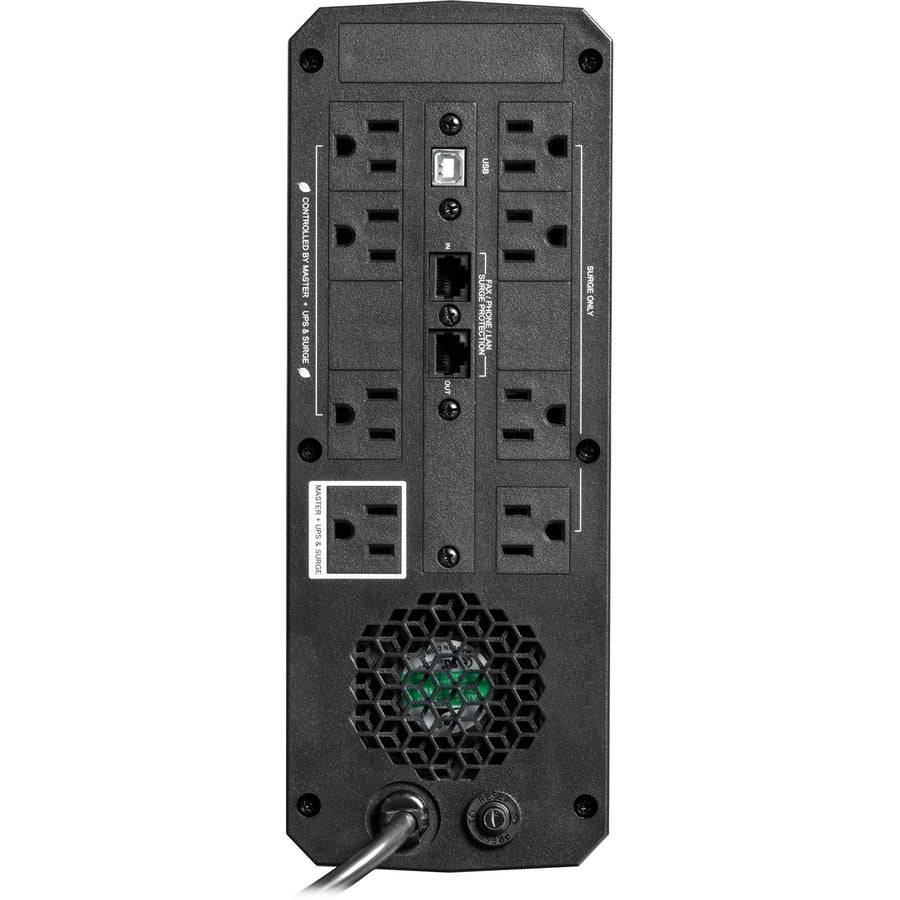

8 NEMA 5-15R Outlets Protect Your Connected Components and Monitor Load Conditions
Three 5-15R energy-saving outlets provide battery backup and network-grade surge protection for your gaming rig and connected desktop and network components. Four outlets are surge-only to connect peripherals not requiring battery backup, such as a printer or desk lamp. One battery- and surge-supported master outlet controls the energy-saving outlets and reports the wattage drawn by the PC or other connected device. If the device connected to the master outlet shuts down or enters standby, the three energy-saving outlets also turn off.
Dynamic Lighting Adds Excitement to Your Gaming Experience
The SMART600PSGLCD is purpose-built for gaming, including RGB color LEDs you can program yourself. Controllable via the detachable front-panel LCD or Tripp Lite's free downloadable software utility (https://www.tripplite.com/products/management-utilities), two separate LED banks come with seven preset lighting modes and 16.7 million possible color combinations. You can program a variety of color and motion effects or configure the lights to respond to power consumption changes on the master outlet.

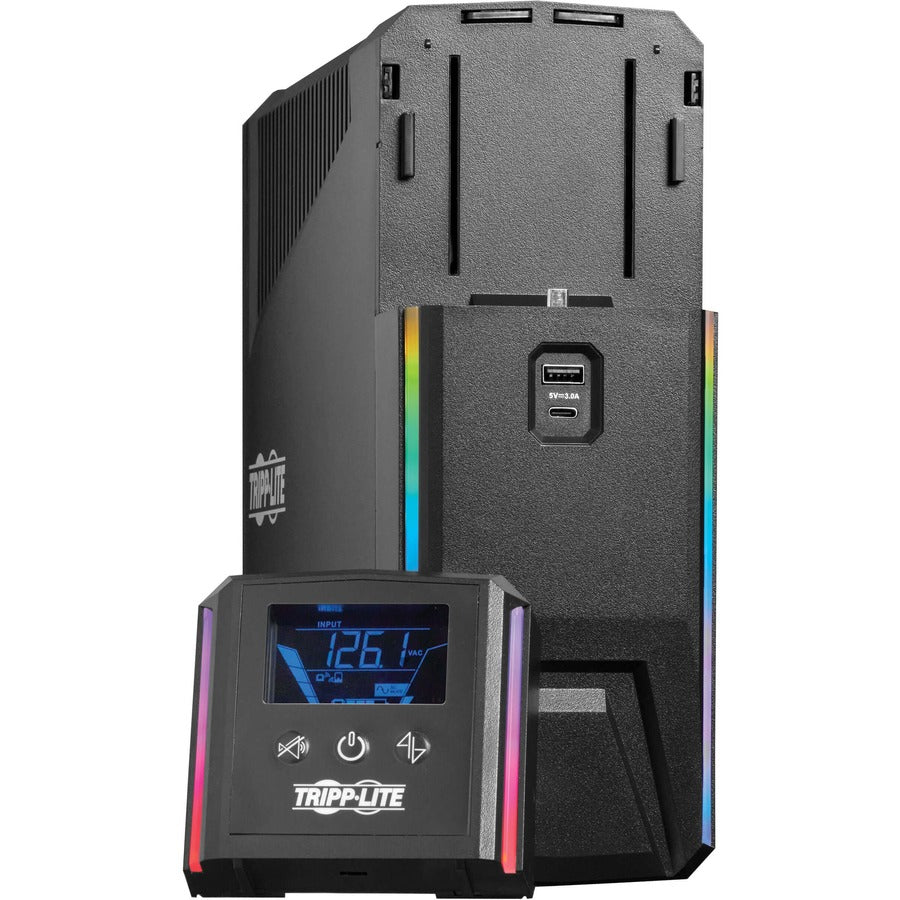

Detachable Wireless LCD Reports Real-Time Status
The front-panel LCD displays a wide range of UPS and power conditions, including operating mode, voltage, frequency, battery level and load level. It detaches from the UPS system and operates wirelessly up to 20 feet (6 meters) away for as many as 12 hours.
- Manufacturer Website Address : https://tripplite.eaton.com/
- Receptacle Detail : 8 x NEMA 5-15R
- Phase : Single Phase
- DC System Voltage : 24 V DC
- Number of Surge-only Outlets : 4
- Form Factor : Tower
- Energy Saving : Greater than 95% efficiency - GREEN UPS; Power saving auto-shutoff ECO outlets
- Package Contents :
- SMART600PSGLCD 1000VA Tower UPS
- USB Cable
- Owner's Manual
- Backup/Run Time (Full Load) : 2.50 Minute
- Thermal Dissipation : 98 BTU/h
- Load Capacity : 600 kVA/360 W
- Energy Star : Yes
- Battery Chemistry : Lead Acid
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMART600PSGLCD
- Maximum Operating Temperature : 104°F (40°C)
- Backup/Run Time (Half Load) : 9 Minute
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - 122°F (50°C)
- Receptacle Type : NEMA 5-15R
- Environmentally Friendly : Yes
- USB : Yes
- Product Color : Black
- Input Voltage : 120 V AC
- Transfer Time : 6 ms
- Limited Warranty : 3 Year
- Typical Battery Recharge Time : 7 Hour
- Waveform Type : Pure Sine Wave
- Plug/Connector Type : NEMA 5-15P
- Product Type : Line-interactive UPS
- Surge Energy Rating : 316 J
- Alarm : Battery Mode Full Charge,Battery Mode Low Charge,Replace Battery,Fault
- Application/Usage : Gaming Console,Router,Modem,Network Equipment,Computer Room,Home Theater,Printer,Gaming PC,Desk Lamp
- Hot Swappable : Yes
- USB (HID Compliant) Port : Yes
- Output Voltage : 120 V AC
- AVR : Yes
- Country of Origin : Vietnam
- Display : LCD
- Status Indicators :
STATUS INFORMATION:
- Input Voltage
- Input Frequency
- Battery Voltage
- Battery Capacity
- Estimated Runtime
- Output Voltage
- Output Frequency
- Output Watts
- Output Load %
- Master Outlet Power Consumption (Watts)
- Detachable LCD Module Battery Voltage
- Firmware Revision
CONFIGURATION OPTIONS:
- Eco-mode Off
- Eco-mode On
- Alarm Disable
- LED Lighting Configurations
ERROR MESSAGES:
- Replace Battery
- Overload
- Critical Fault
