Description

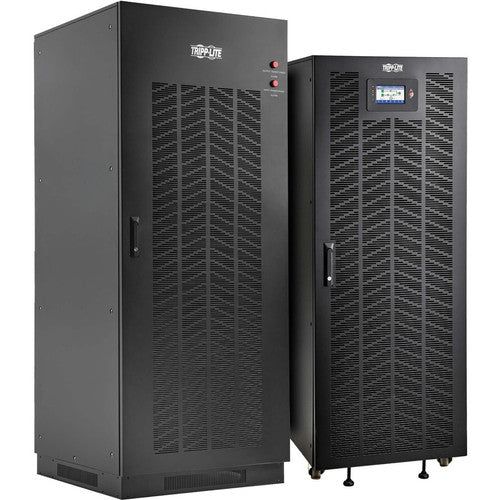

100kVA/kW 3-Phase UPS and Input/Output Isolation Transformers Combined into One Kit
This SmartOnline® kit for 480V IT loads combines Tripp Lite's S3M100K 208/220/120/127V Double-Conversion UPS, a 480V (Delta) to 208V (Wye) input isolation step-down transformer and a 208V (Wye) to 480V (Wye) output auto step-up transformer into one convenient package. The S3M100K100KWR4T combo kit is ideally suited for vital applications in banking, education, healthcare, government and manufacturing sectors.
Battery Backup and VFI Operation Protect Critical Loads
The IGBT UPS supports the continuous availability of your most important operational and IT equipment loads through all power conditions, providing a compact backup power platform that's easy to manage and inexpensive to operate. Sophisticated voltage- and frequency-independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality.
Complete Step-Down/Step-Up and Isolation Protection That Prevents Power Disruption
The dual transformers offer line isolation and protection to the UPS system and its load. They isolate the UPS and connected components from line surges and spikes caused by utility power disruptions that can damage equipment or corrupt data.
Best-in-Class Footprint for Easy Integration into Your Network Application
The compact design lets you install the steel housings in spaces that would otherwise have required expensive retrofitting. By achieving their condensed size without compromising runtime, reliability or functionality, this combination UPS/transformer kit is recommended for data centers, colocation facilities and edge computing environments that require high efficiency, high performance and clean, reliable power protection, while preserving as much space as possible for revenue-generating server racks.
Efficient UPS Operation and Design Reduces Cost of Ownership
The UPS features ENERGY STAR 2.0-certified technology that provides high operational efficiency to save on utility and cooling costs, as well as protect the environment. It achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. Unity output power factor (1.0) lets you support more equipment. A low THDi (<3%) improves generator compatibility. A low THDv (?2%) and active power factor correction with DSP control improve output performance.
Transformer Performs with High Efficiency up to 97.8%

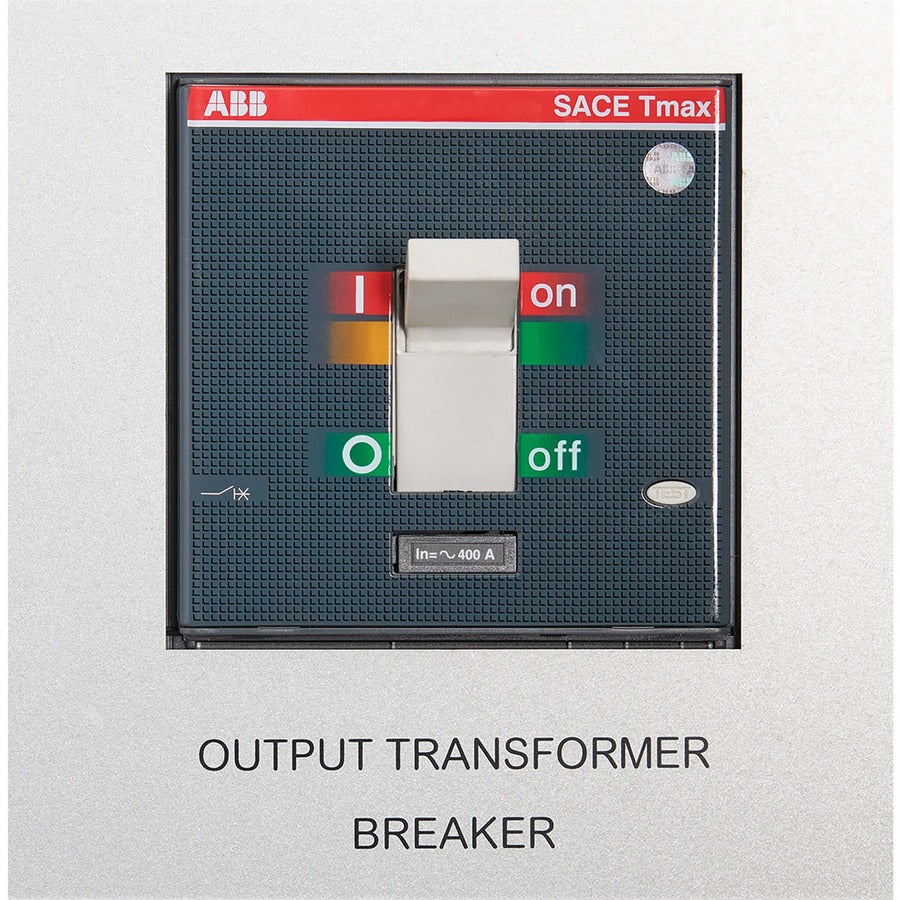

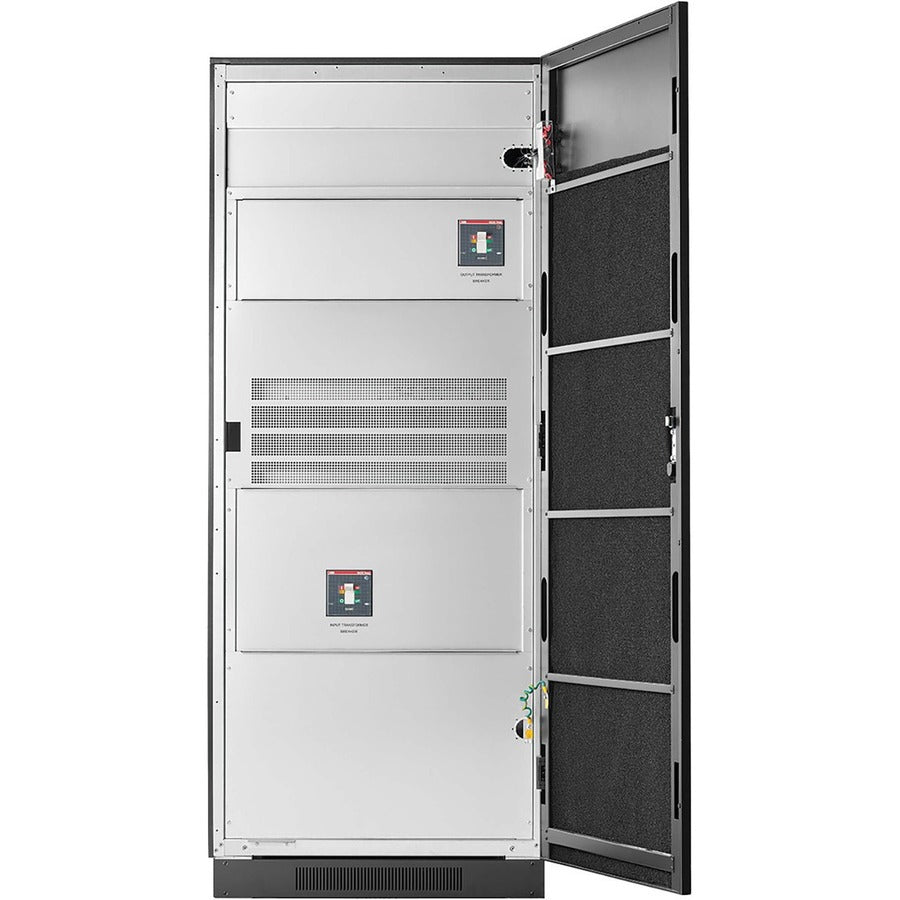

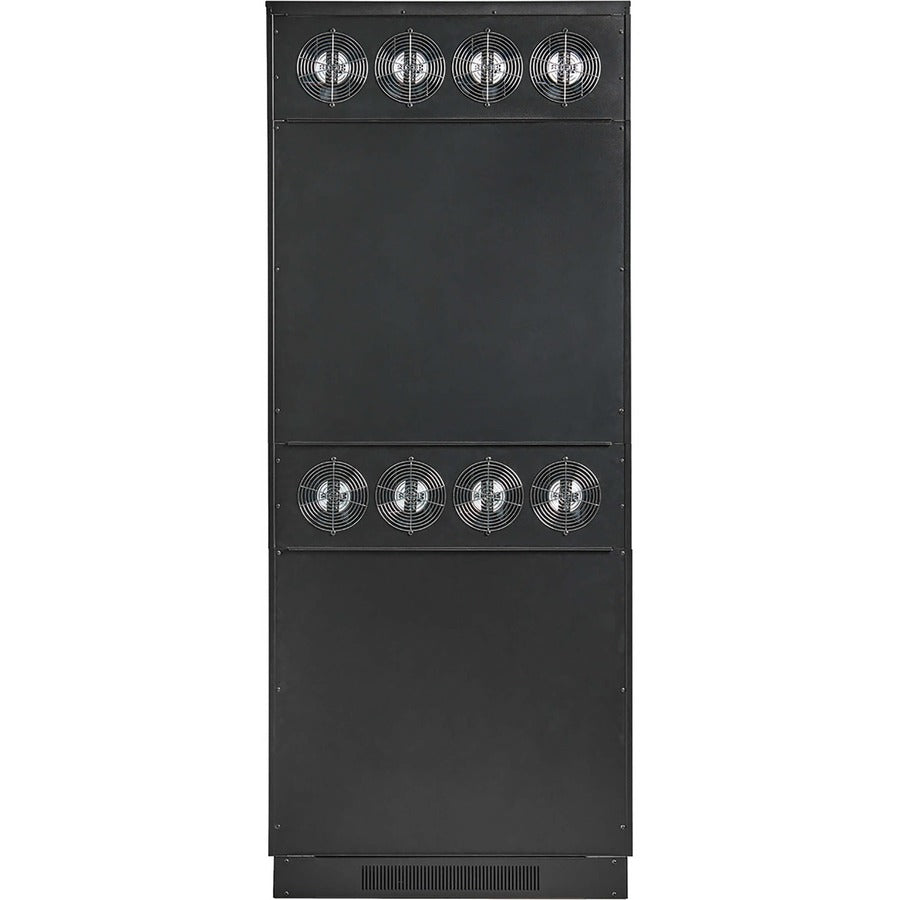

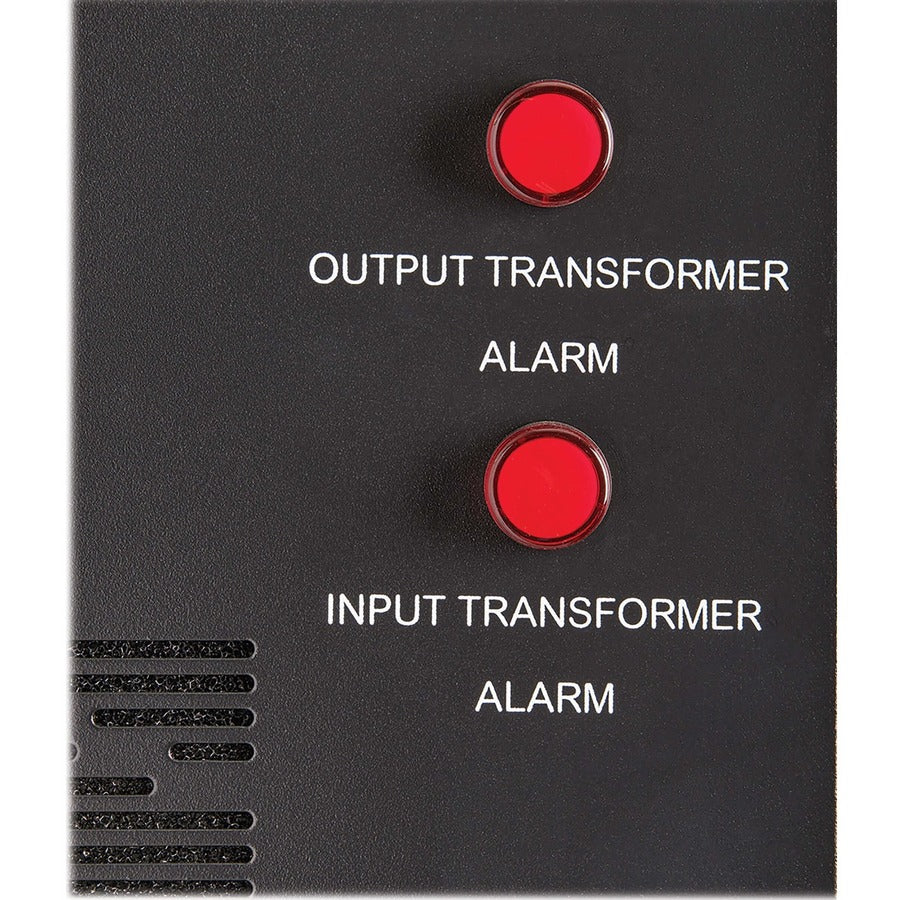

Not only does the S3MT-100KWR480V wrap-around transformer offer up to 97.8 percent efficiency, it also is very quiet with a noise profile less than 65 dBA. Built-in circuit breakers on both transformers help prevent dangerous power overloads. Eight ball-bearing cooling fans help prevent overheating. An overheat-sensing relay and switch combine with red alarm indicators to provide over-temperature warning and overheating protection.
External Batteries Supply Reliable Backup with Expandable Runtime Options
The S3M100K uses external battery cabinets, including BP240V65L and BP240V100L (sold separately), to provide backup support in case of a power failure. These cabinets are available with or without internal batteries. No internal batteries are included with the S3M100K. A one-touch cold-start button powers up the UPS with battery power only.
- TAA Compliant : Yes
- Phase : Three Phase
- Environmentally Friendly : Yes
- Network Management : Telnet,SSH,Web/SNMP
- Input Voltage : 480 V AC
- Product Series : S3M
- Limited Warranty : 2 Year
- Form Factor : Tower
- Package Contents :
- SmartOnline S3M100K100KWR4T 100kVA Tower UPS
- Parallel UPS Cable
- USB Cable
- RS-232 Cable
- 4 x Bottom Skirts
- 24 x Screws
- Owner's Manuals
- Tripp Lite S3MT-100KWR480V 100kVA 3-Phase Isolation Transformer
- Plug/Connector Type : Hardwired
- Product Type : Double Conversion Online UPS
- Load Capacity : 100 kVA
- Energy Star : Yes
- Application/Usage : IT Equipment,Server Room,Data Center,Network Equipment,Corporate,Banking,Education,Healthcare,Government,Manufacturing Facility
- Manufacturer : Tripp Lite by Eaton
- Product Model : S3M100K100KWR4T
- Country of Origin : China
- Product Line : SmartOnline
- Serial Port : Yes
- Sound Emission (A-Weighted) : 65 dB(A)
- Overload Protection : Yes
- USB (HID Compliant) Port : Yes
- Manufacturer Website Address : https://tripplite.eaton.com/
