Description
Battery Backup and VFI Operation Protect Critical Loads
The SmartOnline® S3M60KX IGBT UPS supports the continuous availability of your most important loads through all power conditions, providing a compact backup power platform that's easy to manage and inexpensive to operate. Sophisticated voltage and frequency independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 60kVA of clean, continuous power, this 3-phase UPS system is perfect for critical applications in IT, communications, corporate, commercial, retail, financial, security, transportation, emergency and light industrial environments.
Best-in-Class Footprint for Easy Integration into Your Network Application
This on-line double-conversion UPS system has a very small footprint of just 0.28 square meters. It requires less valuable space in your facility, and you can install the UPS system in spaces that would previously have required expensive retrofitting.
Efficient Operation and Design Reduces Cost of Ownership

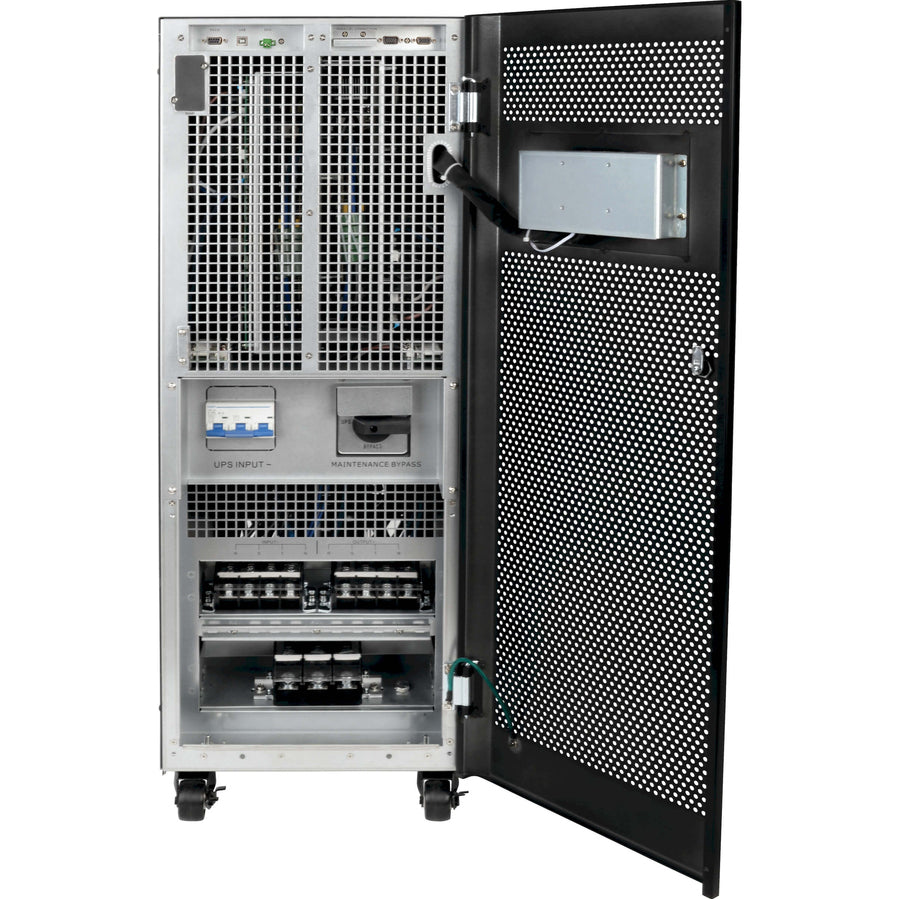

This IGBT UPS benefits from highly efficient transformer-free double-conversion technology that delivers operating cost savings. It achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. A low THDi (<3%) improves generator compatibility. A low THDv (?2%) and active power factor correction improve output performance. The hardware and firmware platform design reduces the number of unique boards, improving mean time to repair (MTTR) and resulting in reduced downtime. Built-in static and maintenance bypass transfer UPS load to utility power during faults, overloads and maintenance, which also avoids costly system downtime.
External Batteries Supply Reliable Backup with Expandable Runtime Options
The S3M60KX uses external scalable battery cabinets, such as BP480V40, BP480V65 and BP480V100 (sold separately), to provide up to three hours of backup support in case of a power failure. The UPS system automatically restarts after a lengthy power outage.

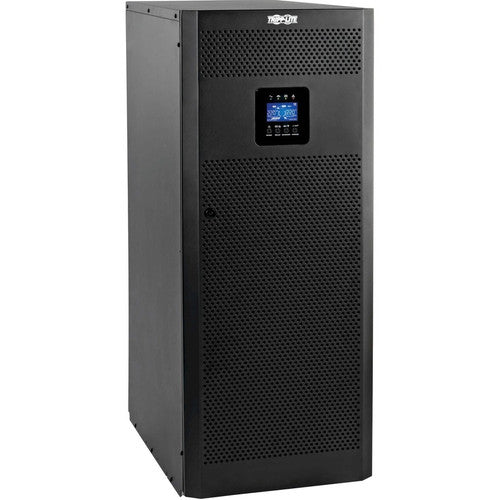

Intuitive LCD Interface Delivers Important Performance Information at a Glance
The interactive front-panel LCD interface displays critical operating conditions and diagnostic data, including operating mode, input/output voltage, load, battery voltage, backup runtime and fault conditions. Four LEDs provide information about line, bypass, battery and fault status.
Network Management Card Offers Remote Monitoring and Control

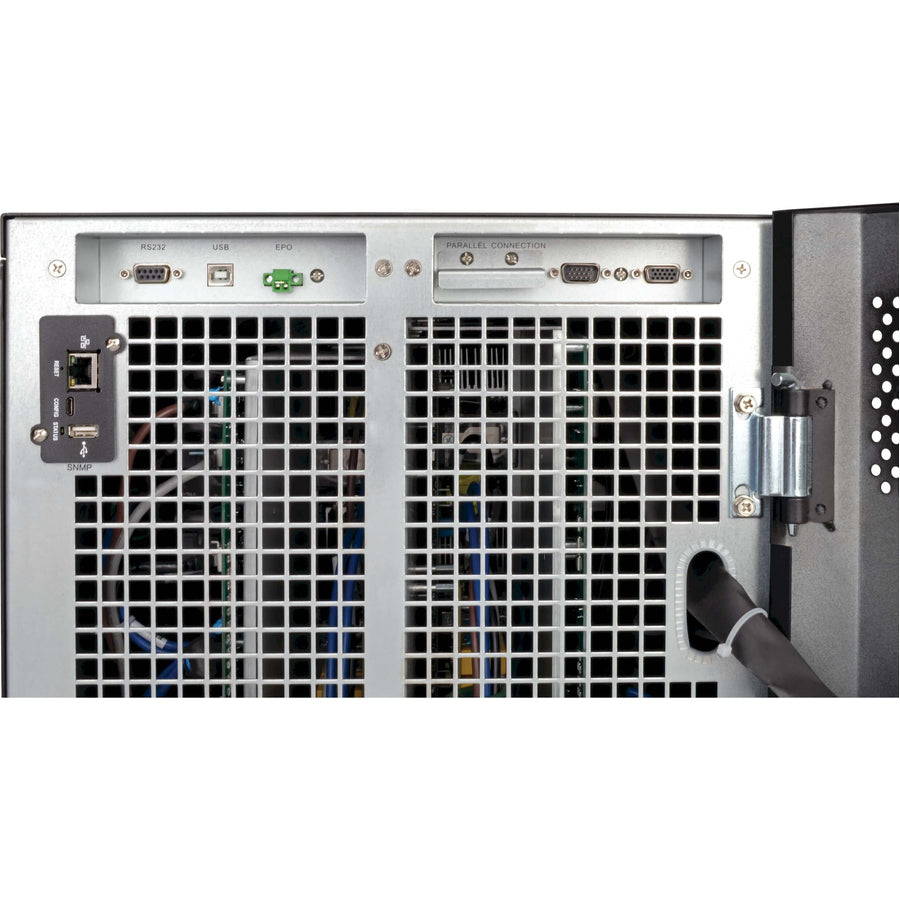

The optional Java-free WEBCARDLX network management card (sold separately) enables remote management through embedded HTML5 web, SSH/telnet and SNMP interfaces, as well as integration with a wide range of network management systems and DCIM platforms. A Remote Emergency Power Off (REPO) port allows shutdown from a safe distance during emergencies.
Parallel Capability Provides Additional Capacity and Redundancy up to 3 Units
Connect up to three S3M60KX units in parallel using separate/shared battery cabinets for increased capacity.
. .- Phase : Three Phase
- Network Management : SSH,Telnet,SNMP Manageable
- Product Series : S3MX
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 9 Hour
- Waveform Type : Pure Sine Wave
- Form Factor : Tower
- Product Type : Delta Conversion Online UPS
- Load Capacity : 60 kVA
- Application/Usage : Mission Critical Equipment,IT Infrastructure,Communication Application,Corporate,Commercial,Retail & Wholesale,Finance,Security,Transportation,Emergency,Industrial,Network,Telecommunication,Data Center,Automation System,Production Line Operation
- Manufacturer : Tripp Lite by Eaton
- Product Model : S3M60KX
- Output Voltage : 230 V AC,380 V AC,400 V AC,415 V AC
- Country of Origin : China
- Product Line : SmartOnline
- DC System Voltage : 240 V DC
- Serial Port : Yes
- Maximum Operating Elevation : 3280 ft (999744 mm)
- Maximum Operating Temperature : 104°F (40°C)
- Output Frequency : 60 Hz
- Storage Temperature : 32°F (0°C) - 95°F (35°C)
- EPO Port : Yes
- Overload Protection : Yes
- Alarm : Bypass Mode,Battery Mode,Fault Mode,Overload
- Status Indicators : interactive front-panel LCD interface:
- Operating mode
- Input / output voltage & frequency
- Load
- Battery voltage
- Backup runtime
- Fault conditions
- alarm status
- battery charge
- Estimated runtime
- Line
- Bypass
- Battery
- Fault
- Manufacturer Website Address : https://tripplite.eaton.com/
