Description

Battery Backup and VFI Operation Protect Critical Loads

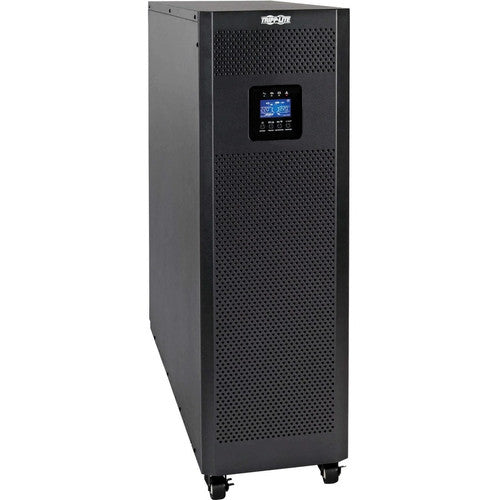

The SmartOnline® S3M30KXD IGBT UPS supports the continuous availability of your most important loads through all power conditions, providing a compact backup power platform that's easy to manage and inexpensive to operate. Sophisticated voltage and frequency independent (VFI) operation and advanced IGBT rectifier technology with DSP control deliver reliable output power quality. Providing up to 30kVA of clean, continuous power, this 3-phase UPS system is perfect for critical applications in IT, communications, corporate, commercial, retail, financial, security, transportation, emergency and edge infrastructure environments.

Best-in-Class Footprint for Easy Integration into Your Network Application

This on-line double-conversion UPS system has a very small footprint of just 0.24 square meters. It requires less valuable space in your facility, and you can install the UPS system in spaces that would previously have required expensive retrofitting.

Efficient Operation and Design Reduces Cost of Ownership

This UPS benefits from highly efficient transformer-free double-conversion technology that delivers operating cost savings. It achieves 94% efficiency in double-conversion mode and up to 98% in ECO mode, reducing your power and cooling costs. A low THDi (<3%) improves generator compatibility. A low THDv (?2%) and active power factor correction improve output performance. The hardware and firmware platform design reduces the number of unique boards, improving mean time to repair (MTTR) and resulting in reduced downtime. Built-in static and maintenance bypass transfer UPS load to utility power during faults, overloads and maintenance, which also avoids costly system downtime.

Supplies Reliable Battery Backup with Expandable Runtime Options

Internal 9Ah batteries provide 17 minutes of support at half load and 5.5 minutes at full load with zero transfer time. Adding external battery cabinets, such as BP480V09 (sold separately), provides extended runtime. The S3M30KXD automatically restarts after a lengthy power outage.

Intuitive LCD Interface Delivers Important Performance Information at a Glance

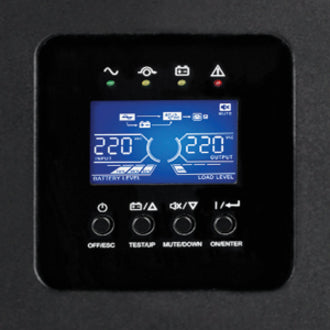

The interactive front-panel LCD interface displays critical operating conditions and diagnostic data, including operating mode, input/output voltage, load, battery voltage, backup runtime and fault conditions. Four LEDs provide information about line, bypass, battery and fault status.

Network Management Card Offers Remote Monitoring and Control

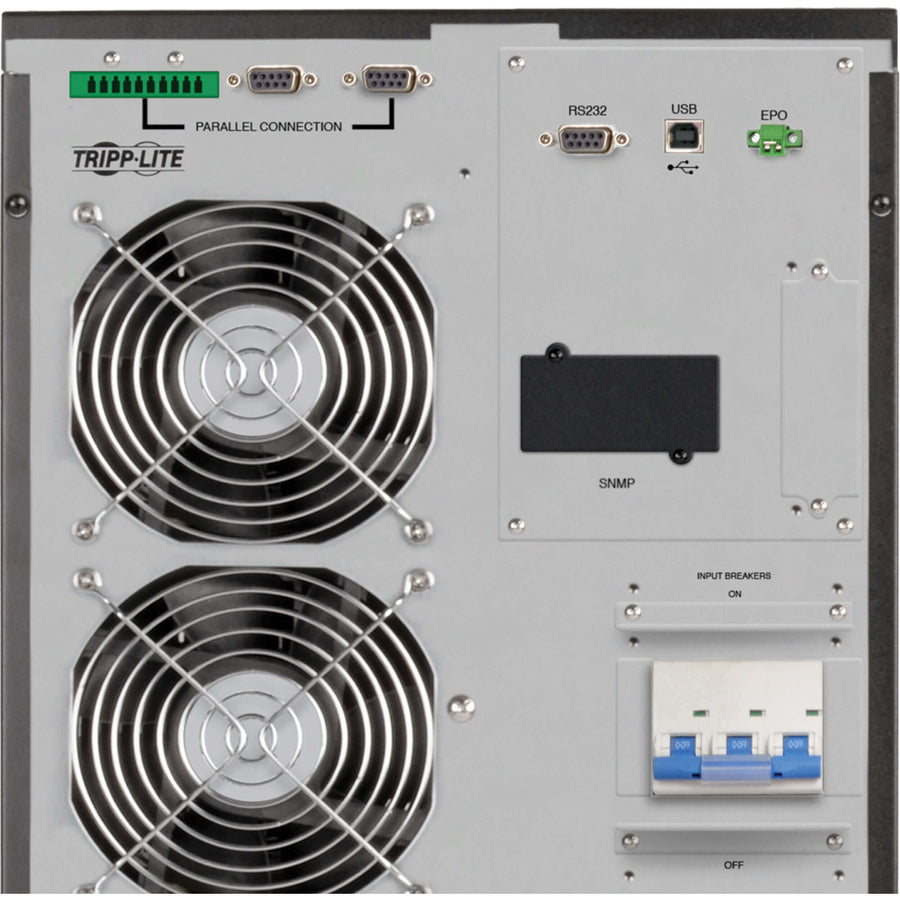

The optional Java-free WEBCARDLX network management card (sold separately) enables remote management through embedded HTML5 web, SSH/telnet and SNMP interfaces, as well as integration with a wide range of network management systems and DCIM platforms. A Remote Emergency Power Off (REPO) port allows shutdown from a safe distance during emergencies.

Parallel Capability Provides Additional Capacity

Connect up to three S3M30KXD units in parallel using separate/shared battery cabinets for increased capacity or for redundancy.

2-Year Warranty Provides Peace of Mind

The S3M30KXD is backed by a 2-year warranty, ensuring reliability and performance.

. .
  • Phase : Three Phase
  • Network Management : SNMP/HTTP Remote Monitoring
  • Product Series : S3MX
  • Limited Warranty : 2 Year
  • Typical Battery Recharge Time : 9 Hour
  • Waveform Type : Pure Sine Wave
  • Form Factor : Tower
  • Backup/Run Time (Full Load) : 5.50 Minute
  • Product Type : Double Conversion Online UPS
  • Load Capacity : 30 kVA
  • Application/Usage : Mission Critical Equipment,IT System,Communication System,Commercial,Corporate,Retail & Wholesale,Finance,Security,Transportation,Emergency,Network,Data Center,Edge Infrastructure Environment
  • Manufacturer : Tripp Lite by Eaton
  • Product Model : S3M30KXD
  • Input Voltage Range : 220 V AC - 415 V AC
  • Output Voltage : 220 V AC,230 V AC,240 V AC,380 V AC,400 V AC,415 V AC
  • Backup/Run Time (Half Load) : 17 Minute
  • Country of Origin : China
  • Product Line : SmartOnline
  • DC System Voltage : 240 V DC
  • Serial Port : Yes
  • Maximum Operating Elevation : 3280.84 ft (1000000 mm)
  • Energy Saving : Green Energy-Saving
  • Maximum Operating Temperature : 104°F (40°C)
  • Output Frequency : 60 Hz
  • Storage Temperature : 5°F (-15°C) - 140°F (60°C)
  • Sound Emission : 60 dB
  • EPO Port : Yes
  • Transfer Time : 0 ns
  • Input Frequency : 60 Hz
  • Alarm : Battery Mode,Overload,Bypass Mode,Fault Mode,Other Warning
  • Storage Relative Humidity : 5% - 95%
  • Status Indicators : 4 LED Indicators:
    • Bypass
    • Line
    • Battery
    • Fault

    Front Panel LCD Display:

    • Current operating mode
    • Alarm status
    • Load level
    • Battery charge
    • Input / output voltage & frequency
    • Estimated runtime and more
  • Manufacturer Website Address : https://tripplite.eaton.com/
