Description
This on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Constant on-line operation completely isolates sensitive equipment from every power problem on the AC line. The SmartOnline® SU1000RTXLCD2UN provides the highest level of power protection and battery backup for education, healthcare, military, government and other mission-critical IT applications where space is limited, but premium power reliability is essential.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable VRLA battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Zero transfer time between on-line and battery modes maintains continuous operation of connected equipment without interruption or rebooting. Extra runtime is available by connecting up to four optional extended battery modules (BP36RT, sold separately).
Pre-Installed LX Platform Network Management Card Allows Remote Access 24/7
The WEBCARDLXE network interface enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. The IP-based Auto Probe feature ensures continuous network uptime by communicating with other network devices, detecting lost connectivity and automatically rebooting IT equipment. Optional EnviroSense2 modules (E2MT, E2MTDO and E2MTHDI, all sold separately) provide a variety of environmental monitoring and control options.

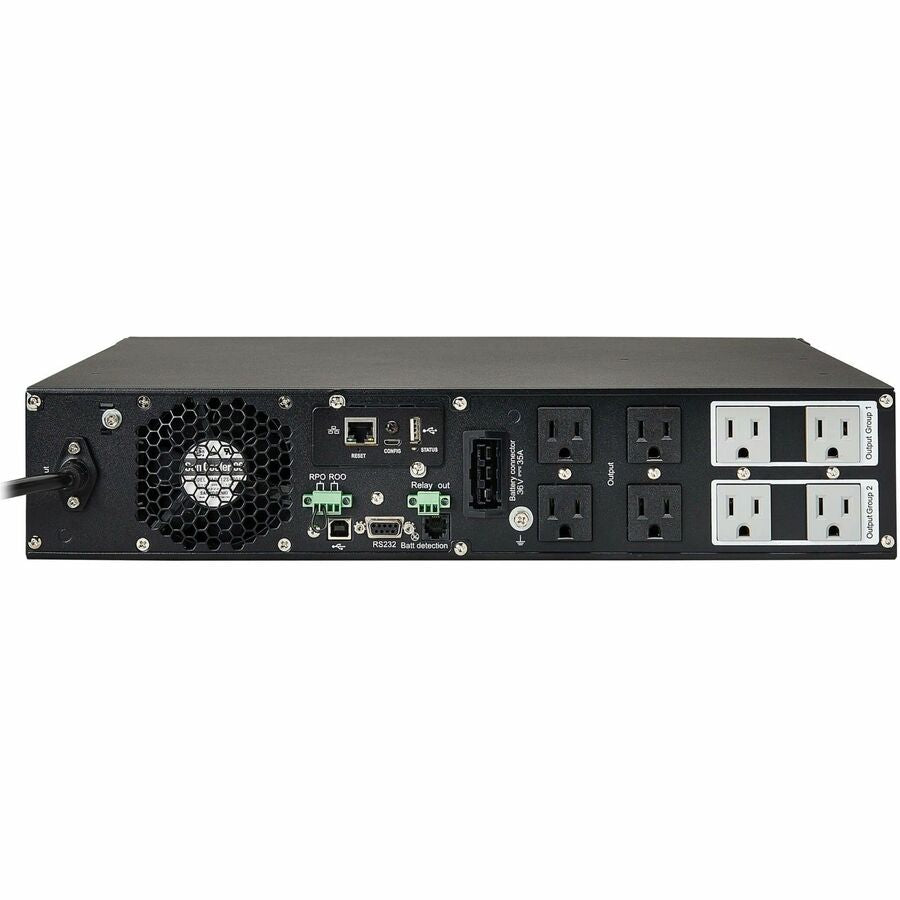

NEMA Outlets Protect Your Connected Components
Eight 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to manage power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
This UPS system filters out disruptive electromagnetic and radio frequency interference that can inflict hardware damage or data loss. This EMI/RFI filtering also helps your connected components perform better and last longer.

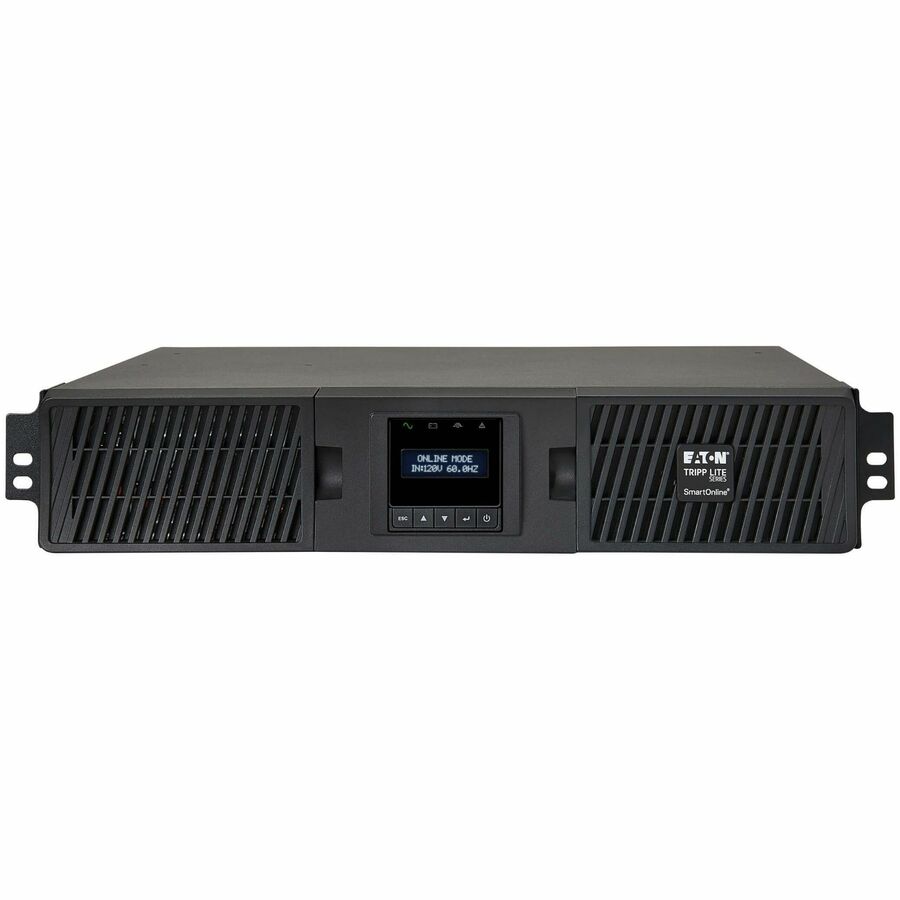

Clear LCD Interface Keeps You Informed at a Glance
The menu-driven front-panel LCD provides detailed alarms and notifications to help diagnose any issues. It provides system status, event logs, battery and power module status, usage analytics, serial number, firmware update info and more. Audible alarms can be disabled through the front menu when the UPS goes to battery power. The LCD rotates to accommodate both rack-mount and tower installation.
Advanced Communications Ports Allow for Automatic Saves and Shutdowns
RS-232 and USB ports connect to a device for a variety of communication options (cables are included). A dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO port permits emergency shutdown or remote restart of all connected equipment.
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- Included WEBCARDLX network interface allows you 24/7 remote access from anywhere
- Optional external battery packs provide additional runtime for applications requiring it
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Offers network-grade protection against power failures and voltage fluctuations
- Receptacle Detail : 6 x NEMA 5-15R
- Phase : Single Phase
- Form Factor : Rack-mountable
- Package Contents :
- SmartOnline SU1000RTXLCD2UN 1000VA Rack-mountable UPS
- WEBCARDLX Network Interface Card
- USB Cable
- RS-232 Cable
- EPO Cable
- 4-post Rack-mounting Hardware
- Owner's Manual
- Backup/Run Time (Full Load) : 4.80 Minute
- Load Capacity : 1 kVA/900 W
- Energy Star : Yes
- Manufacturer : Tripp Lite by Eaton
- Product Model : SU1000RTXLCD2UN
- Backup/Run Time (Half Load) : 14 Minute
- Rack Height : 2U
- Receptacle Type : NEMA 5-15R
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Input Voltage : 120 V AC
- Transfer Time : 0 ns
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 3 Hour
- Waveform Type : Pure Sine Wave
- Plug/Connector Type : NEMA 5-15P
- Product Type : Double Conversion Online UPS
- Replaceable Battery : Yes
- Application/Usage : Mission Critical Equipment,Data Center,Computer Room,Network Closet,Server
- Hot Swappable : Yes
- Output Voltage : 100 V AC,110 V AC,115 V AC,127 V AC
- Country of Origin : China
- Product Line : SmartOnline
- DC System Voltage : 24 V DC
- Network Management : SNMP/HTTP Remote Monitoring
- Serial Port : Yes
- Sound Emission (A-Weighted) : 50 dB(A)
- Maximum Operating Elevation : 10000 ft (3048000 mm)
- Energy Saving : Green Energy-Saving
- Maximum Operating Temperature : 104°F (40°C)
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - 122°F (50°C)
- EMI/RFI Noise Filter : Yes
- EPO Port : Yes
- Overload Protection : Yes
- Surge Energy Rating : 570 J
- Dataline Protection : RJ-11,RJ-45
- Alarm : UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown
- USB (HID Compliant) Port : Yes
- Status Indicators :
7 Front Panel LEDs Indicator:
- AC To DC Conversion
- Battery Mode Operation
- Inverter Mode
- ECO Mode Operation
- Bypass Mode Operation
- AC Output Status
Front Panel LCD Display:
- UPS And Site Power Status And Operating Data
- Configuration Of Voltage
- Frequency
- Operating Mode
- Alarm Function And A Variety Of Additional Options
- Manufacturer Website Address : https://tripplite.eaton.com/
