Description

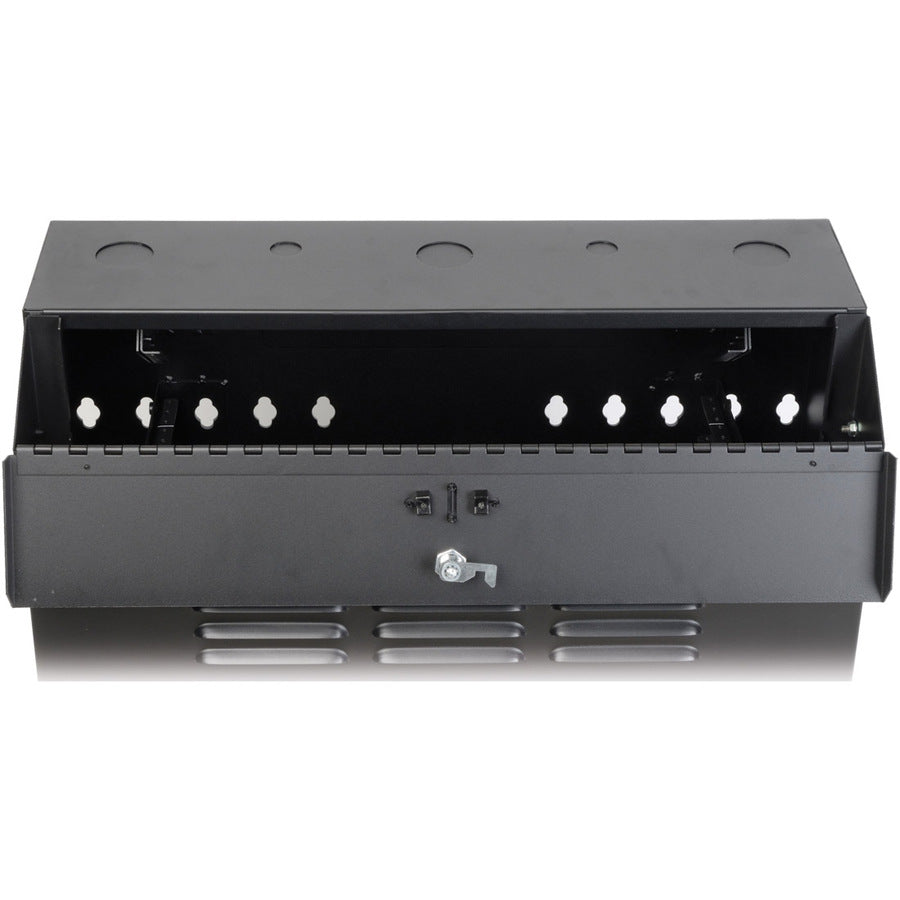

The SRWF5U36 SmartRack 5U Low-Profile Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 pounds.Because the low-profile cabinet mounts vertically, it extends less than 10 inches from the wall while housing equipment up to 36 inches deep, including 1U servers, UPS systems, battery packs, network switches and patch panels. In addition to 5U of rack space in the primary mounting area, it also includes a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep. The top panel and front door lock securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing. The SRWF5U36 comes fully assembled and ready to mount to the wall. Equipment installation is easy, with threaded mounting holes and hardware that support M6 or 12-24 mounting.
- Includes additional 2U of space for patch panels
- Ships fully assembled for quick installation
- Secures 5U of 19 in. rack equipment up to 36 in. deep
- Locking steel cabinet vented to keep equipment cool
- Maximum load capacity of 150 lb.
- Environmentally Friendly : Yes
- Rack Width : 19" (482.60 mm)
- Product Color : Black
- Static/Stationary Weight Capacity : 68.04 kg
- Limited Warranty : 5 Year
- Form Factor : Wall Mountable

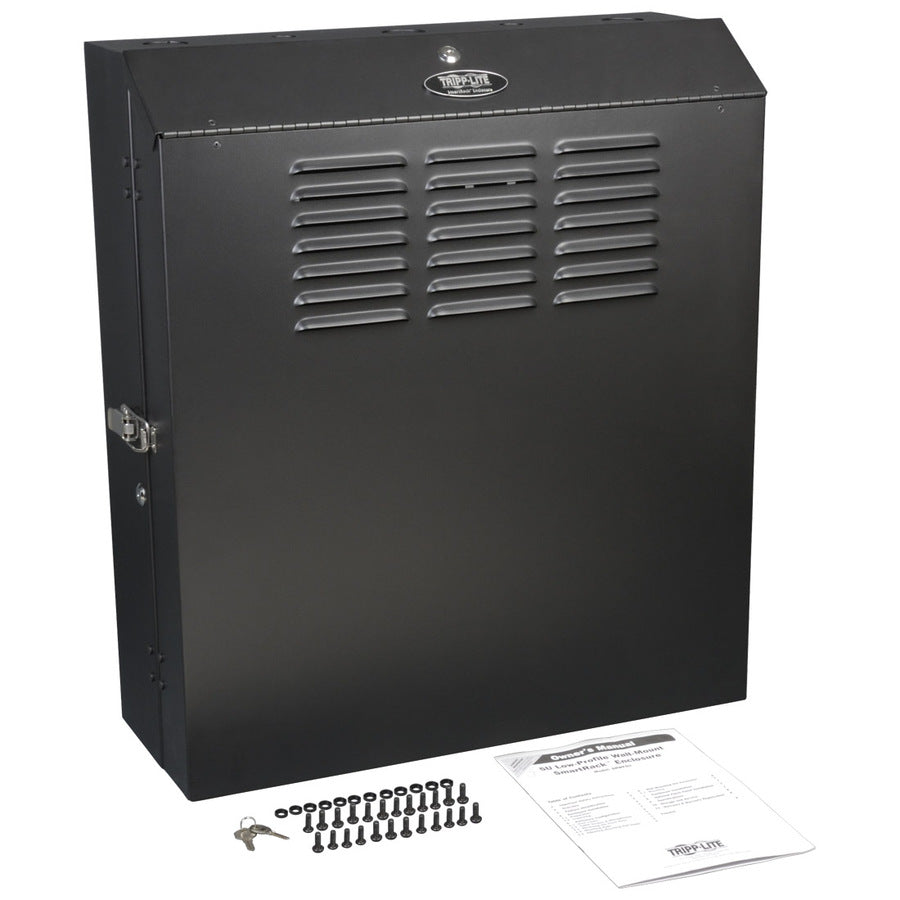

- Package Contents :
- SmartRack 5U Low-Profile Wall Mount Rack Cabinet
- 12 x M6 Screws
- 12 x M6 Cup Washers
- 12 x 12-24 Screws
- 2 x Keys
- Owner's Manual
- Product Type : Rack Cabinet
- Assembly Required : No
- Rack Depth : 36" (914.40 mm)
- Application/Usage : Patch Panel,LAN Switch
- Manufacturer : Tripp Lite by Eaton
- Product Model : SRWF5U36
- Features : Cable Management,Vented Top,Adjustable Mounting Bracket,Lockable Door
- Rack Height : 5U
- Country of Origin : China
- Product Line : SmartRack
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Black
