Description
Features | Compact 12U 2-Post Rack Houses Equipment up to 12 in. Deep

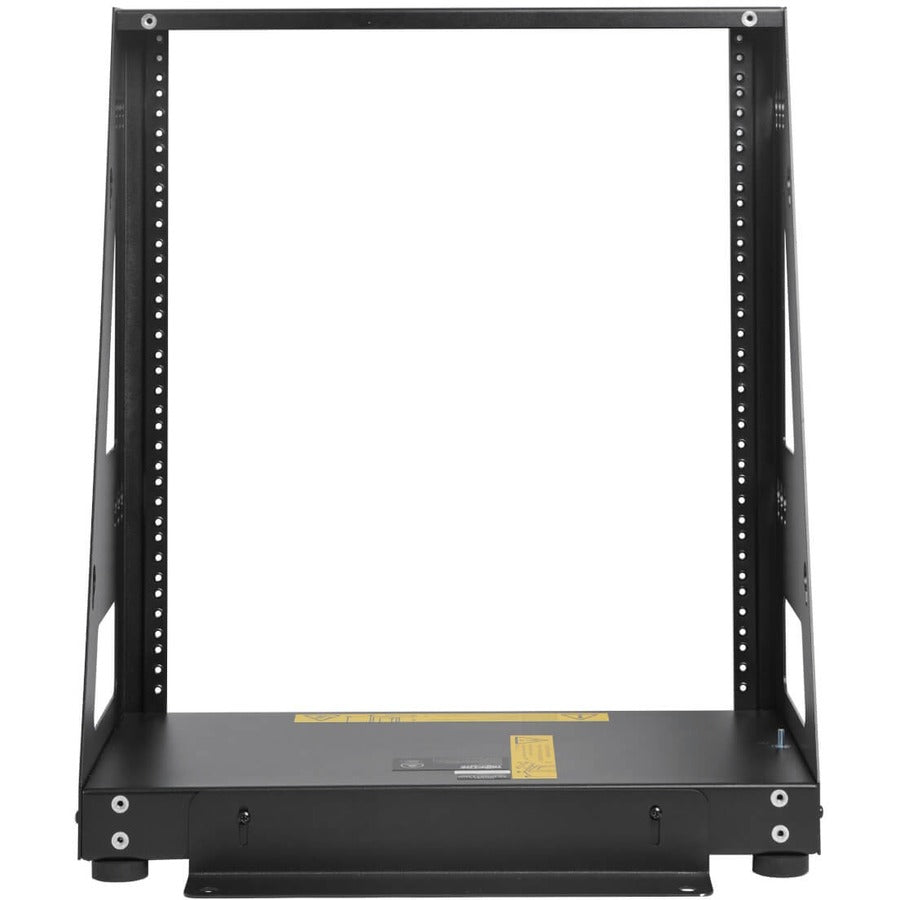

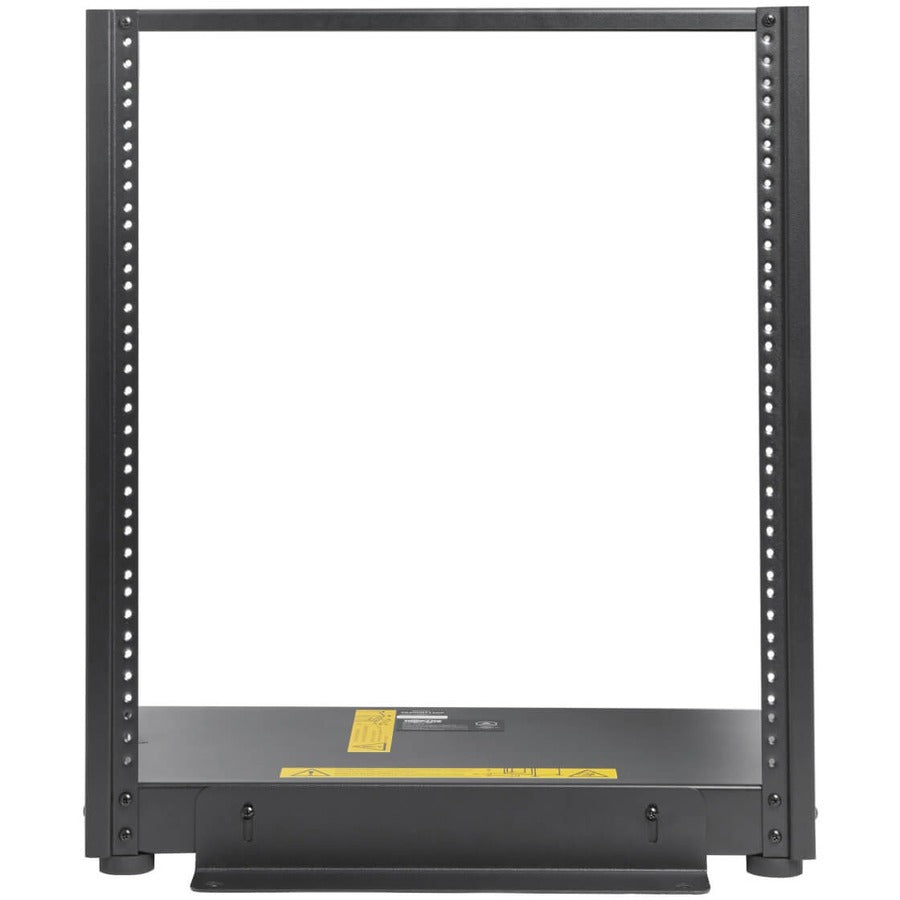

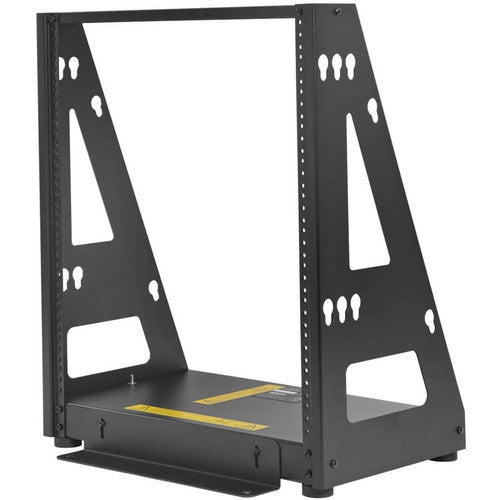

This SmartRack® EIA-310 open frame rack is designed to house 12U of equipment, including servers, UPS systems, switches, cable managers and PDUs. It's recommended for mounting equipment in retail locations, classrooms, back offices, audio/video editing bays and radio/television studios. Constructed from heavy-duty steel with a durable black powder-coated finish, the 2-post rack has a maximum load capacity of 350 pounds (159 kilograms).
Bolts Down Almost Anywhere to Protect Equipment and Save Space

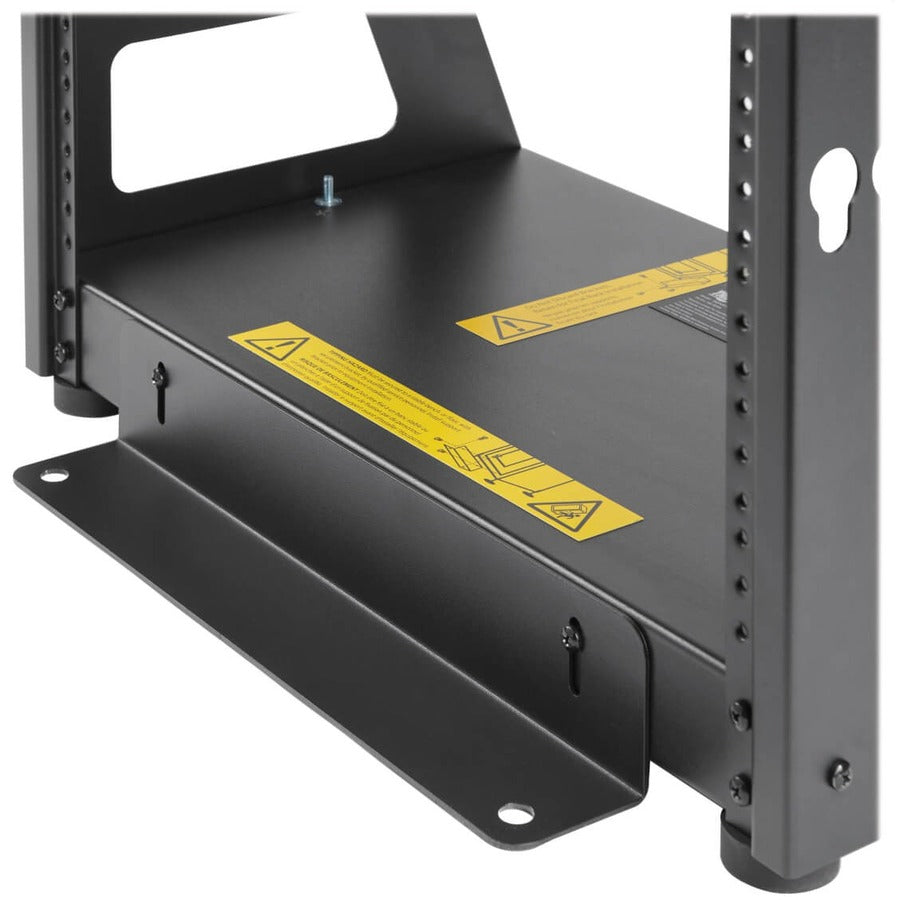

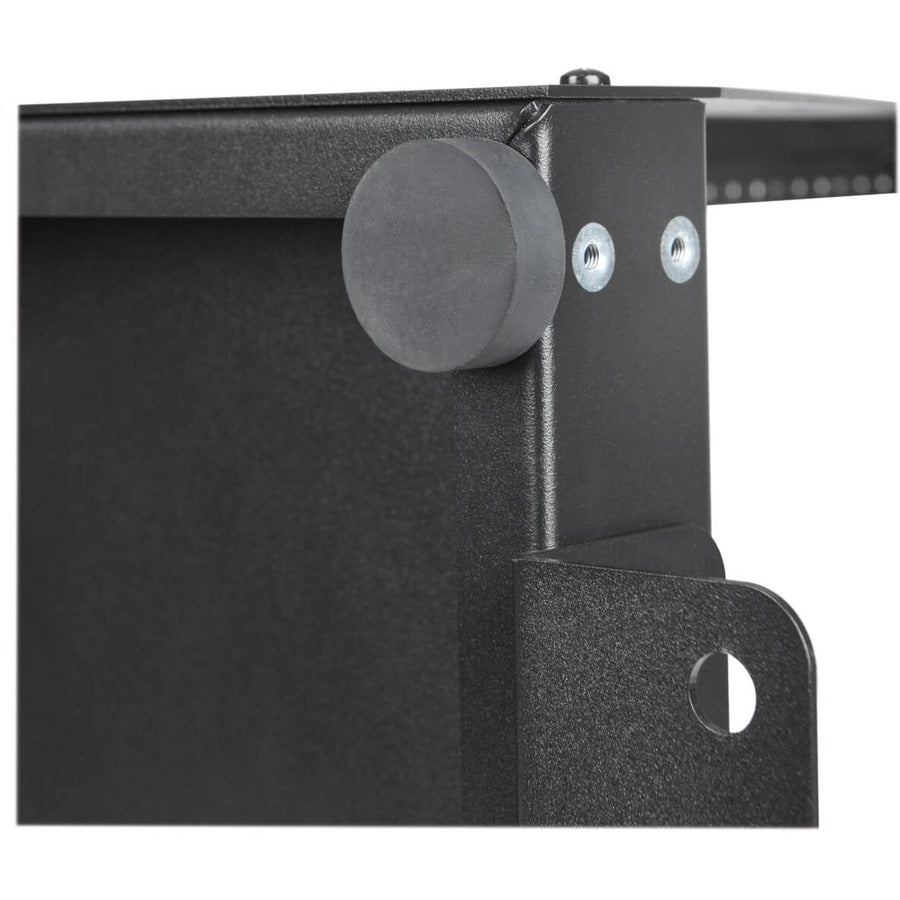

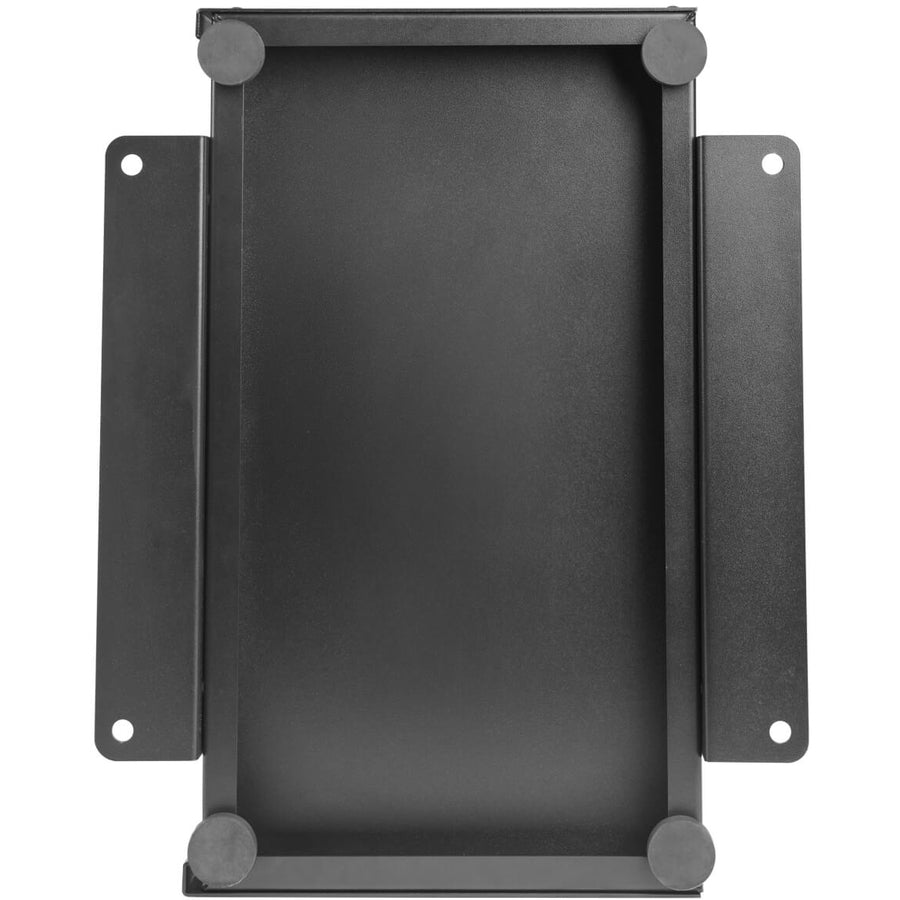

The special cantilever design allows the SR2POST12HD to house heavy equipment up to 12 inches (30.5 centimeters) deep without the risk of tipping over. Securement brackets and rubber feet are included for anchoring the rack to a flat surface with user-supplied hardware. The rack offers a small footprint and is able to fit almost anywhere in virtually any environment. You can position the open frame rack on any flat surface, including a floor, shelf or workbench.
Open Frame Design Allows Easy Access

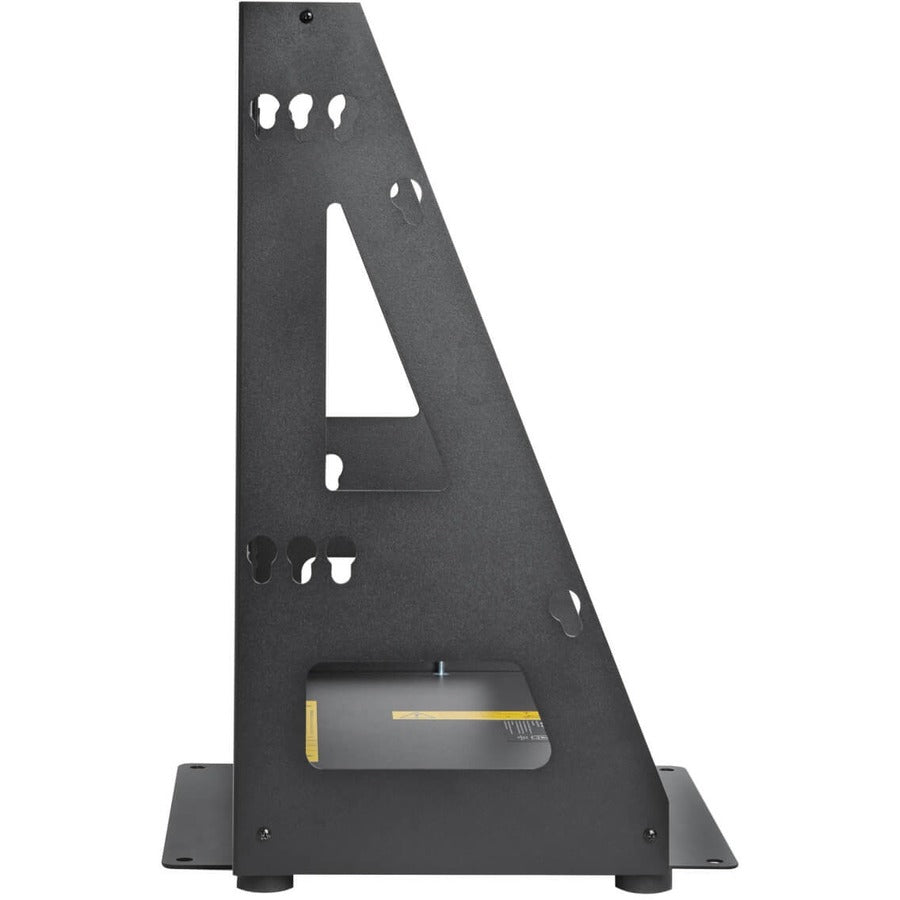

The SR2POST12HD gives you instant access to equipment and cabling in both the front and rear. Install equipment using the 12-24 threaded and numbered mounting positions. Keyhole slots on the sides accept toolless 0U mounting of PDUs and cable managers.
- Environmentally Friendly : Yes
- Rack Width : 19" (482.60 mm)
- Rack Type : Open Frame
- Product Color : Black Powder Coat
- Static/Stationary Weight Capacity : 159 kg
- Limited Warranty : 5 Year
- Product Material : Steel
- Form Factor : Floor Standing
- Package Contents :
- SmartRack Heavy-Duty 12U 2-Post Open Frame Rack
- 2 x Upright Brackets
- Support Bar
- 2 x Securement Brackets
- 16 x M5 x 12 mm Screws
- 4 x Rubber Feet
- Installation Guide
- Product Type : Rack Frame
- Assembly Required : Yes
- Rack Depth : 12.01" (305 mm)
- Application/Usage : Server,PDU,UPS,Networking,Patch Panel
- Manufacturer : Tripp Lite by Eaton
- Product Model : SR2POST12HD
- Rack Post Quantity : 2
- Features : Heavy Duty
- Rack Height : 12U
- Country of Origin : China
- Product Line : SmartRack
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Other
