Description
Rack Cabinet/Cooling Unit Combo with a Convenient Space-Saving Design

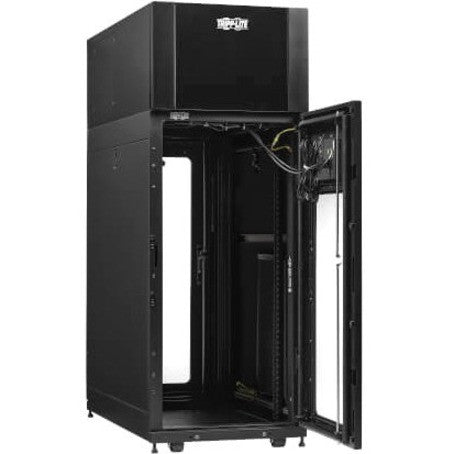

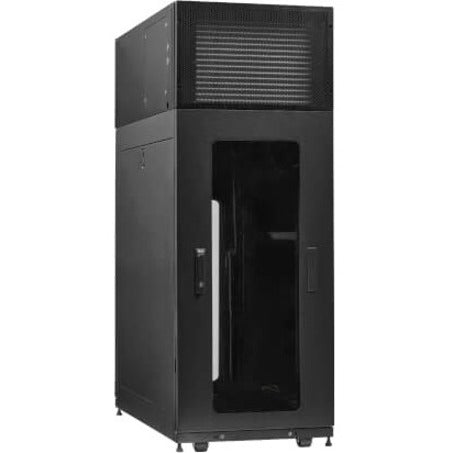

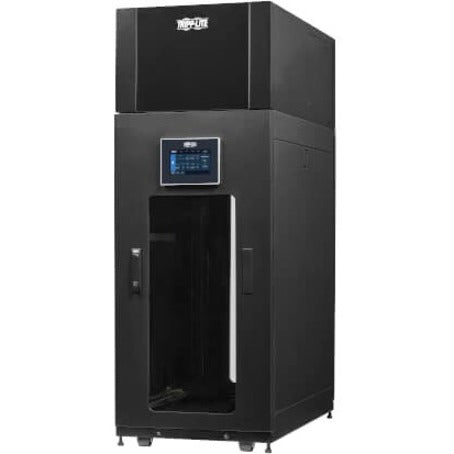

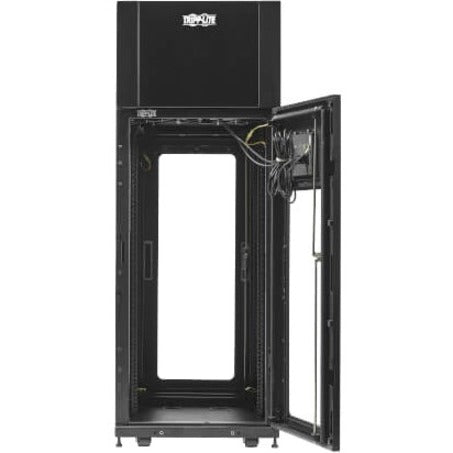

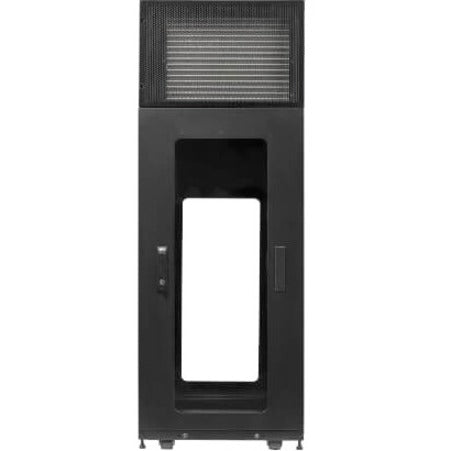

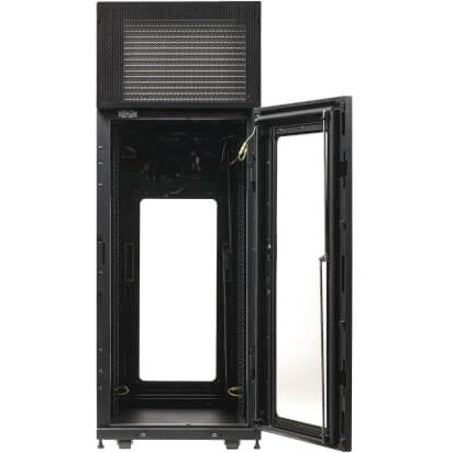

The SmartRack® SRCOOL3KTP33U combines the SR33UBAC Standard-Depth Rack Enclosure Cabinet and the SRCOOL3KTP Top-of-Rack Precision Cooling Air Conditioner into one convenient plug-and-play platform. It is an ideal bundle for tight-fitting edge micro data centers and other mission-critical IT applications, including retail and commercial outlets (storefronts and branch offices), light industrial environments (factories and warehouses) and research/development locations (laboratories and workshops).
Standard-Depth 33U Server Cabinet Accommodates 19 in. Rack Equipment
This SR33UBAC rack enclosure is constructed from heavy-duty steel with a durable black powder-coated finish. The EIA-compliant rack has a maximum stationary load capacity of 3000 pounds (1363 kilograms) and a maximum rolling load capacity of 2250 pounds (1022 kilograms).
12,000 BTU Cooling Capacity Protects Your Equipment and Prevents Expensive Downtime
The top of the rack is left open to accommodate the SRCOOL3KTP air conditioner. It delivers 3.5kW (12,000 BTU) of cooling to your equipment to help prevent sudden shutdowns, malfunctions and other failures caused by overheating or fluctuating temperatures. The self-contained close-coupled cooling unit mounts on top of the enclosure to save valuable rack space and floor space. Top installation allows cold air to flow downward and heat to rise naturally. The rack is specially outfitted with sealing panels to prevent loss of airflow.
Rack AC Unit Focuses Cold Air Where It's Most Needed

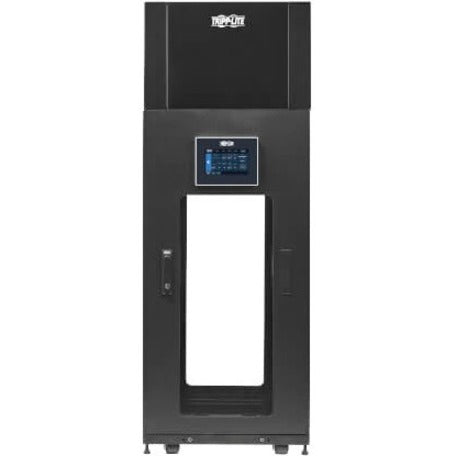

The low-maintenance SRCOOL3KTP requires no HVAC specialist to install. It uses environmentally friendly R410A refrigerant to focus cold air directly into the rack to efficiently cool equipment. Variable fan speed adjusts the cooling output to the need of the IT load to prevent on/off cycling and large temperature swings. An included color touchscreen LCD allows convenient status monitoring and diagnostics right at your fingertips.
Built-In Evaporator Expels the Condensed Water Through the Exhaust Duct
The evaporator expels water through the exhaust duct, which means no costly plumbing connections or water tanks to empty. No external condenser or refrigerant piping is required for operation. Internal leak detection automatically turns off the cooling system to prevent condensate from entering the rack.
Commercial-Grade Components for Reliable Performance
With a 100-percent duty cycle, the SRCOOL3KTP can run continuously without costly downtime. It uses copper tubing that is stronger than the aluminum tubing used in most consumer cooling units. The copper allows higher pressures and better weld joints to stand up to the constant vibration of the running compressor.
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Other
- Environmentally Friendly : Yes
- Rack Type : Enclosed Cabinet
- Product Color : Black Powder Coat
- Static/Stationary Weight Capacity : 1360.78 kg
- Limited Warranty : 2 Year
- Product Material : Steel,Plexiglas,Copper
- Form Factor : Rack-mountable
- Package Contents :
- SRCOOL3KTP Top-of-Rack Precision Cooling Air Conditioner
- SR33UBAC 33U Server Rack
- 2x Doors with Plexiglas window
- 2x Side Panels
- 2x Side Panel Locks
- 2x Keys
- 50x M6 Screws
- 50x M6 Washers
- 50x M6 Cage Nuts
- Touchscreen LCD and Necessary Cabling
- Rack-Mounting Hardware
- Owner's Manuals
- Product Type : Rack Cabinet
- Assembly Required : No
- Dynamic/Rolling Weight Capacity : 1020.58 kg
- Application/Usage : Data Center
- Manufacturer : Tripp Lite by Eaton
- Product Model : SRCOOL3KTP25U
- Features : Air Conditioner,Heavy Duty,Reversible Front Door,Reversible Rear Door,Removable Side Panel,Side Panel Key Lock,Casters,Adjustable Leveling Feet,Dual Mounting Rails,Quick Release Side Panel,Cable Management
- Rack Height : 33U
- Product Line : SmartRack
