Description

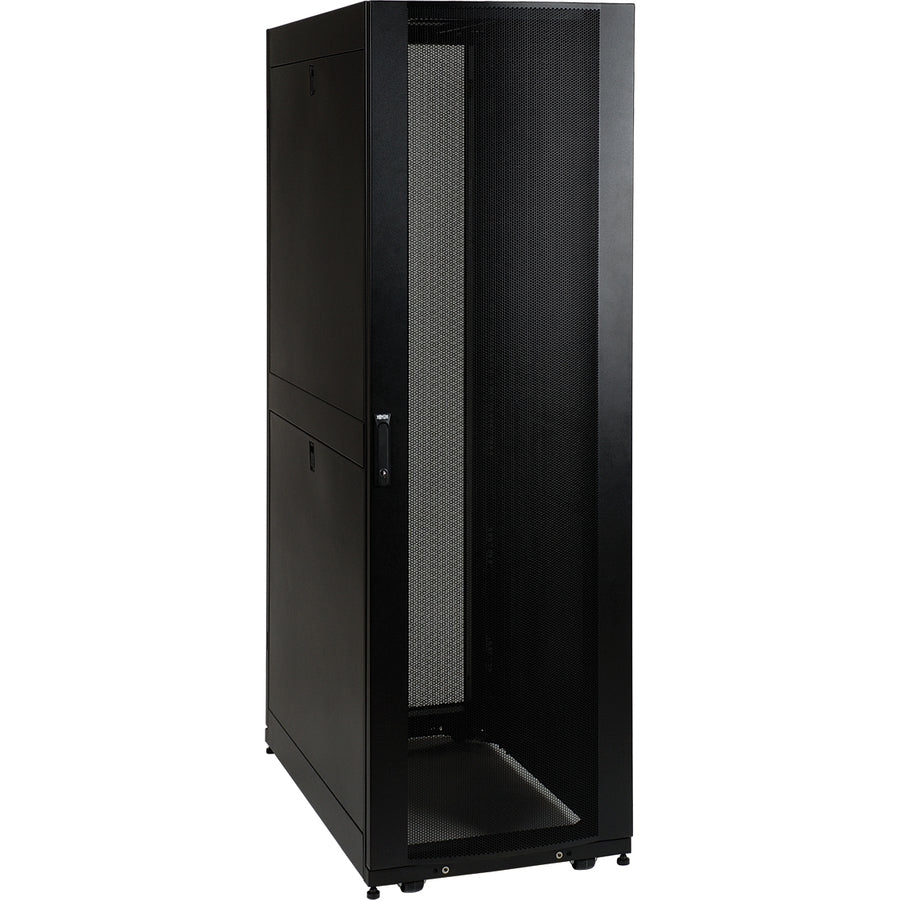

45U SmartRack Enclosure ships mounted on a special pallet that features additional reinforcement and shock-absorbing material. The pallet's protective cushion safeguards the enclosure and the precision components it contains during re-shipping. Reinforced pallets and reusable packaging provide the flexibility to fully configure rack enclosures in a centralized location and safely re-ship them to remote sites, saving significant service costs. They also allow the freedom to custom-configure enclosures with network and server hardware along with UPS systems, PDUs, KVM switches and a variety of other devices prior to final installation. At the desired location the SR45UBSP1 can be easily maneuvered with its preinstalled casters and can be secured by adjusting the preinstalled levelers.
The SR45UBSP1 houses 3000lbs of standard 19-inch rack equipment in 45U. Its front and rear pairs of vertical rails have square mounting holes that are adjustable in quarter-inch increments from 4 to 45 inches. Adjustment is quick and an easy-view depth index ensures consistent rail placement without requiring time-consuming measurements. Each rack space within the enclosure is numbered for ready reference.
Two of the adjustable vertical mounting rails support toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This feature makes it easier to route cabling to rack equipment and reduces cord clutter.

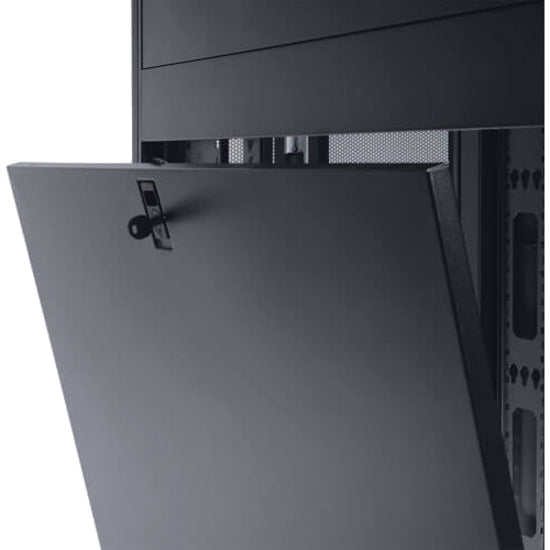

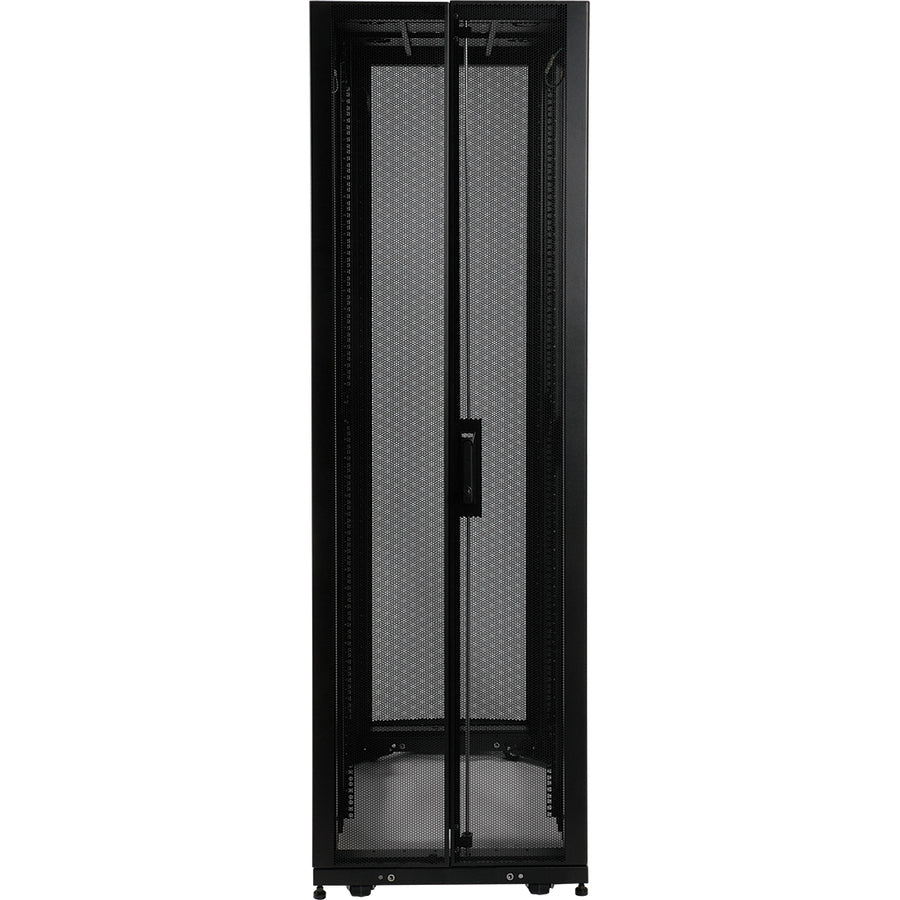

With its locking, reversible, removable front and rear doors, and locking, removable side panels, the SR45UBUSP1 provides ultimate equipment safety. The side panels are half size for ease of removal and reinstallation. The split rear door design allows the enclosure to be placed closer to a wall. The SR45UBSP1 meets all requirements toward PCI DSS compliance.
The top panel of the SR45UBSP1 is vented to help remove warm air from the enclosure and draw in cool air by convection. the top panel includes ports for cable routing, and can be quickly removed without tools. The facilitate cable access, the SR45UBSP1 is open-bottom.

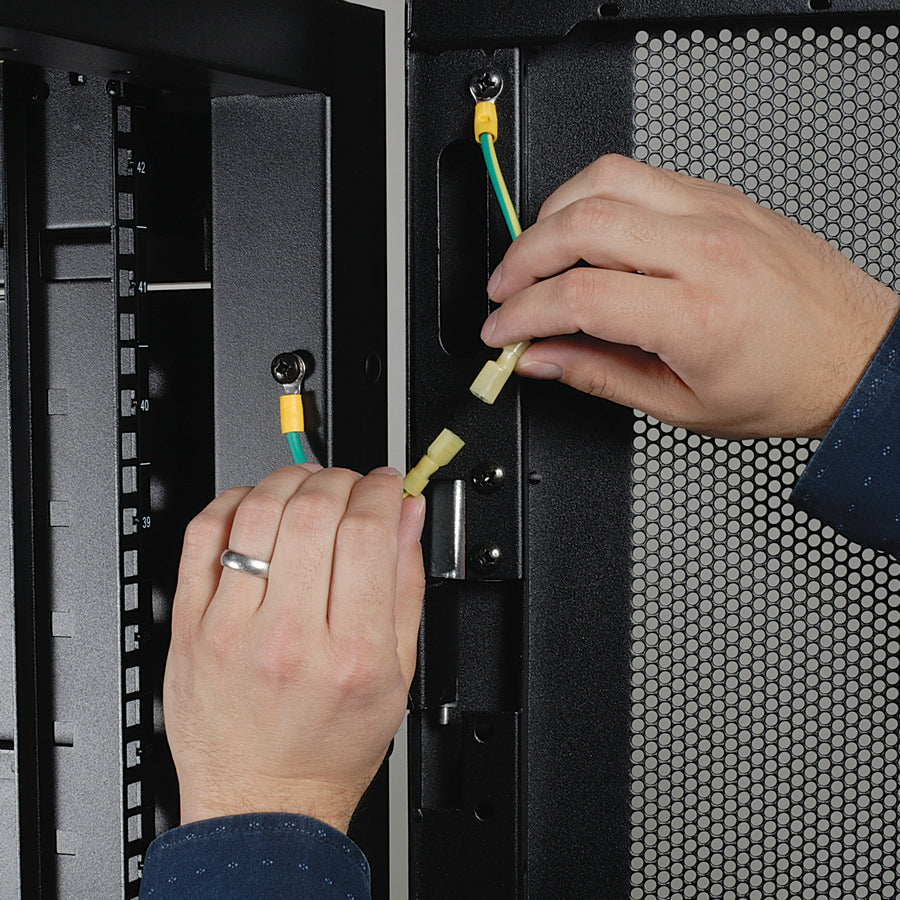

All components of the SR45UBSP1 are grounded to the enclosure frame. Front and rear threaded grounding points are provided for connection to the facility earth ground. The removable front and rear doors feature quick-release ground wires.
The SR45UBSP1 comes with a 5-year product warranty. As part of the SmartRack family it is compatible with Tripp Lite's extensive range of rackmount accessories, enabling you to customize your solution to meet any requirements.
- Locking, removable side panels keyed alike with doors
- Locking, removable, reversible front and rear doors
- 3000 lb stationary / 2250 lb rolling load capacity
- Massive front to rear ventilation capacity
- 4 interior vertical posts with unthreaded square hole openings

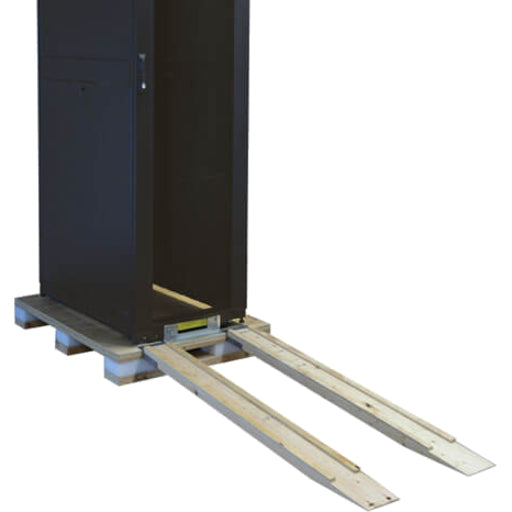

- Ships fully assembled on shock pallet with loading ramps
- Standard 24" (600mm) width and 42" (1050mm) depth for optimizing floor space
- 45U SmartRack enclosure with doors and side panels
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Rack Width : 19" (482.60 mm)
- Product Color : Black
- Static/Stationary Weight Capacity : 1360.78 kg
- Limited Warranty : 5 Year
- Package Contents :
- SmartRack SR45UBSP1 Rack Cabinet
- Owner's Manual
- 50 x M6 Screws
- 50 x M6 Washers
- 50 x M6 Cage Nuts
- 4 x Side Panels
- 4 x Side Panel Locks
- 2 x Door and Side Panel Keys

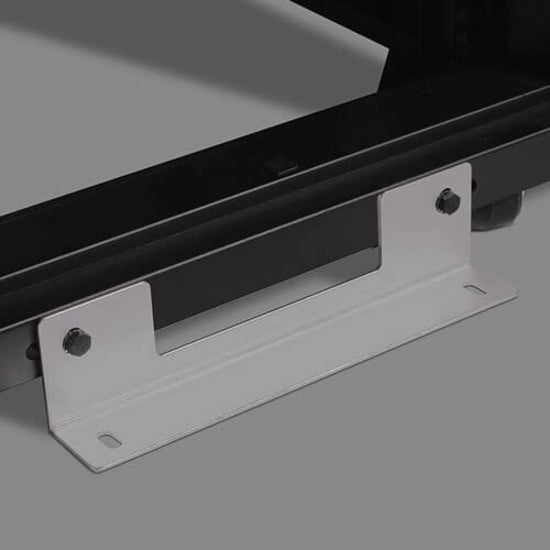

- Stabilizing Bracket
- Mounting Hardware
- Product Type : Rack Cabinet
- Assembly Required : No
- Dynamic/Rolling Weight Capacity : 1020.58 kg
- Manufacturer : Tripp Lite by Eaton
- Product Model : SR45UBSP1
- Rack Height : 45U
- Country of Origin : China
- Product Line : SmartRack
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Black
