Description

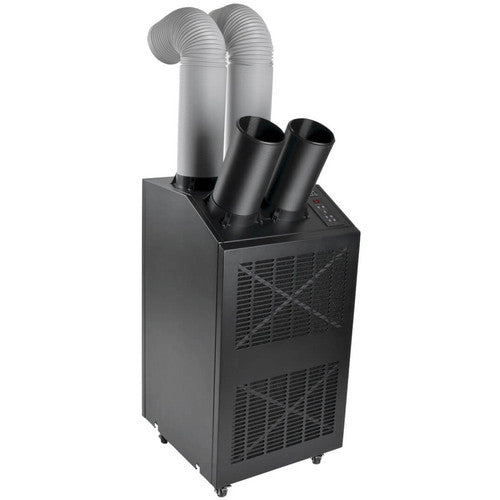

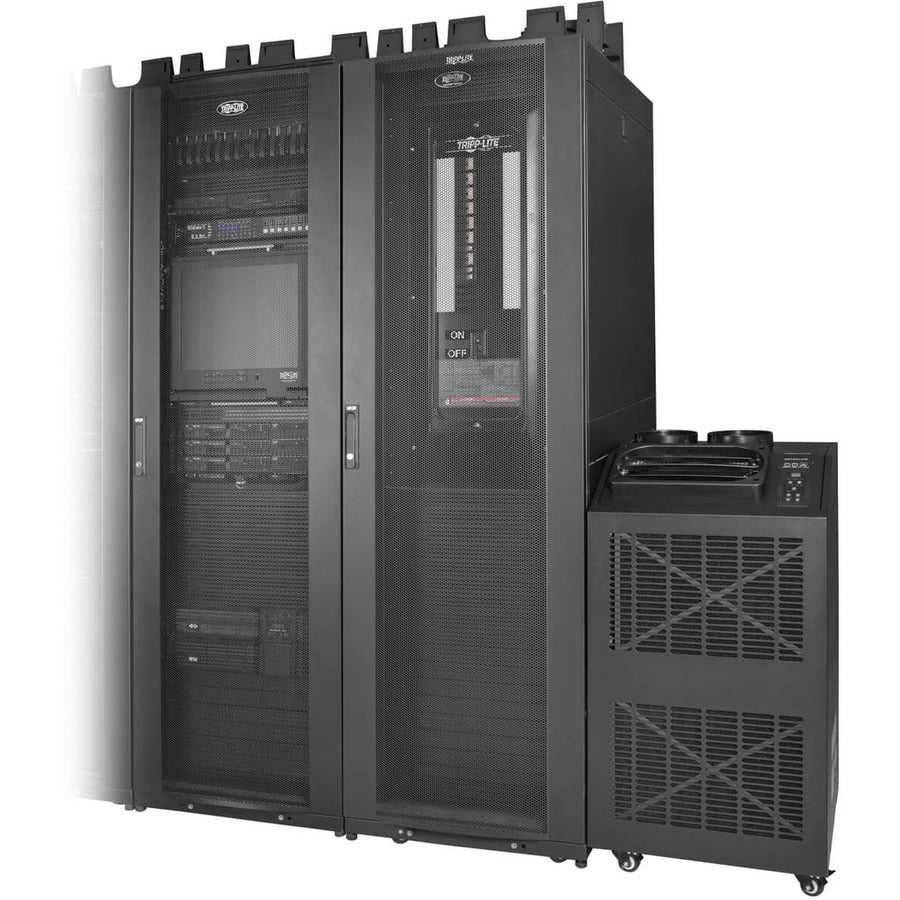

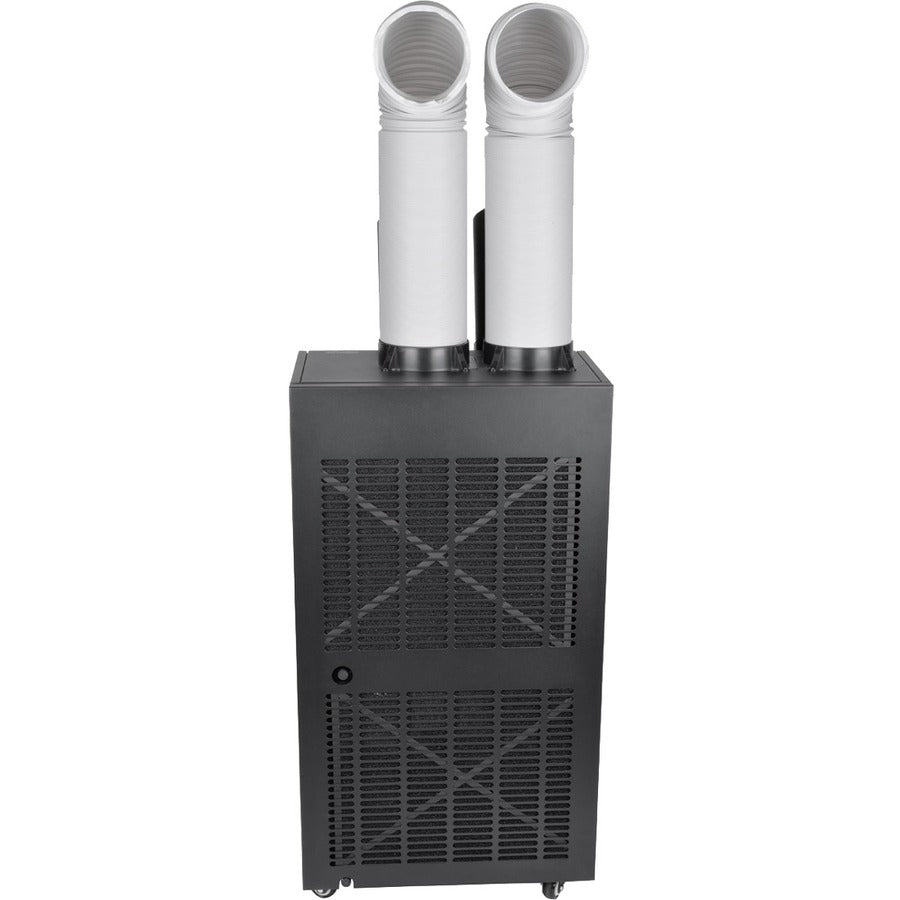

The SRCOOL24K SmartRack 24,000 BTU 208/240V Portable Rack Air Conditioner cools, dehumidifies and filters the air in your server room, data center or other environment with heat-sensitive equipment. The compact, portable unit fits into just 4 square feet of floor space. It is designed for primary, supplemental or backup cooling of IT equipment to prevent shutdowns, malfunctions and costly downtime caused by overheating or fluctuating temperatures.
The self-contained SRCOOL24K packs 24,000 BTU/h (7kW) of cooling capacity into a rack-width chassis. A built-in evaporator expels condensation through a directional exhaust duct, eliminating the need for a floor drain or water collection tank. The SRCOOL24K also dehumidifies and filters the air, providing better air quality that can enhance equipment performance. Efficient close-coupled cooling reduces energy use and operating costs.
Installation is quick and easy and does not require disruptive construction or the costly expense of hiring a plumber or HVAC specialist. The unit rolls into place on durable built-in casters. The NEMA L6-20P plug connects to a standard 208/240V 20A outlet. The SRCOOL24K restarts automatically after power failures, and a built-in timer supports unattended shutdown and startup.

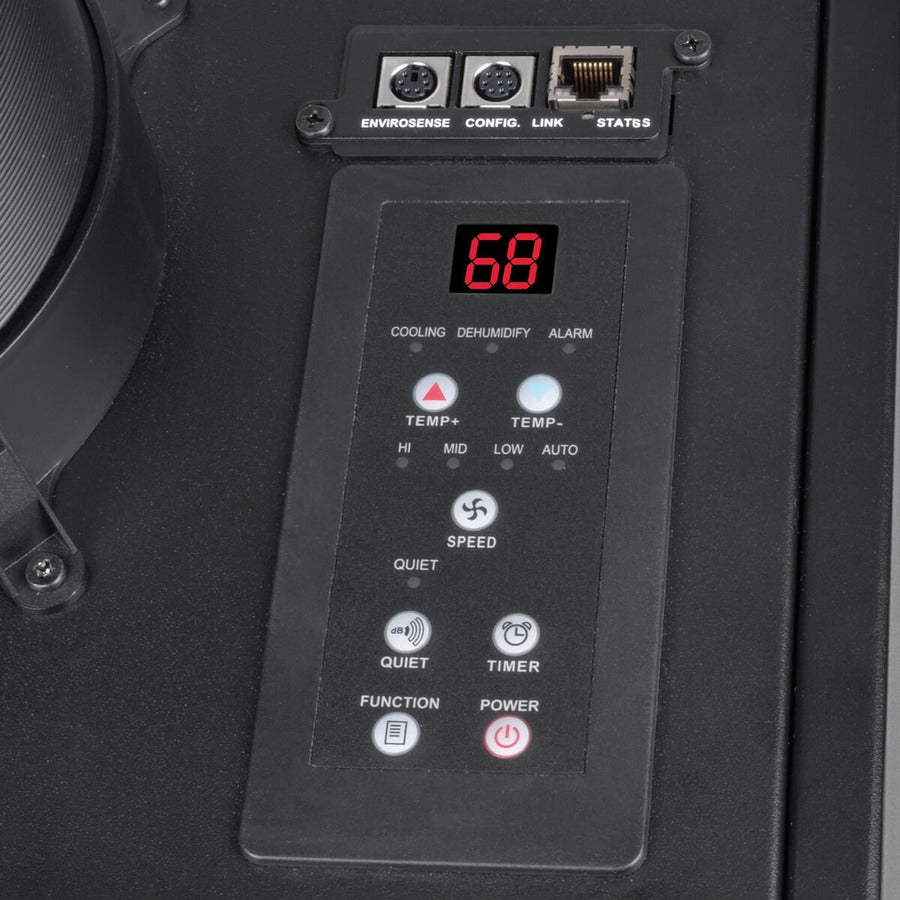

The included SRCOOLNET2LX network management card lets you monitor temperatures, receive alerts, review logs, automate operation and control settings from anywhere via SNMP, web browser, SSH or telnet. The SRCOOLNET2LX includes the ENVIROSENSE remote sensor, which lets you monitor temperature and humidity up to 12 feet away from the SRCOOL24K.
- Supports network management via preinstalled SRCOOLNET2

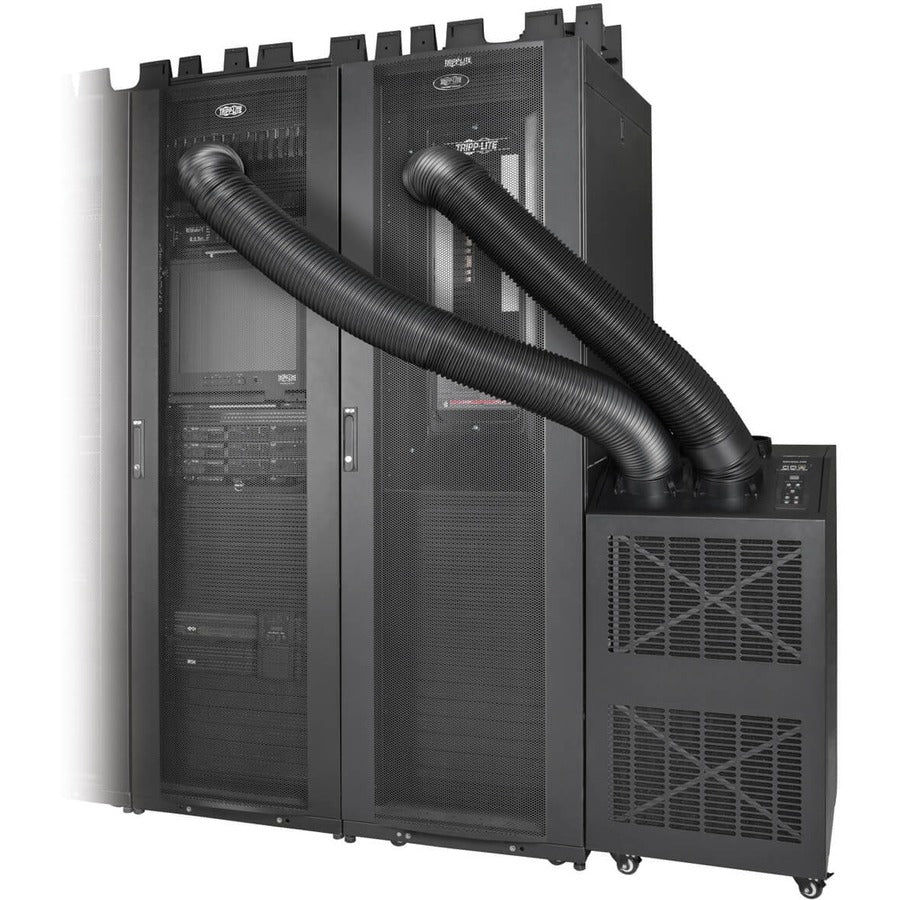

- Directs cooling through adjustable louvers or ducts
- Restarts automatically after power failures

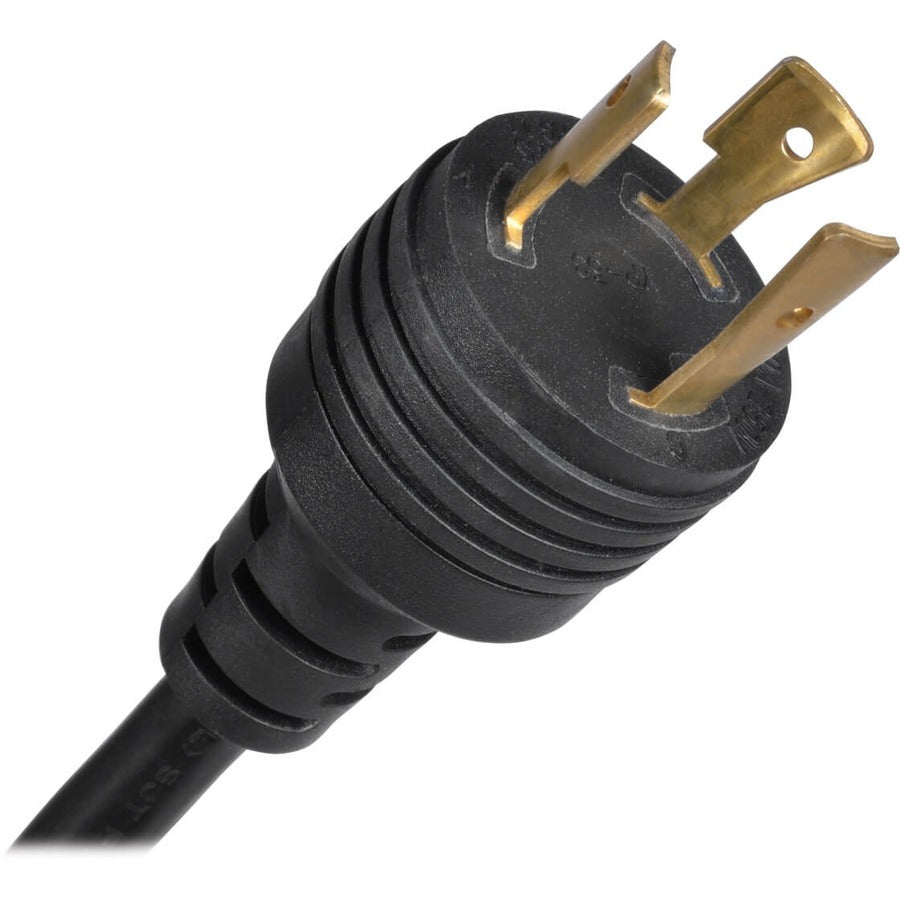

- NEMA L6-20P plug connects to standard 208/240V 20A outlet
- 24,000 BTU/h (7 kW) of cooling capacity in 2 x 2 ft. footprint
- Environmentally Friendly : Yes
- Refrigerant : R-410A
- Dehumidification Rate : 946.7 mL/min
- Input Current (Cooling) : 13.50 A
- Product Color : Black
- Input Voltage : 230 V AC
- Limited Warranty : 1 Year
- Cooling Capacity : 24000 BTU/h
- Dehumidifier : Yes
- Product Functions : Cooler
- Product Material : ABS
- Package Contents :
- SmartRack SRCOOL24K Portable Air Conditioner
- 2 x Gray Exhaust Ducts
- 2 x Black Cooling Ducts
- 2 x Exhaust Duct Adapters
- 2 x Adjustable Exhaust Panels
- 4 x Self-tapping Screws
- Dual Cooling Duct Adapter
- Louvered Vent Insert(Preinstalled)
- 2 x Drainage Plugs(Preinstalled)
- ENVIROSENSE Environmental Sensor
- SNMP Configuration Cable
- Owner's Manual
- Hourly Energy Consumption for Cooling : 2.56 kW
- Product Type : Portable Air Conditioner
- Manufacturer : Tripp Lite by Eaton
- Product Model : SRCOOL24K
- Features : Auto Restart
- Country of Origin : China
- Maximum Air Flow : 30.8 m�/min
- Product Line : SmartRack
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Black
