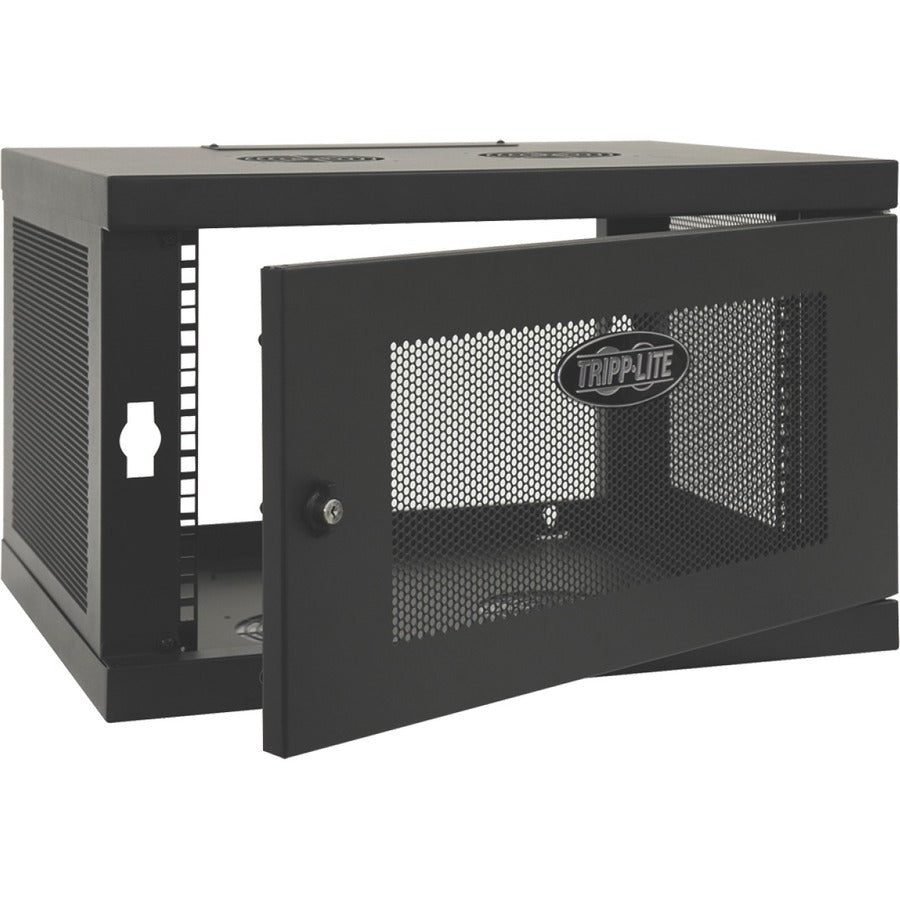

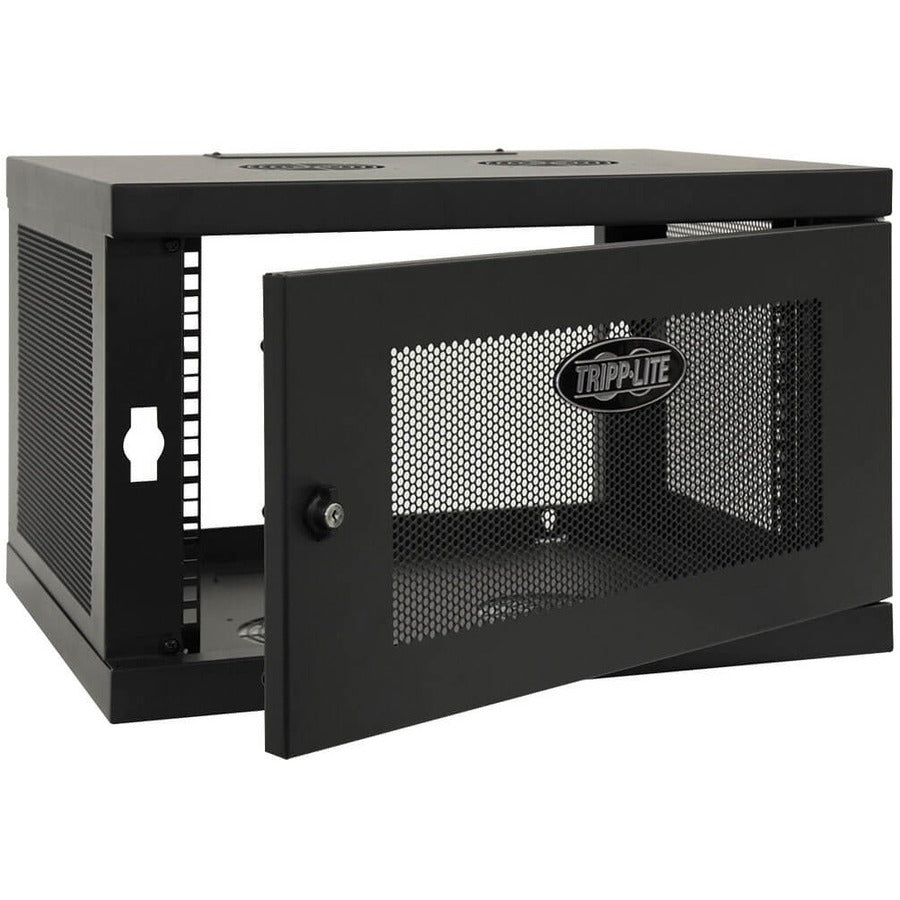

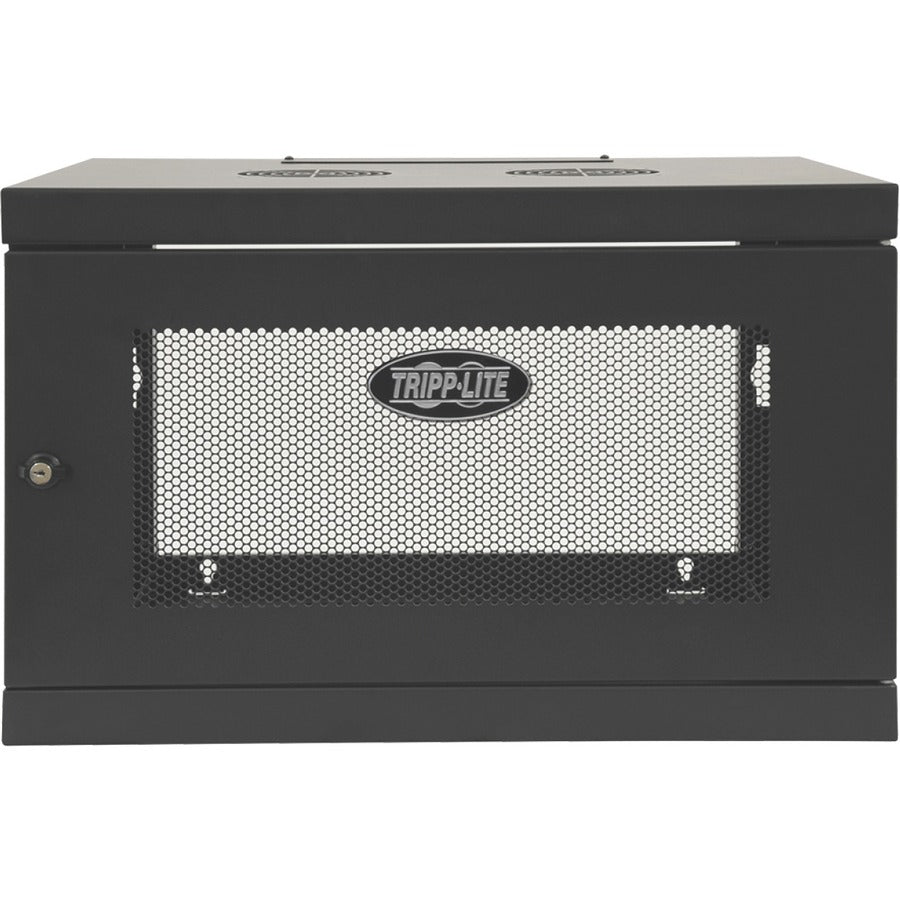

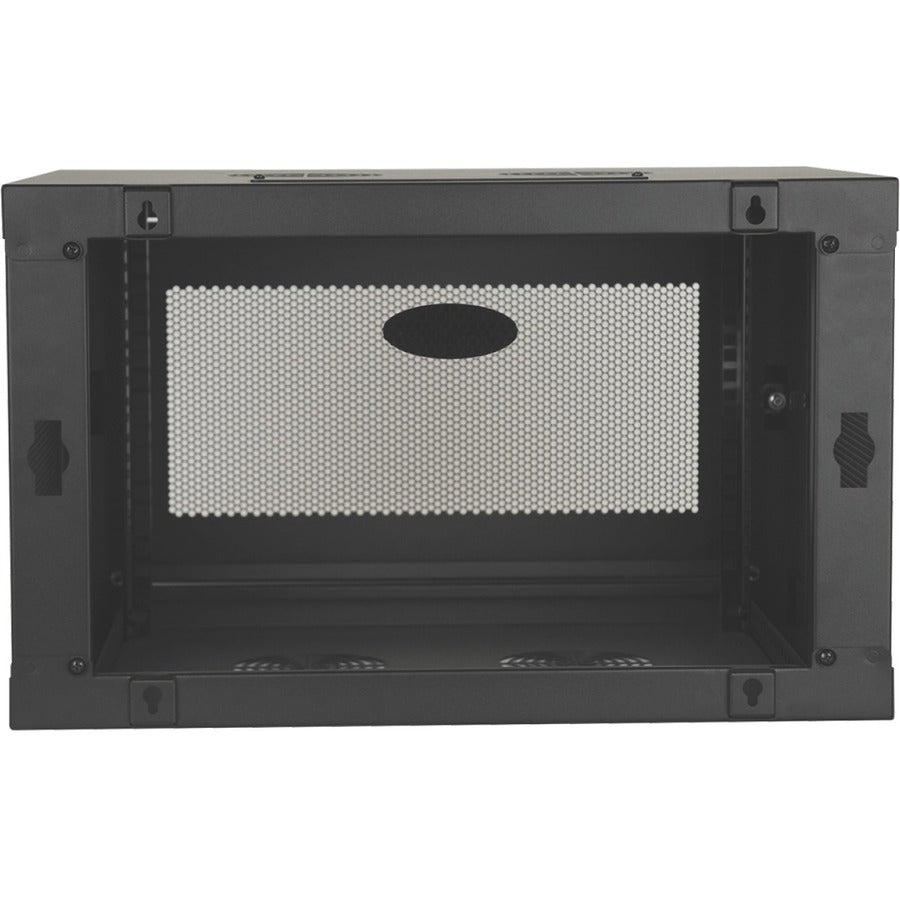

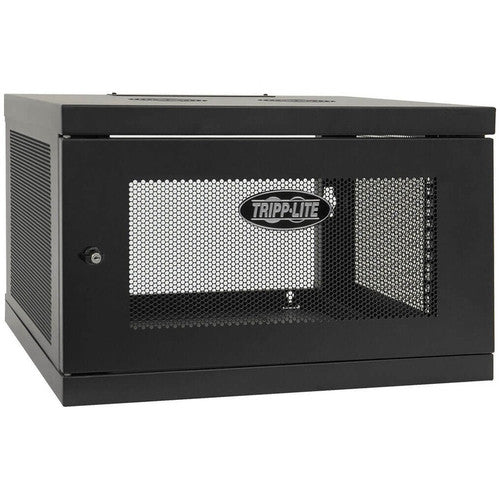

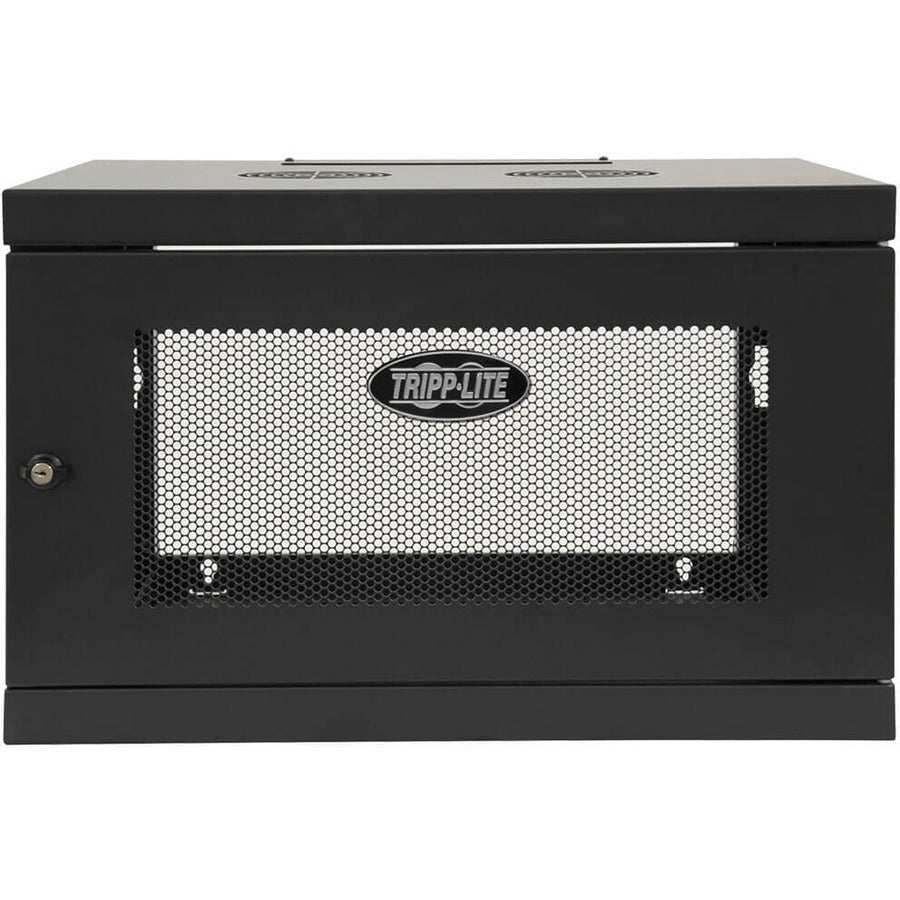

Description
The SRW6UKD SmartRack® 6U Low-Profile Switch-Depth Knock-Down Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.
The front door locks securely to help prevent damage, tampering and theft. The front, top, bottom and side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can be installed to open left or right. Convenient top and bottom ports allow easy cable routing.

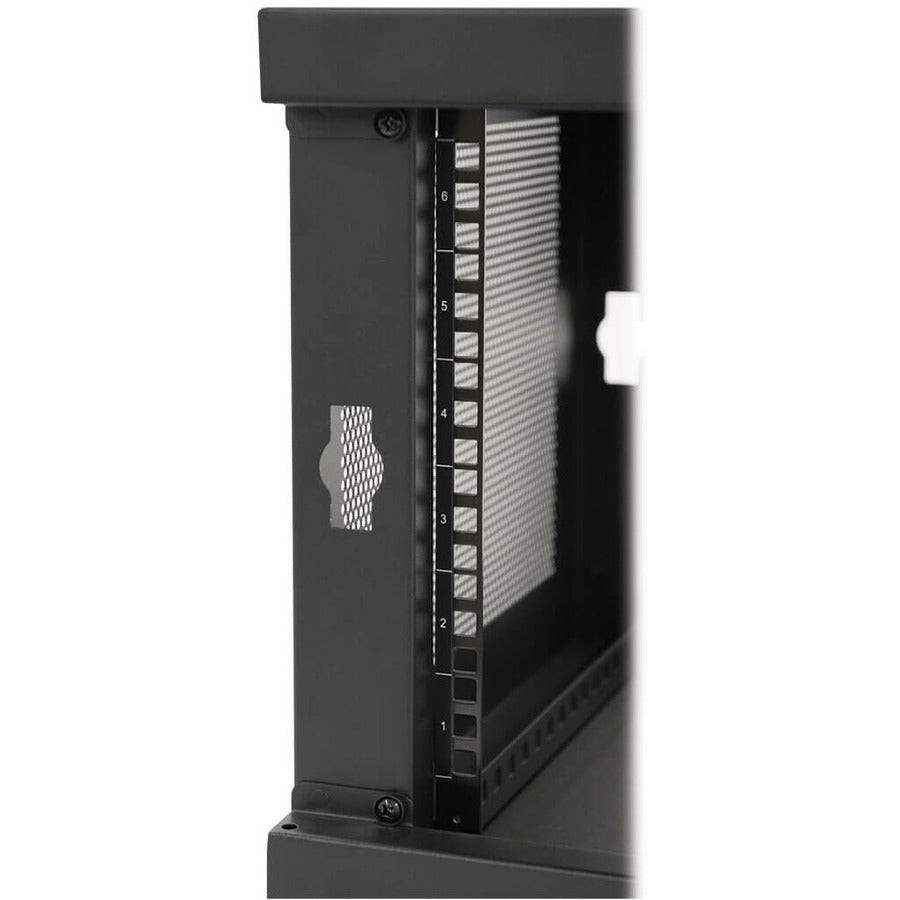

The SRW6UKD comes unassembled for convenient transport and storage in confined spaces. It easily assembles in minutes using just 12 fasteners, and mounts to the wall to save valuable floor space. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
- Environmentally Friendly : Yes
- Rack Width : 19" (482.60 mm)
- Product Color : Black Powder Coat
- Static/Stationary Weight Capacity : 90.72 kg
- Maximum Weight Capacity : 90.72 kg
- Limited Warranty : 5 Year
- Product Material : Steel
- Form Factor : Wall Mountable
- Package Contents :
- SmartRack SRW6UKD Rack Cabinet
- Owner's Manual
- Assembly Hardware
- 2 x Top/bottom Panels
- 2 x Side
- Equipment Mounting Hardware
- 12 x 12-24 Screws
- 12 x M6 Cage Nuts
- 12 x M6 Sup Washers
- Product Type : Rack Cabinet
- Assembly Required : Yes
- Rack Depth : 16.50" (419.10 mm)
- Application/Usage : LAN Switch,Patch Panel
- Manufacturer : Tripp Lite by Eaton
- Product Model : SRW6UKD
- Features : Cable Management
- Rack Height : 6U
- Country of Origin : China
- Product Line : SmartRack
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Other
