Description

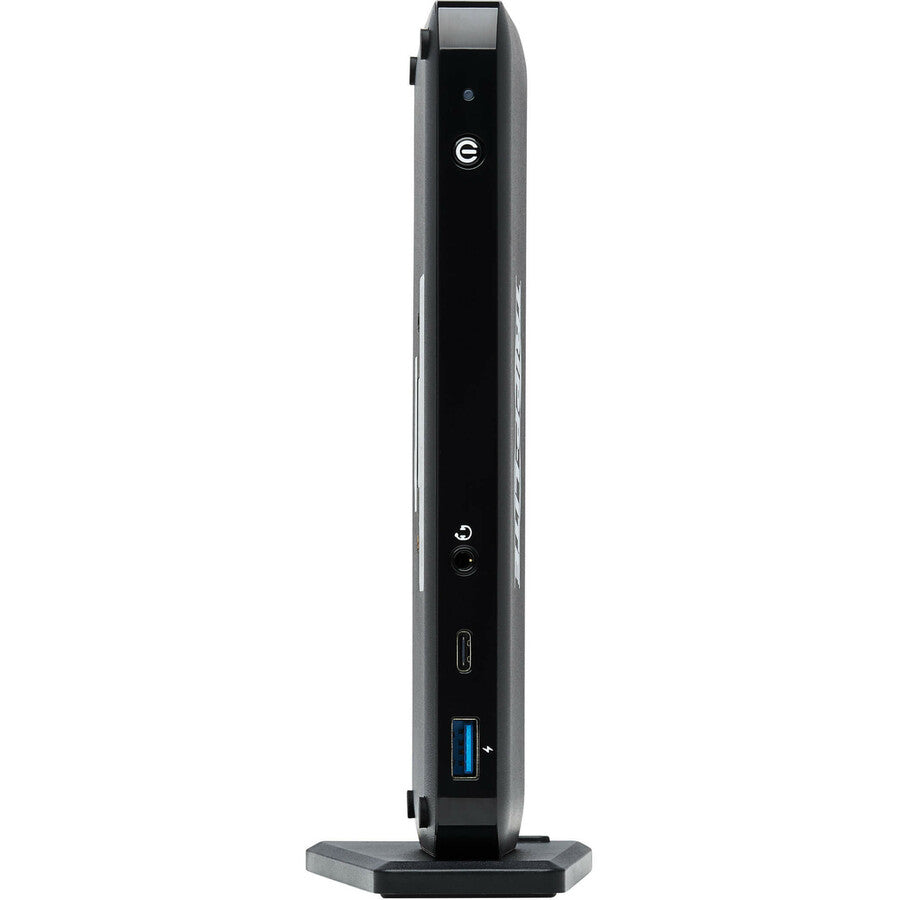

USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into 10 New Ports
This universal USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, MacBook Pro, smartphone or PC's USB-C or Thunderbolt 3 port. Connect the dock using the included USB-C cable, and add 10 ports to your device:
- 4K HDMI
- (2x) 4K DisplayPort
- RJ45 Gigabit Ethernet
- USB 3.2 Gen 2 Type-C
- (3x) USB 3.2 Gen 2 Type-A
- USB-C PD charging
- 3.5 mm mini stereo
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the included USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.
Transmits Crystal-Clear 4K Video and Digital Audio with 4:4:4 Color
The DisplayPort and HDMI outputs support single-monitor 4K resolutions up to 3840 x 2160 at 60 Hz with 2.1-channel surround sound. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This dock also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Various DisplayPort Versions Allow Connection of Multiple Displays
By connecting the detachable USB-C cable to a source that supports DisplayPort 1.2 HBR2, DisplayPort 1.4 HBR3 or DisplayPort 1.4 HBR3 with DSC support, you may connect up to three displays simultaneously. This allows you to display the same image on all monitors, extend your host desktop across all with different windows open on each, or combine all into one large display as a video wall. Note: See Cable Matrix in the included Owner's Manual (also downloadable in PDF format from this page) for more information.
USB 3.2 Gen 2 Ports Connect Keyboards, Thumb Drives and Other Peripherals
Three USB-A ports and one USB-C port accept USB peripherals, such as flash drives, RAID storage, mice and keyboards. All four ports support USB 3.2 Gen 2 data transfer rates up to 10 Gbps and are backward compatible with previous USB generations. One USB-A port also supports 5V 1.5A (7.5W) of power dedicated to fast-charging your mobile device. Note: Host device must support USB OTG (On-the-Go).
PD Charging Port Charges the Connected Notebook, Tablet or Other Device
A second USB-C port supports Power Delivery (PD) 3.0 charging of connected PD Charging-compliant devices, such as laptops, Kindles, iPads and Android smartphones. Connect the source device to the USB-C PD port, which supports power input up to 20V 4.25A (85W). Note: USB-C PD does not support Quick Charge (QC).
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.

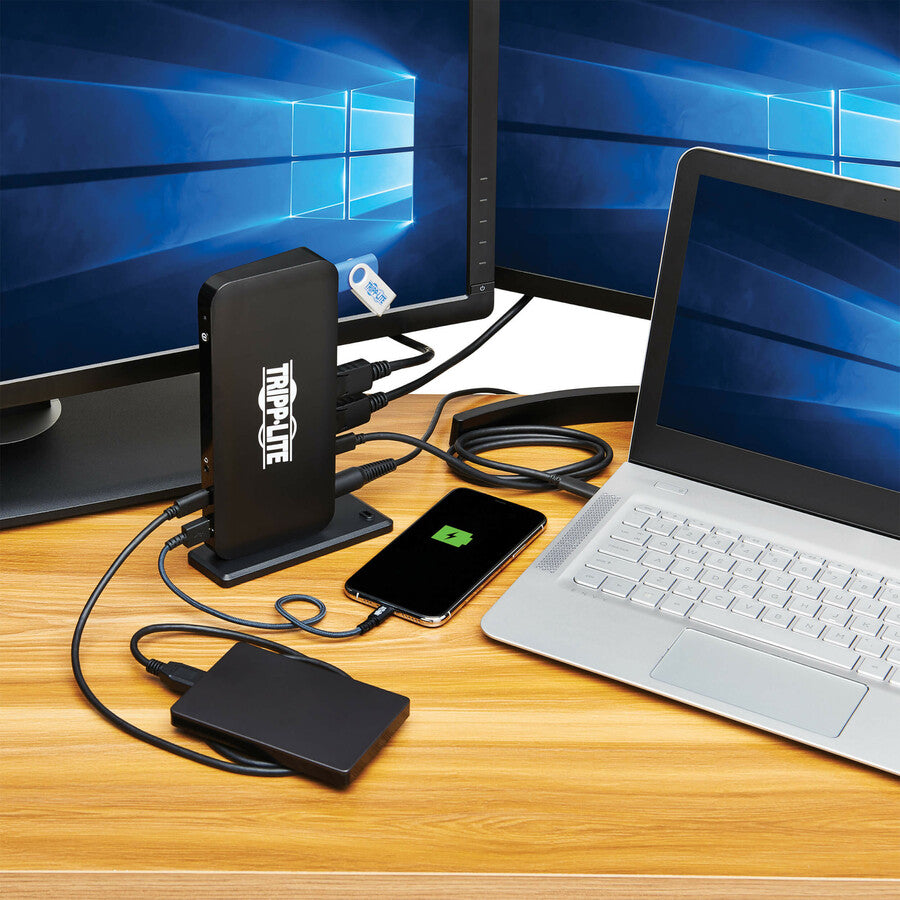

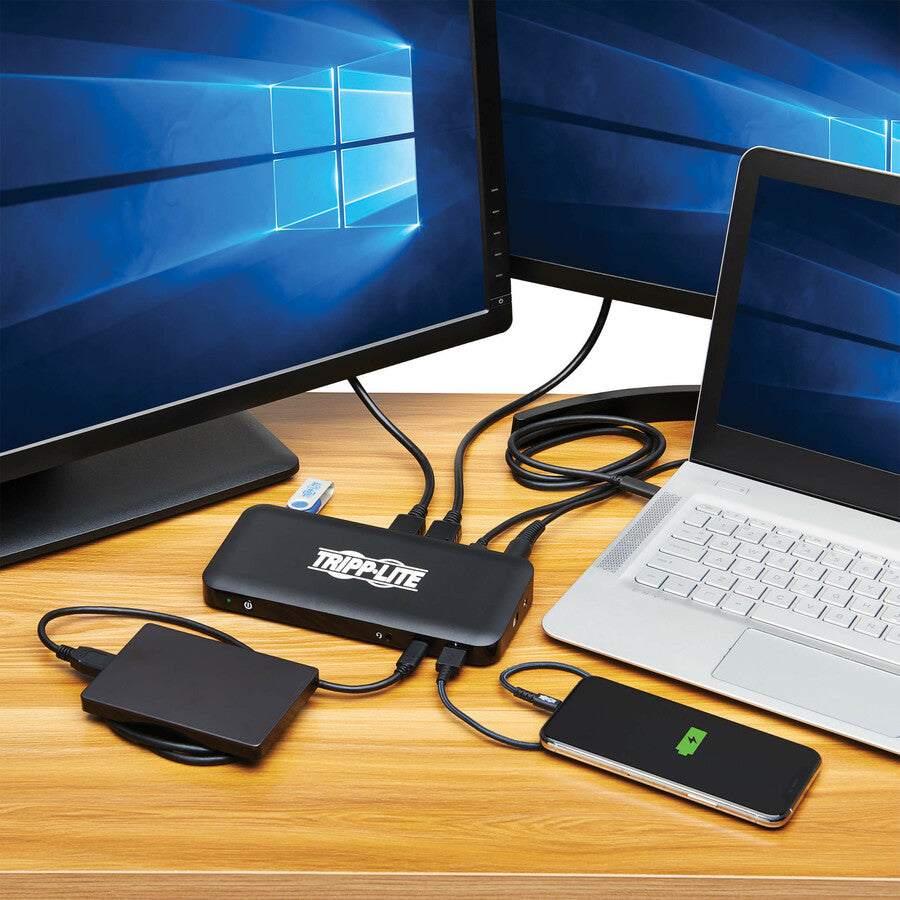

- 10-port USB-C docking station lets you mirror or extend video from your MacBook Pro or Windows laptop across as many as 3 different displays
- HDMI and DisplayPort outputs each support single-monitor 4K applications @ 60 Hz
- Extends 1080p desktop image across 3 screens @ 30 Hz and 2 screens @ 60 Hz
- Connects you to a wired 10/100/1000 Ethernet network when no Wi-Fi is available
- USB-C and USB-A hub ports allow connection of flash drives and other peripherals
- Power Delivery port supports 20V 4.25A (85W) power output for charging host device
- 3-year limited warranty
- Manufacturer Website Address : https://tripplite.eaton.com/
- Maximum Power Supply Wattage : 85 W
- Number of HDMI Outputs : 1
- Number of RJ-45 Ports : 1
- Device Supported : Notebook/Tablet/Smartphone/Monitor
- USB Type-C : Yes

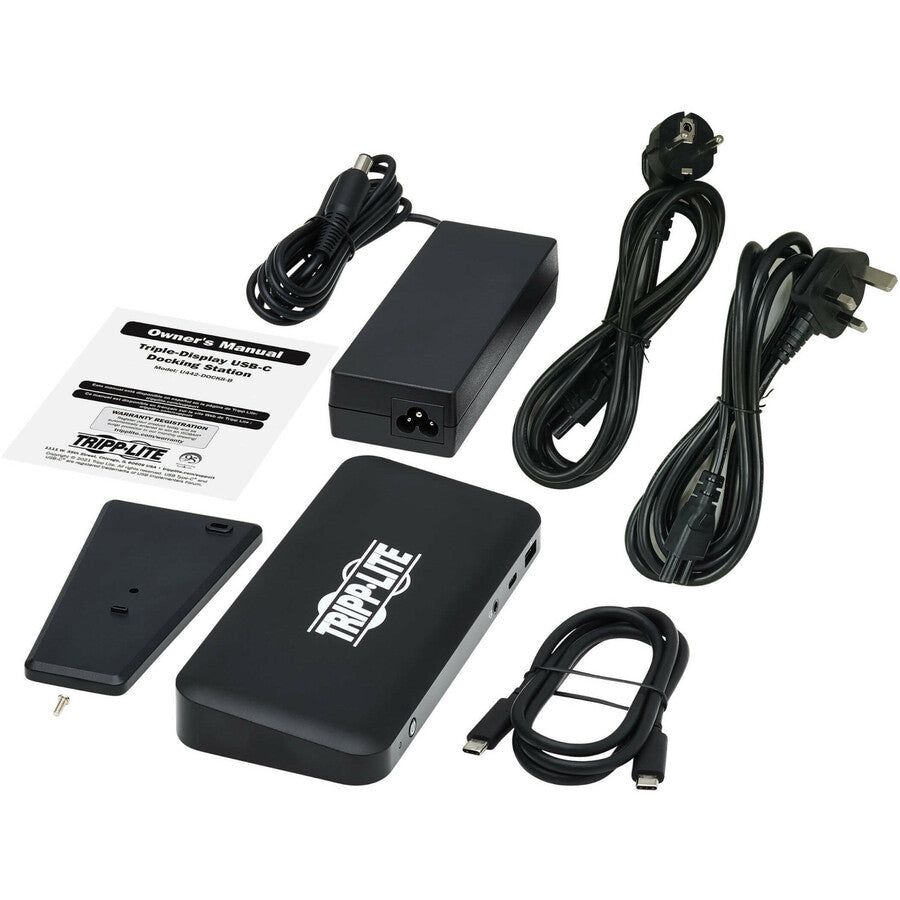

- Package Contents :
- U442-DOCK8-BINT Docking Station
- USB-C to USB-C cable, 1 m (3.3 ft.)
- External power supply (Input: 100�-240V, 50/60 Hz, 2A; Output: 20V 5A)
- 2 x International power adapters (BS 1363 U.K., CEE 7/7 Schuko EU)
- Owner's manual
- Operating System Supported : Windows
- HDMI Version : 2.0
- Screen Mode Supported : 4K,Full HD,HD
- DisplayPort : Yes
- USB Type-A : Yes
- Manufacturer : Tripp Lite by Eaton
- Product Model : U442-DOCK8-BINT
- Supported Resolutions : 1920 x 1080,1280 x 720,3840 x 2160
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Number of USB Type-A Ports : 2
- Number of Displays Supported : 3
- Number of DisplayPort Outputs : 2
- Product Color : Black
- Number of USB Type-C Ports : 2
- Limited Warranty : 3 Year
- DisplayPort Version : 1.4
- Headphone/Microphone Combo Port : Yes
- Network (RJ-45) : Yes
- Host Interface : USB Type C
- Product Type : Docking Station
- HDMI : Yes
- Compatibility :
- Laptops
- Kindles
- iPads
- Android smartphones
- Kensington Security Slot : Yes
- Connectivity Technology : Wired
