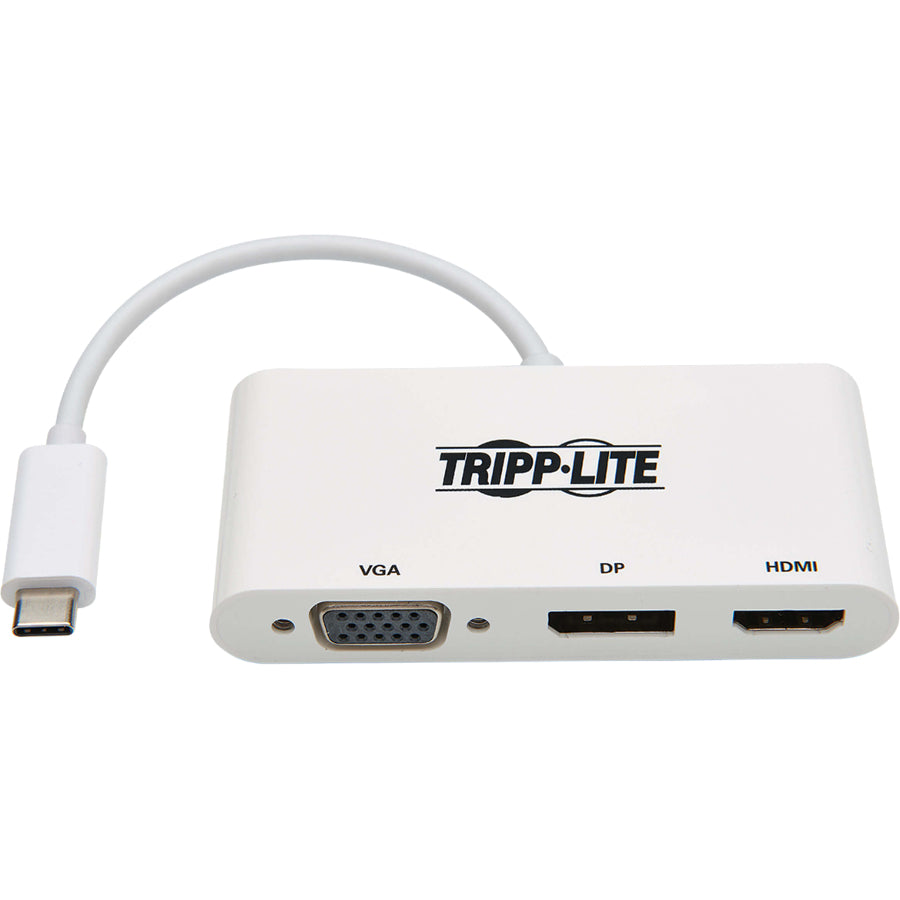

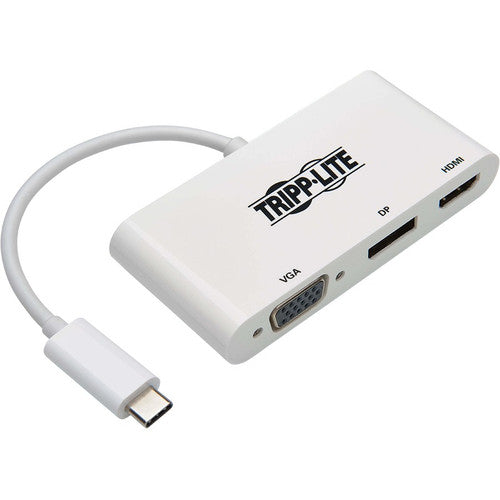

USB-C All-in-One Adapter Connects DisplayPort/HDMI/VGA Displays to Your USB-C Device

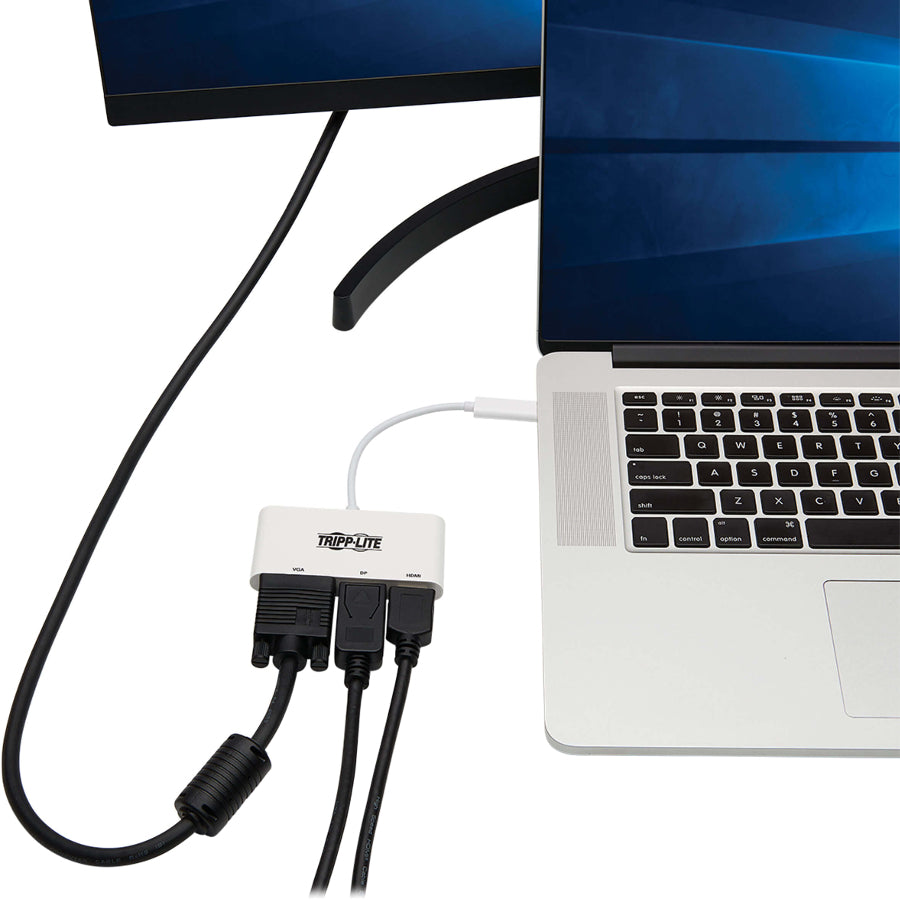

No more carrying around separate adapters to match various monitors, projectors and televisions. This USB-C all-in-one adapter connects the USB-C or Thunderbolt 3 port on your tablet, laptop, Chromebook, MacBook, smartphone or PC to a DisplayPort (DP), HDMI or VGA display-or all three at the same time. A simple all-in-one solution for displaying video content on a larger screen, the U444-06N-HVDPW is ideal for creating video walls, giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen, or streaming video for digital signage in crystal-clear 4K x 2K.
Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the built-in USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers. The U444-06N-HVDPW also supports DisplayPort MST (Multi-Stream Transport) mode, which allows you to show different video on each display, duplicate the same video on all displays, or combine all monitors into one large display.
Transmits Crystal-Clear 4K HDMI and DisplayPort Video and Digital Audio
To send digital audio and Ultra High Definition video to a 4K-ready HDMI and/or DP television, projector and/or monitor, connect the HDMI and DP ports to the displays with user-supplied cabling (such as Tripp Lite's P569-Series HDMI and P580-Series DP cables). The adapter supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz (HDMI) and 60 Hz (DP).
You Can Keep Using Your Current VGA Monitor and Save Money

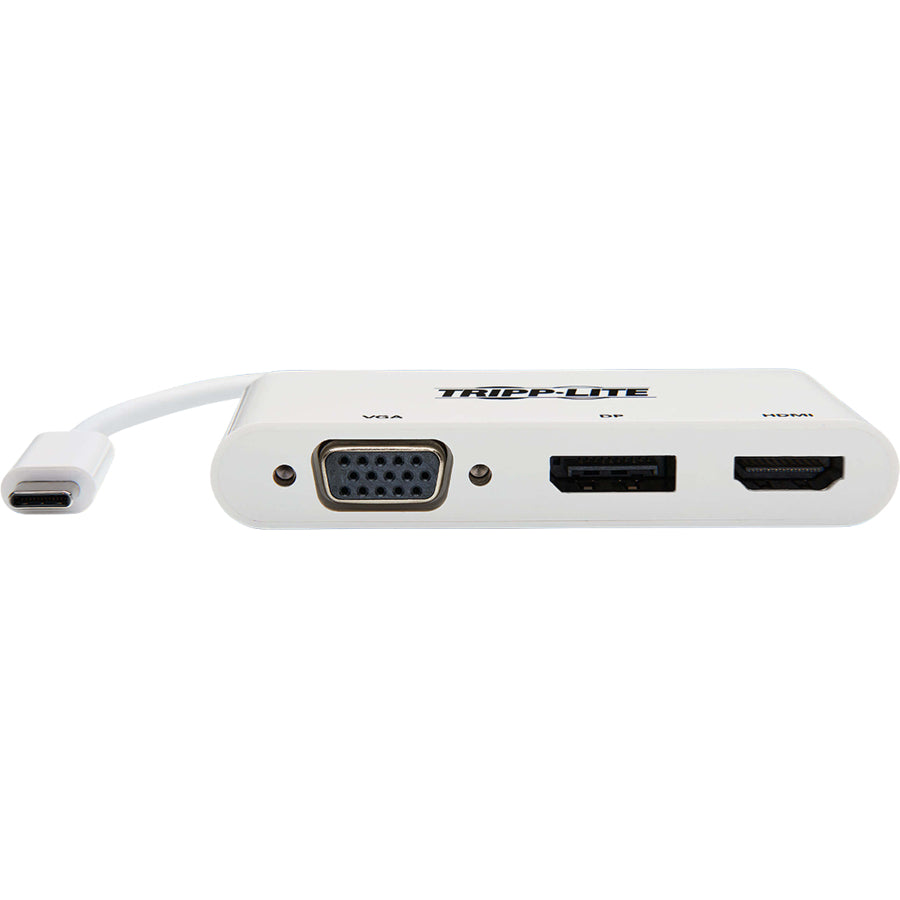

The all-in-one unit also features an HD15 port, in addition to HDMI and DP. This allows you to continue using an existing VGA display, instead of investing money in something new. The HD15 port supports high-definition resolutions up to 1920 x 1200, including 1080p, at 60 Hz.

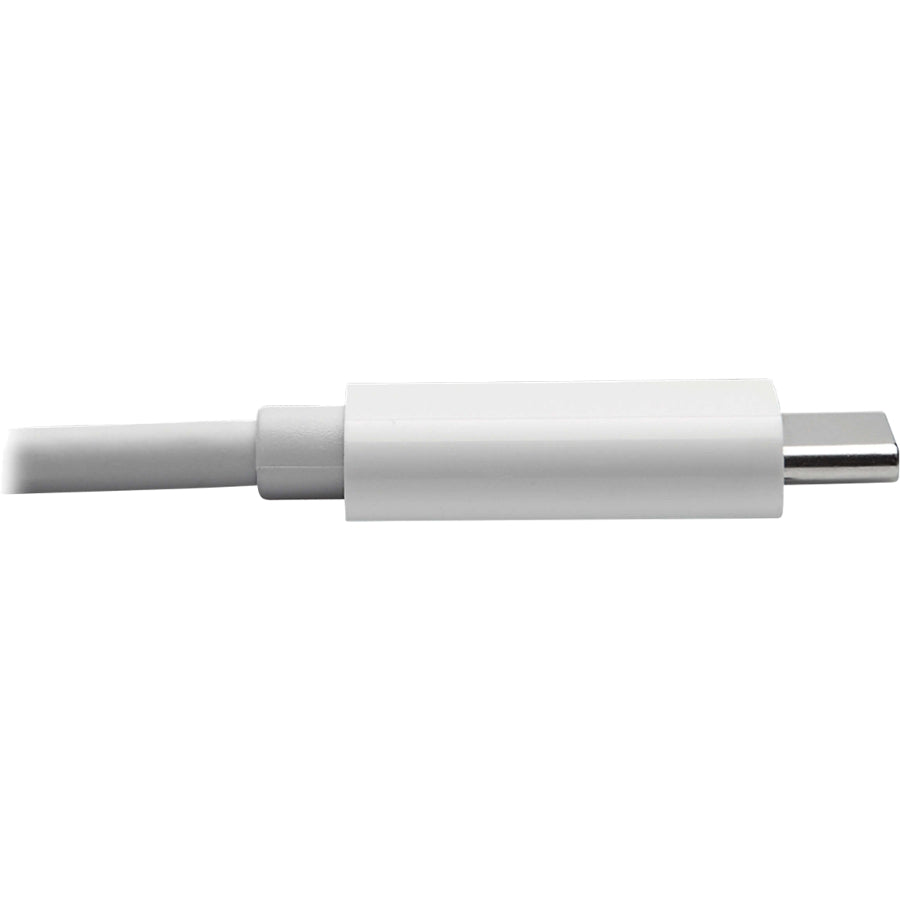

Built-In USB-C Cable Connects in Either Direction
Connect the reversible USB-C plug to your source device's USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.
Ready to Use Right Out of the Package
The plug-and-play USB-C all-in-one adapter is specifically designed for use with the MacBook, Google Chromebook Pixel and other laptops, tablets and devices equipped with a USB-C or Thunderbolt 3 port. It requires no software, drivers or external power. Its low-profile design makes it easy to carry in a briefcase or laptop bag for connecting on the go.
Typical Applications
- Play video from your MacBook or Chromebook on HDMI, DisplayPort and VGA monitors
- Give a video presentation at a meeting, training session or conference
- Stream 4K video for digital signage at a trade show
- Create a video wall showing images from multiple security cameras
- The A/V adapter connects the audio and video interfaces at both ends
- Nickel plating provides a robust solution to corrosive attack
- Exceptional quality with great clarity of text with 3840 x 2160 resolution
- Versatile and durable DisplayPort/HDMI/USB/VGA adapter
- Connector on First End Details : 1 x USB Type C USB 3.1 Thunderbolt 3 Male
- Environmentally Friendly : Yes
- Product Color : White
- Limited Warranty : 3 Year
- Adapter Type : DisplayPort/HDMI/USB/VGA
- Maximum Resolution Supported : 3840 x 2160
- Connector Plating : Nickel
- Connector on Second End Details : 1 x HDMI HDMI 1.4 Digital Audio/Video Female,1 x DisplayPort DisplayPort 1.2 Digital Audio/Video Female,1 x 15-pin HD-15 VGA Female
- Product Material : Polyvinyl Chloride (PVC),Acrylonitrile Butadiene Styrene (ABS)
- Package Contents :
- U444-06N-HVDPW USB-C Multiport Adapter - HDMI/DisplayPort/VGA, White
- Owner's manual
- Connector Type on First End : USB 3.1 (Gen 1) Type C - Male
- Connector Type on Second End : HDMI 1.4 Digital Audio/Video - Female,DisplayPort 1.2 Digital Audio/Video - Female,HD-15 - Female
- Product Type : A/V Adapter
- Manufacturer : Tripp Lite by Eaton
- Product Model : U444-06N-HVDPW
- Features : HDCP 2.2
- Country of Origin : China
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : White
