Description

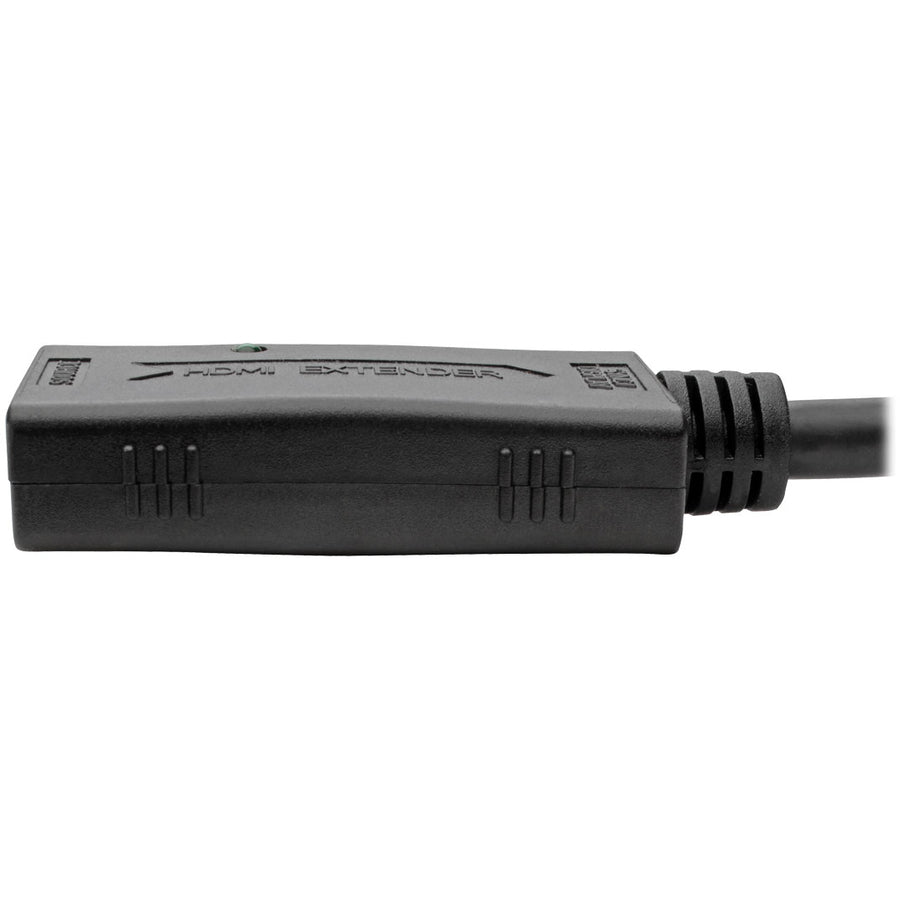

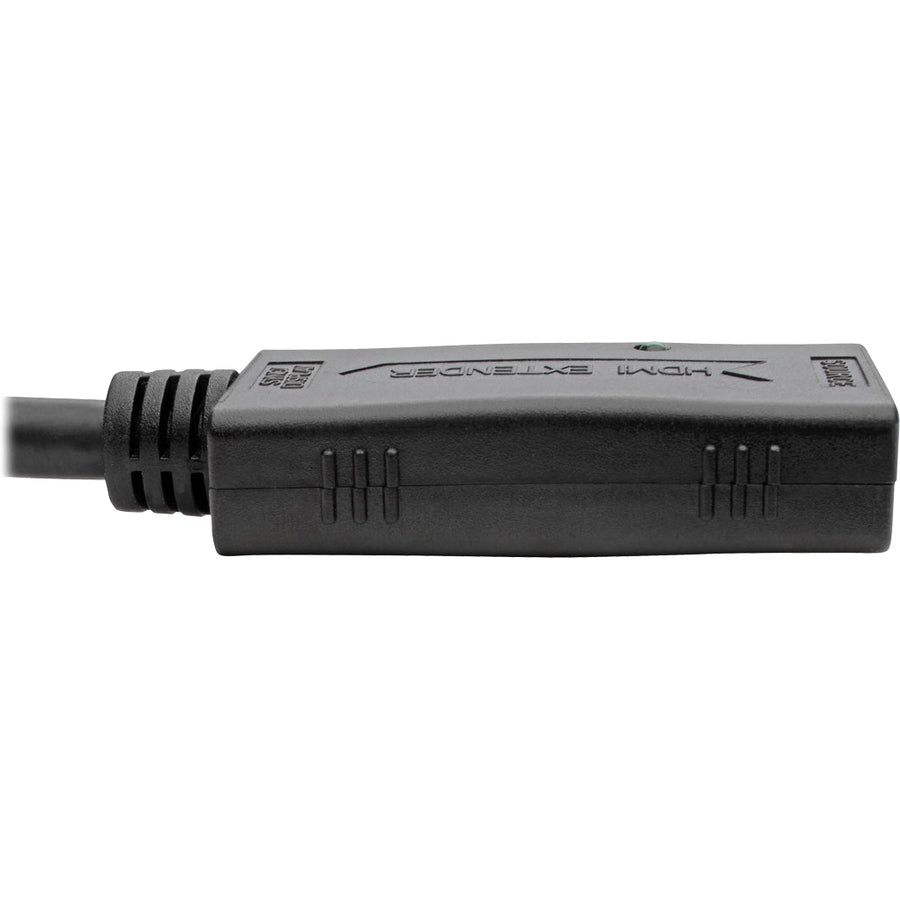

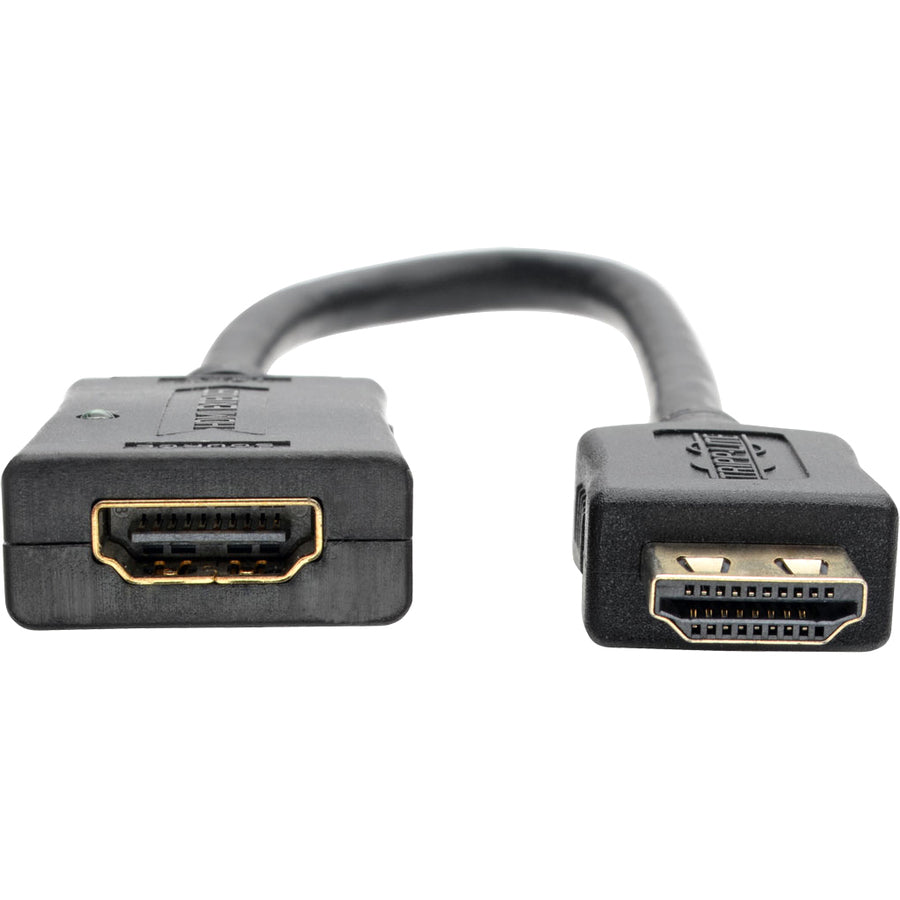

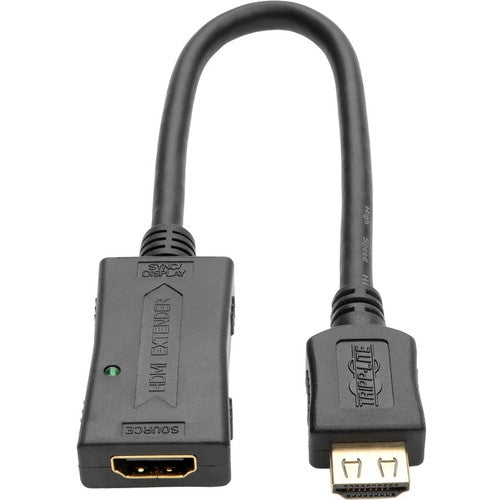

Tripp Lite's B123-001 HDMI Signal Extender increases the distance a 1080p @ 24Hz (or 1920 x 1200) signal can be transmitted beyond the recommended 16 ft. (5 m.). It supports computer video resolutions up to 1920 x 1200, and HD resolutions up to 1080p @ 24Hz, at a maximum distance of 150 ft. from the source. Use P568-Series HDMI cables in most applications. When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD. (Lengths over 100 ft. are available from Tripp Lite as a custom order) 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable. Simply connect the longer cable between the source and the B123-001, and then connect the built-in cable to the monitor. The built-in HDMI cable features a latching connector for a more secure connectionSoftware or drivers are not required. HDCP compliant. Compatible with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Supports DTS-HD, Dolby True HD and 7.1 Channel Surround Sound Audio
- 24Awg HDMI cable is also needed when extending a 3D signal more than 50 ft.. A 3D signal can be extended up to 125 ft. using 24Awg HDMI cable
- When extending a 1080p @ 24Hz (or 1920 x 1200) signal more than 75 ft., use cable made with 24Awg wiring, such as the P568-100-HD
- Extend a 1080p @ 24Hz (or 1920 x 1200) HDMI signal up to 150 ft. from the source
- Cable Type : HDMI
- TAA Compliant : Yes
- Connector on First End Details : 1 x 19-pin HDMI 1.3 Digital Audio/Video - Female
- Product Color : Black
- Device Supported : Audio/Video Device,TV,Optical Drive,Monitor
- Limited Warranty : 3 Year
- Connector on Second End Details : 1 x 19-pin HDMI 1.3 Digital Audio/Video - Male
- Connector Type on First End : HDMI 1.3 Digital Audio/Video - Female
- Connector Type on Second End : HDMI 1.3 Digital Audio/Video - Male
- Product Type : A/V Cable
- Manufacturer : Tripp Lite by Eaton
- Product Model : B123-001
- Cable Length : 1 ft
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Black
