Description

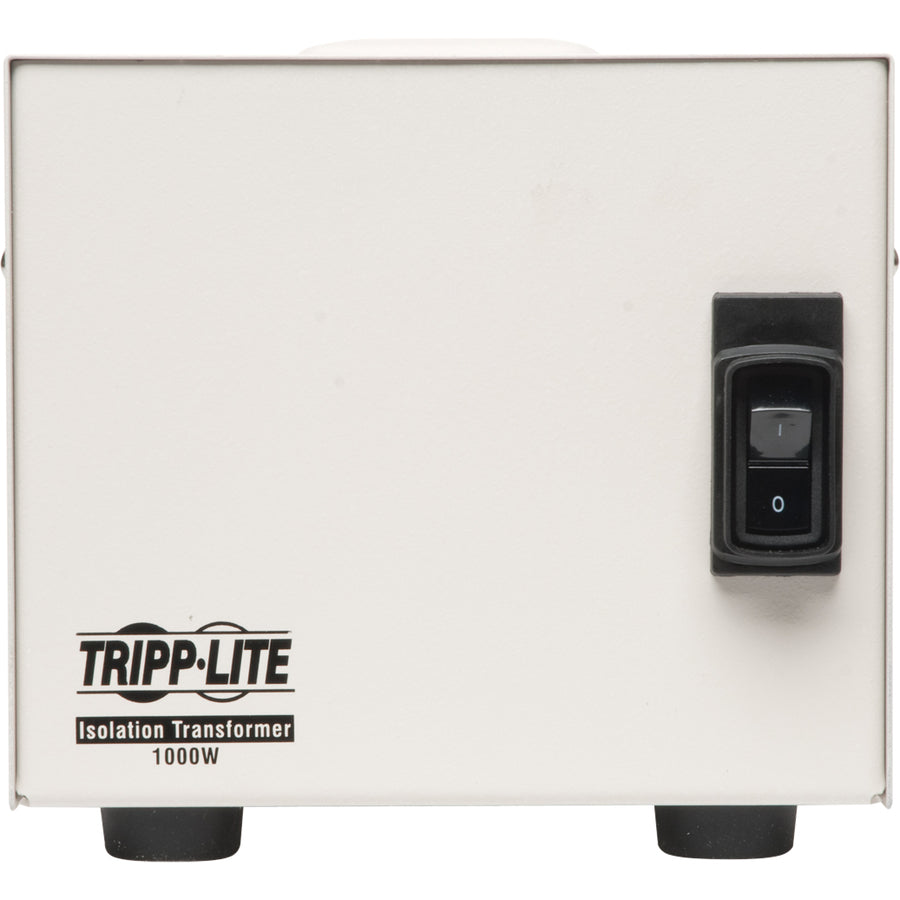

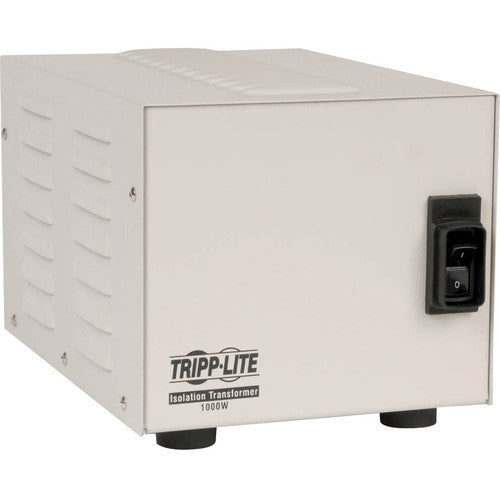

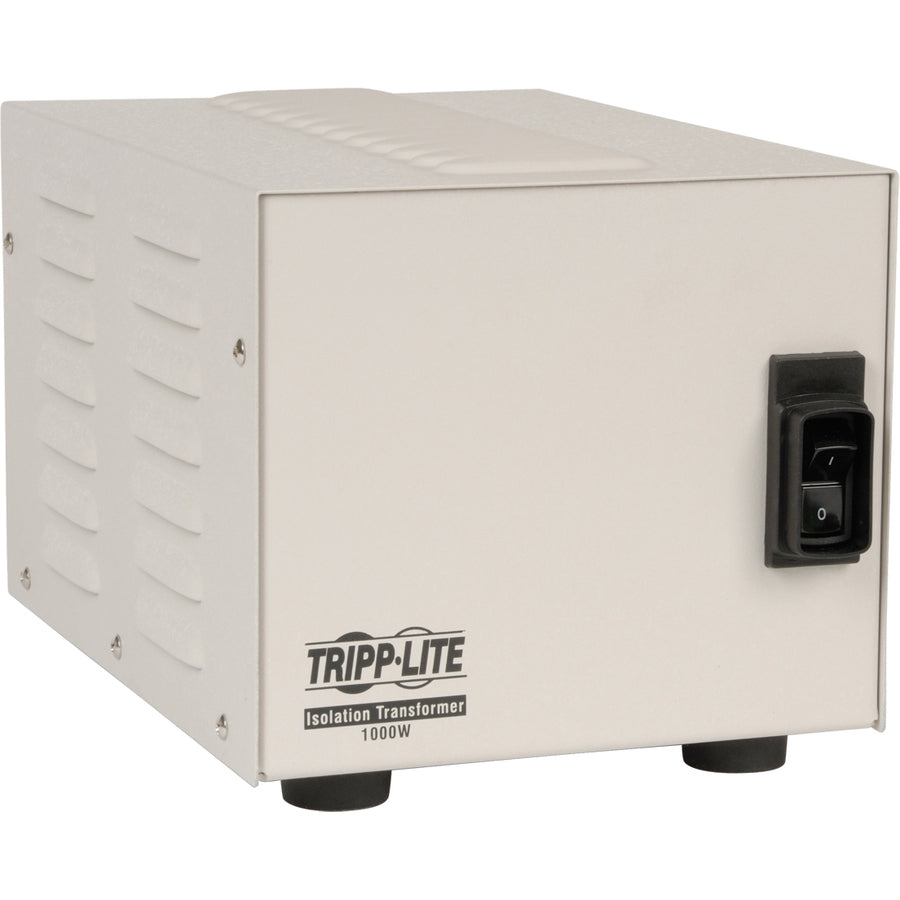

Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of medical electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS1000HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit housing; ships ready for placement in any industrial, medical, office or network environment. PLUG/OUTLETS: Input - NEMA 5-15P Hospital Grade; Output - 4 NEMA 5-15R Hospital Grade ELECTRICAL: 120V AC, 60Hz, 8.3A (Requires NEMA 5-15R wall receptacle)
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Hospital-grade plug and receptacles
- Leakage less than 100 microamps
- 1000 watts, 4 outlets, 10-ft. power cord
- Complete line isolation, noise filtering and surge suppression; ideal for sensitive equipment
- TAA Compliant : Yes
- Environmentally Friendly : Yes

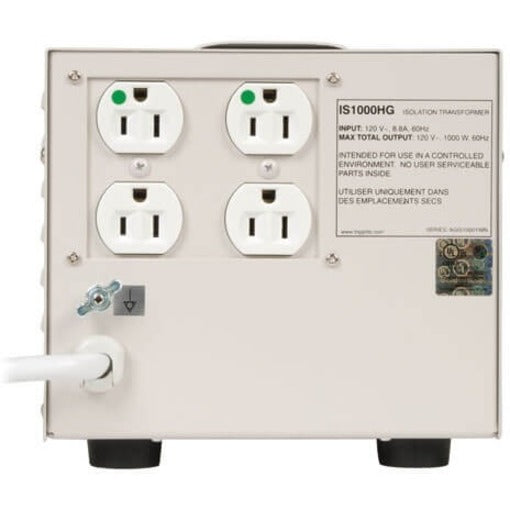

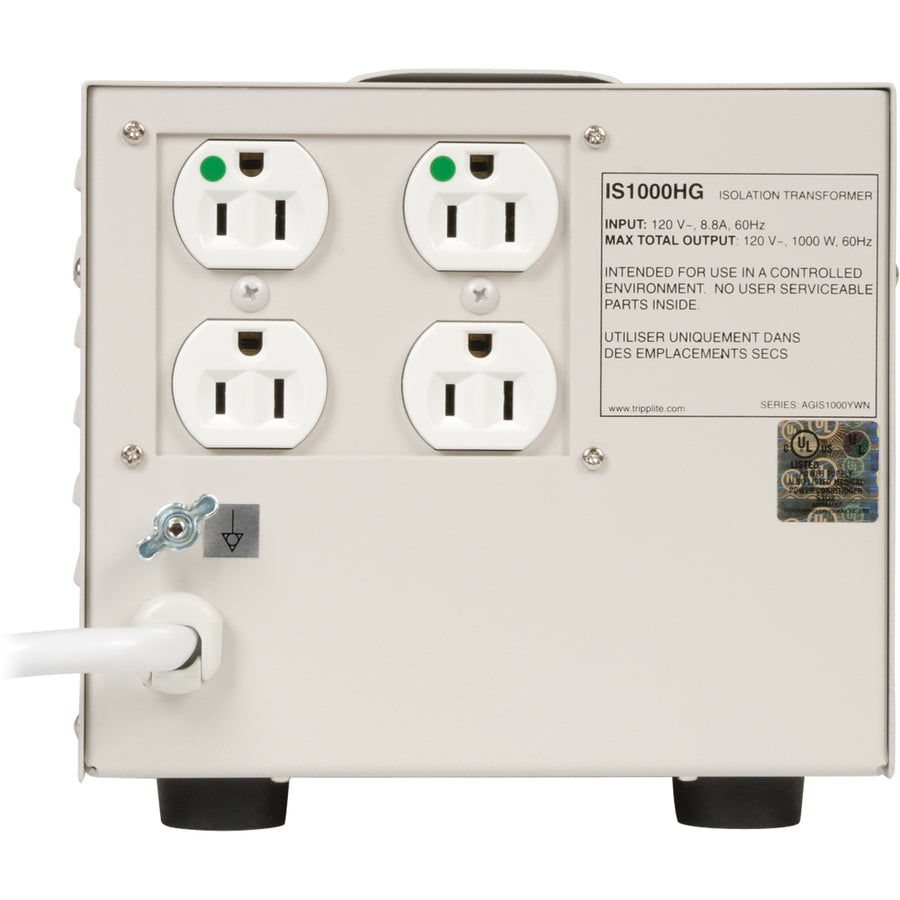

- Receptacles : 4 x NEMA 5-15R-HG
- Power Cord/Cable Length : 10 ft
- Power Handling : 1 kVA
- Input Voltage : 120 V AC
- Limited Warranty : 2 Year
- Package Contents :
- Isolation Transformer - Medical Grade Line Noise Reduction and Spike Suppression
- Instruction Manual with Warranty Information
- Product Type : Surge Suppressor/Protector
- Surge Energy Rating : 680 J
- Manufacturer : Tripp Lite by Eaton
- Product Model : IS1000HG
- Output Voltage : 120 V AC
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/

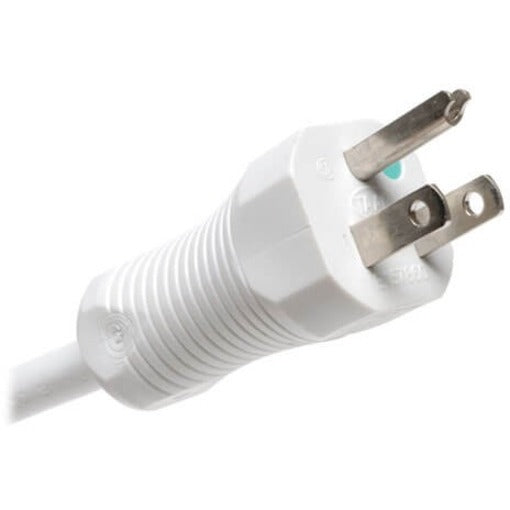

- Plug/Connector Type : NEMA 5-15P-HG
