Description

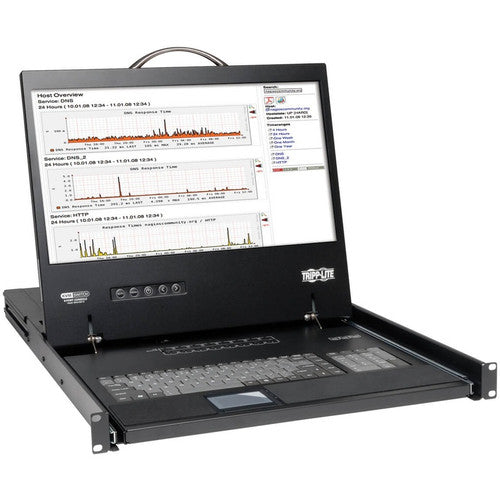

Tripp Lite's B040-016-19 KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. Easy to install and use, it's the cost-effective solution for controlling up to 16 directly connected computers/servers.The B040-016-19 has a built-in 19" LCD screen supports video resolutions up to 1366 x 768. You can switch easily between the 16 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Password protection prohibits unauthorized users from accessing the connected computers. With this KVM switch, you can increase the number of connected computers up to 256 by daisy-chaining up to 15 B042-Series KVM switches. Uses Tripp Lite P780-series combo cable kits that support both PS/2 and USB connections without the need to purchase additional cables or adapters. An extra HD15 port allows an additional VGA monitor or an external console to be connected. Add a Tripp Lite B051-000 IP Remote Access Unit to connect from anywhere in the world. An additional USB port lets you connect an external mouse or keyboard. When not in use, the B040-016-19 stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Rugged steel housing stands up to frequent use.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Compatible with all operating systems
- Password protection prevents unauthorized access
- Simplifies IT tasks with easy switching between all 16 ports
- 19" LCD screen supports video resolutions up to 1366 x 768
- Uses just 1U of space in rack-mountable drawer
- Screen Resolution : 1366 x 768
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Screen Size : 19"
- USB : Yes
- Number of Computers Supported : 16
- Product Color : Black
- Keyboard : Yes
- Daisy Chain : Yes
- Device Type : LCD Rack Console
- Limited Warranty : 1 Year
- KVM Switch : Yes
- Package Contents :
- NetController 19" 16-Port VGA Console KVM Switch
- 1 - B040-016-19, 19" Console KVM Switch
- 1 - 4ft Firmware Upgrade cable, HD15F-DB9F
- 1 - AC Power Cord
- 1 - Owners Manual CD
- 1 - Quick Start Guide
- Number of USB Ports : 1
- Product Type : LCD Rack Console
- Pointing Device Type : TouchPad
- Display Screen Type : LCD
- Manufacturer : Tripp Lite by Eaton
- Product Model : B040-008-19
- Screen Mode : WXGA
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
- Color Family : Black
