Description

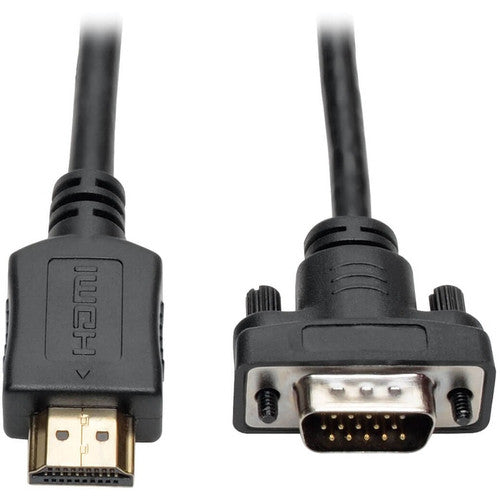

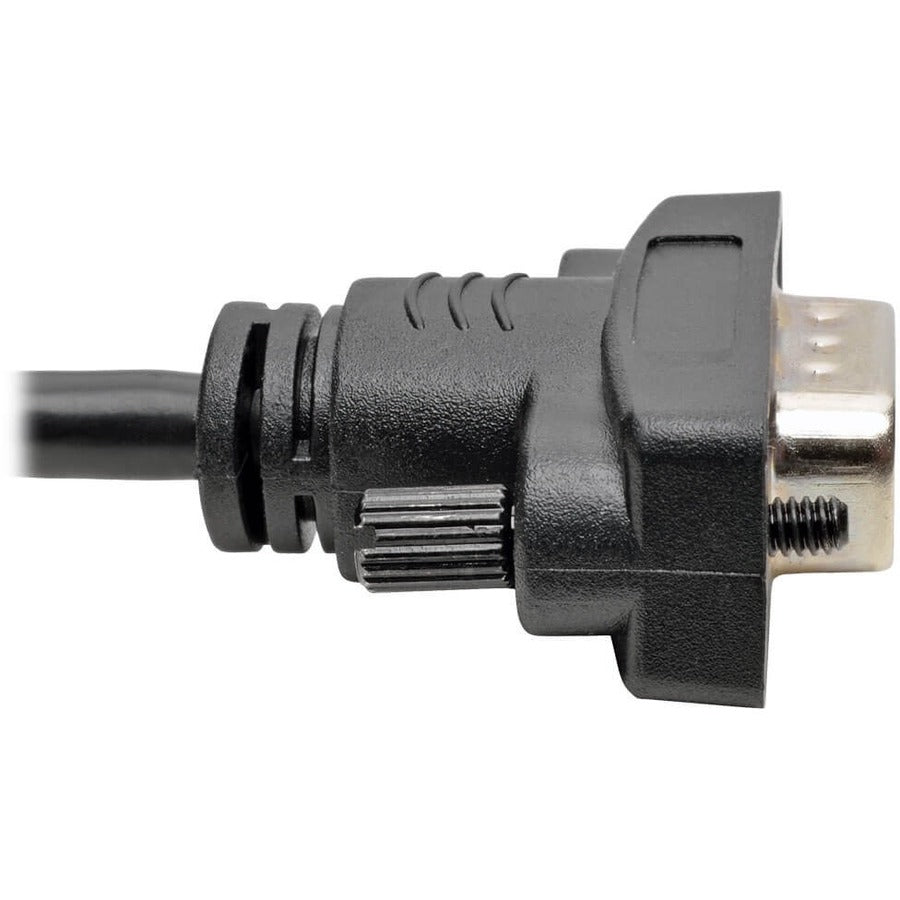

The P566-003-VGA HDMI to VGA Active Converter Cable connects a computer, cable box, Blu-ray™ player or other HDMI source to the VGA port on a monitor, projector or television. This allows you to use your existing VGA display instead of investing time, effort and money into upgrading to a new HDMI display. The low-profile HD15 connector fits neatly into tight spaces without jamming between the monitor and wall or blocking nearby connections.
Ideal for displaying video on a large monitor or digital sign, this three-foot converter cable supports high-definition video resolutions up to 1920 x 1200 at 60 Hz. No software or drivers are required. If additional power is needed, connect a USB cable (sold separately) between the cable's USB Micro-B port and a USB wall charger or computer port.
Foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. The corrosion-resistant gold-plated HDMI connector and contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.
Features
Send High-Definition HDMI Video Signals to a VGA Display
- Connects HDMI source to a VGA monitor, projector or TV
- Ideal for displaying video on large monitor or digital sign
- Low-profile HD15 connector fits neatly into tight spaces
- Plug-and-play-no software or drivers necessary
Vibrant, Superior Video Quality
- Supports HD video resolutions up to 1920 x 1200 @ 60 Hz
Superior Materials for Superior Performance
- Foil and braid shielding for reliable protection from EMI/RFI line noise
- Gold-plated HDMI connector and contacts for maximum conductivity and minimum data loss
- Integral strain relief reduces stress and adds flexibility
- Impedance-matched twisted-pair construction reduces crosstalk and interference
- USB Micro-B port provided in case additional power is needed
- Supports majority video devices and offers intense video quality
- With HDMI and VGA ports, transfer high-quality pictures and 3D sound effects simultaneously at a high-speed
- Features Active
- Fully compatible with TVs
- Environmental Certification : RoHS
- Manufacturer Website Address : http://www.tripplite.com
- Cable Type : HDMI/VGA
- Environmentally Friendly : Yes
- Shielding : Yes
- Device Supported : Video Device,Monitor,Projector,TV,Blu-ray Player
- Limited Warranty : 3 Year
- Connector Plating : Gold
- Supported Resolution : 1920 x 1200
- Product Type : Video Cable
- Contact Plating : Gold
- Manufacturer : Tripp Lite by Eaton
- Product Model : P566-003-VGA
- Features : Active,EMI/RF Protection,Corrosion Resistant,Flexible,Noise Protection,Strain Relief,Crosstalk Protection
- Cable Length : 3 ft
- Country of Origin : Taiwan
- TAA Compliant : Yes
- Connector on First End Details : 1 x HDMI Digital Audio/Video - Male
- Product Color : Black
- Connector on Second End Details : 1 x 15-pin HD-15 - Male
- Connector Type on First End : HDMI Digital Audio/Video - Male
- Connector Type on Second End : HD-15 - Male
