Description

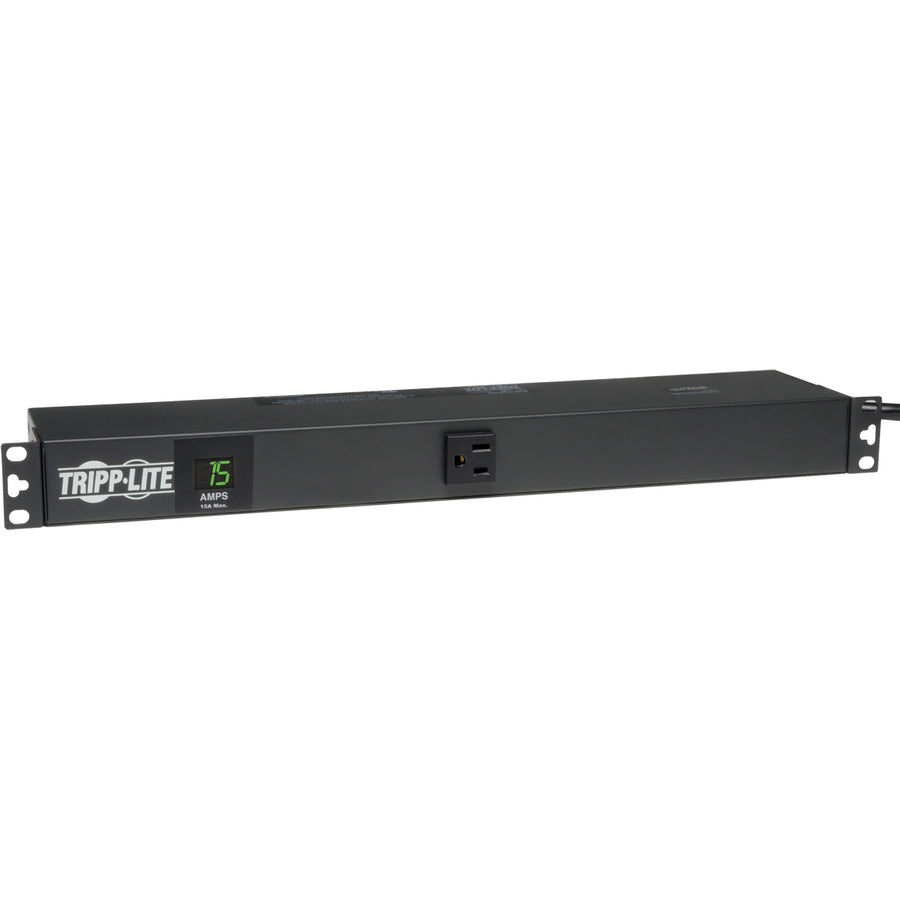

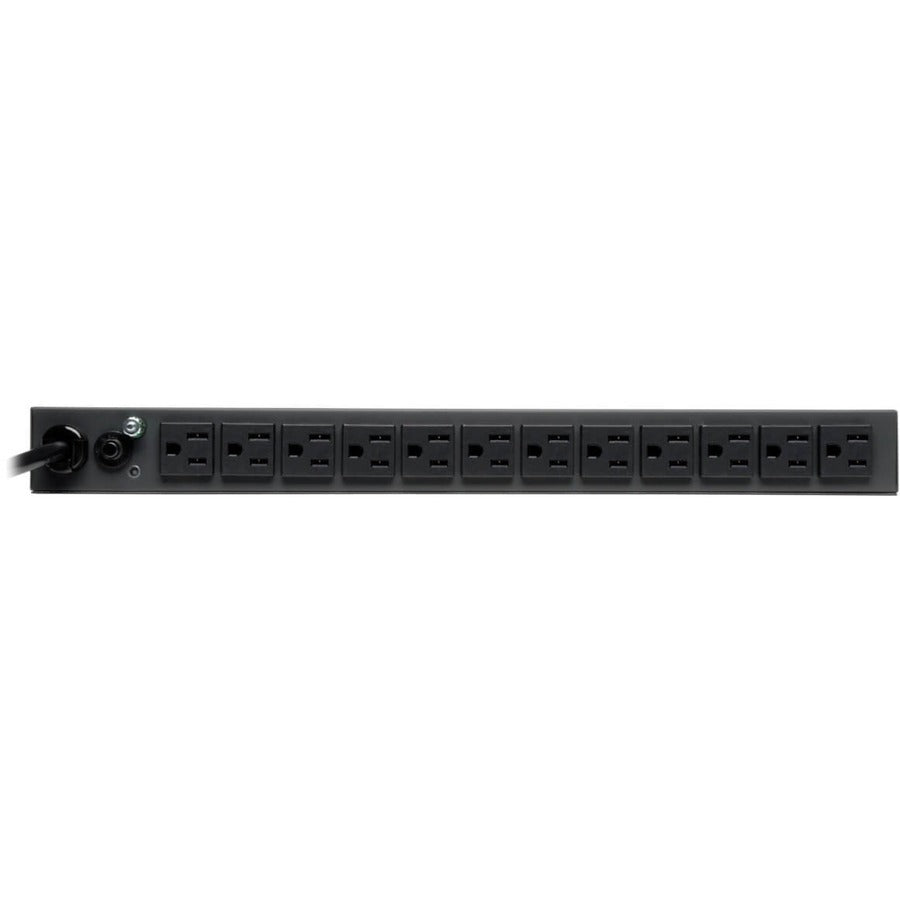

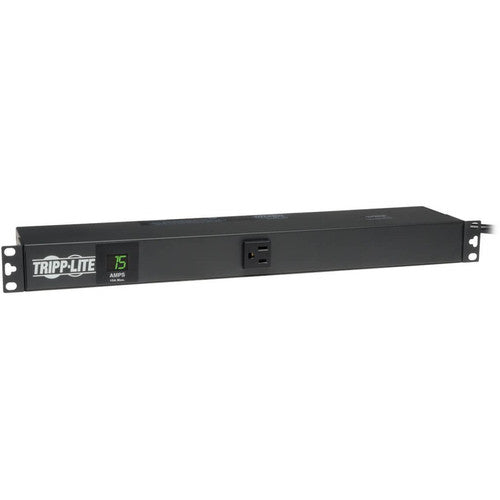

Tripp Lite's PDUMH15 AC power distribution unit offers a digital current monitor and provides 15 amps of 120 volt capacity in a versatile multi-mount cabinet. Detachable mounting flanges are configurable for wallmount, under-counter, or 1U/0U rackmount installation. Uses only 1U of rack space when installed in any 19-inch rack, with the potentional for zero U mounting in the cable management area of most rack enclosures. Built-in digital ammeter display offers continuous visual power consumption data for the entire PDU. Attractive rackmount housing with 1 front and 12 rear facing outlets measures only 4.5 inches in depth. Unfiltered electrical pass-through without a power switch makes the PDUMH15 ideal for distributing alternate waveform UPS or generator power in rack enclosures, network closets, and more. Includes 12 rear facing NEMA 5-15R and one front facing outlet, 15-ft. AC power cord, 15 amp breaker, TVSS grounding lug and rugged all metal rackmount case design.
- 13 NEMA 5-15R outlets (1 front / 12 rear)
- NEMA 5-15P input with 15 ft. / 4.5m line cord
- 1U horizontal rackmount, Digital current meter
- Metered single phase 15A 120V PDU
- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 13 x NEMA 5-15R
- Environmentally Friendly : Yes
- Input Voltage : 120 V AC
- Management :
Unfiltered electrical pass-through reliably distributes alternate waveform AC power from UPS or generator to supported equipment
- Limited Warranty : 2 Year
- Package Contents :
- PDUMH15 PDU Metered 120V 15A 13 Outlet
- PDUMH15 Metered rackmount PDU
- Owner's manual with warranty information
- Manufacturer Website Address : http://www.tripplite.com
- Plug/Connector Type : NEMA 5-15P
- Product Type : PDU
- Mount Type : Rack-mountable
- Protection Type : Overload Protection
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDUMH15
- Output Voltage : 120 V AC
- Mounting Orientation : Vertical
- Rack Height : 1U
- Country of Origin : China
