Description

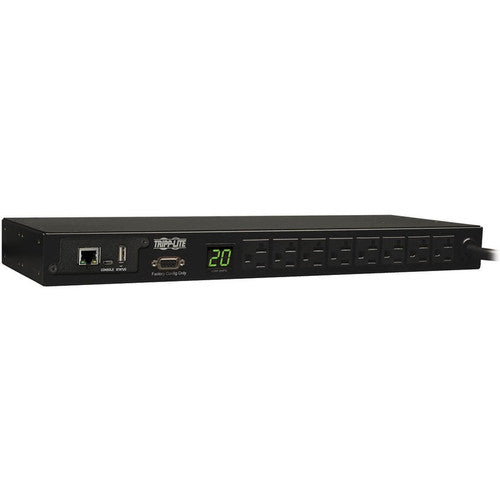

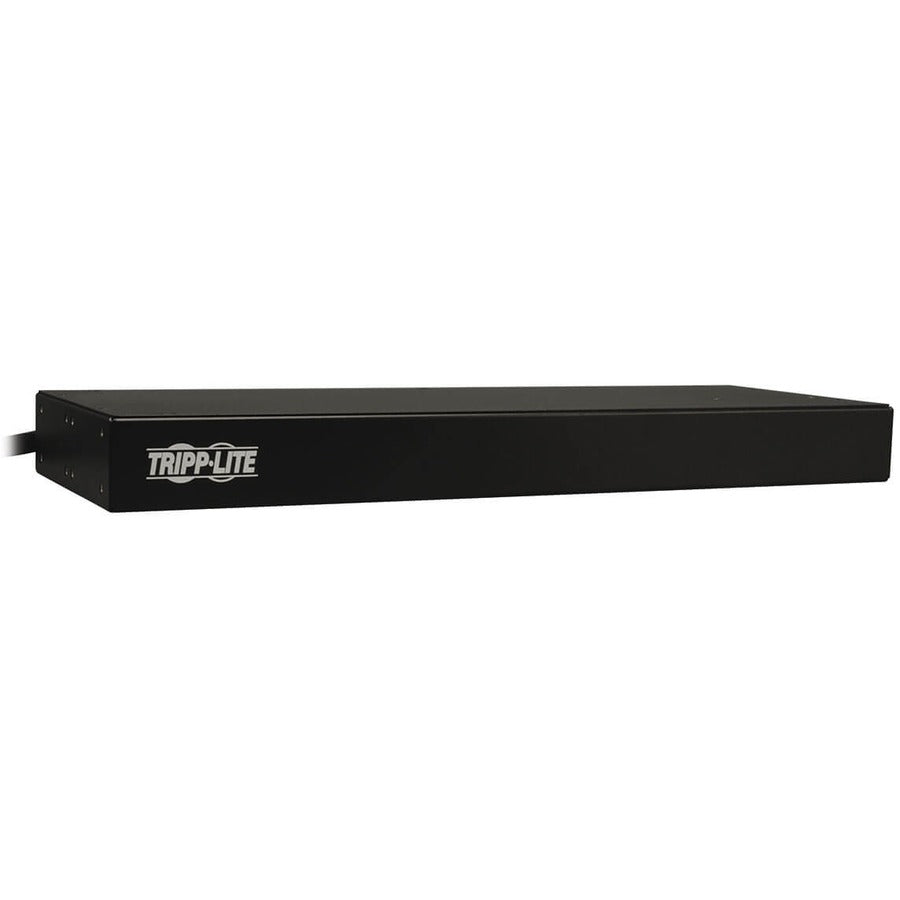

Tripp Lite single phase Monitored PDU / Power Distribution Unit offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
- Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
- Temperature, humidity and contact-closure monitoring options
- 8 NEMA 5-15/20R outlets with included cord retention brackets
- NEMA L5-20P input with included 5-20P plug adapter
- Visual current meter, Reversible housing
- Reports voltage, frequency & load level via ethernet interface
- Monitored 20A 120V PDU, 1U horizontal rackmount format
- Receptacle Type : NEMA 5-15/20R
- Receptacle Detail : 8 x NEMA 5-15/20R
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- PDU Type : Monitored
- Input Voltage : 120 V AC
- Management :
Protocols:
- HTTP
- HTTPS
- PowerAlert Network Management System
- SMTP
- SNMPv1
- SNMPv2
- Telnet
- FTP
- DHCP
- BOOTP
- NTP
- Limited Warranty : 2 Year
- Package Contents :
- PDUMNH20 PDU Monitored 120V 20A 8 Outlet
- Plug Retention Plates
- Rack Mounting Brackets
- Owner's Manual
- NEMA L5-20R to NEMA 5-20P Adapter
- Plug/Connector Type : NEMA L5-20P
- Product Type : PDU
- Mount Type : Rack-mountable
- Manufacturer : Tripp Lite by Eaton
- Product Model : PDUMNH20
- Output Voltage : 120 V AC
- Mounting Orientation : Horizontal
- Rack Height : 1U
- Country of Origin : Taiwan
- Manufacturer Website Address : https://tripplite.eaton.com/
