Description

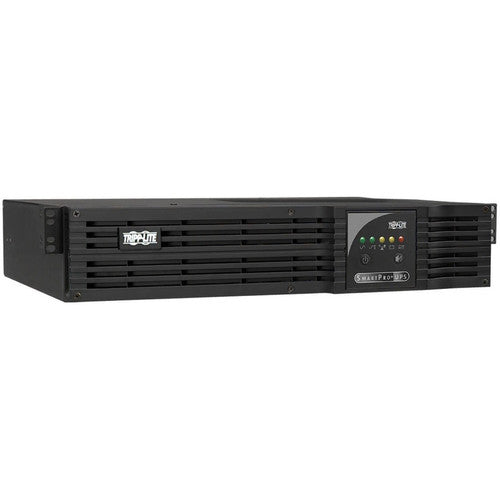

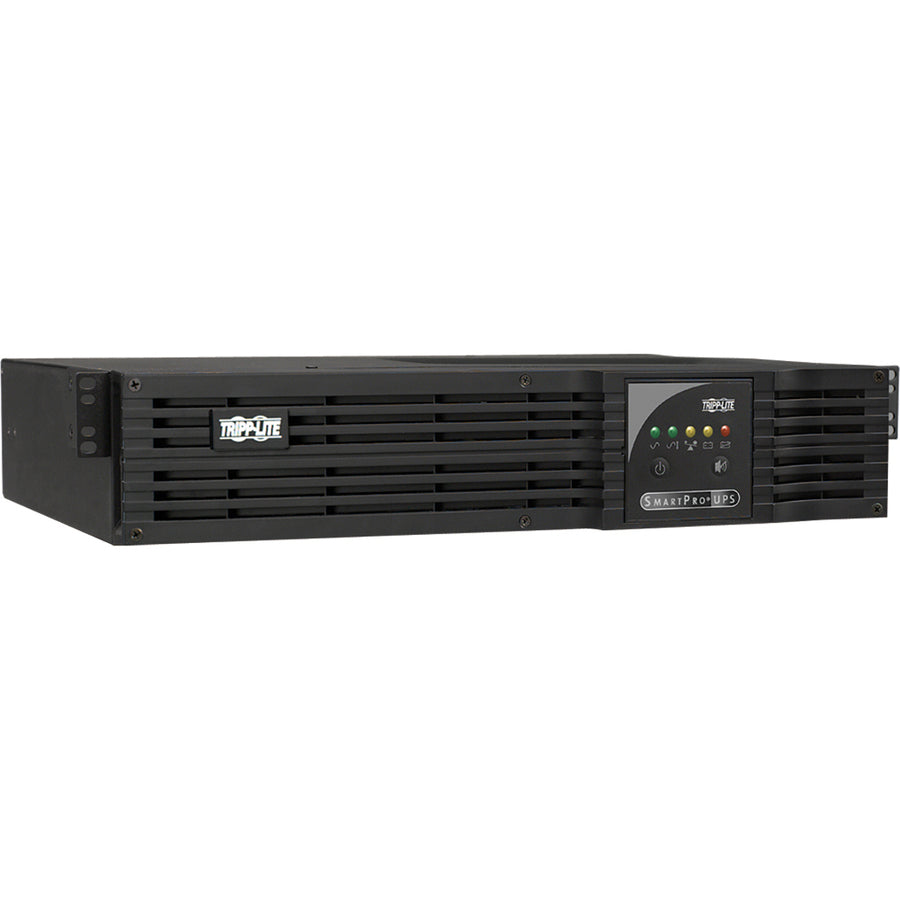

Protects Mission-Critical Rack-Mounted Equipment
- Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
- Audible alarm signals loss of utility power, overload and low battery

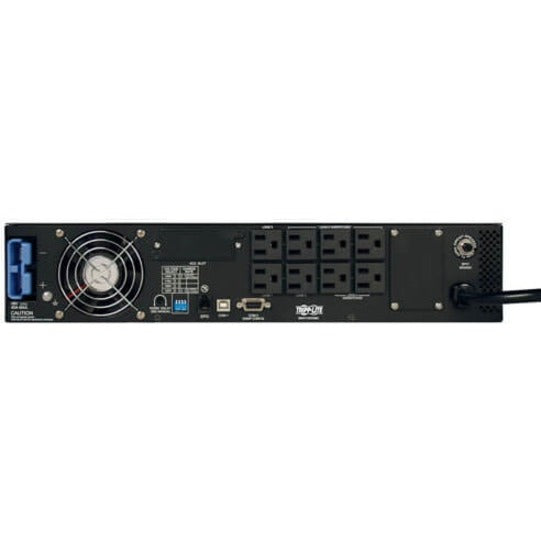

- 8 NEMA 5-15R outlets
- 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
- 570-joule surge suppression rating
Reliable Battery Backup with Expandable Runtime
- Supports half load up to 14 min. and full load up to 6 min.
- Internal batteries designed for hot-swap field replacement
- 97% line-power efficiency rating saves money in energy costs
- Expandable runtime with optional external battery packs, such as Tripp Lite's BP48V24-2U
3 Load Banks with Switchable Outlets
- Can control 3 outlets remotely to reboot equipment or shed nonessential loads
Automatic Voltage Regulation (AVR)
- Maintains 120V nominal output over input range of 83V-145V without using battery power
EMI/RFI Line Noise Filtering
- Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance
LED Indicators
- Front-panel LEDs signal indicate line power, battery power, overload, voltage regulation and battery status
Network Management Cards
- Compatible with Tripp Lite UPS management card options WEBCARDLX and SNMPWEBCARD
Communications Ports
- USB & Serial ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software, available via FREE download from
- EPO">www.tripplite.com/poweralert port supports emergency shutdown in large facilities
- EPO">
Versatile Installation Options
- EPO">
- EPO">Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
- EPO">Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
- EPO">Mounts in upright tower position with optional 2-9USTAND accessory
- EPO">
- EPO">
- 14 min. runtime at half load; 6 min. at full load
- Expandable runtime with optional external battery packs
- Network power management and control capability
- 8 NEMA 5-15R outlets-3 switchable via network interface
- Corrects under- and overvoltages from 83V to 145V
- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 8 x NEMA 5-15R
- Input Voltage : 110 V AC
- Transfer Time : 5.50 ms
- Limited Warranty : 3 Year
- Typical Battery Recharge Time : 3 Hour
- Form Factor : Rack/Tower
- Package Contents :
- SMART1500CRMXL 1500VA Tower/Rack-mountable UPS
- SmartPro compact rackmount UPS System
- 4-post rackmount installation hardware
- USB and serial cabling
- Owner's manual with warranty information
- Backup/Run Time (Full Load) : 6 Minute
- Plug/Connector Type : NEMA 5-15P
- Product Type : Line-interactive UPS
- Load Capacity : 1.50 kVA/1.44 kW
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMART1500CRMXL
- Output Voltage : 120 V AC
- Backup/Run Time (Half Load) : 14 Minute
- Rack Height : 2U
- Country of Origin : China
- Software Included : PowerAlert Monitoring Software
- Network Management : SNMP Manageable
- USB : Yes
- Serial Port : Yes
- Manufacturer Website Address : https://tripplite.eaton.com/
- Input Current : 12 A
