Description
Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss This 100/110/120/127V 50/60 Hz UPS system with IGBT technology maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-2% voltage regulation in online and battery modes. Featuring a 1350W capacity, high 0.9 power factor, 570 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer to battery mode in on-line double-conversion mode, the SmartOnline® SU1500RTXLCD2U double-conversion UPS provides the highest level of AC power protection and battery backup for critical network closet, computer room and data center equipment. Individually Controllable Load Banks Let You Access and Control Outlets Remotely Six NEMA 5-15R outlets are split evenly into two switchable three-outlet load banks, allowing you to reboot select components or shed loads remotely. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable internal battery provides 14 minutes of support at half load (675W) and 4.2 minutes at full load (1350W), keeping protected equipment operational through power failures. For mission-critical applications demanding scalable extended runtime, the UPS supports external battery packs, such as Tripp Lite's BP48V24-2U (sold separately). The intelligent battery management system with temperature-compensated charging extends battery life. ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality. Automatically Turns Back On After Power Is Restored Battery-independent restart ensures automatic UPS power-up without user interaction after lengthy power outages, even when batteries are expired and require replacement. Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring The front-panel LCD features nine selectable screens of UPS data (including load, voltage and battery data) and 16 screens of configuration and setup options. LEDs indicate line power availability, AC to DC conversion, battery mode operation, inverter mode, ECO mode operation, bypass mode operation and AC output status. Advanced Communications Ports Allow for Automatic Saves and Shutdowns RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended file saves and system shutdown in case of a prolonged power failure. An EPO port connects the UPS to a contact closure switch to enable emergency inverter shutdown. Cables are included.
- Energy Star Qualified
- Interactive LCD with 9 selectable screens of UPS and site power data
- 1500VA / 1.5kVA / 1350W on-line double-conversion 2U rack / tower UPS
- Expandable runtime, Hot-swap batteries, 18.5 in / 47cm depth
- 100/110/120/127V 50/60Hz output; High efficiency economy mode option
- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 6 x NEMA 5-15R
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Input Voltage : 110 V AC
- Transfer Time : 0 ns
- Typical Battery Recharge Time : 3 Hour
- Limited Warranty : 2 Year
- Form Factor : Rack/Tower
- Backup/Run Time (Full Load) : 4.20 Minute
- Manufacturer Website Address : http://www.tripplite.com

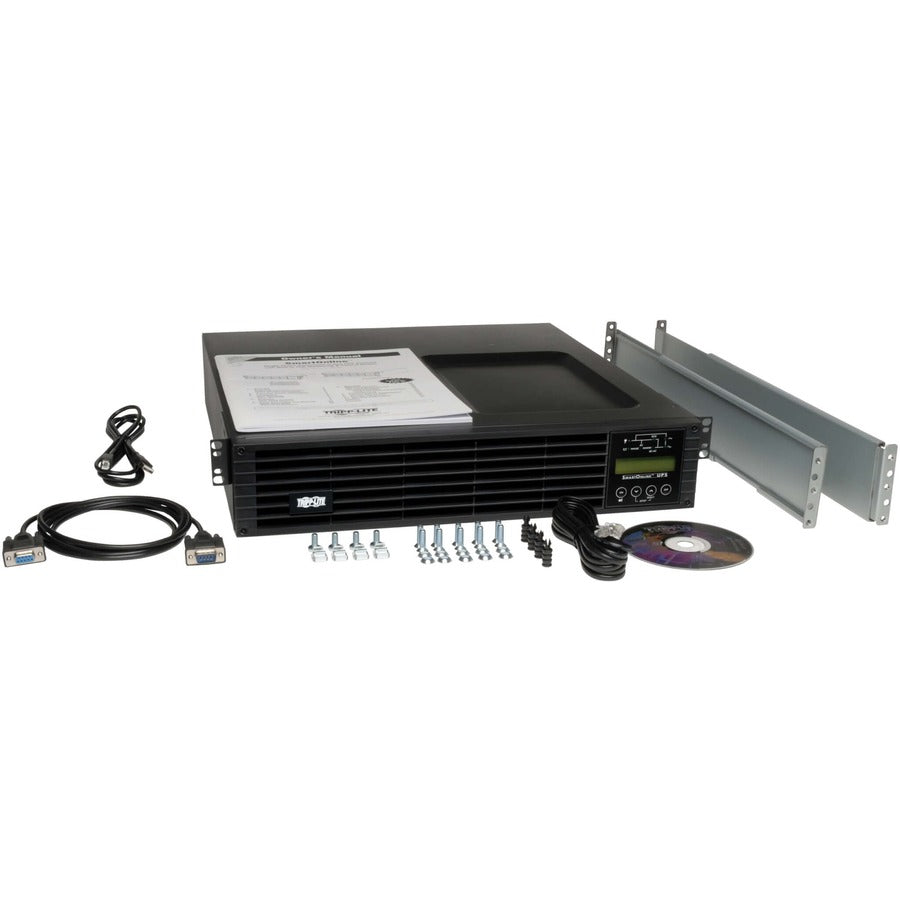

- Package Contents :
- SmartOnline SU1500RTXLCD2U 1500VA Tower/Rack Mountable UPS
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Rackmount Installation Kit
- Instruction Manual
- Plug/Connector Type : NEMA 5-15P
- Product Type : Double Conversion Online UPS
- Load Capacity : 1.50 kVA/1.35 kW
- Manufacturer : Tripp Lite by Eaton
- Product Model : SU1500RTXLCD2U
- Output Voltage : 127 V AC,110 V AC,120 V AC,115 V AC
- Country of Origin : China
- Rack Height : 2U
- Product Line : SmartOnline
- Hot Swappable : Yes
- Backup/Run Time (Half Load) : 14 Minute
- Software Included : PowerAlert Software
- Network Management : SNMP Manageable
- Serial Port : Yes
- USB : Yes
