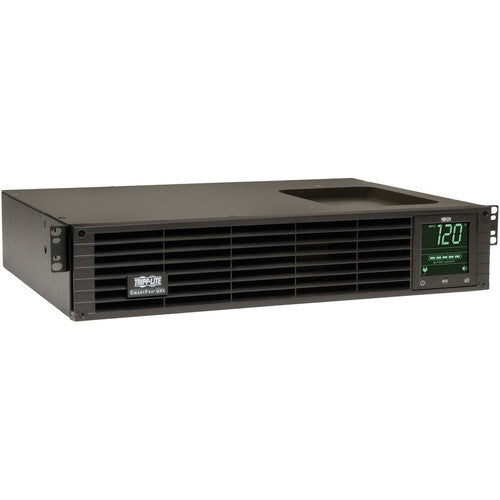

Tripp Lite SmartPro SMART1500RMXLN 1.5kVA Rack-mountable UPS SMART1500RMXLN

Protects Mission-Critical Rack-Mounted Equipment

• Provides fully regulated sine wave AC output for servers, network storage devices and telecom hardware
• Audible alarm signals loss of utility power, overload, low battery and fault conditions

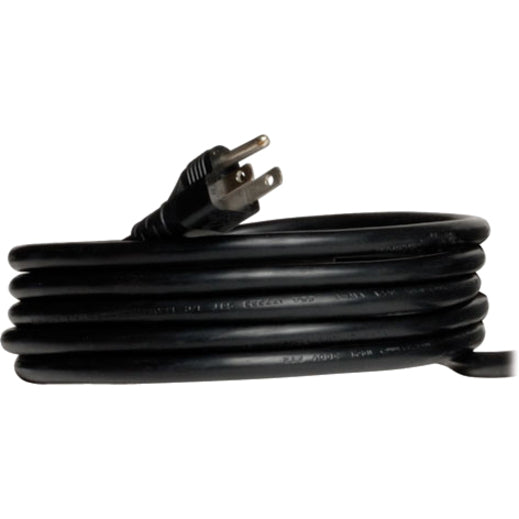

• 10-ft. (3.05 m) power cord with 120V NEMA 5-15P input
• 0.9 power factor rating
• 570-joule surge suppression rating

Reliable Battery Backup with Expandable Runtime

• Supports half load up to 14 min. and full load up to 4.9 min.
• Internal batteries designed for hot-swap field replacement
• 95% line-power efficiency rating saves money in energy costs
• Expandable runtime with optional external battery packs, such as Tripp Lite's BP36V15-2U

Pre-Installed WEBCARDLX Network Interface

• Allows full remote access for power monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH
• Optional EnviroSense2 sensors (sold separately) enable site monitoring of temperature, humidity and contact-closure status

Reduce Service Calls with Auto Probe Autonomous Device Management

• Auto Probe feature (Firmware 15.5.2 and greater) of the LX Platform Interface checks the connectivity status of any networked device and automatically takes one or more user-configured actions if the device fails to respond; actions include outlet reboot, set SNMP traps, SNMP OID sets, and even script execution when used in conjunction with the Tripp Lite PowerAlert Network Shutdown Agent (PANSA)

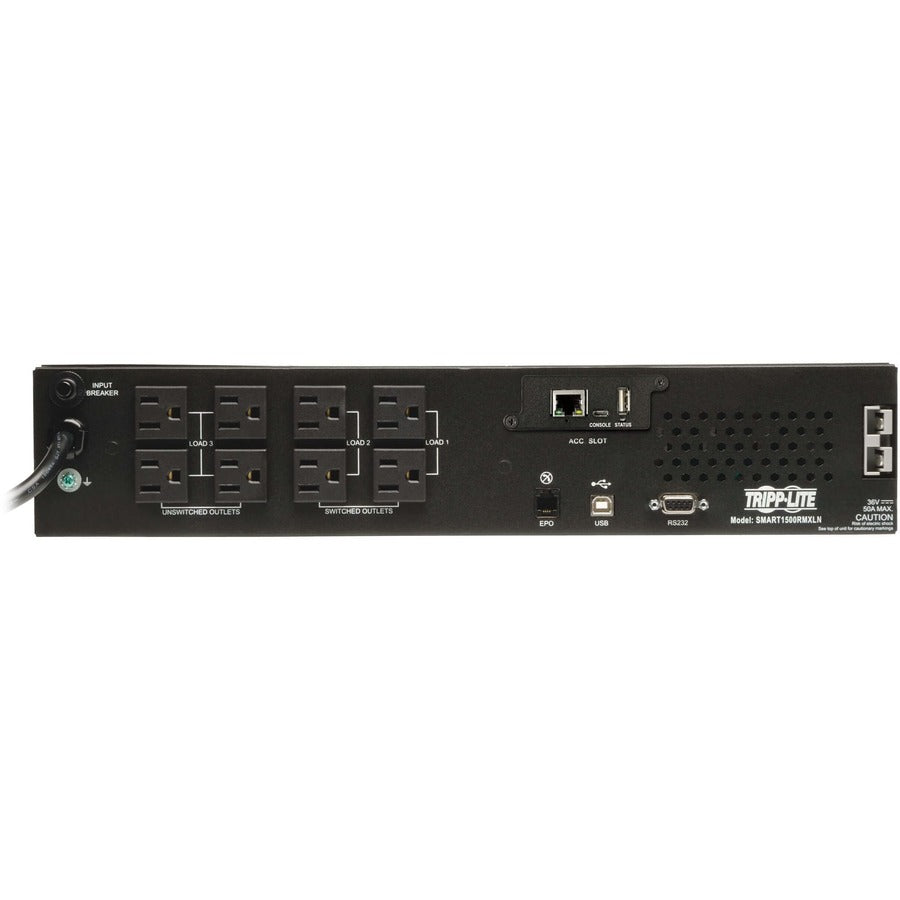

8 NEMA 5-15R Outlets in 2 Load Banks

• 4 outlets are switchable to remotely reboot equipment or shed nonessential loads

Automatic Voltage Regulation (AVR)

• Maintains 120V nominal output over input range of 83V-145V without using battery power

EMI/RFI Line Noise Filtering

• Removes electromagnetic and radio frequency interference that can disrupt or damage equipment's performance

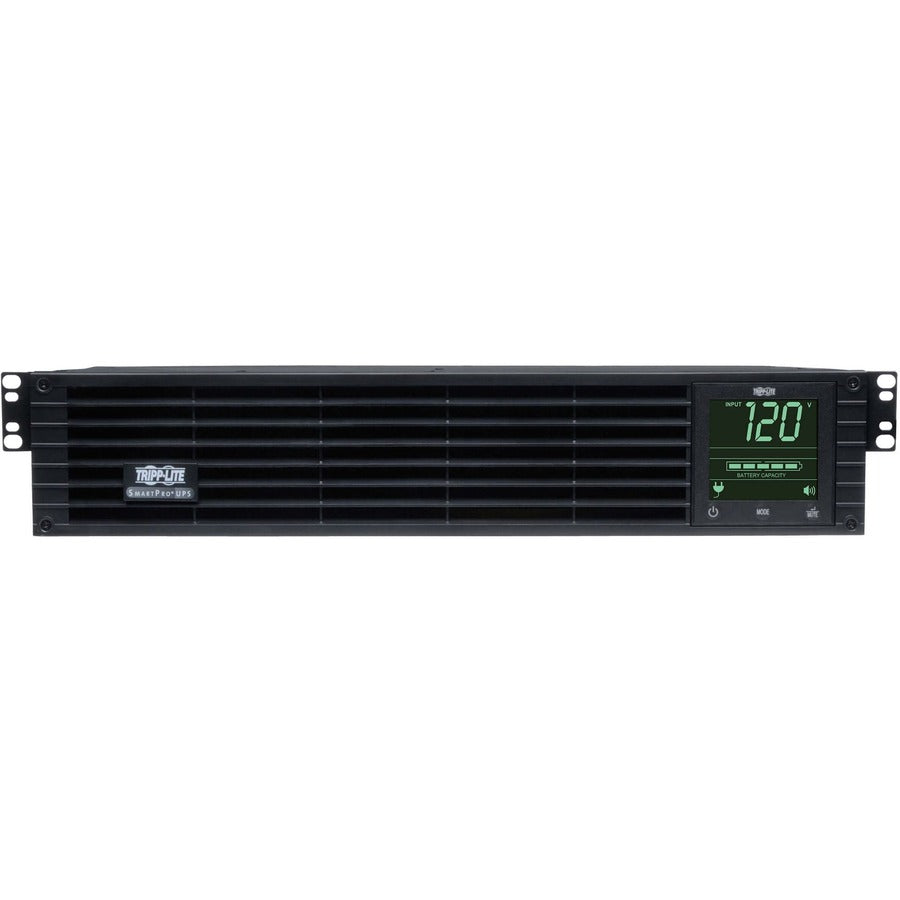

Interactive LCD Screen

• Front-panel LCD signals operating mode, load level, voltage, battery charge and estimated runtimes
• Rotates for easy viewing in rack-mount or tower configurations

Communications Ports

• USB and DB9 ports enable data-saving unattended shutdown when used with Tripp Lite's PowerAlert software (available via free download from www.tripplite.com/poweralert)
• EPO port supports emergency shutdown in large facilities

Versatile Installation Options

• Hardware included for 4-post mounting in 2U of EIA-standard 19 in. rack
• Mounts on wall or 2-post rack with optional 2POSTRMKITWM accessory
• Mounts in upright tower position with optional 2-9USTAND accessory

• 14 min. runtime at half load; 4.9 min. at full load
• Expandable runtime with optional external battery packs
• Pre-installed WEBCARDLX network interface
• 8 NEMA 5-15R outlets-4 switchable via network interface
• Corrects under- and overvoltages from 83V to 145V

. .

• Form Factor : Rack-mountable
• Backup/Run Time (Full Load) : 4.90 Minute
• Manufacturer Website Address : http://www.tripplite.com

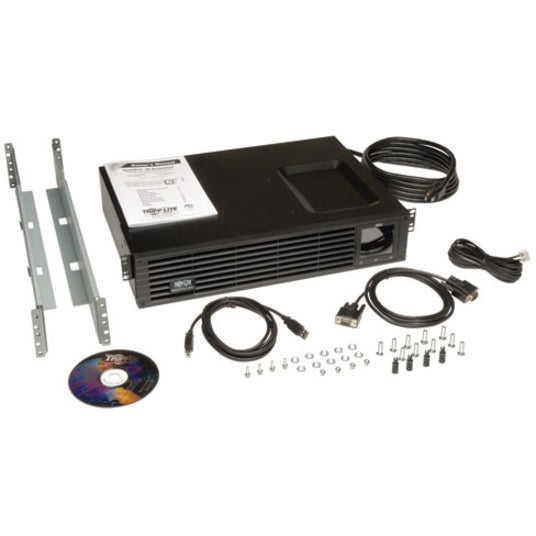

• Package Contents :
  • SmartPro SMART1500RMXLN 1.5kVA Rack-mountable UPS
  • PowerAlert Software CD
  • USB Cable
  • Serial Cable
  • EPO Cable
  • 4 Post Installation Kit
  • Owner's Manual
  • Network Interface Card
• Load Capacity : 1.50 kVA/1.35 kW
• Output Voltage : 120 V AC
• Backup/Run Time (Half Load) : 14 Minute
• Network Management : SNMP Manageable
• Receptacle Type : NEMA 5-15R
• Receptacle Detail : 8 x NEMA 5-15R
• Environmental Certification : RoHS
• Environmentally Friendly : Yes
• Input Voltage : 120 V AC
• Transfer Time : 4 ms
• Typical Battery Recharge Time : 4.50 Hour
• Limited Warranty : 3 Year
• Plug/Connector Type : NEMA 5-15P
• Product Type : Line-interactive UPS
• Manufacturer : Tripp Lite by Eaton
• Product Model : SMART1500RMXLN
• Country of Origin : China
• Rack Height : 2U
• Product Line : SmartPro
• Hot Swappable : Yes
• Software Included : PowerAlert Software
• Serial Port : Yes
• USB : Yes
