Description

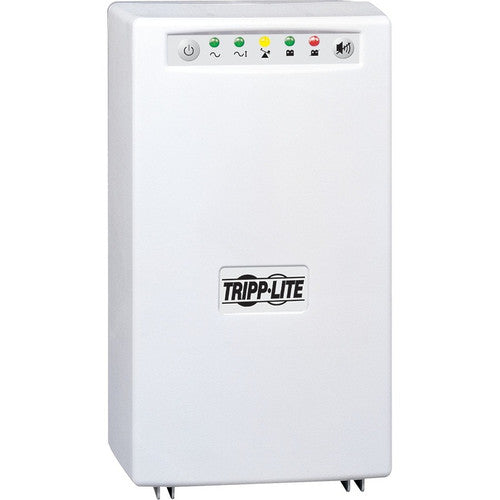

Tripp Lite's SMART700HGL medical-grade UPS system provides dependable lithium iron phosphate (LiFePO4) battery backup, so you can work through short power failures and perform an orderly system shutdown in a prolonged blackout. It's fully compliant with UL 60601-1 regulations when plugged into a hospital-grade outlet, making it ideal for use in patient-care vicinities. The 700VA/450W capacity provides up to 42 minutes of runtime for a half load and 18 minutes for a full load. Built-in line-interactive voltage regulation corrects brownouts as low as 81V and overvoltages as high as 143V to normal 120V nominal output without drawing battery power. The SMART700HGL's built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise while maintaining full AC surge suppression in all modes. This UPS system features four NEMA 5-15R-HG hospital-grade outlets and a hospital-grade NEMA 5-15P-HG plug with a six-foot cord for flexibility in placement. All four outlets provide both battery backup and 940 joules of surge protection. The SMART700HGL also features diagnostic LEDs, as well as a USB port and a DB9 serial port that work with Tripp Lite's free downloadable PowerAlert® software for safe, unattended system shutdown and file saves in the event of a prolonged power failure
Provides Ideal UPS Backup in Healthcare Facilities
- Compliant with UL 60601-1 standards for use in patient-care vicinities when plugged into a hospital-grade outlet
- Built-in isolation transformer with Faraday shield offers full isolation and reduces cumulative leakage current of connected equipment to less than 100 µA
- Hospital-grade NEMA 5-15P-HG plug with 6 ft. cord provides flexibility in placement, so healthcare workers can focus on treating the patient
Battery Backup and Full Surge Protection
- Supports half load for 42 min. and full load for 18 min. with standard LiFePO4 internal battery
- Hospital-grade NEMA 5-15R-HG outlets provide 940 joules of surge protection
- EMI/RFI noise filtering ensures equipment runs smoothly without line noise interference
- Resistant to electrostatic discharge
- 10,000-cycle LiFePO4 battery
LEDs and Audible Alarms Keep You Aware of Power Status
- Indicator lights monitor when the UPS is on and supplying utility power, when operating in voltage correction mode or in battery mode, relative load level and low-battery warning
- Audible alarms alert you to power failure, overload and low battery conditions
- Mute/quiet mode ensures "alarm fatigue" compliance
Saves Your Files, Even When You're Away
- Works with Tripp Lite PowerAlert software (available as a free download) to enable safe, unattended system shutdown and files saves during prolonged power failures

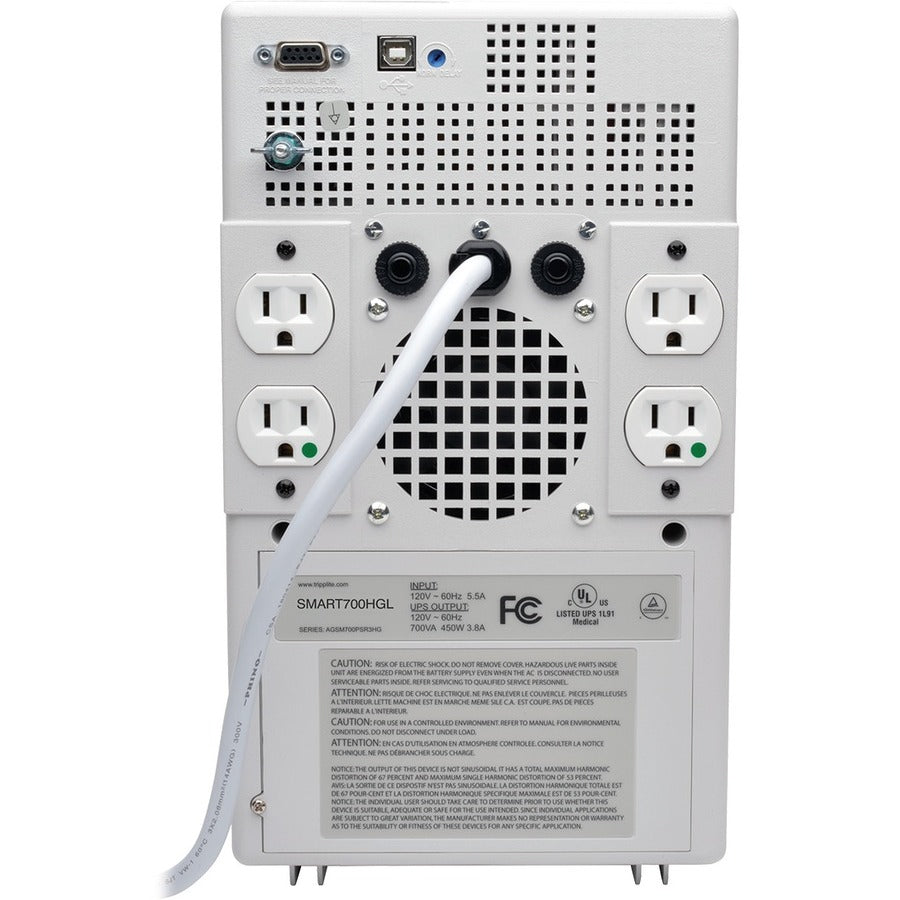

- Connects to your computer via DB9 or USB port
- Works adequately in situations where the supply is prone to sags and surges
- Keep your sensitive devices powered with a backup of up to 18 minute at full load
- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 4 x NEMA 5-15R
- Environmentally Friendly : Yes
- Input Voltage : 120 V AC
- Limited Warranty : 5 Year
- Typical Battery Recharge Time : 4 Hour
- Form Factor : Tower,Wall Mountable
- Package Contents :
- SmartPro SMART700HGL 700VA Tower UPS
- USB Monitoring Cable, 6 ft.
- DB9 Serial Monitoring Cable, 6 ft.
- Owner's Manual
- Manufacturer Website Address : http://www.tripplite.com
- Backup/Run Time (Full Load) : 18 Minute
- Product Type : Line-interactive UPS
- Load Capacity : 700 VA/450 W
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMART700HGL
- Output Voltage : 120 V AC
- Country of Origin : United States
- Product Line : SmartPro
