Description
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 98% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional network management card option. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

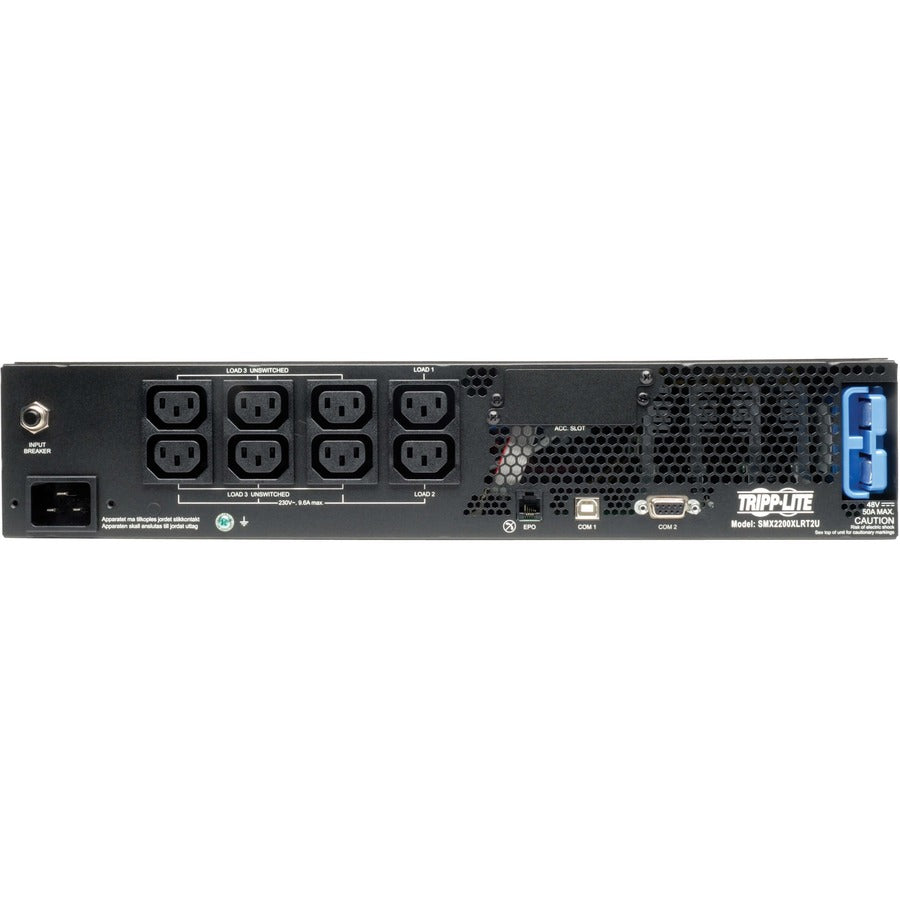

- 230V C20 inlet, 8 C13 outlets
- USB, RS232, EPO and slot for SNMPWEBCARD option
- 98% line-mode efficiency, 2 switched load banks
- 4 post compatible mounting accessories
- Extended runtime options up to 1600W
- 0.9 Power Factor, Interactive LCD interface
- 230V output, Corrects brownouts and overvoltages from 158V to 278V
- 2.2kVA / 2200VA / 1920W line interactive 2U rack/tower UPS, Sine Wave
- Receptacle Detail : 8 x IEC 60320 C13
- Phase : Single Phase
- Form Factor : Rack/Tower

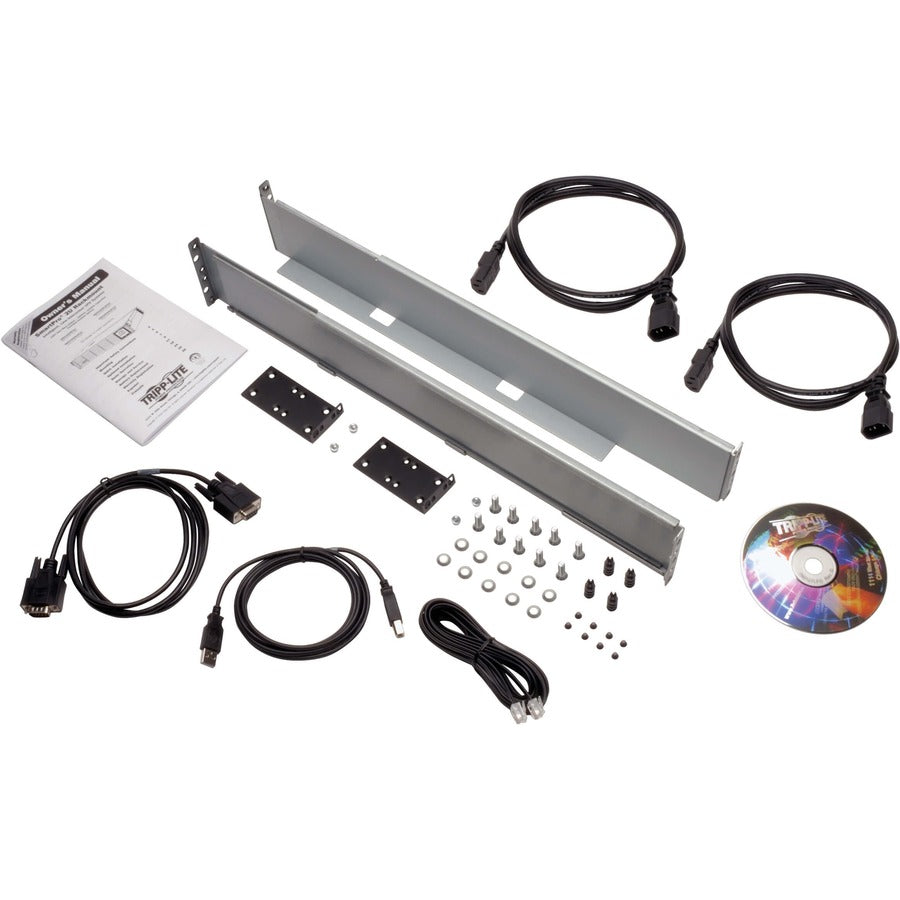

- Package Contents :

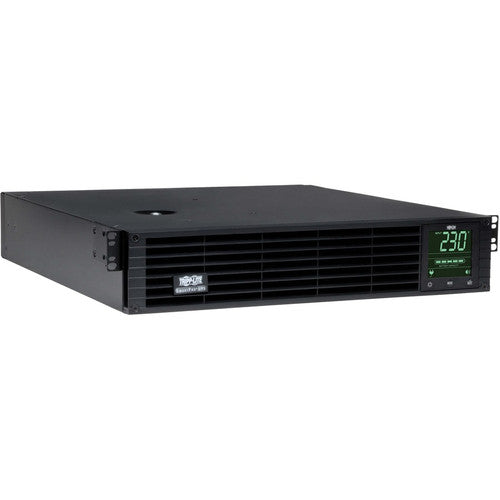

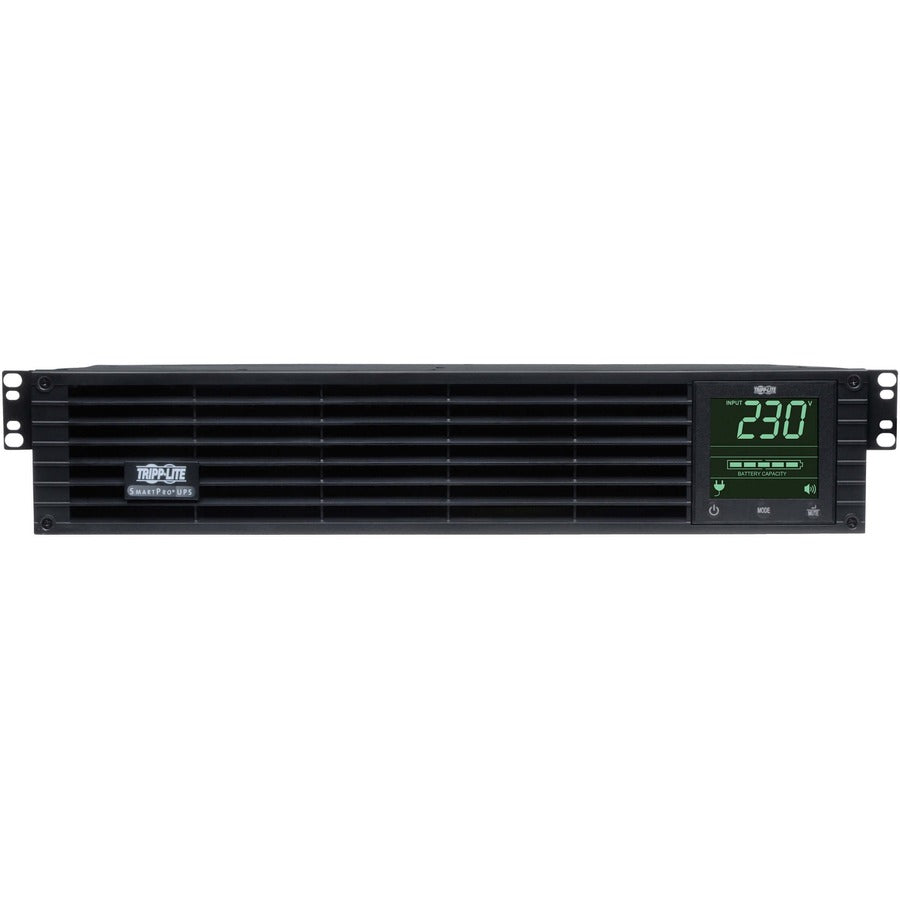

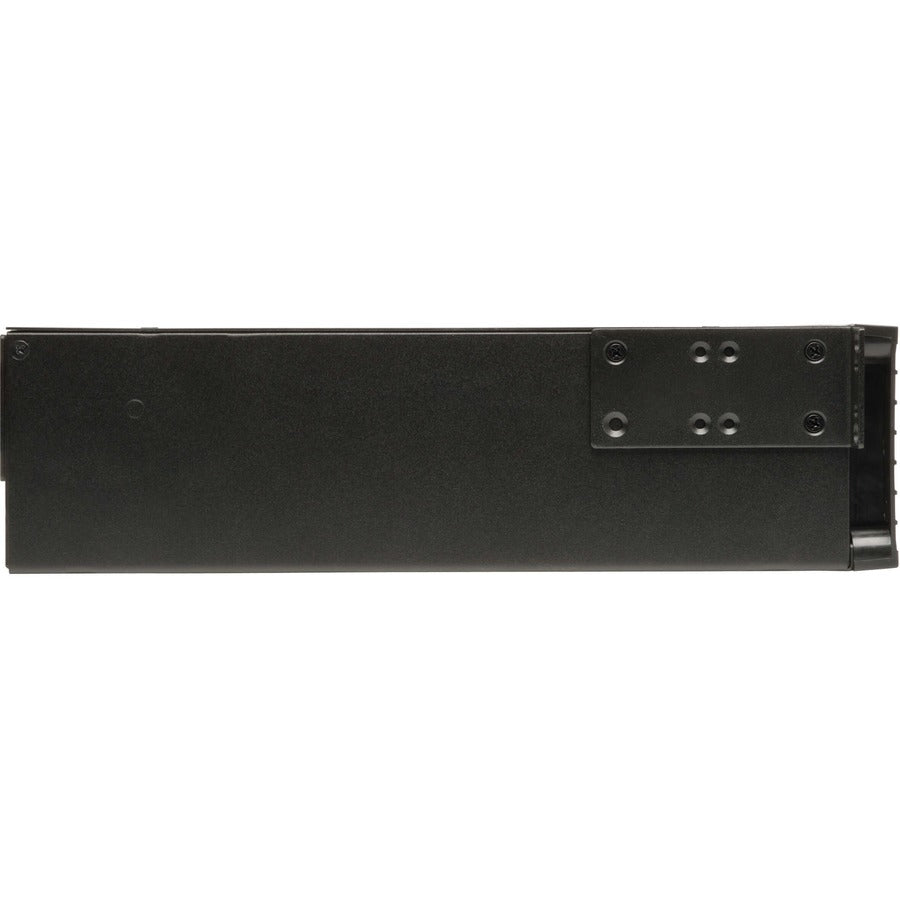

- SmartPro SMX2200XLRT2U 2200VA Tower/Rack-mountable UPS
- USB, Serial & EPO cabling
- 4 post rackmount installation kit
- Set of 3 C13/C14 power cables
- Instruction manual
- Backup/Run Time (Full Load) : 5 Minute
- Load Capacity : 2.20 kVA/1.92 kW
- Battery Chemistry : Lead Acid
- Manufacturer : Tripp Lite by Eaton
- Product Model : SMX2200XLRT2U
- Backup/Run Time (Half Load) : 11.90 Minute
- Rack Height : 2U
- Receptacle Type : IEC 60320 C13
- Environmentally Friendly : Yes
- Input Voltage : 230 V AC
- Transfer Time : 6 ms
- Limited Warranty : 2 Year
- Typical Battery Recharge Time : 4.50 Hour
- Waveform Type : Pure Sine Wave
- Plug/Connector Type : IEC 60320 C20
- Product Type : Line-interactive UPS
- Replaceable Battery : Yes
- Application/Usage : Server,Network,Telecommunication
- Hot Swappable : Yes
- Output Voltage : 220 V AC,230 V AC,240 V AC
- AVR : Yes
- Country of Origin : China
- Product Line : SmartPro
- DC System Voltage : 48 V DC
- Network Management : SNMP Manageable
- Sound Emission (A-Weighted) : 45 dB(A)
- Energy Saving : Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
- Thermal Dissipation : 161 BTU/h
- Maximum Operating Temperature : 104°F (40°C)
- Battery Characteristics : Valve-regulated
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - 122°F (50°C)
- USB : Yes
- EMI/RFI Noise Filter : Yes
- EPO Port : Yes
- Surge Energy Rating : 350 J
- Alarm : UPS StartUp,Power Failure,Low Battery,Overload,UPS Fault,Remote Shutdown
- USB (HID Compliant) Port : Yes
- Status Indicators : Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options
- Manufacturer Website Address : https://tripplite.eaton.com/
- Circuit Breaker : Yes
- Input Current : 10.70 A
