Description
The SRWF2U SmartRack 2U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 150 pounds.

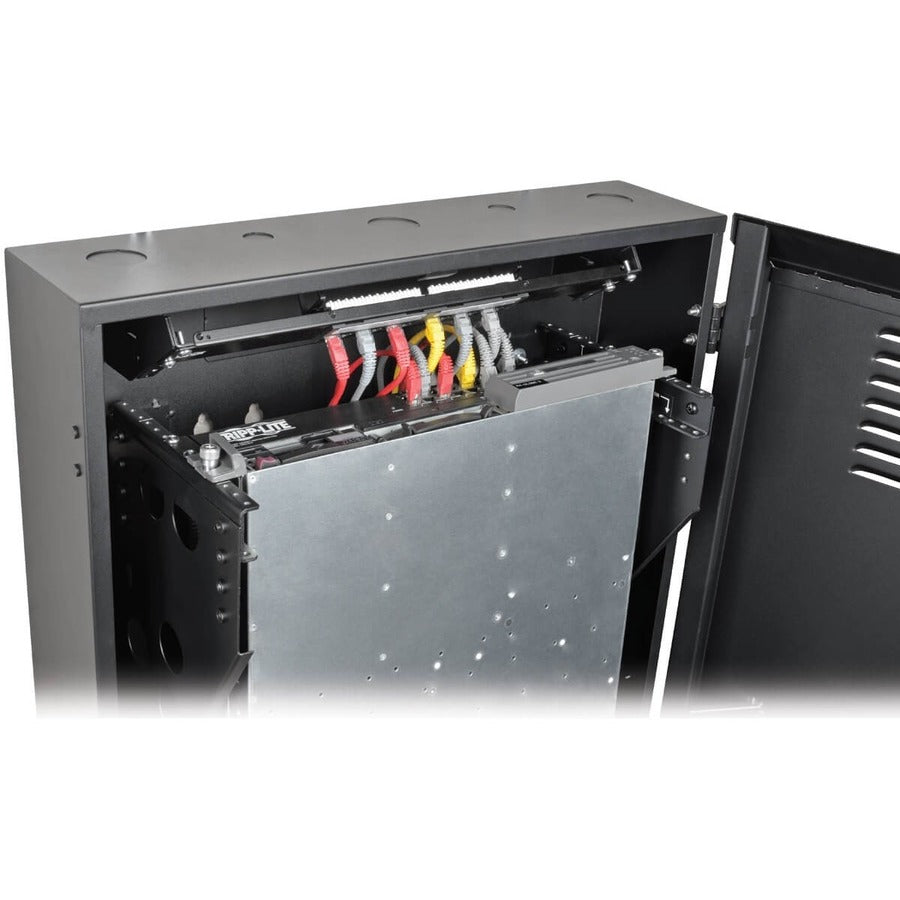

Because the low-profile cabinet mounts vertically, it extends less than five inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels. In addition to 2U of rack space in the primary mounting area, it also includes a slide-out 1U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.

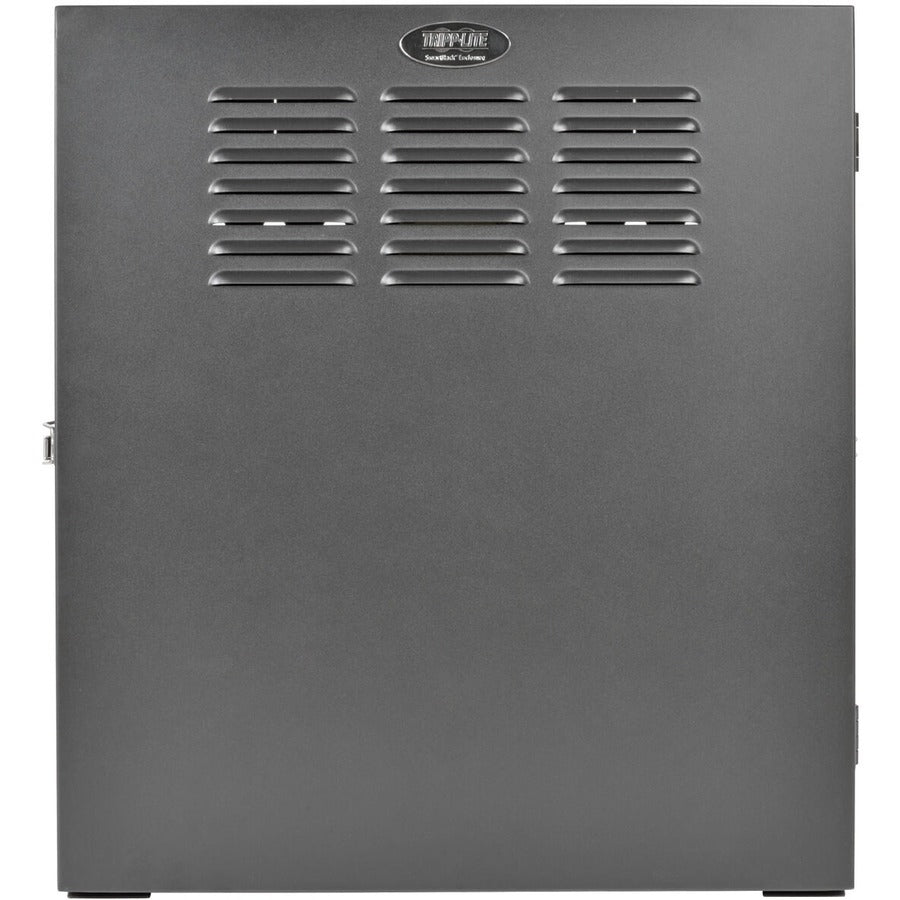

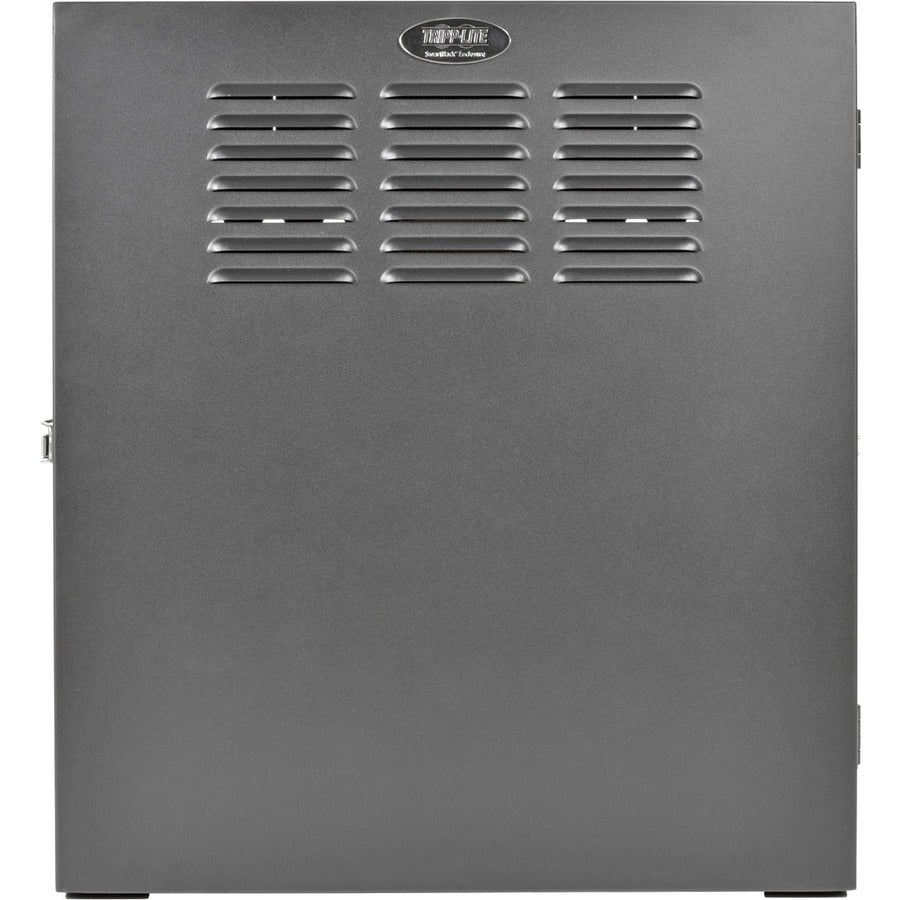

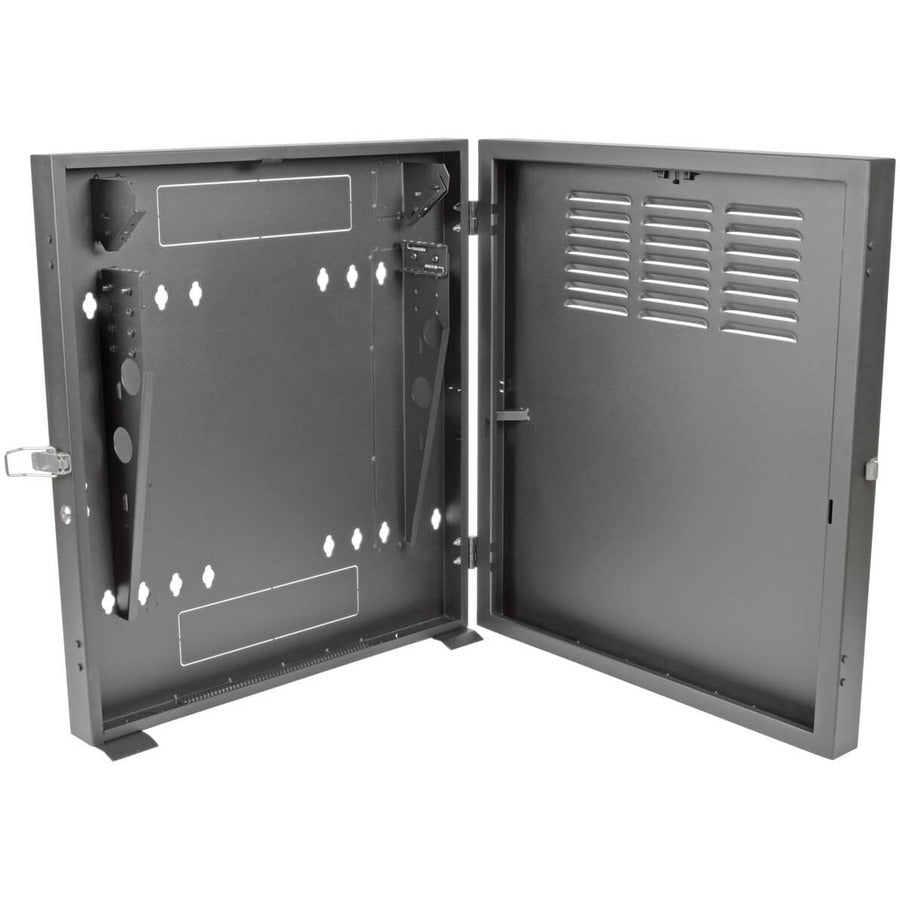

The front door locks securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF2U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
Because the low-profile cabinet mounts vertically, it extends less than five inches from the wall while housing equipment up to 20 inches deep, including network switches and patch panels. In addition to 2U of rack space in the primary mounting area, it also includes a slide-out 1U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep.
The front door locks securely to help prevent damage, tampering or theft. The cabinet is vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right. Convenient top and bottom ports allow easy cable routing.
The SRWF2U comes fully assembled and ready to mount to the wall. Equipment installation is easy with threaded mounting holes and hardware that support M6 or 12-24 mounting.
- Ships fully assembled for quick installation
- Includes additional 1U of space for patch panels
- Secures 2U of 19 in. rack equipment up to 20 in. deep
- Locking steel cabinet vented to keep equipment cool
- Maximum load capacity of 150 lb.
- Environmental Certification : RoHS
- Manufacturer Website Address : http://www.tripplite.com
- Environmentally Friendly : Yes
- Rack Width : 19" (482.60 mm)
- Product Color : Black
- Static/Stationary Weight Capacity : 68.04 kg
- Maximum Weight Capacity : 68.04 kg
- Limited Warranty : 5 Year
- Product Material : Steel
- Form Factor : Wall Mountable
- Package Contents :
- SmartRack SRWF2U Rack Cabinet
- 12 x M6 Screws
- 12 x M6 Cup Washers
- 12 x 12-24 Screws
- 2 x Keys
- Owner's Manual
- Product Type : Rack Cabinet
- Rack Depth : 20" (508 mm)
- Assembly Required : No
- Manufacturer : Tripp Lite by Eaton
- Application/Usage : LAN Switch,Patch Panel
- Product Model : SRWF2U
- Country of Origin : China
- Rack Height : 2U
- Product Line : SmartRack
