Description
The SRW9UG SmartRack 9U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 200 pounds.The front door features a shatter-resistant clear acrylic window that lets you monitor equipment without unlocking the enclosure. Not only does the window help prevent equipment tampering and reduce acoustic noise, but it also adds visual flair to your IT installation.The side panels and front door lock securely to help prevent damage, tampering or theft. The top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible front door can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.The SRW9UG comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 16.5 inches deep, such as network switches and patch panels.
- Mounts to wall or rolls on floor (with optional SRCASTER)
- Secures 9U of 19 in. rack equipment up to 16.5 in. deep
- Locking steel cabinet vented at sides, top and bottom
- Maximum load capacity of 200 lb.

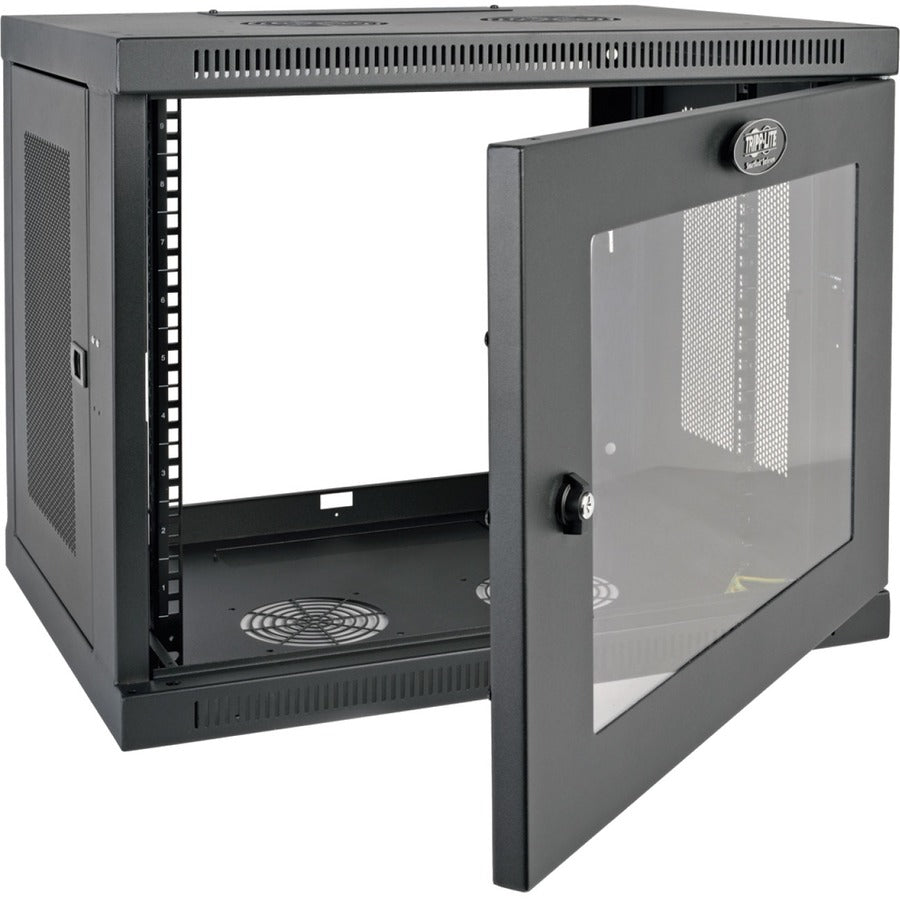

- Front door includes shatter-resistant clear acrylic window
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Rack Width : 19" (482.60 mm)
- Product Color : Black
- Static/Stationary Weight Capacity : 63.50 kg
- Maximum Weight Capacity : 90.72 kg
- Limited Warranty : 5 Year
- Product Material : Plexiglass
- Form Factor : Wall Mountable

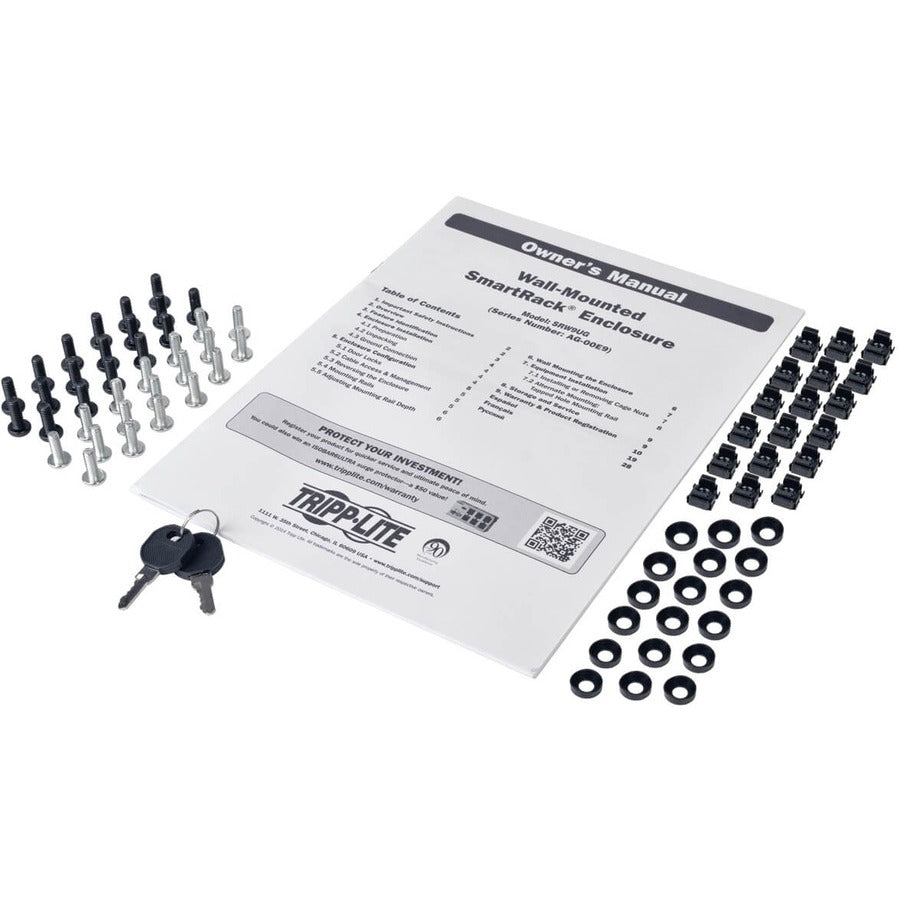

- Package Contents :
- SRW9UG SmartRack 9U Wall-Mount Standard-Depth Rack Enclosure Cabinet
- 18 x M6 Screws
- 18 x M6 Cage Nuts
- (18 x M6 Cup Washers
- 18 x 12-24 Screws
- Removable Mounting Plate
- 3 x Mounting Plate Screws
- 2 x Keys
- Owner's Manual
- Manufacturer Website Address : http://www.tripplite.com
- Product Type : Rack Cabinet
- Assembly Required : No
- Rack Depth : 16.50" (419.10 mm)
- Application/Usage : LAN Switch
- Manufacturer : Tripp Lite by Eaton
- Product Model : SRW9UG
- Features : Cable Management
- Rack Height : 9U
- Country of Origin : China
- Product Line : SmartRack
