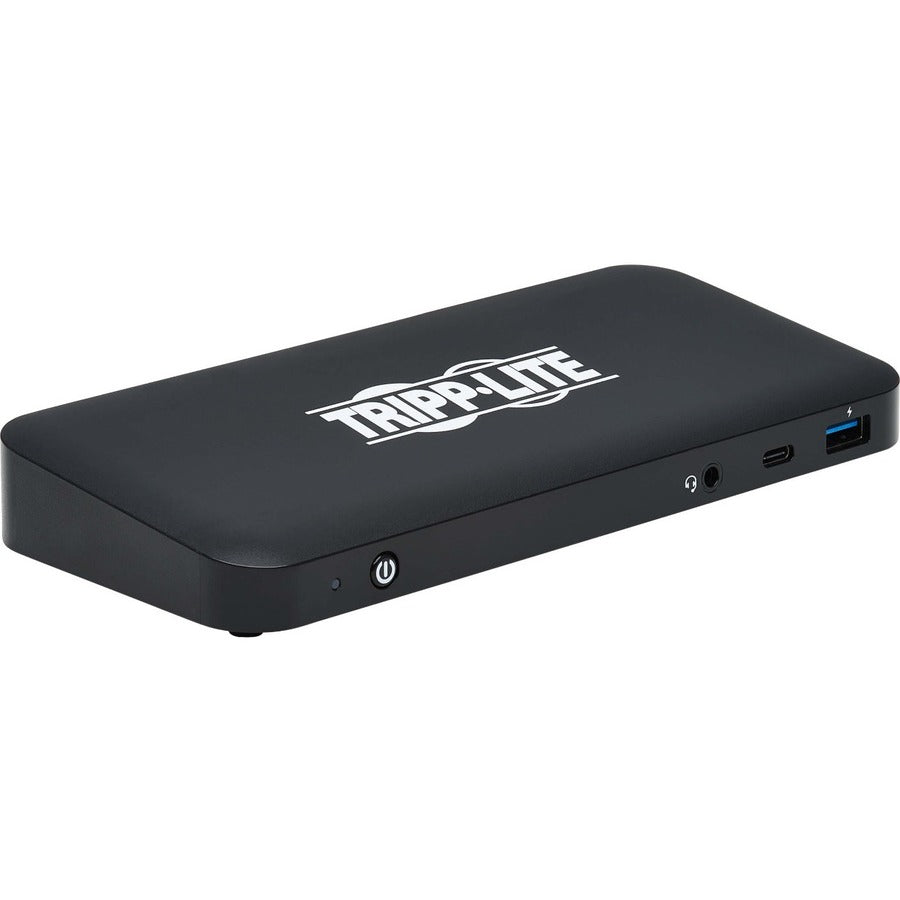

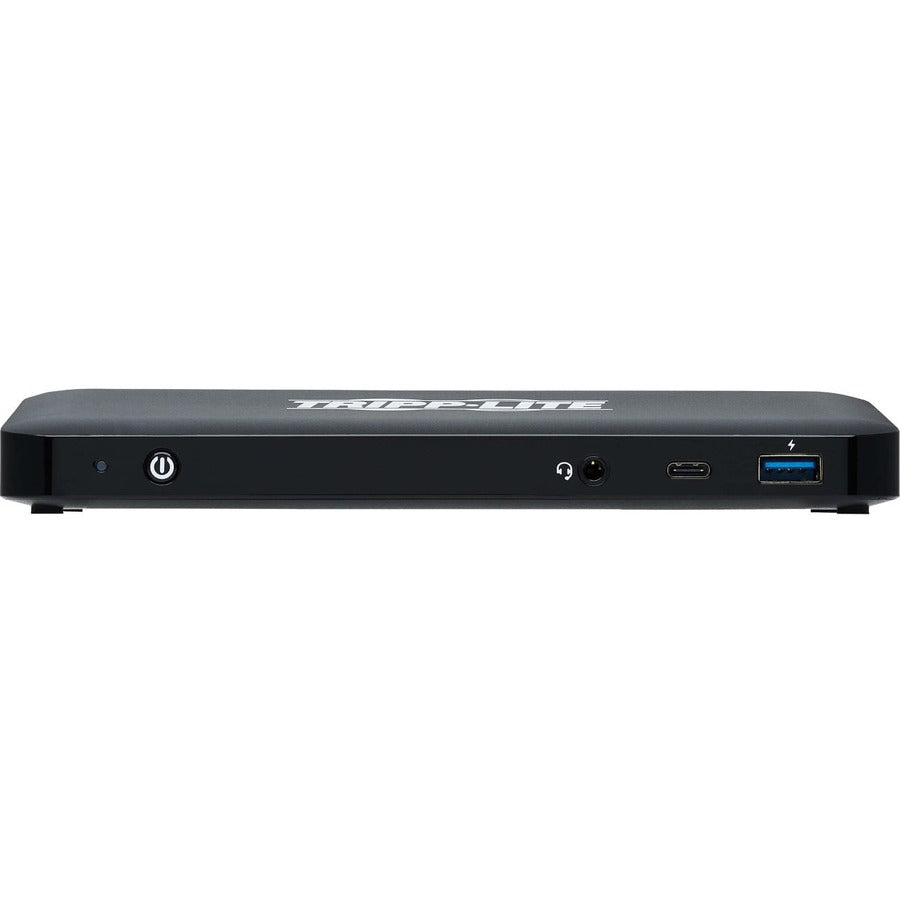

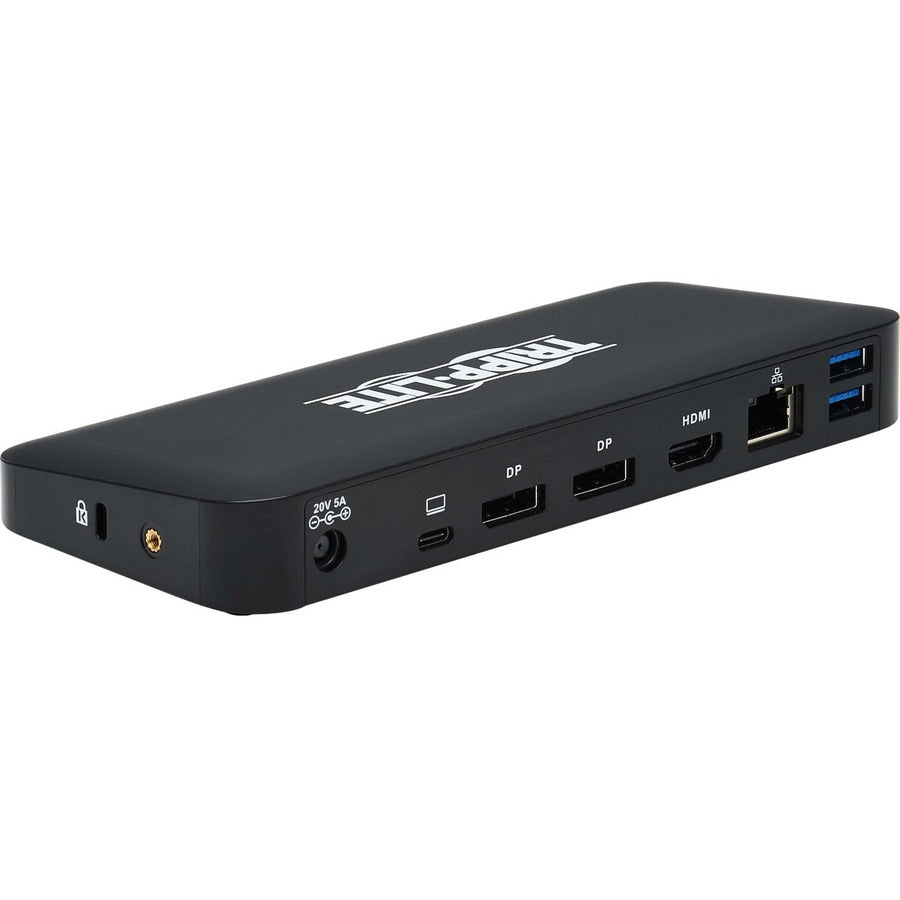

Tripp Lite U442-DOCK8-B Docking Station U442-DOCK8-B

USB-C Docking Station Turns Your Device's USB-C or Thunderbolt 3 Port into 10 New Ports

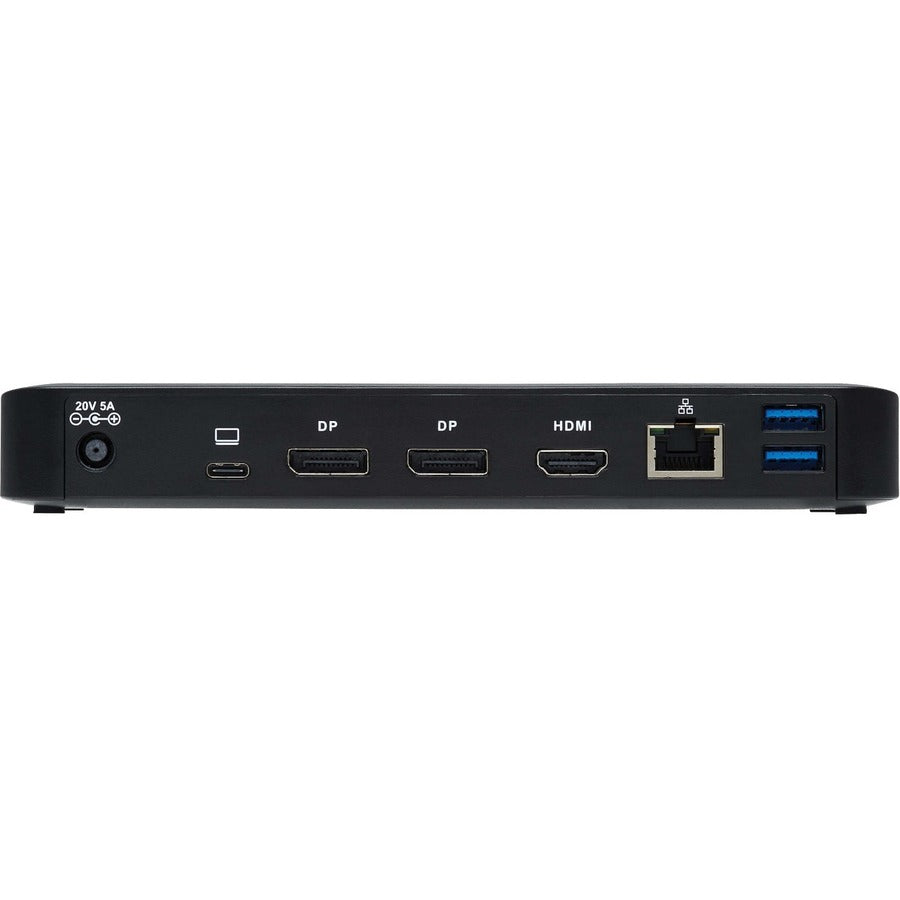

This universal USB-C dock with PD Charging expands the potential of your Windows laptop, Chromebook, MacBook Pro, smartphone or PC's USB-C or Thunderbolt 3 port. Connect the dock using the included USB-C cable, and add 10 ports to your device:

• 4K HDMI
• (2x) 4K DisplayPort
• RJ45 Gigabit Ethernet
• USB 3.2 Gen 2 Type-C
• (3x) USB 3.2 Gen 2 Type-A
• USB-C PD charging
• 3.5 mm mini stereo

Supports USB-C DisplayPort Alternate Mode for Transmitting Audio/Video Signals
By connecting the detachable USB-C cable to a source device that supports USB DisplayPort Alt Mode, you can output 4K video and digital audio to a compatible monitor, television or projector without installing special software drivers.

Transmits Crystal-Clear 4K Video and Digital Audio with 4:4:4 Color
The DisplayPort and HDMI outputs support single-monitor 4K resolutions up to 3840 x 2160 at 60 Hz with 2.1-channel surround sound. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This dock also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

• HDMI and DisplayPort outputs each support single-monitor 4K applications @ 60 Hz

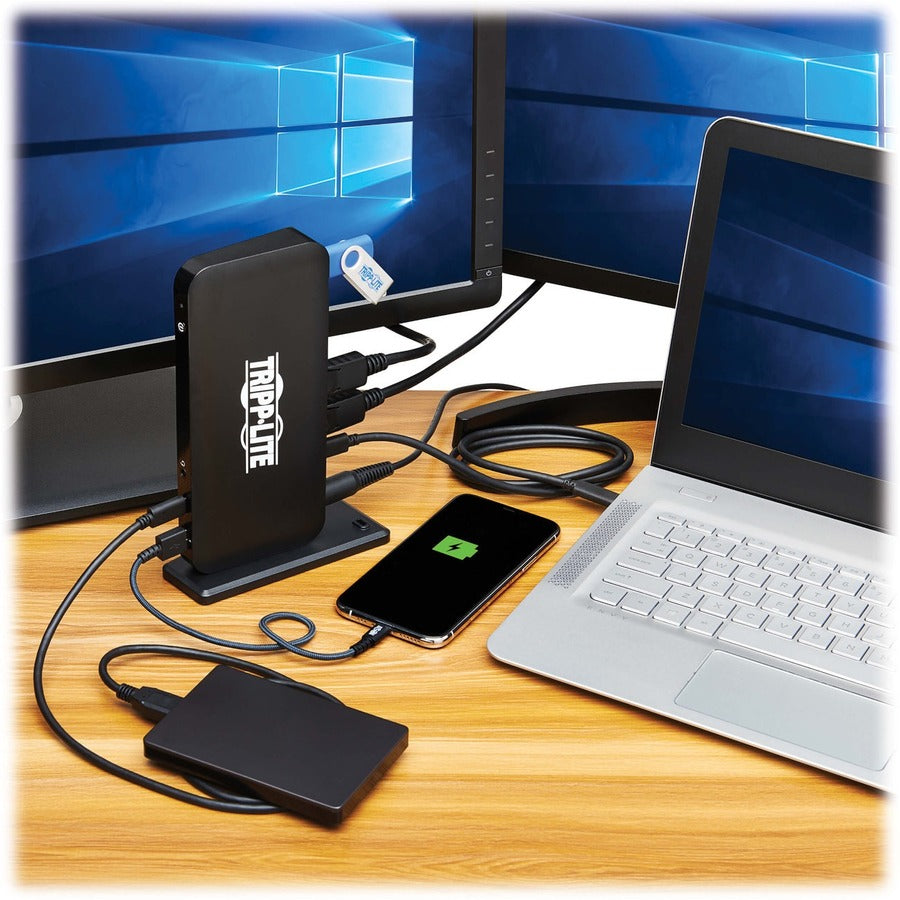

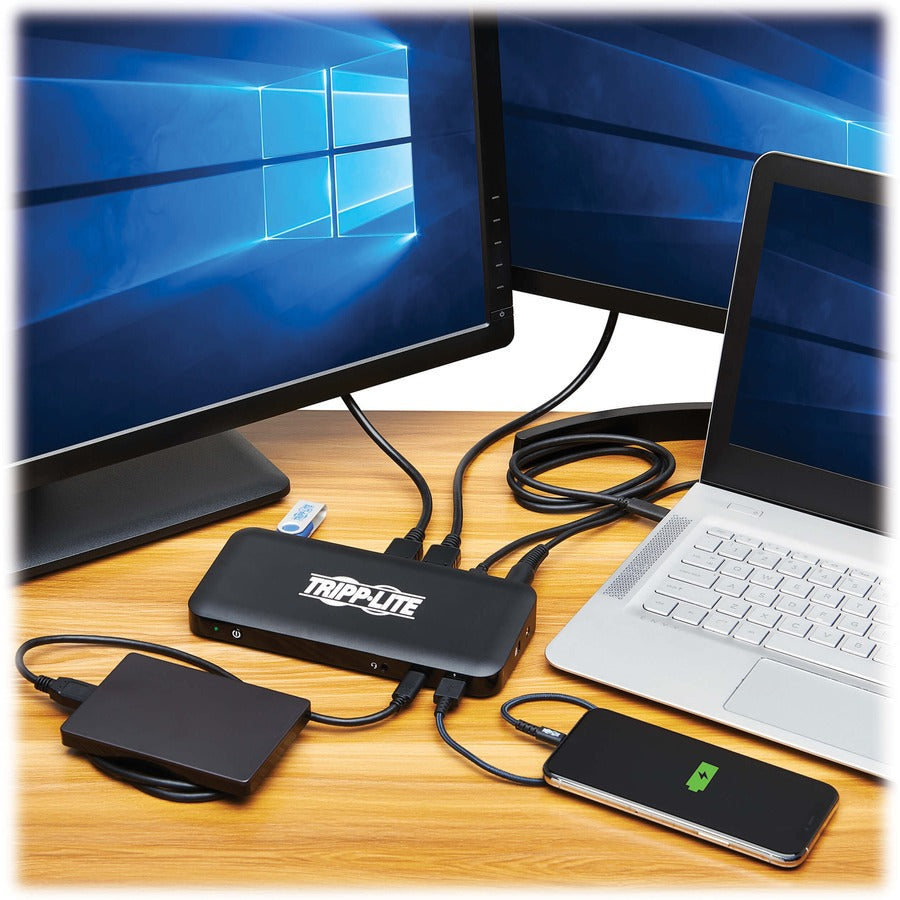

• Extends 1080p desktop image across 3 screens @ 30 Hz and 2 screens @ 60 Hz
• Connects you to a wired 10/100/1000 Ethernet network when no Wi-Fi is available
• USB-C and USB-A hub ports allow connection of flash drives and other peripherals
• Power Delivery port supports 20V 4.25A (85W) power output for charging source device
• 3-year limited warranty

• Manufacturer Website Address : http://www.tripplite.com
• Environmental Certification : RoHS,REACH
• USB Type-C Detail : 2 x USB C (FEMALE)
• Maximum Power Supply Wattage : 85 W
• Number of RJ-45 Ports : 1
• Device Supported : Monitor/Notebook/Smartphone/Keyboard/Mouse/Headset/Flash Drive
• Total Number of USB Ports : 5
• USB Type-C : Yes
• Form Factor : Portable

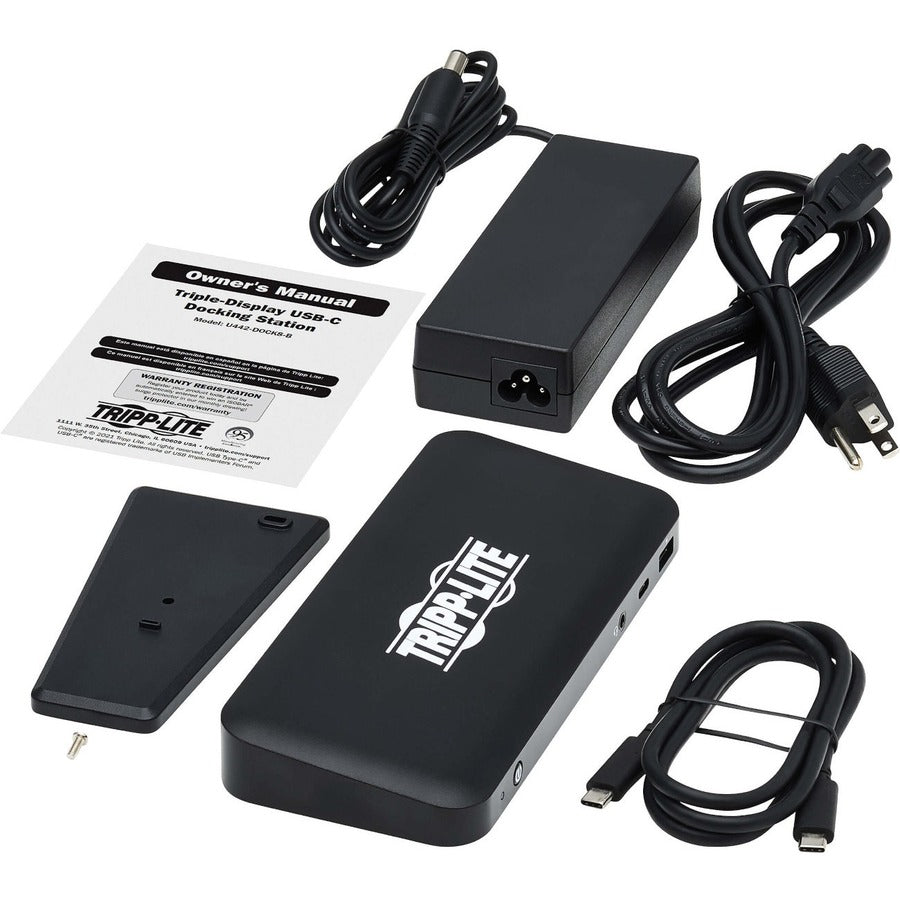

• Package Contents :
  • U442-DOCK8-B Docking Station

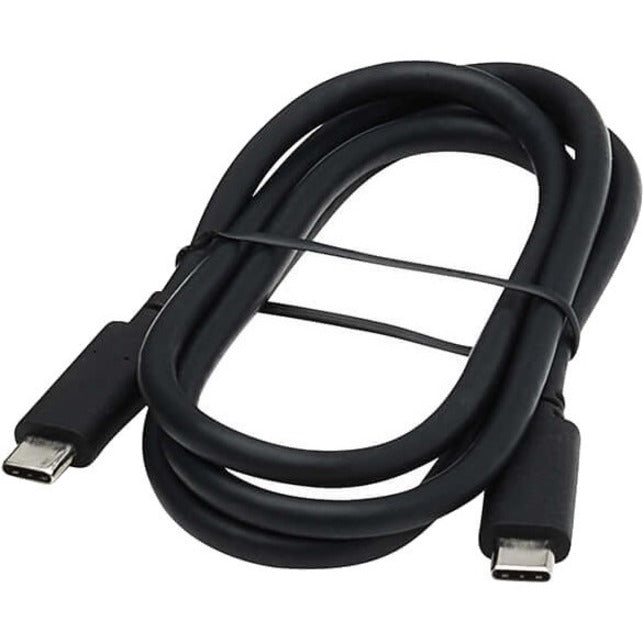

  • USB-C to USB-C Cable, 3.3 ft.
  • External Power Supply (Input: 100-240V, 50/60 Hz, 2A; Output: 20V 5A)
  • C5 to NEMA 5-15P Adapter, 6 ft.
  • Owner's Manual
• Operating System Supported : Windows
• HDMI Version : 2.0
• Number of DisplayPorts : 2
• Screen Mode Supported : 4K
• DisplayPort : Yes
• USB Type-A : Yes
• Manufacturer : Tripp Lite by Eaton
• Product Model : U442-DOCK8-B
• Supported Resolutions : 3840 x 2160,1280 x 720,1920 x 1080
• Ethernet Technology : Gigabit Ethernet
• Environmentally Friendly : Yes
• Number of USB Type-A Ports : 3
• Number of Displays Supported : 3
• Product Color : Black
• Number of USB Type-C Ports : 1
• Limited Warranty : 3 Year
• DisplayPort Version : 1.4
• Headphone/Microphone Combo Port : Yes
• Number of USB 3.2 Gen 2 Type-A Ports : 3
• Network (RJ-45) : Yes
• Number of HDMI Ports : 1
• Host Interface : USB Type C
• Product Type : Docking Station
• HDMI : Yes
• Compatibility : Apple MacBook Pro
• Thunderbolt : Yes

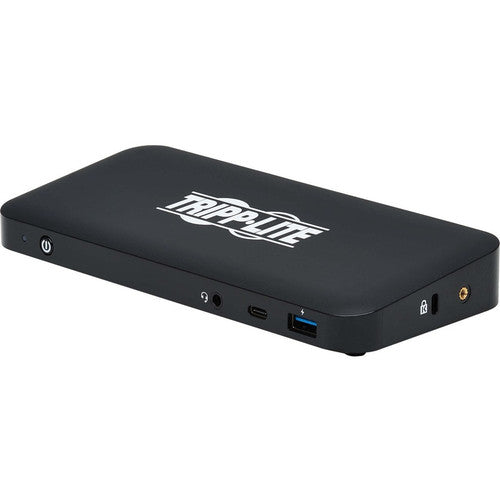

• Kensington Security Slot : Yes
• Country of Origin : China
• Connectivity Technology : Wired
