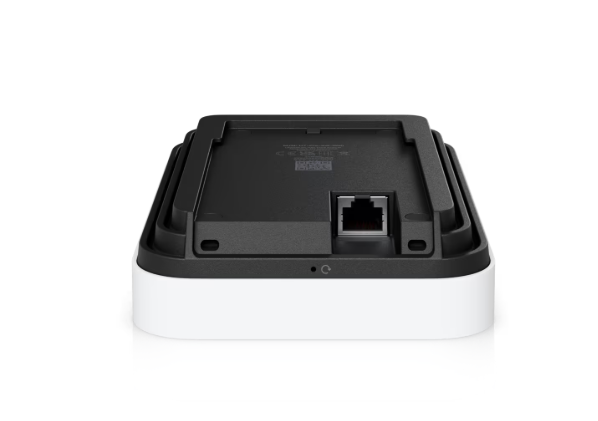

Ubiquiti Access Points U7-PRO-XG-WALL-US

Economisez $12.97
UbiquitiSKU: U7-PRO-XG-WALL-US

Prix:
Prix réduit$422.99 Prix normal$435.96
Stock:
Plus que 30 en stock

Récupération disponible à DeployDepot.ca

Habituellement prête en 24 heures

Estimer la livraison

Description

Wall-mounted 6 GHz-ready WiFi 7 AP

Dimensions
155 x 108 x 33.5 mm (6.1 x 4.3 x 1.3'')
WiFi Standard
WiFi 7

Spatial Streams
6
Coverage Area
140 m² (1,500 ft²)
Max. Client Count
300+
Uplink
10 GbE
Mounting
Wall
Power Method
PoE+

MIMO

6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)
Max. Data Rate

6 GHz
5.8 Gbps (BW320)
5 GHz
4.3 Gbps (BW240)
2.4 GHz
688 Mbps (BW40)
Antenna Gain

6 GHz
6 dBi
5 GHz
6 dBi
2.4 GHz
4 dBi
Max. TX Power

6 GHz
24 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates

802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Wireless Meshing
✓
Band Steering
✓
802.11v BSS Transition Management
✓
802.11r Fast Roaming
✓
802.11k Radio Resource Management (RRM)
✓
Advanced Radio Management
✓
Passpoint (Hotspot 2.0)
✓
Captive Hotspot Portal

Custom Branding Landing Page
✓
Voucher Authentication
✓
Payment-Based Authentication
✓
External Portal Server Support
✓
Password Authentication
✓
Guest Network Isolation
✓
Private Pre-Shared Key (PPSK)
✓
WiFi Speed Limiting
✓
Client Device Isolation
✓
WiFi Schedules
✓
RADIUS over TLS (RadSec)
✓
Dynamic RADIUS-assigned VLAN
✓

Max. Power Consumption
22W
Supported Voltage Range
42.5–57V DC
Networking Interface
(1) 10 GbE RJ45 port
Weight
505 g (1.1 lb)
Management
Ethernet
Enclosure Material
Polycarbonate, aluminum alloy
Mount Material
Aluminum alloy
LEDs

System
W/B
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant
✓
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing

Application Requirements

UniFi Network
Version 10.0 and later
Mobile App
iOS™ version 10.29.3 and later Android™ version 10.31.1 and later
