Description

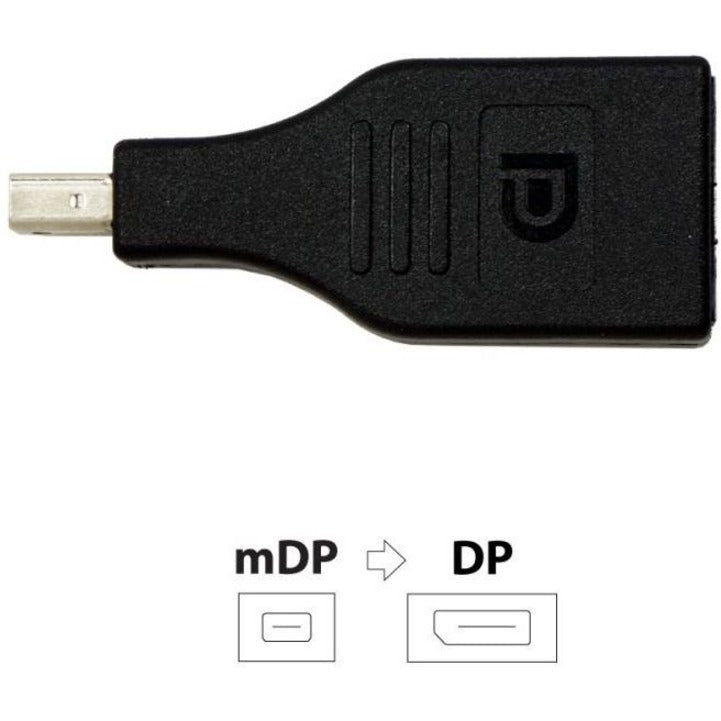

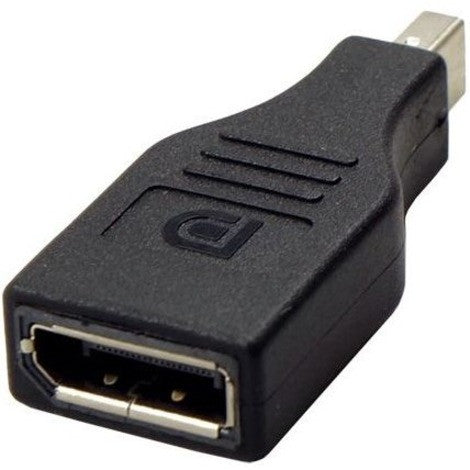

The VisionTek mini DisplayPort Male to DisplayPort Female Adapter features a mini DP male connector on one end and a DP female connector on the other. The adapter allows you to connect any mini DisplayPort-equipped laptop or graphics card to a standard DisplayPort connection such as an HDTV, monitor or projector. DisplayPort cable not included.
VisionTek's mini DisplayPort Male to DisplayPort Female Adapter supports high resolutions of up to 4K (4096 x 2160) @ 60Hz. Resolutions supported with this mDP to DP adapter will depend on host system. The adapter also supports Multi-Stream (MST) for daisy-chaining multiple monitors, as well as provides optional audio support and digitally protected content (HDCP and DPCP) for host systems that support these features.
NOTE: This adapter is not bi-directional. This adapter converts
mini DisplayPort to DisplayPort only, not vice-versa.
VisionTek Display adapters offer a quick solution for your display needs. Our adapters work across all operating systems including OS X, Linux and Windows XP, Windows 7, Windows 8, and Windows 10. Where necessary, our adapters are active for expanded compatibility with multi monitor displays, docks, and digital signage. AMD Eyefinity is also supported with our adapters. Each VisionTek adapter has been extensively tested with HP, Dell, Lenovo and Mac systems to ensure a wide range of system compatibility.
Key Features
- Supports resolutions up to 4K UHD (4096 x 2160 @ 60Hz).
- Connect your mDP device to a DisplayPort display, TV or projector.
- Supports AMD Eyefinity Multi-Display capability.
- No O/S driver required.
- Plug 'n Play with no power input requirement.
- One Year Warranty.
- Offers exceptional quality as well as upright compatibility with audio and video equipment
- Nickel plating is durable and reliable
- Vivid colors with fine quality text with 4096 x 2160 resolution
- High-quality standard DisplayPort/Mini DisplayPort adapter
- Connector Plating : Nickel
- Manufacturer Website Address : http://www.visiontek.com
- Product Type : A/V Adapter
- Length : 2" (50.80 mm)
- Manufacturer : VisionTek Products, LLC
- Features : HDCP,Plug and Play,Active
- Adapter Type : DisplayPort/Mini DisplayPort
- Limited Warranty : 1 Year
- Maximum Resolution Supported : 4096 x 2160
- Country of Origin : China
- Connector on First End Details : 1 x 20-pin Mini DisplayPort DisplayPort 1.2 Digital Audio/Video Male
- Connector on Second End Details : 1 x 20-pin DisplayPort DisplayPort 1.2 Digital Audio/Video Female
- Connector Type on First End : Mini DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on Second End : DisplayPort 1.2 Digital Audio/Video - Female
