Description

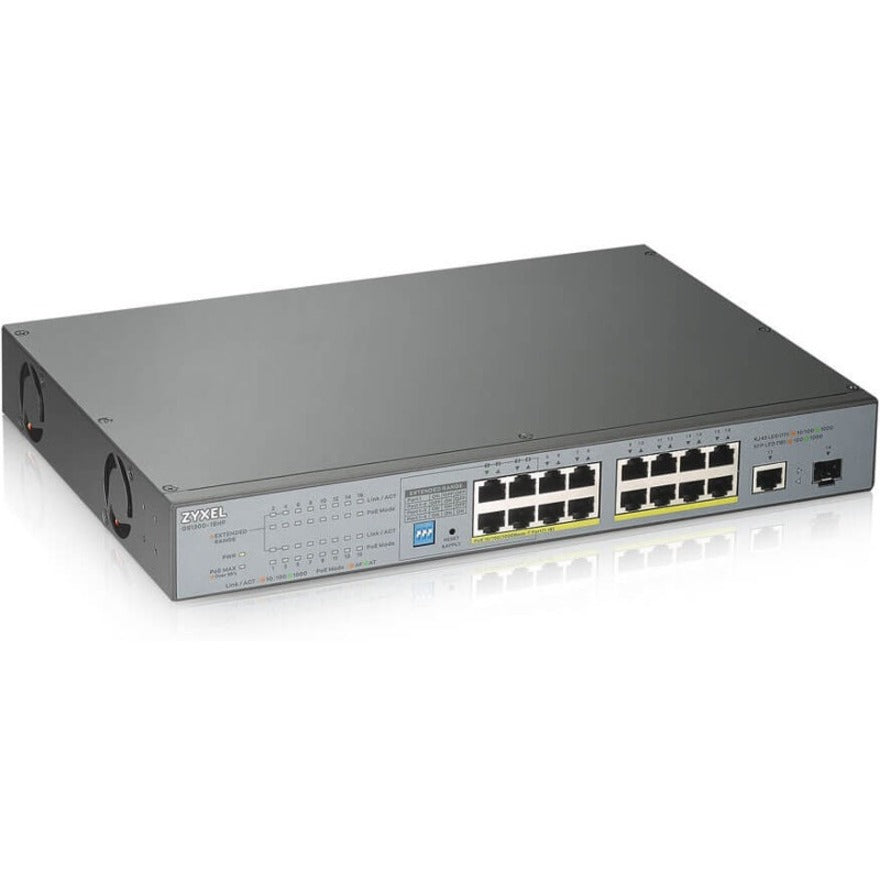

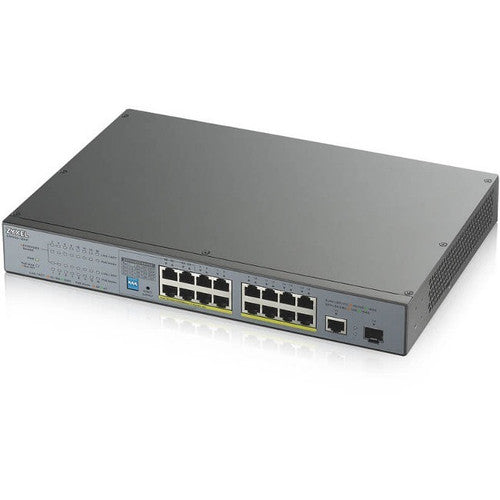

Zyxel introduces the GS1300 Series switches specialized in surveillance deployments. With a brand-new titanium grey exterior purpose-built for surveillance, the Series includes 3 models with a range of large power budgets from 130 W to 250 W. The GS1300 Series comes with specialized hardware features such as an extended range mode for long range- applications along with PoE LEDs for real-time status inspection.
Benefits
Easy for long-distance deployment
PoE switch is usually limited to deliver power and data of 100 meters. The Zyxel GS1300 Series can instantly achieve up to 250 meters by toggling the DIP switch to enable extended-range mode, fulfilling the need to deploy IP camera or other powered devices using Cat5 cable at a distant location. Save money and effort with a single PoE switch.
Oversee switch status intuitively
The LED indicators are helpful for inspecting the real-time status. The PoE MAX indicator alerts when the switch runs out of power budget, and you can also check that which port is on extended range mode instantly.
Best suited for surveillance installation
The GS1300 Series offers a high PoE power budget that can accommodate multiple IP cameras without the need of adapters. The GS1300 Series' internal power supply design makes it easy to mount onto server racks, allowing more freedom and utilization of space.
Benefits
Easy for long-distance deployment
PoE switch is usually limited to deliver power and data of 100 meters. The Zyxel GS1300 Series can instantly achieve up to 250 meters by toggling the DIP switch to enable extended-range mode, fulfilling the need to deploy IP camera or other powered devices using Cat5 cable at a distant location. Save money and effort with a single PoE switch.
Oversee switch status intuitively
The LED indicators are helpful for inspecting the real-time status. The PoE MAX indicator alerts when the switch runs out of power budget, and you can also check that which port is on extended range mode instantly.
Best suited for surveillance installation
The GS1300 Series offers a high PoE power budget that can accommodate multiple IP cameras without the need of adapters. The GS1300 Series' internal power supply design makes it easy to mount onto server racks, allowing more freedom and utilization of space.
- Expand your network capacity with the help of 16 networking ports and transfer your data quickly and easily
- Cascade to other network devices through the uplink port to expand your local area network
- Gigabit Ethernet port for ultra-fast network speeds
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Rack mounting enables you to organize wires & secure cables for professional installation
- Power Source : Power Supply
- Product Series : GS1300
- Modular : Yes
- PoE (RJ-45) Port : Yes
- Form Factor : Rack-mountable
- Manufacturer Website Address : http://www.zyxel.com
- Package Contents :
- 16-port GbE Unmanaged PoE Switch with GbE Uplink
- Power Cord
- Rack Mounting Kit
- Uplink Port : Yes
- Manufacturer : ZYXEL Communications Corp.
- Product Model : GS1300-18HP
- Manageable : No
- Environmental Certification : RoHS
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Layer Supported : 2
- Shared SFP Slot : No
- PoE Budget : 250 W
- Limited Warranty : Lifetime
- Product Type : Ethernet Switch
- Length : 17" (431.80 mm)
- Number of Total Expansion Slots : 1
- Total Number of Network Ports : 16
- Number of SFP Slots : 1
- Country of Origin : China
- Expansion Slot Type : SFP (mini-GBIC)
- Network Technology : 10/100/1000Base-T,1000Base-X
- Port/Expansion Slot Details : 16 x Gigabit Ethernet PoE+,1 x Gigabit Ethernet Network,1 x Gigabit Ethernet Expansion Slot
- Media Type Supported : Twisted Pair,Optical Fiber
