Description

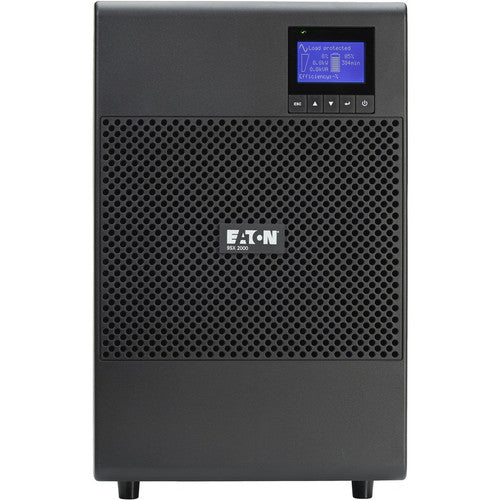

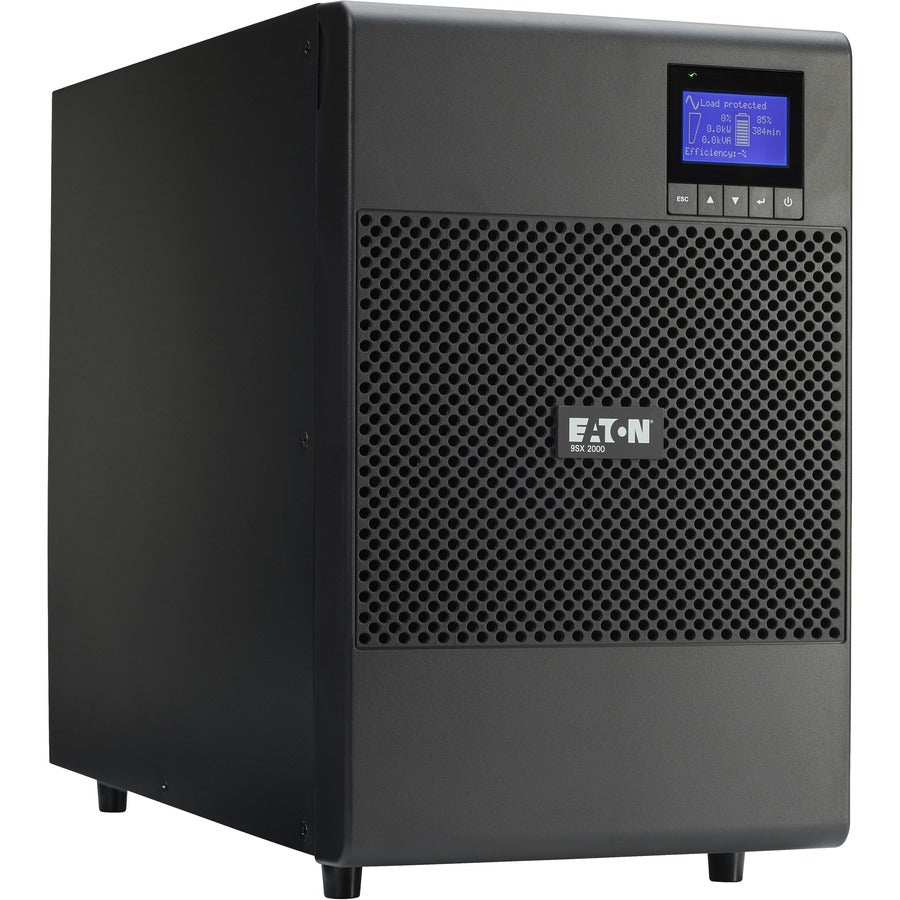

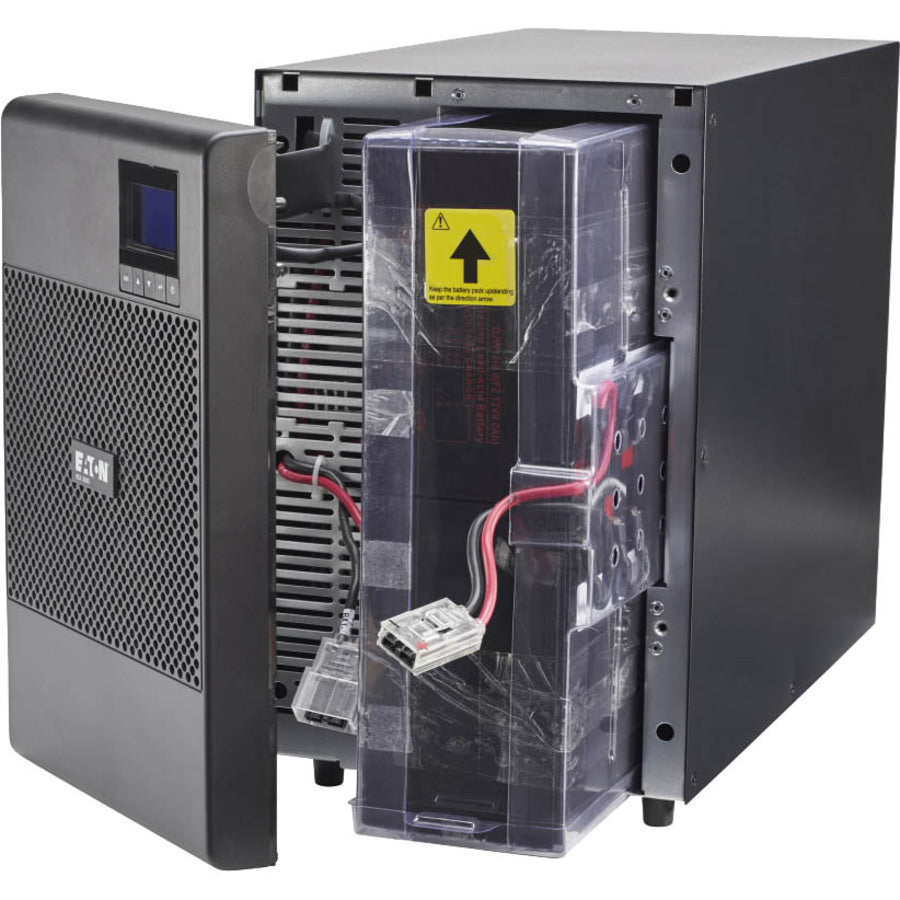

Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss This 9SX on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC. Featuring surge suppression, true on-line operation with pure sine wave output and zero transfer time between on-line and battery modes, the 9SX2000 provides the highest level of AC power protection and battery backup for medical, light industrial, automation and other mission-critical IT applications where space is limited, but premium power reliability is essential. Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages The field-replaceable, hot-swappable internal battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing. You can also connect up to four external battery modules (9SXEBM96, sold separately) for hours of extended runtime. Optional Gigabit Network Interface Offers 24/7 Remote Access The NETWORK-M2 network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions. NEMA 5-20R Outlets Protect Your Connected Components One L5-20R and six 5-20R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Power provided by these outlets is filtered to protect connected equipment against damaging surges and line noise. Four 5-20R outlets and the single L5-20R are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
- Zero transfer time between on-line and battery modes for uninterrupted operation

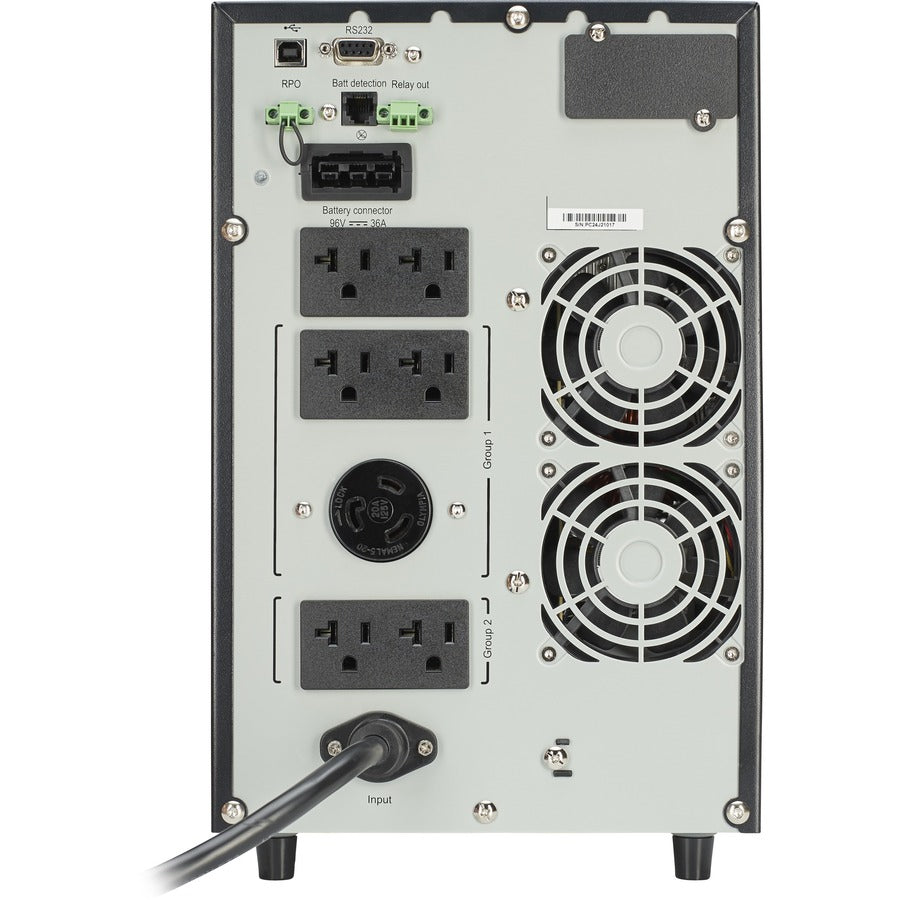

- NEMA 5-20P input with one L5-20R and 6 NEMA 5-20R outlets for devices
- Optional NETWORK-M2 network card enables full remote access and control
- Front-panel LCD keeps you up to date with status info and other vital analytics
- Optional external battery modules allow extended runtime to keep equipment running
- Receptacle Type : NEMA 5-20R,NEMA L5-20R
- Receptacle Detail : 6 x NEMA 5-20R
- Input Voltage : 120 V AC
- Product Series : 9PX
- Limited Warranty : 2 Year
- Waveform Type : Sine Wave
- Form Factor : Tower
- Package Contents :
- 2000VA Tower UPS
- Manual
- Quick Start Guide
- Safety Guide
- Serial And USB Cables
- Manufacturer Website Address : http://www.eaton.com/EatonCom/Markets/NorthAmerica
- Backup/Run Time (Full Load) : 10.30 Minute
- Plug/Connector Type : NEMA 5-20P
- Product Type : Double Conversion Online UPS
- Load Capacity : 2 kVA/1.80 kW
- Application/Usage : Industrial Equipment,Industrial Automation System,IT System
- Manufacturer : Eaton Corporation
- Input Voltage Range : 100 V AC - 138 V AC
- Output Voltage : 100 V AC,110 V AC,120 V AC,125 V AC
- Country of Origin : Philippines
