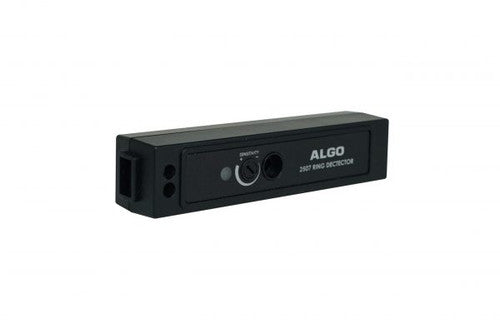

Algo 2507 Ring Detector (2507)

Enable Loud Ringing, Notification & Visual Alerting without a SIP Registration – The 2507 Ring Detector is designed to enable loud ringing, notification, and visual alerting directly from a compatible IP phone. The Ring Detector can detect when the phone is ringing and activate an Algo device with a smart relay input, such as a speaker or strobe light.

Once the 2507 Ring Detector has activated one Algo IP device, the IP device may activate Algo devices via an available relay or it may simultaneously multicast to other Algo IP endpoints on the network creating a scalable notification system directly from a single IP phone.

The advantage of the 2507 is no additional seat registration on the cloud / hosted telephone system is required for the ring detector and the Algo IP endpoint, thereby avoiding a recurring monthly cost.

Specifications
Power: Power is supplied by the host Algo IP Endpoint

Connections
Telephone Headset: RJ9 4P4C jack (6' 2m handset cord included)
Host Algo IP Endpoint: Two position terminal block (20' 6m UTP cable included)
Polarity independent connection
Maximum Cable
Length:
Headset cable - 6' 2m recommended 12' 4m maximum
Twisted pair connection to IP endpoint - 100' 30m maximum 24 AWG

Audio Ring Detection
Input impedance: 600 Ohm, balanced and transformer isolated
Detection Sensitivity: 25 mVrms - 500 mVrms (adjustable)
Maximum Input Voltage:
1.0 Vrms
LED: Active blue when ring audio exceeds detection sensitivity

Environmental & Mechanical
Housing: Plastic 94V0 rated
Environmental: 32 to 104 deg F (0 to + 40 degC); 10-95% RH noncondensing. Dry indoor locations only
Mounting: Optional - single mounting screw provided
Dimensions: 8.5” x 5.5” x 1.5”
Shipping Weight: 1 lb

Compatibility
Telephones: • Poly (VVX series, CCX series)
• Yealink (T55A, T56A, T58A, MP54, MP56, MP58)
Algo IP Endpoints 8128, 8138, 8180, 8186, 8188, 8189, 8196, 8198, 8301

Compliance
CE, RoHS 3, REACH
