Description

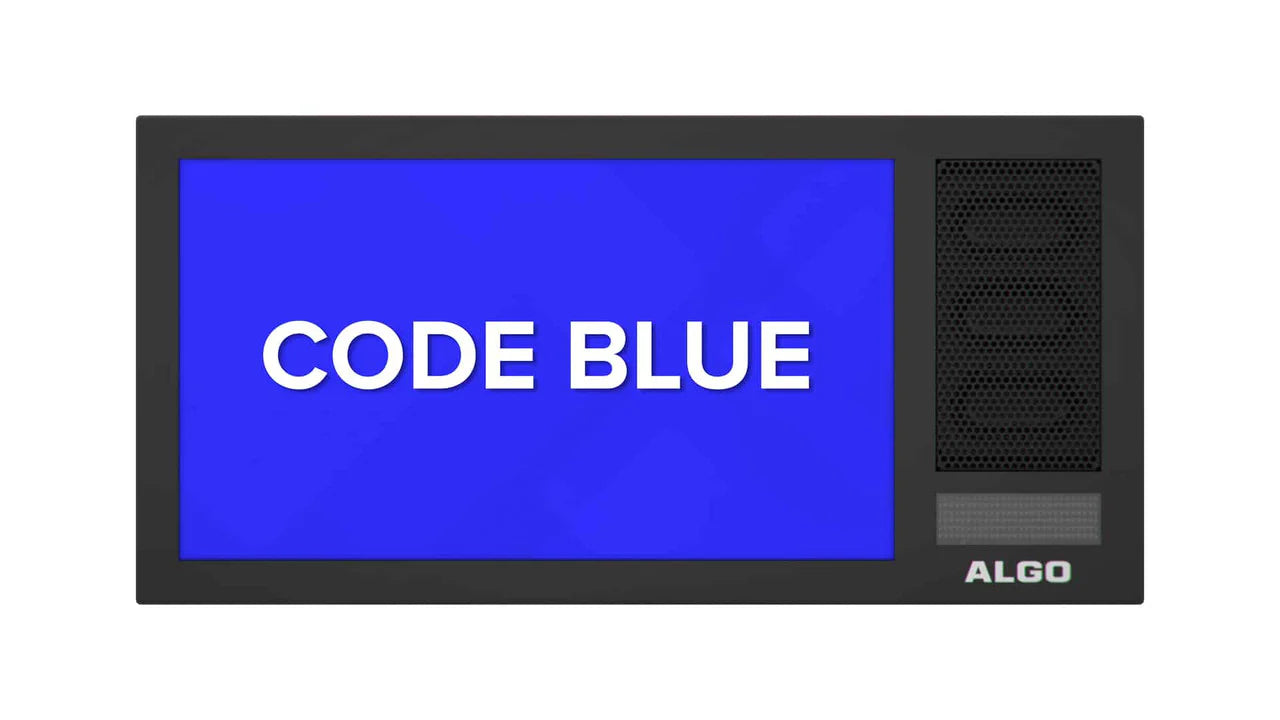

8410 IP Display Speaker
Algo’s 8410 IP Visual Display Speaker is a SIP-compliant notification device that comprises three core components – a 15.6″ LCD screen, high intelligibility speakers, and high-visibility LED flashers – to create highly flexible and effective visual and audible communication.
The combined functionality of the LCD display screen, speaker, and flashing LEDs enable voice paging, visual or audible alerting, and informational visual content, such as scrolling text messages, visual paging, or graphic images.
FEATURES
- 15.6" Wide-angle viewable LCD screen for off-axis visibility
- Display for digital or analog NTP clock, scrolling text, and emergency notifications.
- Public address (PA) IP speaker.
- Unlimited and customizable visual display capabilities with over 16 million colors.
- Sleep mode and screen dimming to save on power usage.
- Secure SIP using TLS and SRTP.
- LED flashers for attention-getting alerting.
- Wideband HD voice for high intelligibility speech.
- Remotely manageable for easy monitoring, maintenance, and management.
- PoE + (IEEE 802.3at) & PoE ++ (IEEE 802.3bt) Powered
- Ideal for a school, in addition to a waiting area / room for hospitals, government offices and transport terminals (e.g., air, bus, rail), and workplace lunch or break room and cafeteria spaces.
Description
The 8410 IP Display Speaker provides enhanced visual and audible intelligibility for effective communication in any environment. The combined functionality of the LCD display screen, speakers, and flashing LEDs enable voice paging, visual or audible alerting, and informational visual content, such as scrolling text messages, visual paging, or graphic images. Two-way communication can also be established through the embedded microphone, so real-time updates can easily be provided to admin staff. When idle, the Display Speakers can display a graphic image, rotate through a variety of messages, display a clock face (analog and/or digital synchronized to NTP), or go to sleep.
The primary element of the 8410 is the LCD display. With unlimited visual possibilities, the screen can produce scrolling text, flashing announcements, full-color images, or key data points, such as dates and times. Combined with LED backlighting and wide-angle viewing, the visual display can be seen from anywhere in a room or along a hallway. It can be customized to complement an audio announcement or to bring communication to an audio-less environment.
For audible alerting the 8410 offers similar functionality and voice quality as any Algo speaker, delivering wideband HD voice for clear voice communication and attention-grabbing audible alerting. An embedded microphone is included to enable ambient noise response and talkback capabilities.
The LED flashers provide additional attention-getting awareness to complement the display on the screen and the audio from the wideband speakers. The multicolor LED can deliver alerts in different patterns and color codes to represent a variety of messages (i.e. flashing red for lockdown).
The 8410 is a SIP-compliant IP endpoint that seamlessly integrates into most leading VoIP communication systems.
A dual-sided alternative with wall- and ceiling-mount installation options suitable for hallways, long corridors, and open common rooms is available as the 8420 IP Dual-Sided Display Speaker.
Scale Algo IP Display Speakers with Multicast
The 8410 IP Display Speaker supports multicast send or receive. As a result, many Algo IP Display Speakers can be deployed to cover any size building, campus (e.g., classrooms in a school, college or university), or enterprise. There is no limit to the number of devices part of a multicast, and a minimum of network traffic activity is utilized.
Multicast provides cost-effective scalability using a minimum of SIP-registered endpoints, as only the endpoint designated to send the multicast needs to be registered. Devices configured to receive the multicast do not need registration. Any combination and number of Algo IP endpoints can be configured as a multicast for emergency alerting to cover any size room, building, campus, or enterprise. Support is available for RTP multicast, in addition to Poly Group Page, Singlewire InformaCast (part no. 8410-IC), and Intrado Revolution.
Visual Display Screen
The 8410 contains a 15.6” LCD screen that enables highly effective visual communication in a variety of environments. The wide-angle LCD screen ensures optimum viewing from any angle or at any time of day. When not in use, the display screen can be configured to auto-dim during off-hours. With the complete flexibility of the LCD display, any combination of images, text, or clock can be presented.
A number of preloaded display options are available, such as lockdown, emergency, weather alerts, etc. However, the LCD screen is fully customizable to allow for communication with specific branding and environmental requirements.

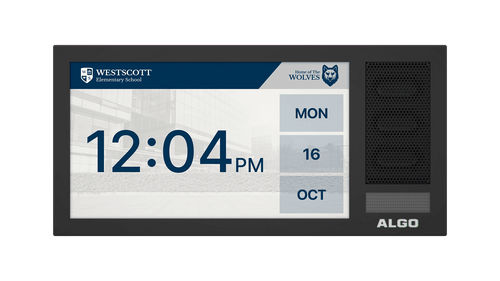

The display clock can be shown as either analog or digital and is synchronized with NTP. Or both can be displayed for learning in a classroom.
With a highly customizable LCD screen, communication options are endless. Common screen displays include:
- Scrolling text
- Images
- Notifications
- Clock – analog or digital
- Daily messages
- Welcome signs
- Rotating display/slideshow
Specifications
Power | |
---|---|
POE POWERED | Recommended: PoE++ (IEEE 802.3bt Type 3 Max 51W) |
Optional: PoE+ (IEEE 802.3at Type 2 Max 25.5W) |
SIP | |
---|---|
SIP EXTENSIONS | 50 Page & 10 Alerting/Ring extensions with multicast scalability |
TRANSPORT PROTOCOLS | UDP, RTP, TCP |
SECURITY | TLS, MTLS, SRTP |
Multicast Compatibility | |
---|---|
MULTICAST | RTP Multicast (Send & Receive 50 zones) |
THIRD PARTY MULTICAST | PolyTM Group Page, SinglewireTM InformaCast, Syn-AppsTM Revolution |
Digital IO | |
---|---|
RELAY CONFIGURED AS INPUT | Normally open or normally closed dry contact supervision. Compatible with Algo 1202, 1203, and 1204 Accessories. |
API | |
---|---|
API | RESTful |
Audio | |
---|---|
AUDIO CODECS | G.711 A-law, G.711 u-law, G.722, Opus 48 kHz. |
SPEAKERS | 3 x Neodymium magnet with polypropylene cone |
FREQUENCY RESPONSE | 150 – 19,000 Hz (- 10 dB) |
DRIVER SENSITIVITY | 92 dBA 1m/1W (1 kHz sine wave) |
SPL | Peak 106 dBA/1m |
MAX AUDIO POWER | 8 Watts |
AUDIO MEMORY + FORMAT | 1 GB user space for WAV or MP3 files |
MICROPHONE | Omnidirectional – talkback and ambient noise monitoring |
AUDIO CONTROLS | Volume, AGC, Latency, LF Cut |
ANTI-FEEDBACK DELAY | Cache to memory and release |
Video | |
---|---|
LCD VIEWING AREA | 13.5” x 7.6” (34.4 cm x 19.4 cm) |
RESOLUTION | 1920 x 1080 @ 60 fps |
VIEWING ANGLE | 88 deg (horizontal and vertical) |
COLOR | 16.7 M |
BACKLIGHT | LED Auto-dimmable |
CONTRAST | 1000:1 |
Network | |
---|---|
NETWORK | IPv4, IPv6, DHCP, VLAN, MDNS |
LINK LAYER | LLDP, CDP |
QOS | DSCP (SIP, RTP, RTCP) |
WEB INTERFACE | HTTP, HTTPS |
PROVISIONING | TFTP, FTP, HTTP, HTTPS, DHCP Options 66, 150, 160 Reboot via SIP Check-sync |
NAT | STUN, TURN, CRLF Keep Alive, SIP Outbound |
ADDRESS RESOLUTION | DNS, SRV Record |
SUPERVISION | SNMP V1.3, RTCP, Algo 8300, ADMP |
REDUNDANCY | Secondary and tertiary SIP server |
Environmental & Mechanical | |
---|---|
ENVIRONMENTAL | 32 to 104 deg F (0 to + 40 degC); 10-95% RH non-condensing. Dry indoor locations only. |
DIMENSIONS (PRODUCT) | 19.5″ x 9.5″ x 1.75″ |
Compliance |
---|
IEC 62368-1, IEEE 802.3-2018, RoHS, CE, FCC Class A, CISPR 32 Class A, CISPR 24, CSA/UL (USA & Canada), |
Firmware |
---|
These specifications refer to the Algo 8410 running on firmware 5.2 and above. |
