APC by Schneider Electric NetShelter SX 12U Server Rack Enclosure 600mm x 1070mm w/ Sides Black AR3103


Price:
Sale price$1,535.99
Stock:
Sold out

Description

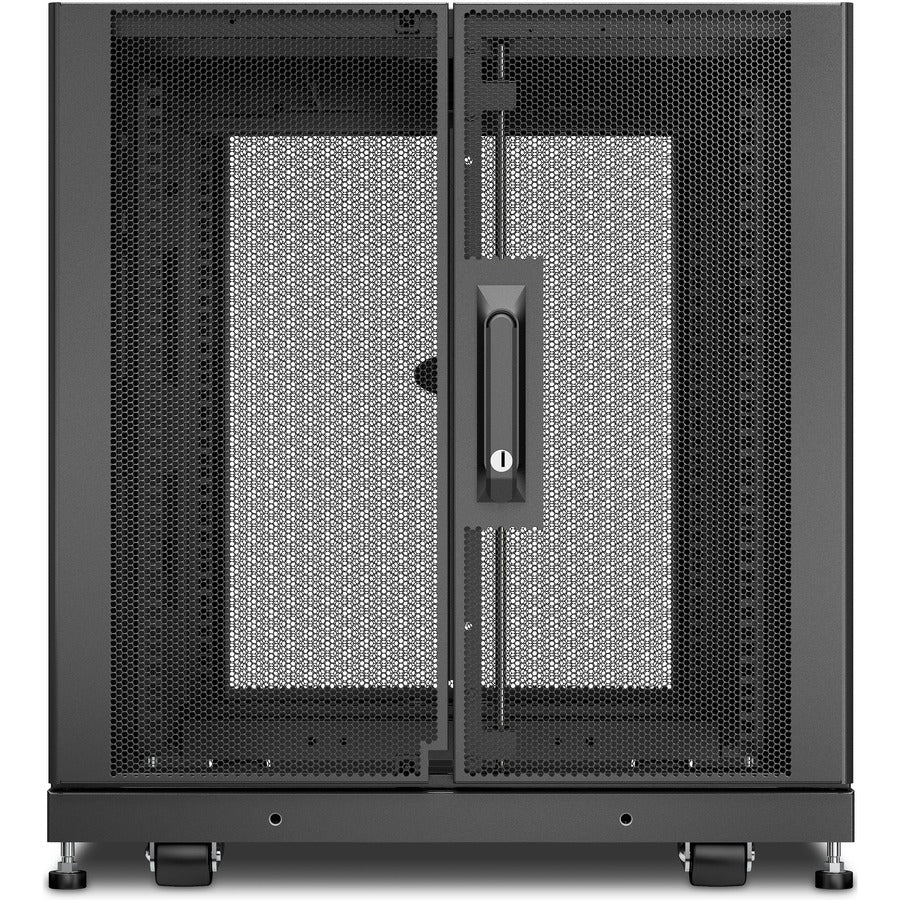

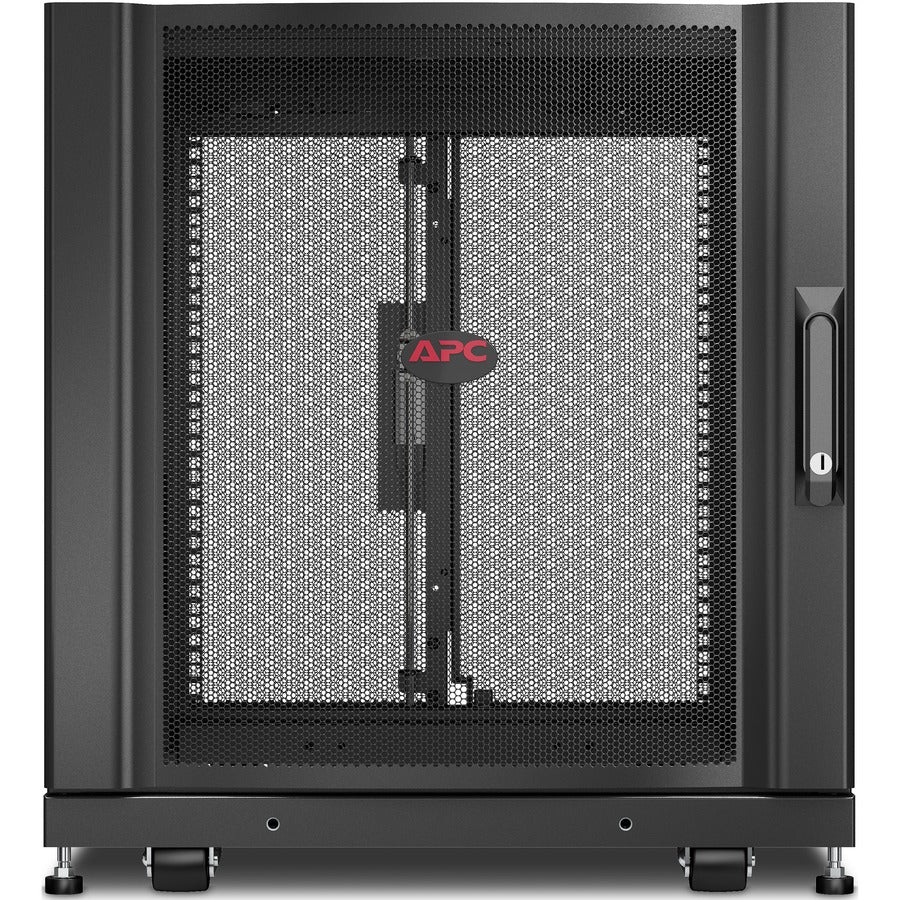

APC NetShelter SX 12U Server Rack Enclosure 600mm x 1070mm w/ Sides Black

Feature-rich rack enclosure optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow.

Includes: Casters, Doors, Key(s), Leveling feet, Roof, Side panels

NetShelter SX Features & Benefits

Safety

Integrated electrical grounding

The roof, side panels and front and rear doors are grounded to the frame of the enclosure. Eight additional electrical grounding inserts are located on the frame for external grounding.

Designed for enhanced structural stability

A proven frame design, heavy-gauge mounting rails, and heavy-duty casters provide for 3000 lb (1364 kg) static (levelling feet) and 2250 lb (1023 kg) dynamic (castor) load ratings. Enclosures have been tested and approved to be combined with proper bolt down accessories to meet various seismic requirements. Check apc.com for product documentation for specific requirements.

Agility

Low-profile castors and adjustable leveling feet from underneath or above

Enclosures are shipped standard with both leveling feet and castors. Leveling feet can be quickly adjusted through the use of a screwdriver or drill, eliminating the need to reach underneath with a wrench.

Special packaging options for shipping rack with equipment pre-racked

Enclosures with shock packaging are standard enclosures with provisions in the packaging design and enclosure assembly for shipping the enclosures with equipment mounted inside. Extensive industry experience with the leading IT manufacturers and most recently certified with Cisco® for pre-racking and shipping Cisco Unified Computing Systems (UCS). Check apc.com for enclosure size options and availability.

Integrated joining hardware with multiple width enclosure alignment

Enclosures include pre-installed joining hardware to join enclosures in a row and provide additional stability to the enclosure. The pre-installed joining hardware includes holes for joining to an adjacent enclosure at 600mm centers or 24in centers depending upon the floor layout.

Pre-installed full-enclosure height rear accessory channels

Integrated and adjustable rear accessory channel provides zero U mounting locations for toolless accessories. Each channel has two mounting bays to support a combination of up to four accessories such as PDUs and vertical cable organizers. 1070mm (42in), 825mm (32 in), and deep enclosures and networking enclosures include two channels. 1200mm (48in) deep enclosures include four channels. Channels are pre-installed at the factory in the rear of the enclosure but can be moved to other locations of the enclosure along the side brace to resituate cable management where it is needed most.

Adjustable mounting rails with captive hardware and rapid alignment

The vertical mounting rails can be adjusted in 1/4 in (6.4 mm) increments covering virtually any mounting requirement for IT equipment. Easy alignment feature integrated into the enclosure mounting rail and side brace for quick alignment verification without the use of tools to verify alignment. U positions are numbered front and back for rapid installation of equipment.

More from the Manufacturer

. .
  • Rack Height : 12U
  • Product Line : NetShelter SX
  • Manufacturer Website Address : http://www.schneider-electric.com
  • Rack Depth : 36.25" (920.75 mm)
  • Dynamic/Rolling Weight Capacity : 1020.58 kg
  • Rack Width : 19" (482.60 mm)
  • Form Factor : Floor Standing
  • Static/Stationary Weight Capacity : 1360.78 kg
  • Manufacturer : Schneider Electric SA
  • Product Type : Rack Cabinet
  • Limited Warranty : 5 Year
  • Country of Origin : United States
  • Assembly Required : Yes
  • Application/Usage : Server,Storage
  • Product Color : Black
