Description

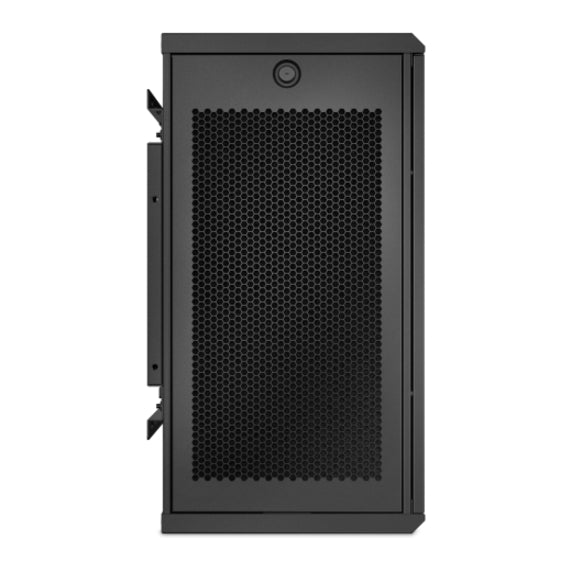

NetShelter WX 6U Low-Profile Wall Mount Enclosure 120V Fans
APC By Schneider Electric 6U Wall Mount is an innovative new way to deploy server and networking equipment at the Edge. The unique low-profile design enables large depth devices to be wall mounted in a compact and less intrusive form factor than traditional wall mount cabinets. It can ship pre-integrated with APC Smart UPS battery backup, NetBotz Physical and Environmental Security, and EcoStruxure IT, our cloud-based remote monitoring platform to stay connected at the Edge!
Air filtration and ventilation
Replaceable MERV 5/G3 dust filter and integrated fans allow equipment to be placed in dusty and light industrial environments
Enhanced physical security
Protect against physical and environmental threats with camera monitoring, keylock doors, intrusion detection, temperature/humidity monitoring, leak detection, and more
High weight load capacity
Supports equipment up to 250lbs (113kg) of total load
Integrator Ready
Shock Packaging allows all equipment to be pre-integrated into the enclosure before it arrives on-site, speeding up and standardizing deployments
Low-Profile Design
Extends less than 13" (330mm) off of the wall while supporting equipment up to 30" (762mm) deep, including 1 and 2U hyperconverged servers, UPS, and network switches
Wall mount or floor standing
The detachable wall bracket and optional casters allow the enclosure to be mounted on the wall or floor, depending on the site requirements
- Environmentally Friendly : Yes
- Rack Width : 19" (482.60 mm)
- Product Color : Black
- Static/Stationary Weight Capacity : 113.64 kg
- Form Factor : Wall Mountable
- Manufacturer Website Address : http://www.schneider-electric.com
- Product Type : Rack Cabinet
- Assembly Required : No
- Rack Depth : 30" (762 mm)
- Dynamic/Rolling Weight Capacity : 113.64 kg
- Application/Usage : Networking,Storage,Converged Infrastructure,Server,Airflow System
- Manufacturer : Schneider Electric SA
- Country of Origin : Philippines
- Product Line : NetShelter WX
- Environmental Certification : REACH,RoHS
- Limited Warranty : 5 Year
- Rack Height : 6U
