Description
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
. .- Management :
- Web
- SNMP
- Telnet
- Input Current : 30 A
- Protection Type : Overload Protection
- Mount Type : Rack-mountable
- PDU Type : Switched
- Power Rating (VA) : 2.88 kVA
- Manufacturer Website Address : http://www.schneider-electric.com
- Plug/Connector Type : NEMA L5-30P
- Manufacturer : Schneider Electric SA
- Product Type : PDU
- Receptacle Type : NEMA 5-20R
- Receptacle Detail : 24 x NEMA 5-20R
- Package Contents :

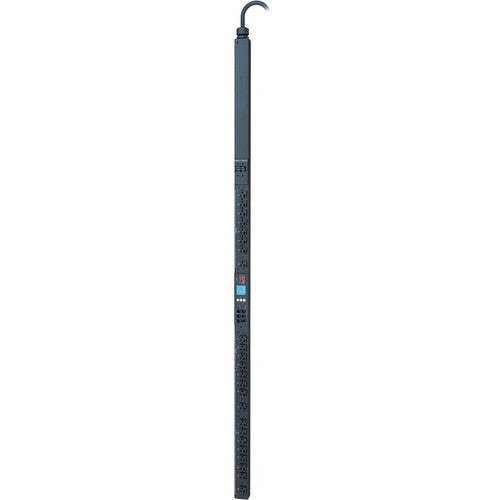

- Rack PDU 2G, Switched, ZeroU, 30A, 100-120V, (24) 5-20R
- Installation guide
- Rack mounting brackets
- Safety guide
- Serial configuration cable
- Product Color : Black
- Form Factor : Tower
- Packaged Quantity : 1 Each
- Rack Height : 0U
- Input Voltage : 120 V AC
- Mounting Orientation : Horizontal/Vertical
- Limited Warranty : 2 Year
- Environmental Certification : RoHS,REACH
- Output Voltage : 100 V AC,120 V AC
