Description

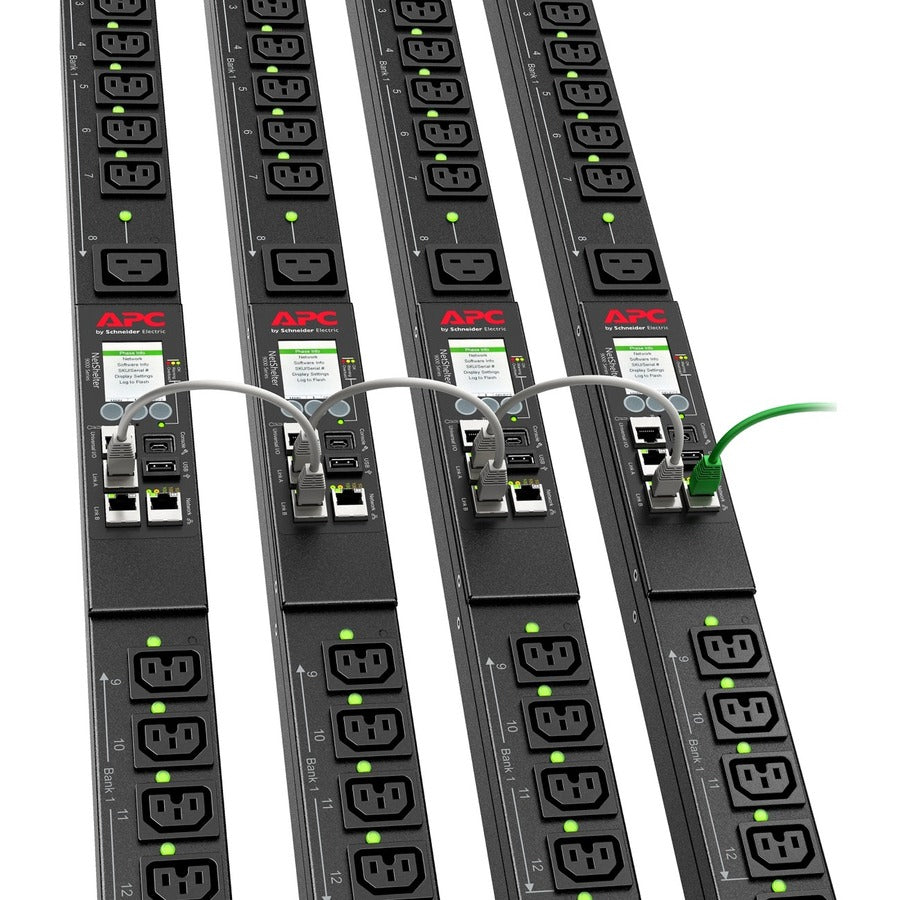

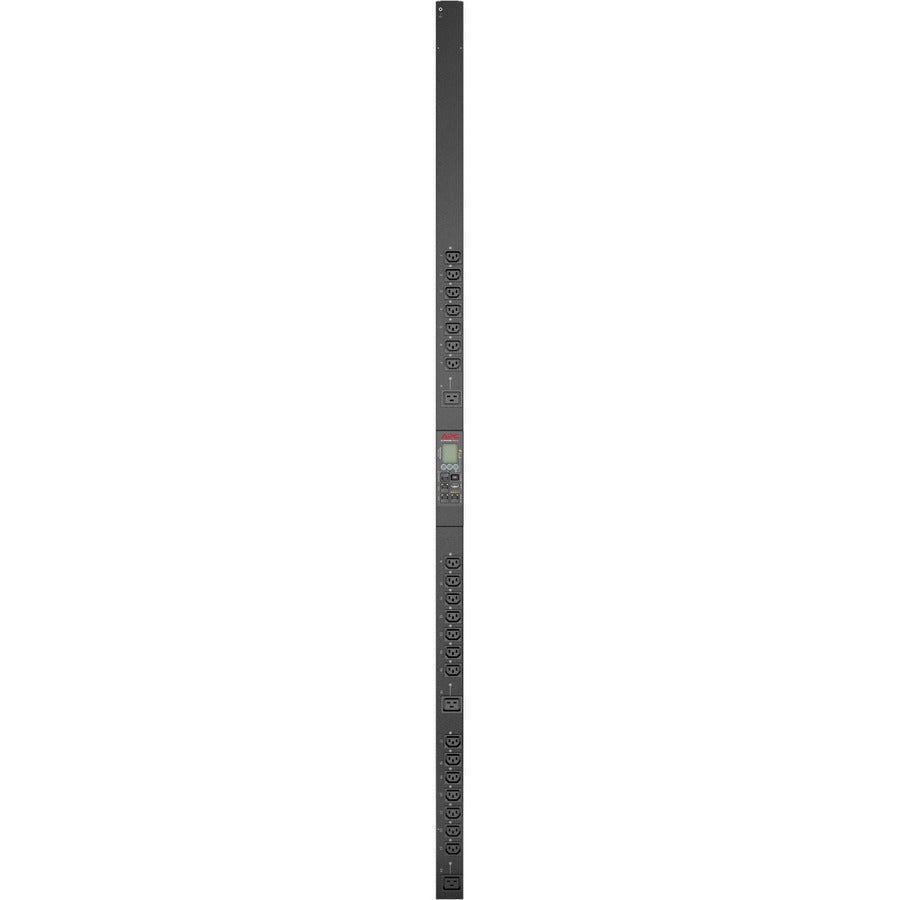

With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.
Switched Rack PDUs enable advanced, customizable power control and active monitoring for datacenter and edge environments. Remote outlet level control allows on/off power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets to reduce downtime. Outlet power sequencing and grouping allow users to specify the order of device power up or down to avoid circuit overload due to inrush current and/or load shed to conserve energy. Power metering provides real-time remote monitoring of connected loads with alarms to warn of potential overloads. Users can access, configure, and control Switched Rack PDUs through secure Web or SNMP and are fully compatible with EcoStruxure IT. New 9000 series Switched Rack PDUs include Gigabit ethernet, 1% Metering accuracy, 60C Operating temperature (select models) with new C13/C15 and C19/C21 hybrid outlets, ability to share 1 network port across 32 PDUs, and enhanced cybersecurity.
. .- Rack Height : 0U
- Management :
- Web
- SNMP
- Telnet
- Input Voltage : 230 V AC
- Input Current : 16 A
- Mount Type : Rack-mountable
- PDU Type : Switched
- Power Rating (VA) : 3.70 kVA
- Output Voltage : 230 V AC
- Mounting Orientation : Horizontal/Vertical/Toolless
- Manufacturer Website Address : http://www.schneider-electric.com
- Plug/Connector Detail : 1 x IEC 60309 (2P+E) 16A
- Input Voltage Range : 220 V AC - 240 V AC
- Locking Receptacles : Cord Retention Bracket
- Plug/Connector Type : IEC 60309 (2P+E) 16A
- Manufacturer : Schneider Electric SA
- Product Type : PDU
- Limited Warranty : 2 Year
- Product Series : Switched
- Product Line : NetShelter
- Receptacle Type : IEC 60320 C13,IEC 60320 C19
- Receptacle Detail : 21 x IEC 60320 C13,3 x IEC 60320 C19
- Package Contents :
- Rack PDU 9000 Switched, ZeroU, 16A, 230V, (21) C13 & (3) C19, IEC309 Cord
- Installation guide
- Locking input power cord
- Rack mounting brackets
- Safety guide
- Protection Type : Overload Protection,Circuit Protection
- Form Factor : Tower
- Country of Origin : India
