Description
Explore APC Rack Power Distribution in 3D animation.
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power cycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing time delays allow users to define the order in which to power up or down attached equipment to avoid circuit overload. Current metering provides real-time remote monitoring of connected loads with user-defined alarms to warn of potential circuit overloads. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, Command Line Interface, or Telnet Interfaces which are complimented by APC Centralized Management platforms using StruxureWare Data Center Expert, Operations, Capacity, and Energy Efficiency. New AP8000 series Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles.
- PDU improves efficiency, uptime and growth of data centers
- With a built-in digital current meter avoid potential overloads via switched PDUs
- Rack Height : 1U
- Mount Type : Rack-mountable
- Environmentally Friendly : Yes
- Manufacturer : Schneider Electric SA
- Product Type : PDU
- Limited Warranty : 2 Year
- Input Voltage : 120 V AC
- Input Current : 20 A
- PDU Type : Switched
- Power Rating (VA) : 2.40 kVA
- Output Voltage : 120 V AC
- Manufacturer Website Address : http://www.schneider-electric.com
- Plug/Connector Detail : 1 x NEMA L5-20P
- Plug/Connector Type : NEMA L5-20P
- Receptacle Type : NEMA 5-20R
- Receptacle Detail : 8 x NEMA 5-20R
- Network (RJ-45) : Yes
- Environmental Certification : RoHS,REACH
- Package Contents :

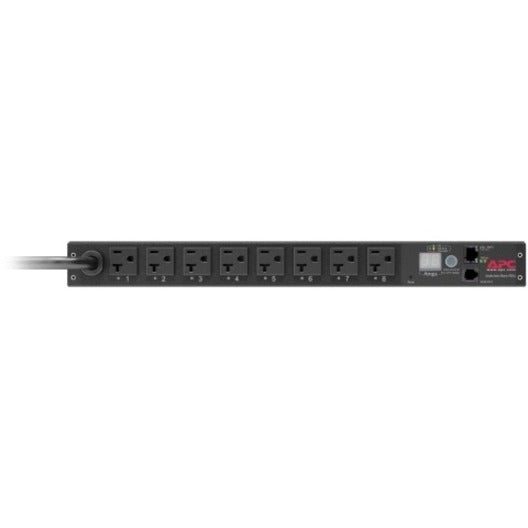

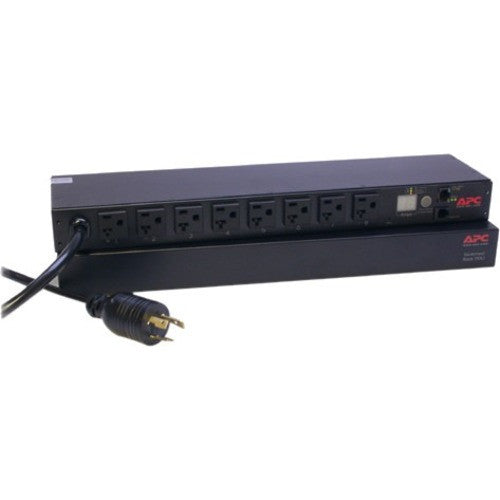

- Rack PDU, Switched, 1U, 20A, 120V, (8)5-20
- Cord retention bracket(s)
- Horizontal mounting brackets
- Installation guide
- User manual
