Description

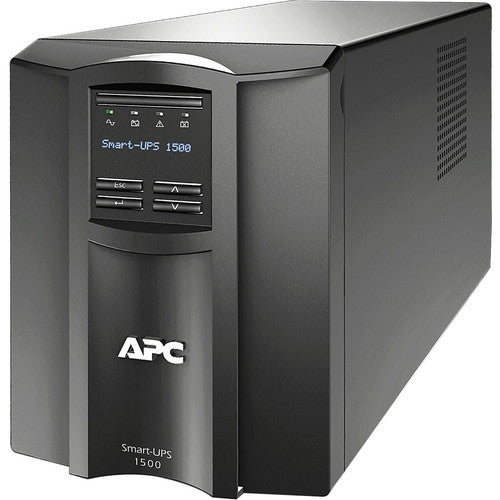

Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.
Adaptability | Adjustable voltage sensitivity - Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.
Adjustable voltage-transfer points - Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.Availability | Power conditioning - Protects connected loads from surges, spikes, lightning, and other power disturbances.
Intelligent battery management - Maximizes battery performance, life, and reliability through intelligent, precision charging.Boost and Trim Automatic Voltage Regulation (AVR) - Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).
Disconnected battery notification - Warns when a battery is not available to provide backup power.
Automatic self-test - Periodic battery self-test ensures early detection of a battery that needs to be replac
ed.
Automatic restart of loads after UPS shutdown - Automatically starts up the connected equipment upon the return of utility power.
Temperature-compensated battery charging - Prolongs battery life by regulating the charge voltage according to battery temperature.
Manageability | Serial connectivity - Provides management of the UPS via a serial port.
LED status indicators - Quickly understand unit and power status with visual indicators.Audible alarms - Provides notification of changing utility power and UPS conditions.
Network manageable - Provides remote power management of the UPS over the network.
USB connectivity - Provides management of the UPS via a USB port (not available on all models).
- Experience higher efficiency with lower energy cost
- Up to 5 minute runtime on full load to preserve critical data from power shortage interruptions
- Receptacle Detail : 8 x NEMA 5-15R
- Sound Emission (A-Weighted) : 45 dB(A)
- Number of Battery & Surge Outlets : 8
- Form Factor : Tower
- Manufacturer Website Address : http://www.schneider-electric.com
- Backup/Run Time (Full Load) : 5 Minute
- Battery Life : 5 Year
- Number of Batteries : 1
- Thermal Dissipation : 225 BTU/h
- Load Capacity : 1.44 kVA/1 kW
- Battery Chemistry : Lead Acid
- Manufacturer : Schneider Electric SA
- Input Voltage Range : 82 V AC - 144 V AC
- Maximum Operating Temperature : 104°F (40°C)
- Backup/Run Time (Half Load) : 17 Minute
- Output Frequency : 60 Hz
- Storage Temperature : -4°F (-20°C) - 131°F (55°C)
- Receptacle Type : NEMA 5-15R
- TAA Compliant : Yes
- Input Voltage : 120 V
- Transfer Time : 10 ms
- Typical Battery Recharge Time : 3 Hour
- Waveform Type : Sine Wave
- Input Frequency : 60 Hz
- Product Type : Line-interactive UPS
- Alarm : Alarm
- Storage Relative Humidity : 0% - 95%
- Application/Usage : Network Device,POS,Server,Security System,Communication System
- USB (HID Compliant) Port : Yes
- Output Voltage : 120 V AC
- Status Indicators :
LED status display:
- Load bar-graphs
- Battery bar-graphs
- On line
- On battery
- Replace battery
- Overload indicators
- Product Line : Smart-UPS
- Limited Warranty : 3 Year
- Country of Origin : United States
