Description
APC award-winning Smart-UPS® is the most popular UPS in the world for servers, storage and network power protection. Trusted to protect critical data and equipment from power problems by supplying clean and reliable network-grade power. In addition to legendary reliability and manageability, Smart-UPS have extremely high efficiency at low, medium and high load levels making them ideal for today's multi-core or virtualized servers that have varying load consumption. Available in a variety of form factors (tower, rack mount, rack/tower convertible) there is a model for every application and budget. Rack mounted Smart-UPS are ideal for powering Blade or density optimized servers in a distributed power protection environment as the primary or redundant protection. Smart-UPS® models have long been considered the benchmark for all network and server UPS's. Smart-UPS feature a 16-segment LED display, extended range automatic voltage regulation (AVR), and pure sine wave output on battery. Additional manageability options are available through the Smart-Slot interface, which is an internal slot for the installation of optional accessory cards. The extended run Smart-UPS XL has the capability to add external battery packs to scale runtime from minutes to hours typically needed for converged voice and data network power protection. The entry level Smart-UPS SC is an economical choice for small and medium businesses looking to protect small switches, networking devices and point-of-sale (POS) equipment.
- Experience higher efficiency with lower energy cost
- Keep your sensitive devices powered with a backup of up to 5 minute at full load
- Rack Height : 1U
- Input Voltage : 220 V AC
- Product Line : Smart-UPS
- Output Voltage : 230 V AC
- Manufacturer Website Address : http://www.schneider-electric.com
- Environmentally Friendly : Yes
- Typical Battery Recharge Time : 4 Hour
- Backup/Run Time (Full Load) : 5 Minute
- Plug/Connector Type : IEC 60320 C14
- Load Capacity : 1.50 kVA/1 kW
- Form Factor : Rack-mountable
- Manufacturer : Schneider Electric SA
- Product Type : Line-interactive UPS
- Limited Warranty : 3 Year
- Receptacle Type : IEC 60320 C13
- Receptacle Detail : 4 x IEC 60320 C13
- Product Series : SMT
- Environmental Certification : RoHS,REACH
- Package Contents :

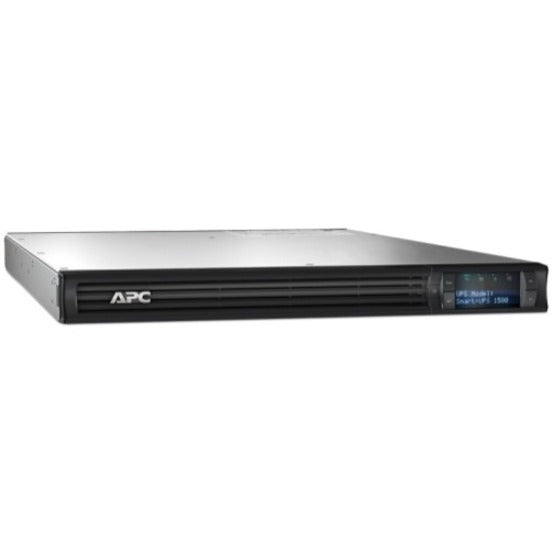

- Smart-UPS 1500VA LCD RM 1U 230V
- CD with software
- Documentation CD
- Installation guide
- Rack mounting support rails
- Smart UPS signalling RS-232 cable
- USB cable
- Warranty card
- Waveform Type : Sine Wave
- Network (RJ-45) : Yes
- Battery Chemistry : Lead Acid
- Hot Swappable : Yes
- Backup/Run Time (Half Load) : 17 Minute
- Product Color : Black
- Serial Port : Yes
- Sound Emission (A-Weighted) : 46 dB(A)
- Thermal Dissipation : 116 BTU/h
- Maximum Operating Temperature : 113°F (45°C)
- Battery Characteristics : Spill-proof, Maintenance-free
- USB : Yes
- Surge Energy Rating : 540 J
- Alarm : On Battery,Low Battery,Configurable Delay
- Number of Battery & Surge Outlets : 6
- Circuit Breaker : Yes
- Cord Length : 8 ft
- Input Current : 12 A
