Description
High density, double-conversion on-line power protection with scalable runtime
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction. . .
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction. . .
- Energy Star : Yes
- Product Line : Smart-UPS
- Manufacturer : Schneider Electric SA
- Input Voltage : 120 V AC
- Output Voltage : 120 V AC
- Manufacturer Website Address : http://www.schneider-electric.com
- Backup/Run Time (Full Load) : 5 Minute
- Load Capacity : 1.50 kVA/1.35 kW

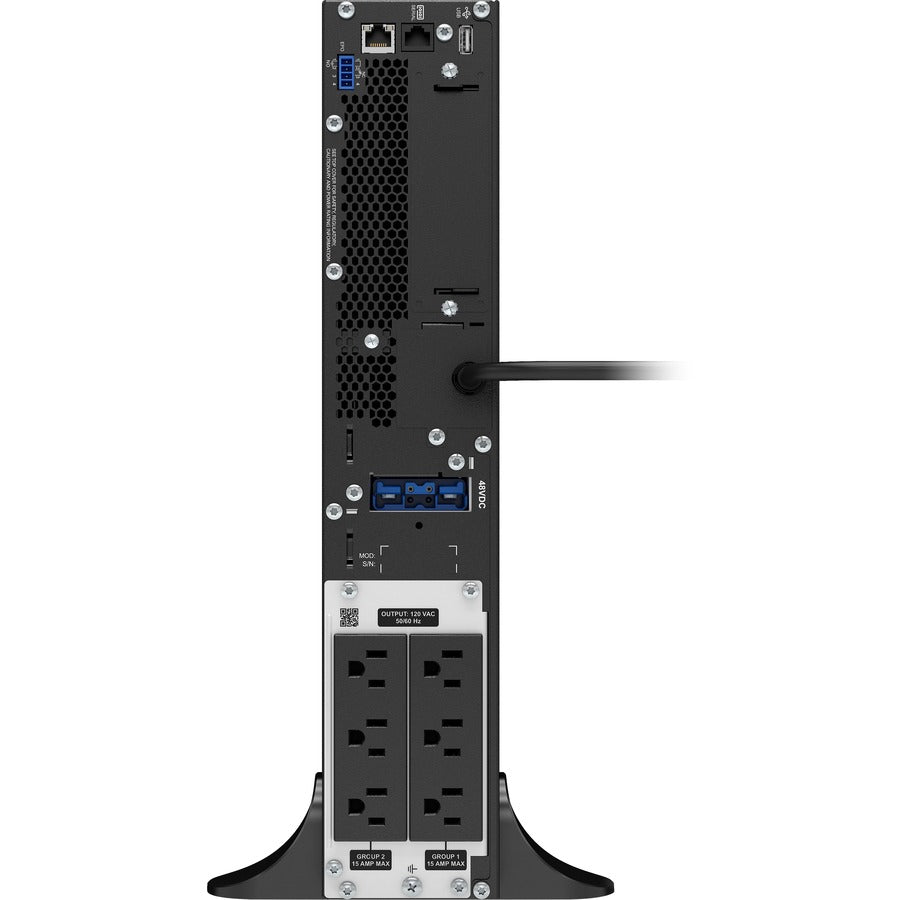

- Receptacle Type : NEMA 5-15R
- Receptacle Detail : 6 x NEMA 5-15R
- Form Factor : Rack-mountable
- Package Contents :

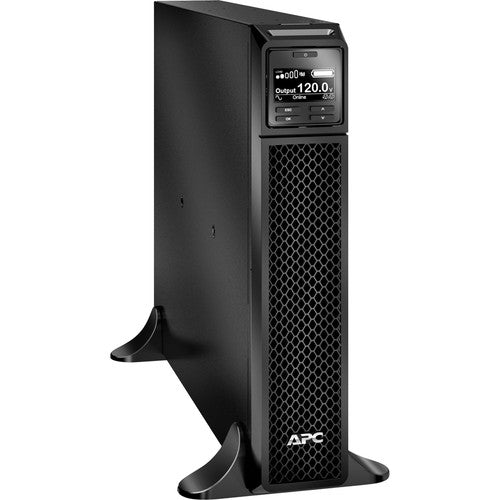

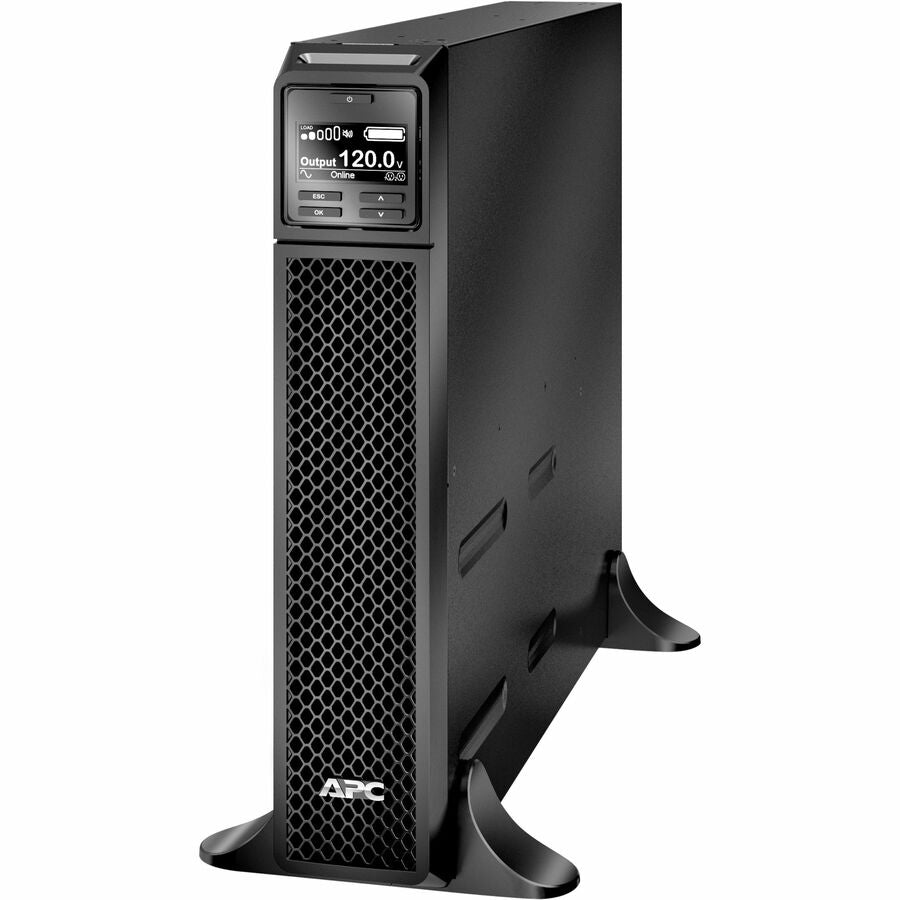

- Smart-UPS SRT 1500VA 120V
- CD with software
- Communication cable
- Documentation CD
- Installation guide
- Removable support feet
- USB cable
- Warranty card
- Product Type : Double Conversion Online UPS
- Environmentally Friendly : Yes
- Waveform Type : Sine Wave
- Network (RJ-45) : Yes
- Battery Chemistry : Lead Acid
- Hot Swappable : Yes
- Product Color : Black
- Number of Battery & Surge Outlets : 6
- Environmental Certification : RoHS
- Additional Warranty Information : 2 years repair or replace
- Typical Battery Recharge Time : 3 Hour
- Surge Energy Rating : 432 J
- Cord Length : 6 ft
