Description

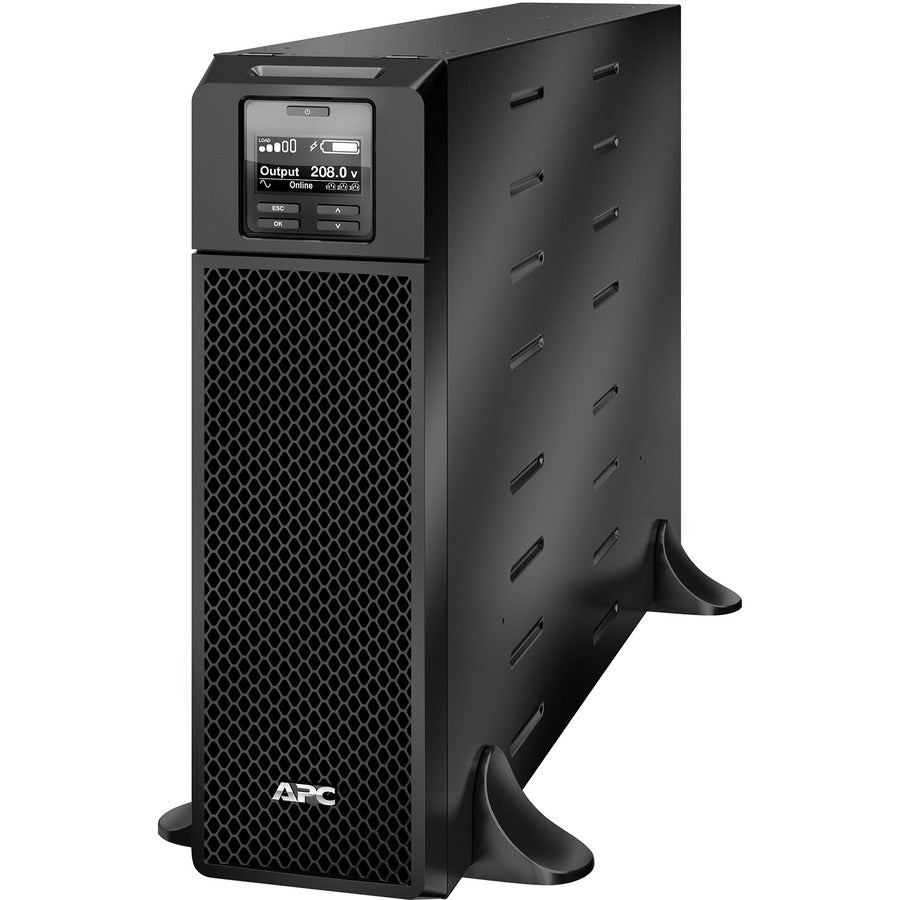

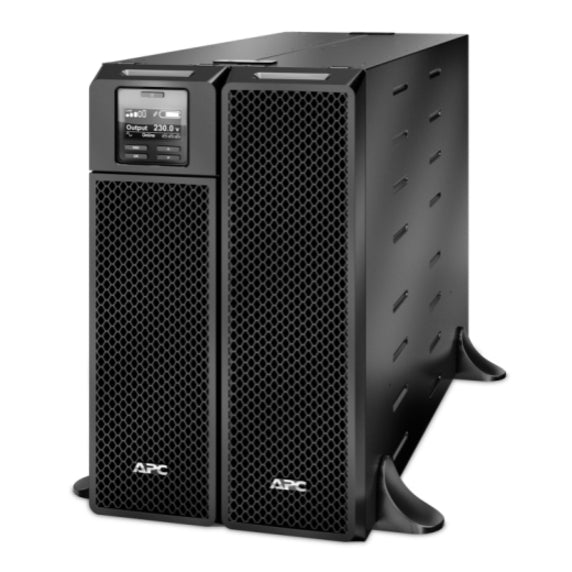

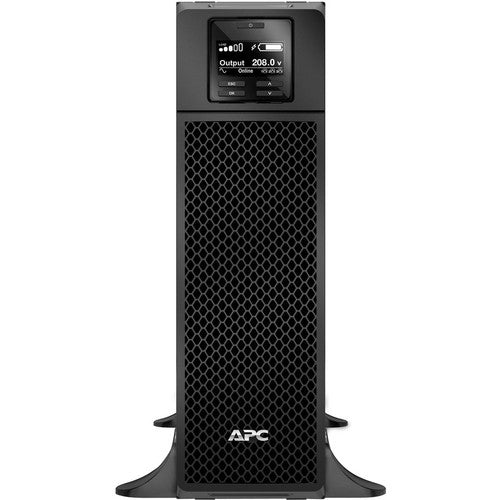

High density, double-conversion on-line power protection with scalable runtime
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
. .- Energy Star : Yes
- Rack Height : 6U
- Product Line : Smart-UPS On-Line
- Manufacturer Website Address : http://www.schneider-electric.com
- Environmentally Friendly : Yes
- Typical Battery Recharge Time : 1.50 Hour
- Backup/Run Time (Full Load) : 4 Minute
- Load Capacity : 5 kVA/4.25 kW
- Manufacturer : Schneider Electric SA
- Country of Origin : Philippines

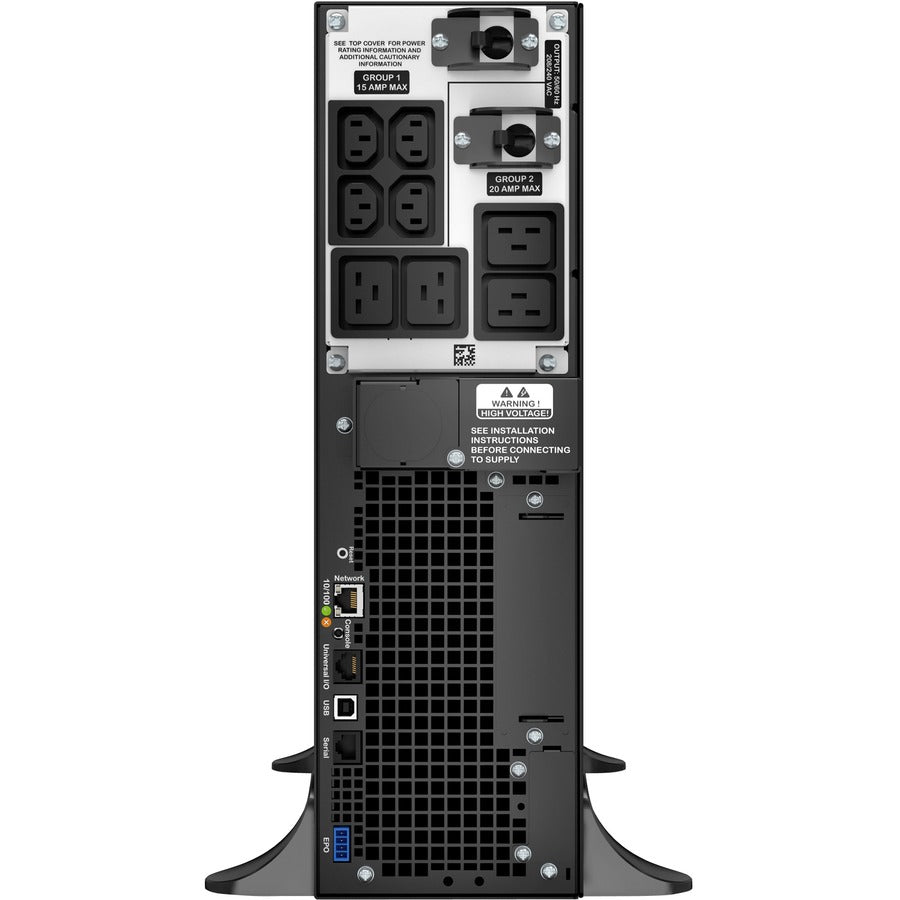

- Receptacle Detail : 4 x IEC 60320 C19,4 x IEC 60320 C13
- Form Factor : Rack-mountable
- Package Contents :
- Smart-UPS SRT 5000VA 208V IEC
- CD with software
- Documentation CD
- Installation guide
- Removable support feet
- Temperature probe
- USB cable
- Warranty card
- Web/SNMP management card
- Product Type : Double Conversion Online UPS
- Output Voltage : 208 V AC
- Receptacle Type : NEMA L6-30P
- Waveform Type : Sine Wave
- Battery Chemistry : Lead Acid
- Product Color : Black
- Environmental Certification : WEEE
- Number of Battery & Surge Outlets : 10
- Input Voltage : 208 V
- Additional Warranty Information : 3 years repair or replace (excluding battery) and 2 years for battery
- Surge Energy Rating : 480 J
- Cord Length : 10 ft
