Description
Ultra-high power density, On-Line power protection with Lithium-ion batteries and scalable runtime options

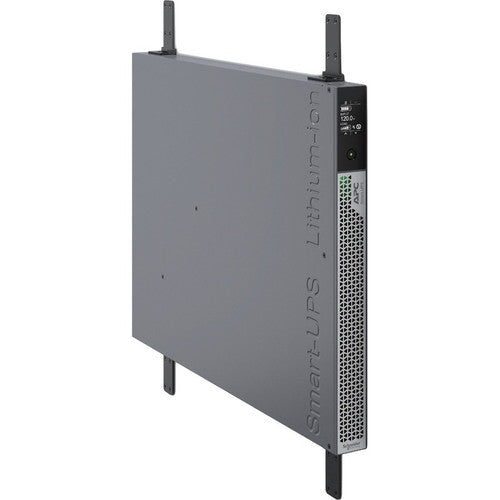

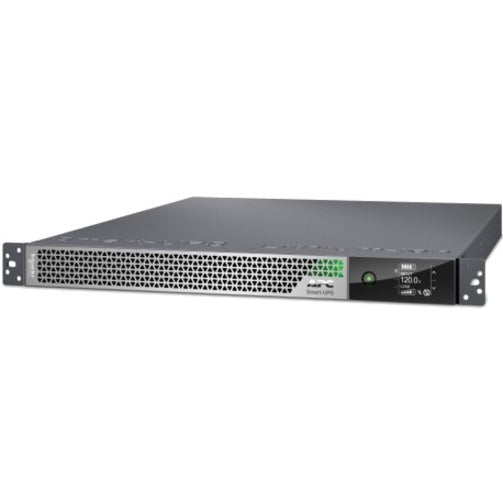

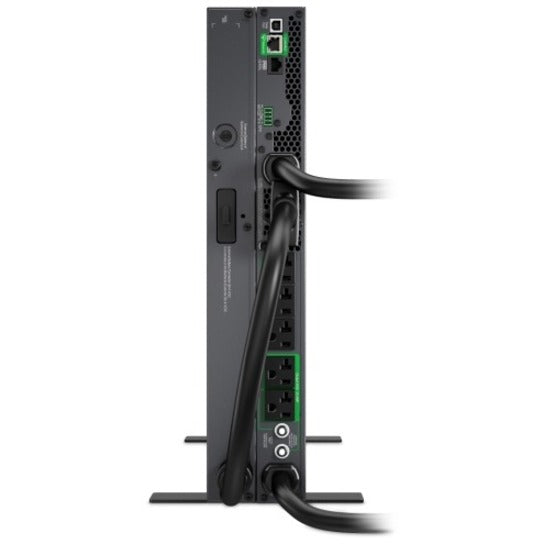

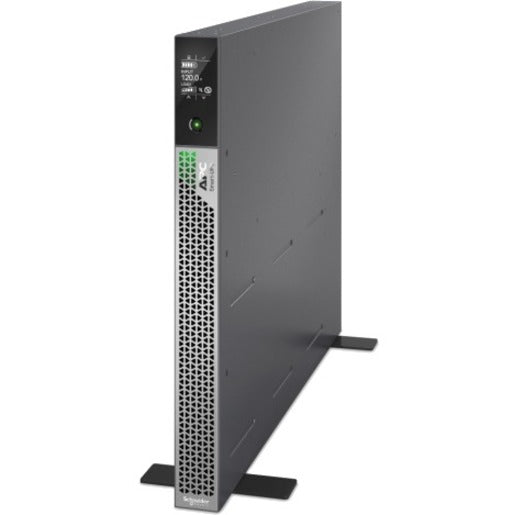

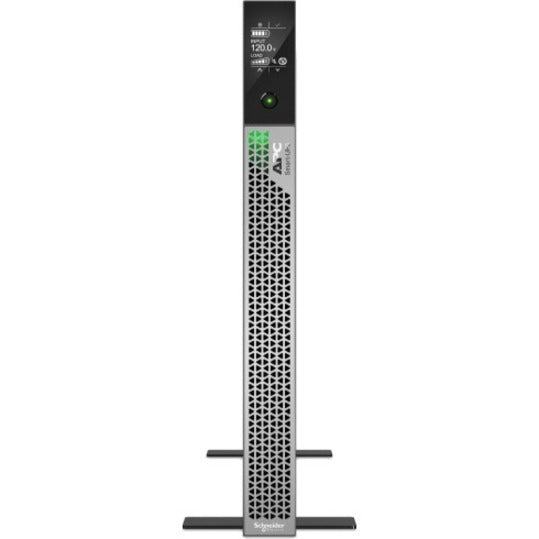

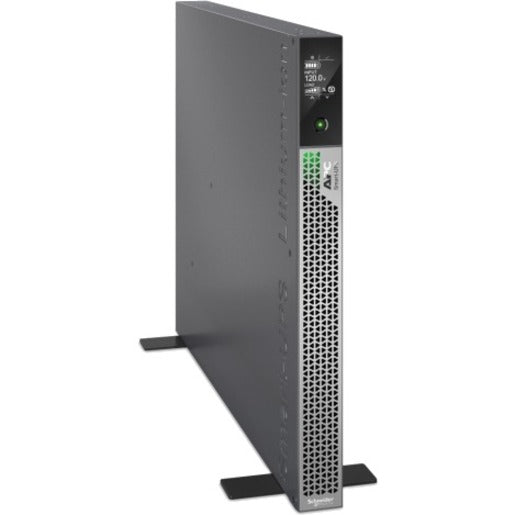

Smart-UPS Ultra provides ultra-high density, On-Line power protection with Lithium-ion batteries for servers, voice / data networks, retail, medical labs and light industrial applications. Capable of supporting loads from up to 3kW with up to 2.4X the power density, this compact UPS family is consumes half the U space of comparable models. Versatile mounting options include rack and tower orientations and flexible wall, ceiling and under desk mounting. The Smart-UPS Ultra comes with a standard internal battery or available external battery packs for scalable runtime options. Smart-UPS Ultra provides remote monitoring and management options via the EcoStruxture Ready Web Portal or Network Management for EcoStruxure IT Software & Services.
. .- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Limited Warranty : 5 Year
- Waveform Type : Sine Wave
- Form Factor : Tower/Rack Convertible
- Package Contents :
- Smart-UPS Ultra 3000VA Tower/Rack Convertible UPS
- Country-Specific Detachable Power Cord
- Installation Guide
- Rack Mounting Brackets
- Rack Mounting Support Rails
- RJ45 Cable
- USB Cable
- Warranty Card
- Manufacturer Website Address : http://www.schneider-electric.com
- Network (RJ-45) : Yes
- Plug/Connector Type : NEMA L5-30P
- Battery Chemistry : Lithium Ion (Li-Ion)
- Application/Usage : Server,Voice/Data Network,Retail and Wholesale,Medical,Light Industrial Application
- Manufacturer : Schneider Electric SA
- Output Voltage : 120 V AC
- AVR : Yes
- Rack Height : 1U
- Product Line : Smart-UPS Ultra
- DC System Voltage : 50 V DC
- Sound Emission (A-Weighted) : 55 dB(A)
- Maximum Operating Temperature : 104°F (40°C)
- Output Frequency : 60 Hz
- Storage Temperature : 5°F (-15°C) - -49°F (-45°C)
- EPO Port : Yes
- Input Frequency : 60 Hz
- Storage Relative Humidity : 0% - 95%
- USB (HID Compliant) Port : Yes
- Status Indicators :
Multifunction LCD
- Number of Battery & Surge Outlets : 6
- Receptacle Type : NEMA L5-30R,NEMA L5-20R
- Receptacle Detail : 1 x NEMA L5-30R,5 x NEMA L5-20R
- Input Voltage : 120 V AC
- Product Type : Double Conversion Online UPS
- Load Capacity : 3 kVA/2.88 kW
- Product Color : Silver
