Description

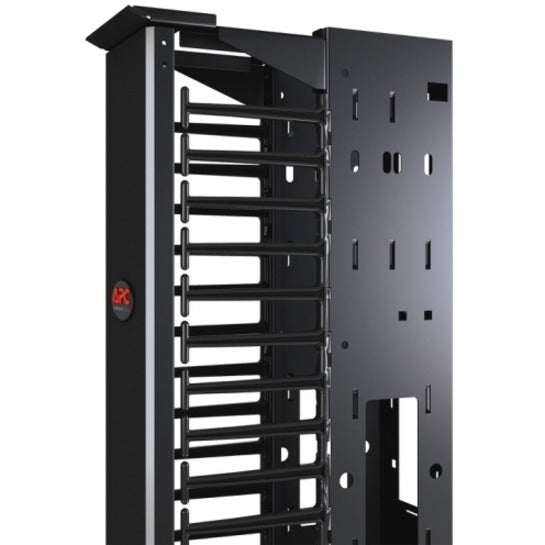

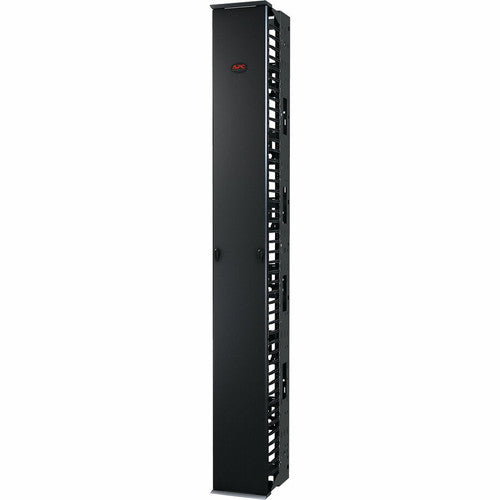

This 10" wide, high capacity vertical cable manager for 2 and 4 Post open frame racks features a single-sided cable channel with multiple internal cable tie-off locations and smooth plastic fingers at 1U increments for organized patching applications.
- Vertical cable managers ship fully assembled - Vertical cable managers ship fully assembled reducing the amount of time required to install equipment.
- Toollessly mount vertical Rack PDUs - Backplates feature several mounting location positions allowing Rack PDUs to be toollessly installed with the vertical cable manager channel or on the backside.

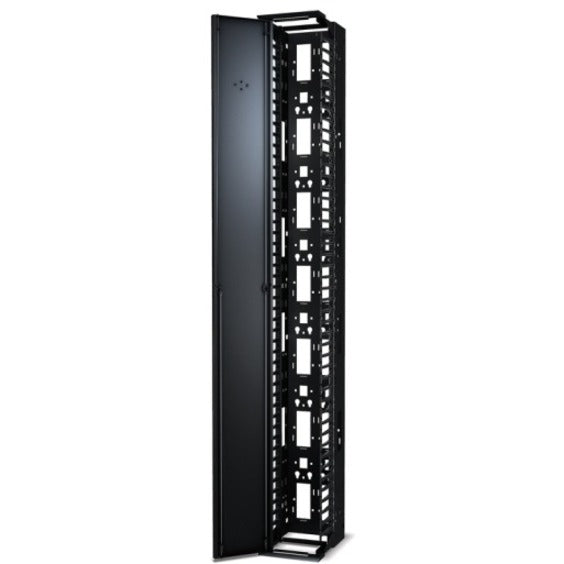

- Slam-to-latch full length door - Door installs quickly without tools and is provided with two easy to use latches that allow the door to open to the left or right.
- Similar look-and-feel to NetShelterT enclosures - Contoured and powdercoat design of the vertical cable manager door and matching enclosure placard provide a clean and consistent look with NetShelter enclosures.
- Horizontal cable routing front-to-back - Pass-through holes and mounting slots support horizontal cable troughs for front-to-back cable pass-through using cable management accessory AR8016ABLK.
- High capacity cable finger design - Cable managers feature high capacity slim cable fingers to provide maximum capacity at every rack space unit and a rigid design to decrease deflection when cables are routed in/out of the cable manager channel.
- Grounding connection - Grounding connection point (hardware not provided) on left and right side of cable channel provides location for grounding the vertical cable manager.
- Cable protection - Smooth plastic fingers provide proper bend radius.
- Cable management tie-off backplate - Backplates feature multiple mounting holes for toolless accessory installation of vertical Rack PDUs and cable management accessories such as hook-and-loop cable managers for cable tie-off (AR8621) and fiber spools for excess fiber slack management (AR8444).
- Manufacturer : Schneider Electric SA
- Package Contents :
- Vertical Cable Manager
- Doors
- Installation Guide
- Mounting Hardware
- Manufacturer Website Address : http://www.schneider-electric.com
- Environmentally Friendly : Yes
- Compatibility :
- APC NetShelter Enclosure
APC Open Frame Rack:
- 2 Post
- 4 Post
- Product Type : Cable Organizer
- Cable Manager Type : Cable Manager
- Product Material : Plastic
- Product Color : Black
- Environmental Certification : RoHS
- Additional Warranty Information : 2 years repair or replace
