Description

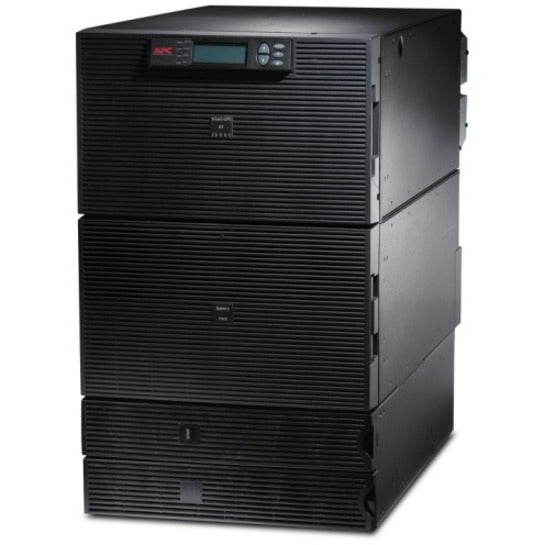

Smart-UPS RT 20kVA Tower/Rack Mountable UPS provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. The entire Smart-UPS On-Line family provides value to customers with demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
. .- Product Series : RT
- Rack Height : 16U
- Product Line : Smart-UPS
- Manufacturer Website Address : http://www.schneider-electric.com
- Typical Battery Recharge Time : 2.50 Hour
- Backup/Run Time (Full Load) : 4.90 Minute
- Plug/Connector Type : Hard Wire 3-wire
- Load Capacity : 20 kVA
- Manufacturer : Schneider Electric SA
- Backup/Run Time (Half Load) : 15.30 Minute
- Limited Warranty : 2 Year
- Network Management : SNMP Manageable
- Form Factor : Rack-mountable
- Package Contents :
- Smart-UPS RT 20kVA Tower/Rack Mountable UPS
- CD with software
- Rack mounting support rails
- Smart UPS signalling RS-232 cable
- User manual
- Web/SNMP management card
- Product Type : Double Conversion Online UPS
- Battery Chemistry : Lead Acid
- Waveform Type : Sine Wave
- Product Color : Black
- Environmental Certification : RoHS
- Environmentally Friendly : Yes
- Software Included : PowerChute Management Software
- Serial Port : Yes
- Battery Characteristics : Spill-proof/Maintenance-free
- Output Frequency : 60 Hz
- Input Frequency : 70 Hz
- Overload Protection : Yes

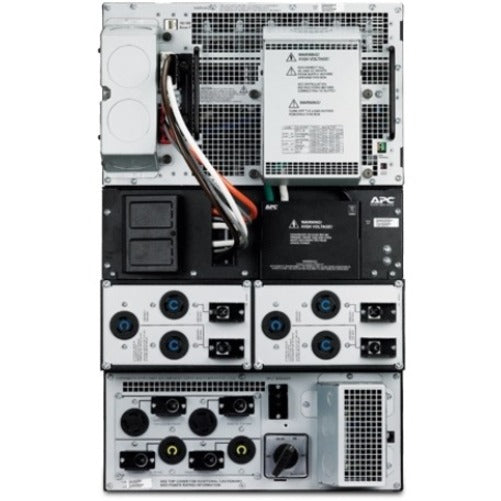

- Receptacle Detail : 2 x NEMA L5-20R,4 x NEMA L6-20R,2 x NEMA L6-30R,2 x NEMA L14-30R
- Receptacle Type : NEMA L5-20R,NEMA L6-20R,NEMA L6-30R,NEMA L14-30R
- Number of Battery & Surge Outlets : 11
- Country of Origin : Philippines
- Input Voltage : 208 V AC
- Output Voltage : 120 V AC
- Additional Warranty Information : 2 years repair or replace
- Network (RJ-45) : Yes
