Description

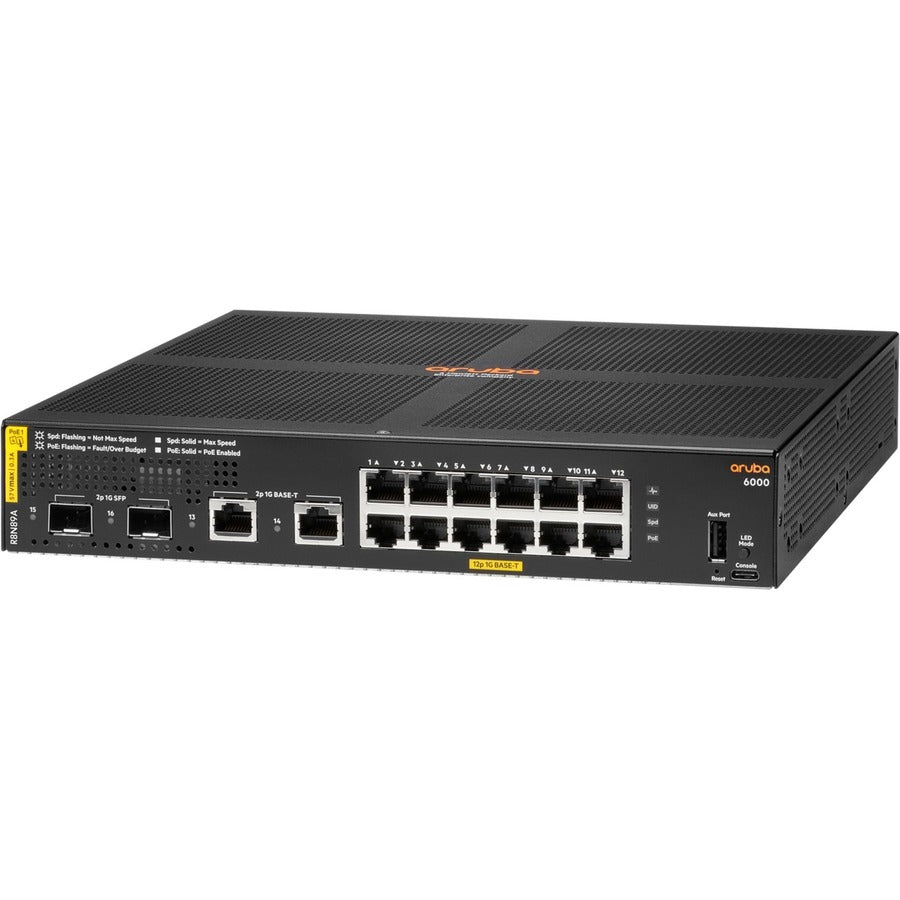

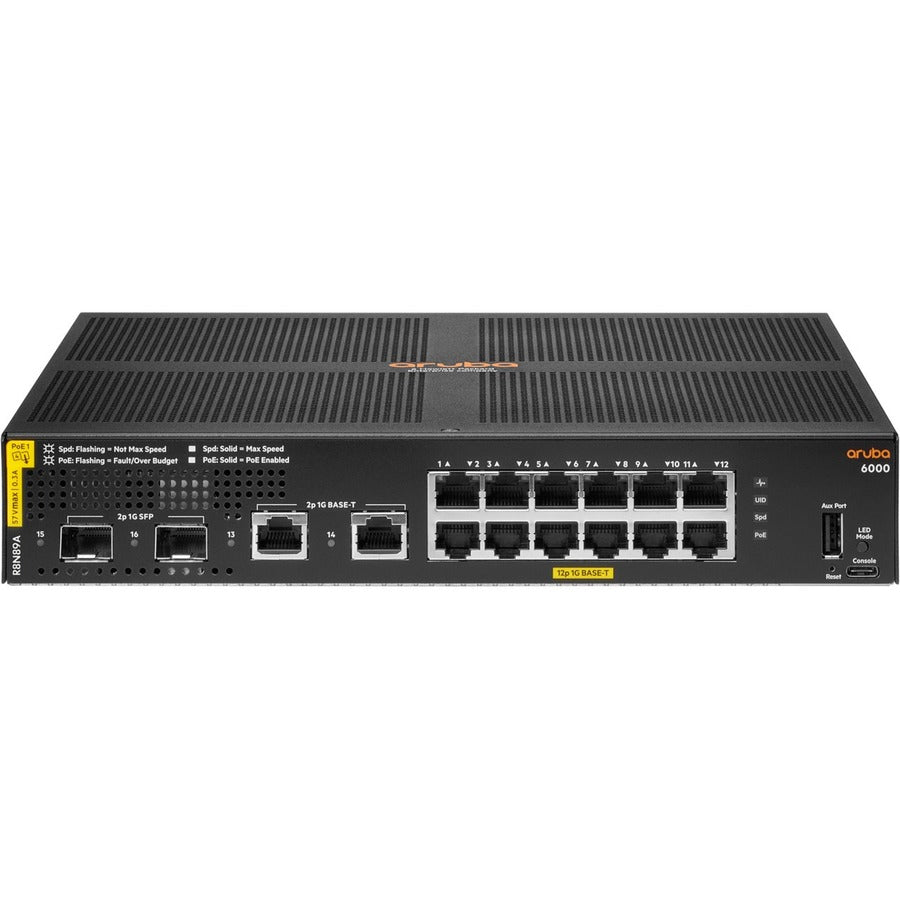

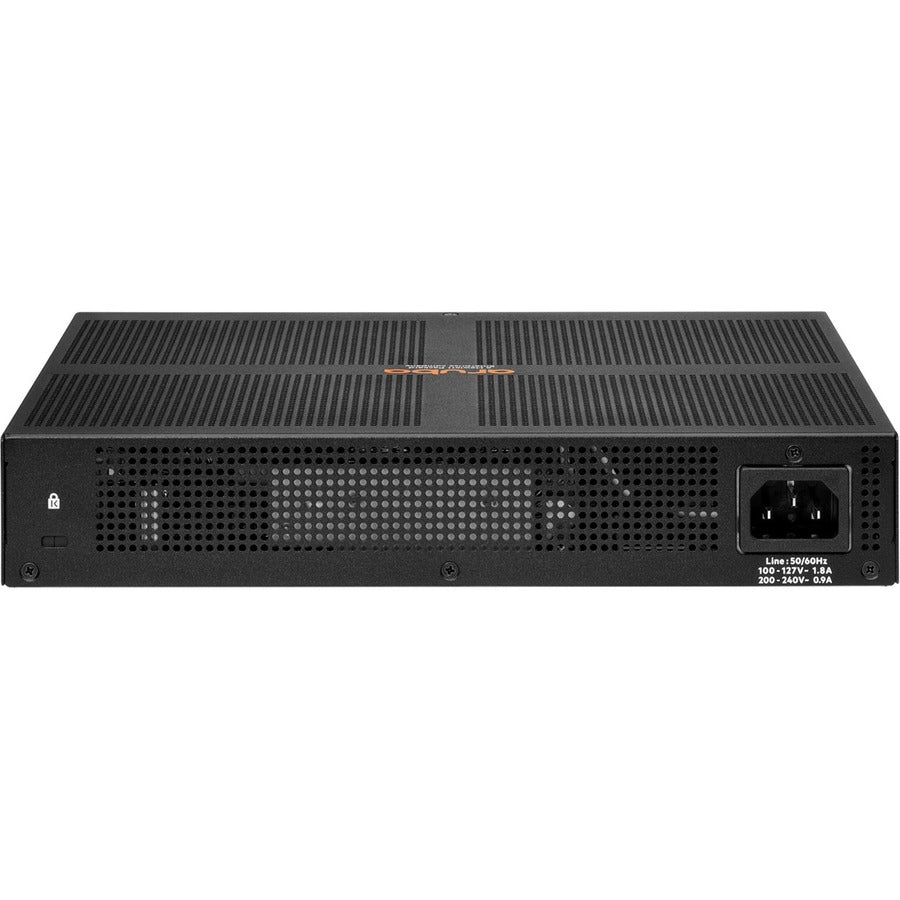

The Aruba CX 6000 Switch Series is modern family of entry level access switches ideal for branch offices, midsize businesses, and small enterprises. Optimized for reliable, simple and secure access, the CX 6000 series provides a convenient and cost-effective wired access solution for networks supporting IoT, mobile, and cloud applications.
The CX 6000 series is based on the Aruba ASIC architecture with the programmable AOS-CX operating system used across the entire Aruba CX portfolio for a more consistent, more efficient operator experience. This fully managed series has convenient built-in uplinks with up to 370W of PoE+ to support IoT devices such as security cameras and wireless APs. A compact and fanless model is ideal for use in quiet, small work spaces.
The CX 6000 series is easy to deploy and use with flexible management choices that include Web GUI, CLI, cloudbased and on-premise Aruba Central management, so you can choose the best fit for your business and network environment. Delivering Layer 2 capabilities with enhanced access security, traffic prioritization, and IPv6 support, the CX 6000 also simplifies ownership and brings peace of mind with no switch software licensing and a Limited Lifetime Warranty.
PRODUCT DIFFERENTIATORS | AOS-CX - a modern software system
The Aruba CX 6000 Switch Series is based on AOSCX, a modern, database-driven operating system that is built on a modular Linux architecture. With the CX 6000 series, the benefits of the AOS-CX architecture is extended to small enterprise deployments providing the following unique capabilities:
- Easy access to all network configuration state information
- REST APIs for fine-grained programmability of network tasks
- A micro-services architecture that enables full integration with other workflow systems and services
- All software processes communicate with the database rather than each other, ensuring near real-time state and resiliency
Aruba ASICs - programmable innovation
Based on over 30 years of continuous investment, Aruba's ASICs create the basis for innovative and agile software feature advancements, unparalleled performance and deep visibility. These programmable ASICs are purpose-built to allow for a tighter integration of switch hardware and software within campus and data center architectures to optimize performance and capacity. The Aruba CX 6000 is based on the Aruba ASIC architecture.
Access layer performance
The Aruba CX 6000 Switch Series uses internally developed Aruba ASICs that provide very low latency, increased packet buffering, and adaptive power consumption. Each switch includes the following:
- Up to 104 Gbps in non-blocking bandwidth and up to 77.3 Mpps for forwarding
- Cascade to other network devices through the uplink port to expand your local area network
- Expand your network capacity with the help of 12 networking ports and transfer your data quickly and easily
- Supports layer 3 switching for enhanced performance and usability
- Managed switch provides a reliable foundation for your network
- Gigabit Ethernet port for ultra-fast network speeds
- Power Source : Power Supply
- Product Series : CX 6000
- Modular : Yes
- PoE (RJ-45) Port : Yes
- Form Factor : Rack-mountable,Cabinet Mount,Surface Mount,Wall Mountable
- Package Contents :
- 6000 48G Class4 PoE 4SFP 370W Switch
- Mounting Brackets
- Manufacturer Website Address : http://www.hpe.com
- Uplink Port : Yes
- Number of Power Supplies Installed : 1
- Manufacturer : Hewlett Packard Enterprise
- Compatible Rack Unit : 1U
- Manageable : Yes
- Network Technology : 10/100/1000Base-T,100/1000Base-X
- Ethernet Technology : Gigabit Ethernet
- Environmentally Friendly : Yes
- Layer Supported : 3
- PoE Budget : 139 W
- Port/Expansion Slot Details : 12 x Gigabit Ethernet PoE+,2 x Gigabit Ehernet Network,2 x Gigabit Ehernet Expansion Slot
- Limited Warranty : Lifetime
- Network (RJ-45) : Yes
- Product Type : Ethernet Switch
- Stack Port : Yes
- Number of Total Expansion Slots : 2
- Networking Standards : IEEE 802.3,IEEE 802.3at,IEEE 802.3az,IEEE 802.3ad,IEEE 802.1s,IEEE 802.1D,IEEE 802.1w,IEEE 802.1p,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1x,IEEE 802.3af,IEEE 802.3x,IEEE 802.3ab
- Total Number of Network Ports : 12
- Media Type Supported : Twisted Pair,Optical Fiber
- Number of SFP Slots : 2
- Expansion Slot Type : SFP (mini-GBIC)
- Power Consumption : 21.90 W
