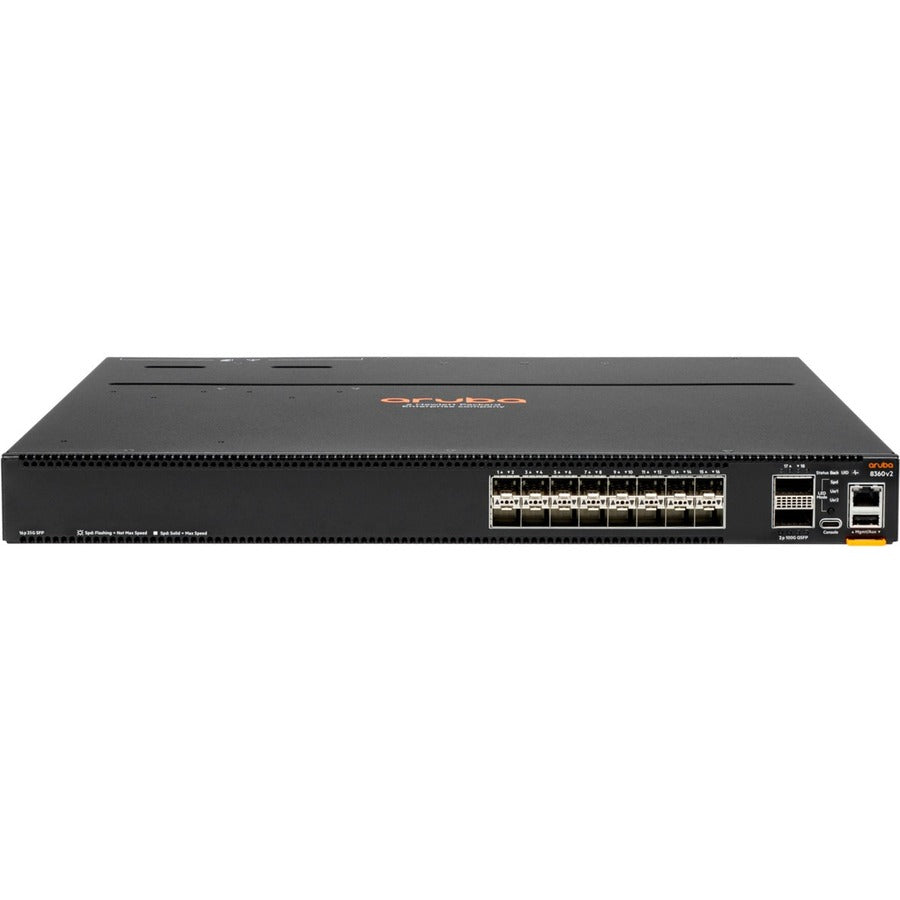

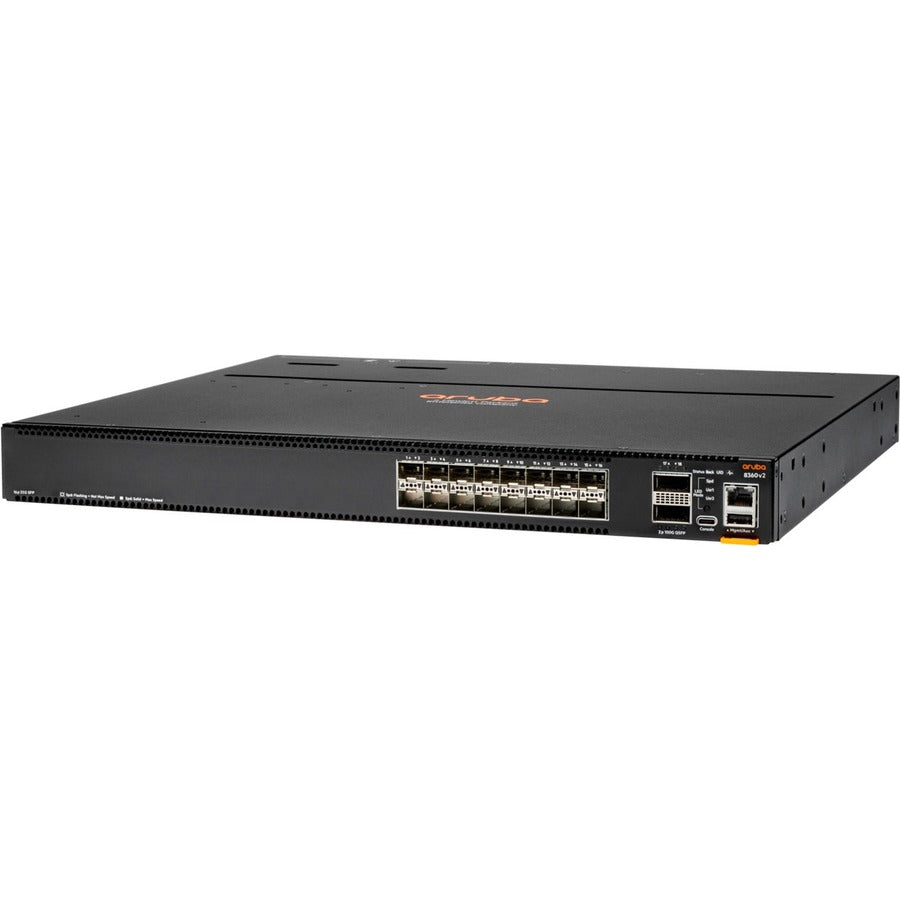

Aruba CX 8360 Switch Series
The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.
The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.
In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.
The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.
The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.
In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.
- High-performance 4.8Tbps and 2,678 Mpps
- Intelligent monitoring and visibility with Aruba Network Analytics Engine
- High availability with industry leading VSX redundancy, and redundant power supplies and fans
- Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments
- MACsec secured connectivity over untrusted domains
- ArubaOS-CX automation and programmability using built-in REST APIs and Python scripts
- Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6
- 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches
- Addition of Smart Rate (1/2.5/5/10G) ports on the 8360-48XT4C
- Power Source : Power Supply
- Product Series : CX 8360
- Modular : Yes
- Form Factor : Rack-mountable
- Package Contents :
- 8360v2- 32Y4C Ethernet Switch
- 2 x PSU
- 3 x Fans
- 2 x Post Rack Kit
- Manufacturer Website Address : http://www.hpe.com
- Number of Power Supplies Supported : 2
- Uplink Port : Yes
- Manufacturer : Hewlett Packard Enterprise
- Product Model : 8360v2- 32Y4C
- Compatible Rack Unit : 1U
- Manageable : Yes
- Network Technology : 25GBase-X,100GBase-X
- Redundant Power Supply Supported : Yes
- Ethernet Technology : 25 Gigabit Ethernet,100 Gigabit Ethernet
- TAA Compliant : Yes
- Layer Supported : 3
- Port/Expansion Slot Details : 32 x 25 Gigabit Ethernet Expansion Slot,4 x 100 Gigabit Ethernet Expansion Slot
- Limited Warranty : Lifetime
- Product Type : Ethernet Switch
- Number of Total Expansion Slots : 36
- Networking Standards : IEEE 802.1Qbb,IEEE 802.3ad,IEEE 802.1ab,IEEE 802.1Q,IEEE 802.1D,IEEE 802.1w,IEEE 802.1s,IEEE 802.1ae,IEEE 802.1AEbn,IEEE 802.1AEbw,IEEE 802.1ak,IEEE 802.1AX,IEEE 802.1t,IEEE 802.1v,IEEE 802.3ae,IEEE 802.3an,IEEE 802.3ba,IEEE 802.3by,IEEE 802.3cc,IEEE 802.3z
- Power Consumption : 425 W
- Media Type Supported : Optical Fiber
- Expansion Slot Type : QSFP28,SFP28
