Description

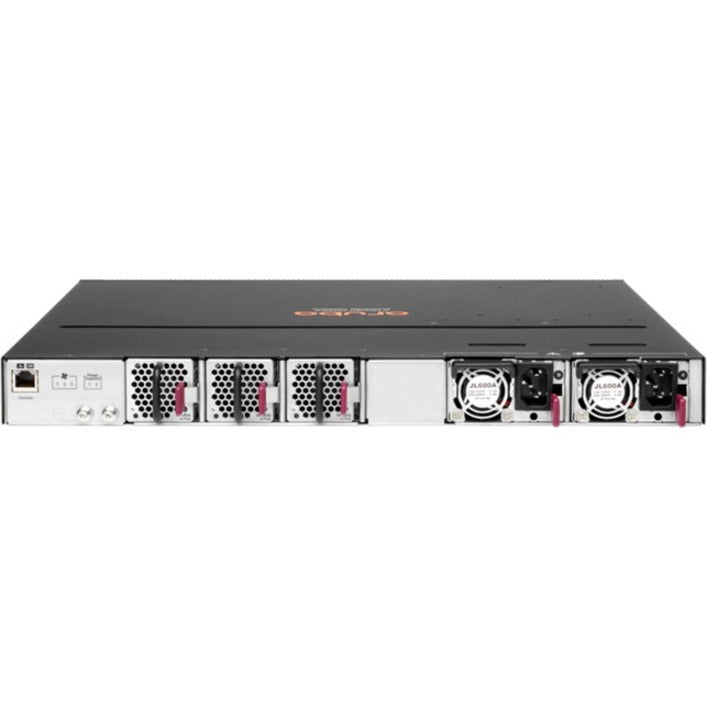

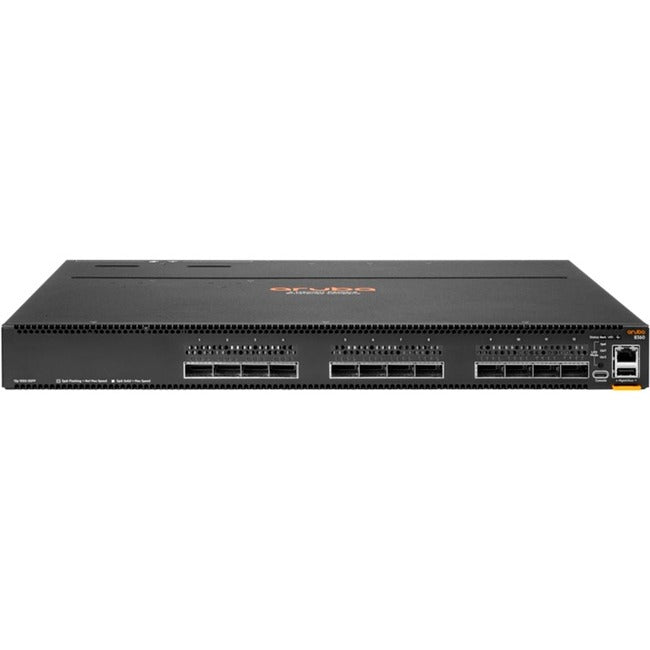

Aruba CX 8360 Switch Series
High Performance Enterprise Campus and Data Center Switch
The Aruba CX 8360 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 2.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.
The 8360 series includes industry-leading line rate ports with 1/10/25GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 100GbE ports.
In addition, the 32 x 25G port 8360 models support lowdensity MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains.
High Performance Enterprise Campus and Data Center Switch
The Aruba CX 8360 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 2.4Tbps of capacity, with line-rate Gigabit Ethernet interfaces including 1Gbps, 10Gbps, 25Gbps, 40Gbps, and 100Gbps.
The 8360 series includes industry-leading line rate ports with 1/10/25GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/ QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 100GbE ports.
In addition, the 32 x 25G port 8360 models support lowdensity MACsec ports and enable secured connectivity at 10GbE and 25GbE over unsecured domains.
- Built-in power supply to ensure all components are being supplied with accurate voltage
- Can work as layer 3 routing for scalable network design
- Rack mounting enables you to organize wires & secure cables for professional installation
- Management capability provides control over setup and configuration of your network
- 100 Gigabit Ethernet provides high bandwidth performance, ease of use and reliability for your network backbone
- Supports optical fiber cable to span longer distances and provided high data transmission rates between servers and network components
- Compatible Rack Unit : 1U
- Manufacturer Website Address : http://www.hpe.com
- Power Consumption : 375 W
- Uplink Port : Yes
- Number of Power Supplies Supported : 2
- Product Series : CX 8360
- TAA Compliant : Yes
- Power Source : Power Supply
- Expansion Slot Type : QSFP28
- Package Contents :
- CX 8360 Ethernet Switch
- 3 x Fans
- 2 x PSU
- Modular : Yes
- Manageable : Yes
- Layer Supported : 3
- Environmentally Friendly : Yes
- Port/Expansion Slot Details : 12 x 100 Gigabit Ethernet Expansion Slot
- Number of Total Expansion Slots : 12
- Network Technology : 100GBase-X
- Media Type Supported : Optical Fiber
- Redundant Power Supply Supported : Yes
- Manufacturer : Hewlett Packard Enterprise
- Product Type : Ethernet Switch
- Limited Warranty : Lifetime
- Ethernet Technology : 100 Gigabit Ethernet
- Form Factor : Rack-mountable,Surface Mount
- Product Model : CX 8360-12C
