Easy modification, maximum possibilities

ASUS Mini PC PN63-S1 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 11th Generation Intel® Core™ processors and support for high-speed 3200MHz DDR4 memory, Mini PC PN63-S1 is ready to take on demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won't fit, such as for digital signage or in a home theater. Wi-Fi 6E networking ensures stable, high-speed data transfers, even in crowded networking environments.

Performance

ASUS Mini PC PN63-S1 is no lightweight when it comes to performance. It harnesses the power of the latest 11th Gen Intel® Core™ processors combined with plenty of fast RAM, plus Intel® Iris® Xe and multiple storage combinations. There's also an ultrafast PCIe® SSD to ensure fast boot times and rapid app loads.

Flexibility | Upgrade-friendly

A convenient sliding chassis design lets you add or upgrade 2 x M.2 Slot & 1 x 2.5" HDD, support PCIe G4x4, PCIe G3x4, or memory in two easy steps using just a screwdriver. A bare-bones option is also available, giving you maximum flexibility to customize your system.

Performance | Small and powerful

11th Gen Intel Core processors deliver outstanding performance and smooth computing power, while integrated Intel Iris^® Xe graphics enhance fast-moving visuals to enable Mini PC PN63-S1 to tackle intensive business operation with ease.

Performance | Improved Cooling

Mini PC PN63-S1 has unique cooling features, including a large fan to boost airflow, a new thermal module with a heat pipe for better heat dissipation, and an aluminum heatsink for more efficient conductivity. In addition, the exclusive ASUS Anti-Dust Self-Cleaning System effectively removes dust to maintain a cleaner heatsink and prolong the lifecycle of the product. A cleaner system also leads to quieter fan performance.

Triple storage design

ASUS Mini PC PN63-S1 fits one Memory or 2 x M.2 Slot , and a 2.5-inch HDD, support PCIe G4x4, PCIe G3x4 letting you create your own custom storage solution with the balance of speed and capacity to fit your needs.

Design | Modern, space-saving design

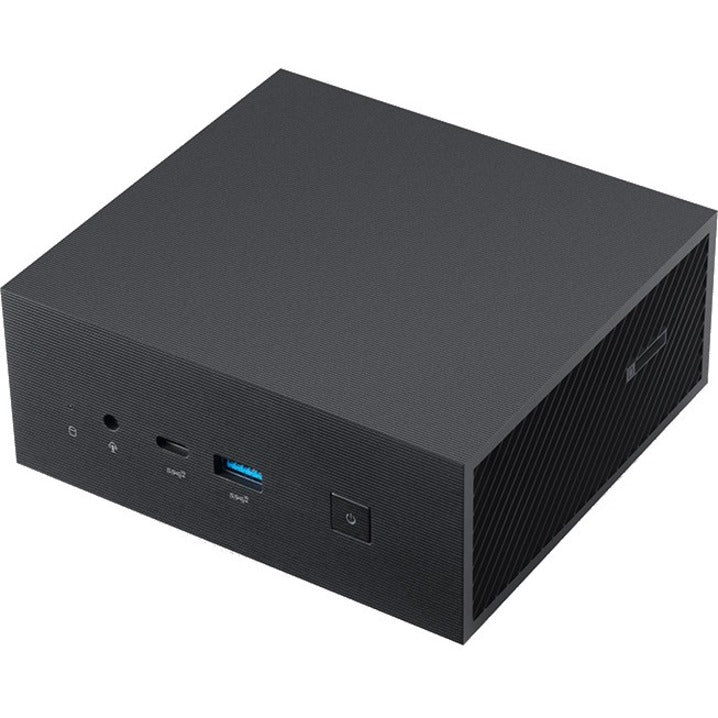

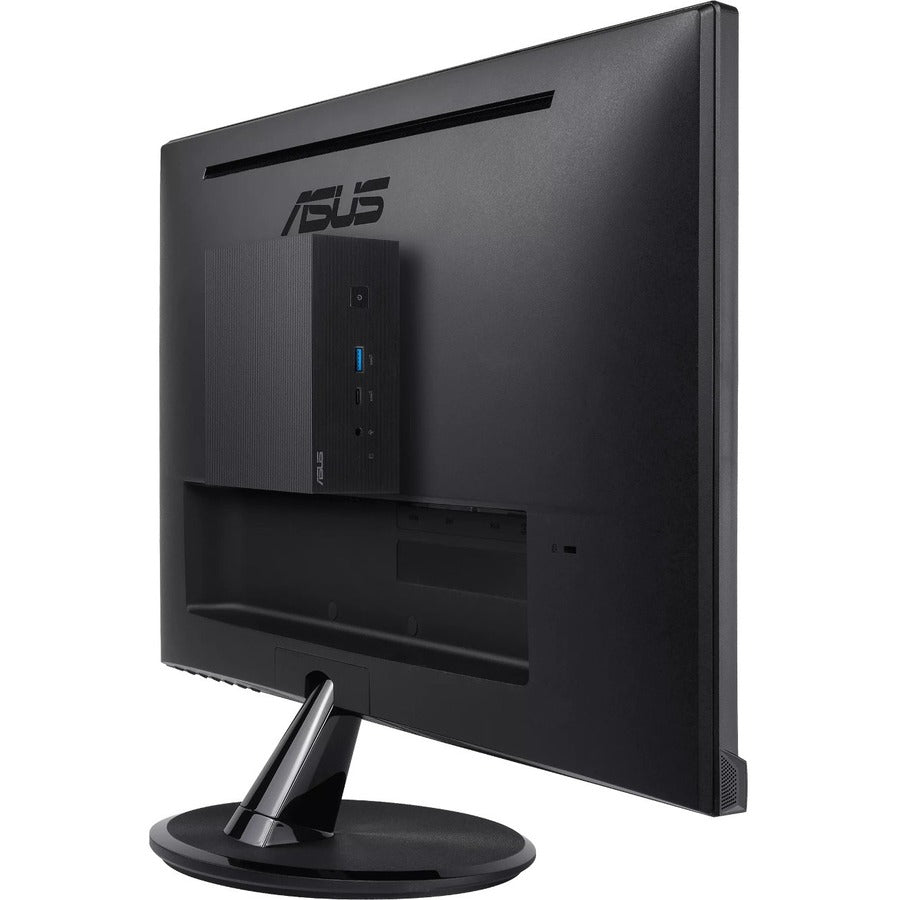

With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN63-S1 easily blends into home, office and retail environments. Compact and lightweight at 120mm x 130mm x 58mm with a 0.9-liter volume, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution.

Connectivity | High speed data transmission

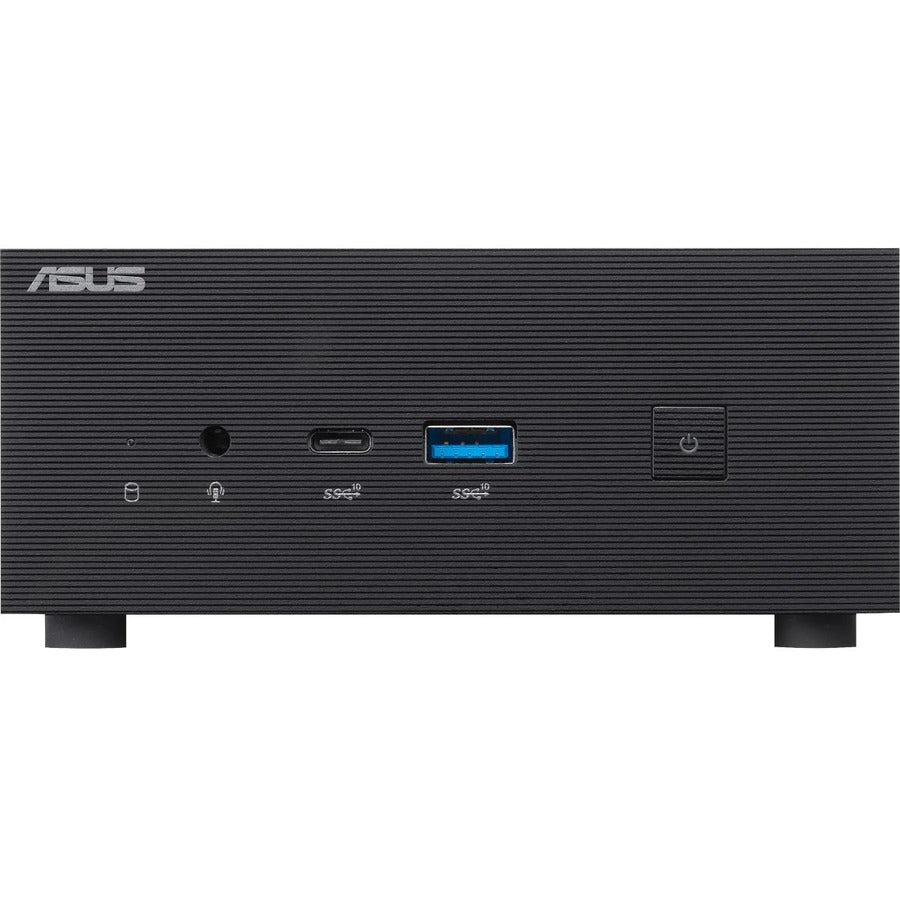

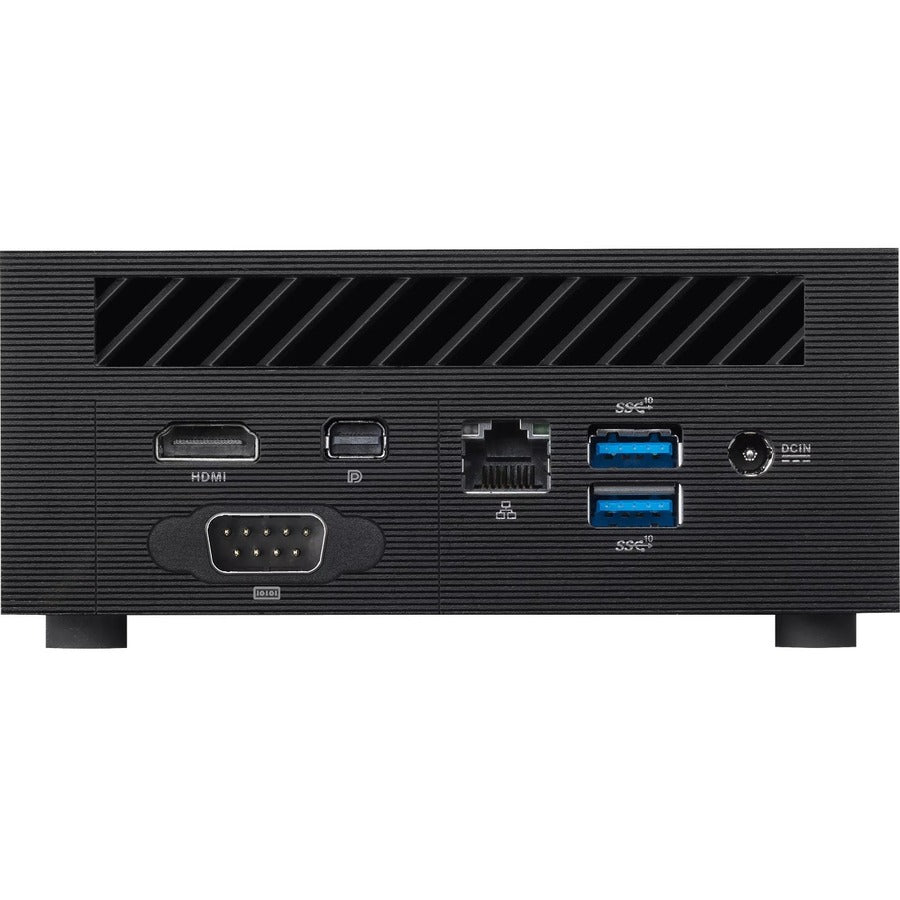

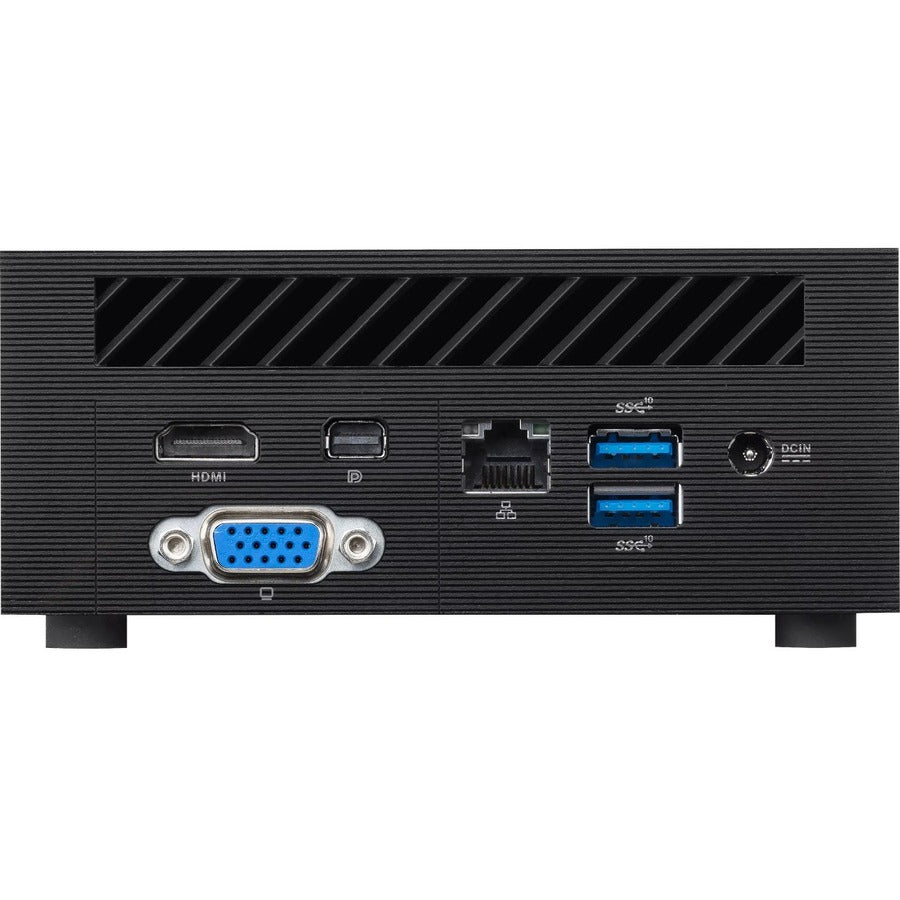

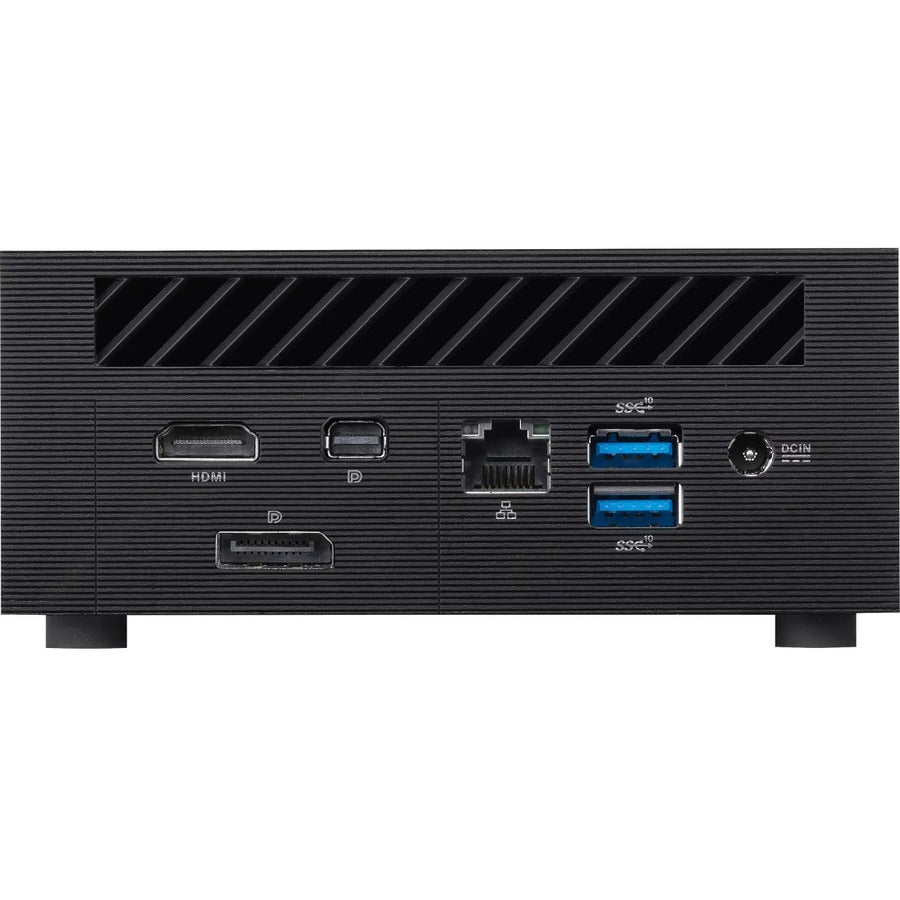

ASUS Mini PC PN63-S1 provides comprehensive connectivity with multiple ports, including a front-mounted USB 3.1 Gen2 Type-C port and a configurable port to support legacy devices, additional displays or multiple network connections.

Hyper-fast 2.5Gbps Networking

PN63-S1 next-generation 2.5GBase-T (2.5G) networking technology to deliver speeds of up to 2.5Gbps -2.5X faster than standard gigabit Ethernet. It enables ultra-fast 2.5Gbps network access for desktop PCs, so you can easily handle the most data-intensive tasks in your office or at home.

• Powerful performance with 11th Gen Intel® Core™ processors
• Intel® Iris® Xe Graphics delivers outstanding graphics performance and supports up to three displays simultaneously
• Intel® Dynamic Tuning Technology (DTT): Automated optimization to ensure best system performance.
• High-speed Wi-Fi 6E networking with improved power efficiency
• Triple-storage design with up to a 2.5-inch HDD and two M.2 SSDs up to PCIe Gen 4x4.
• Comprehensive I/O connectivity including a configurable port option that provides fast and versatile connectivity
• ASUS Corporate Stable Model program ensuring 36-month stable-supply guarantee
• 24/7 reliability - Extensively tested to ensure long-term dependability

• Thermal Design Power : 90 W
• Chipset Manufacturer : Intel
• USB Type-C Detail : 2 USB 3.2 Gen2 Type-C
• USB Type-C (Front) : Yes
• Processor Generation : 11th Gen
• Product Series : PN63-S1
• Maximum Memory Supported : 64 GB
• Total Number of USB Ports : 6
• Processor Type : Core i3
• Graphics Memory Technology : DDR4 SDRAM
• Form Factor : Mini PC
• Memory Technology : DDR4 SDRAM

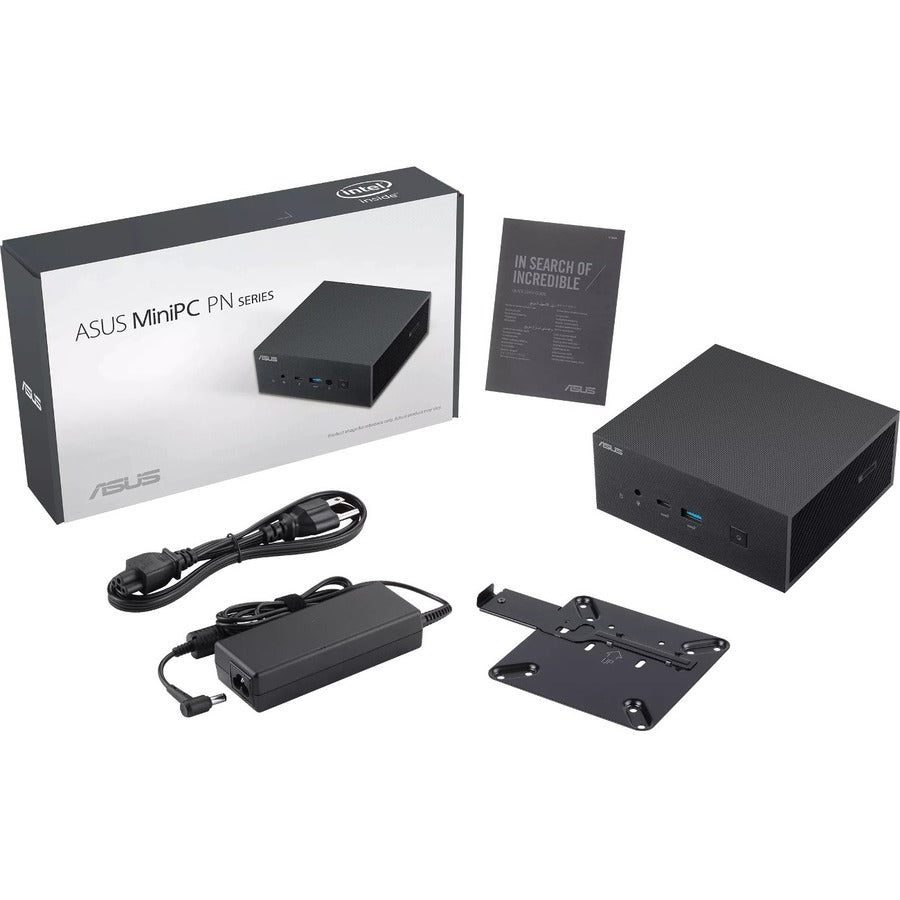

• Package Contents :
  • PN63-S1-BB3000XFD Barebone System
  • Power Adapter
• Manufacturer Website Address : http://www.asus.com
• Operating System Supported : Windows 11 Pro,Windows 11 Home,Windows 10 Pro
• Processor Manufacturer : Intel
• Energy Star : Yes
• Manufacturer : ASUS Computer International
• Product Model : PN63-S1-BB3000XFD
• Processor Model : i3-1115G4
• Maximum Turbo Speed : 4.10 GHz
• Graphics Controller Manufacturer : Intel
• HDMI (Rear) : Yes
• Graphics Memory Accessibility : Shared
• Environmental Certification : RoHS
• Ethernet Technology : 2.5 Gigabit Ethernet
• Environmentally Friendly : Yes
• Product Color : Black
• Number of USB 3.2 Gen 2 Ports : 4
• Product Type : Barebone System
• Limited Warranty : 3 Year
• Country of Origin : China
