Description

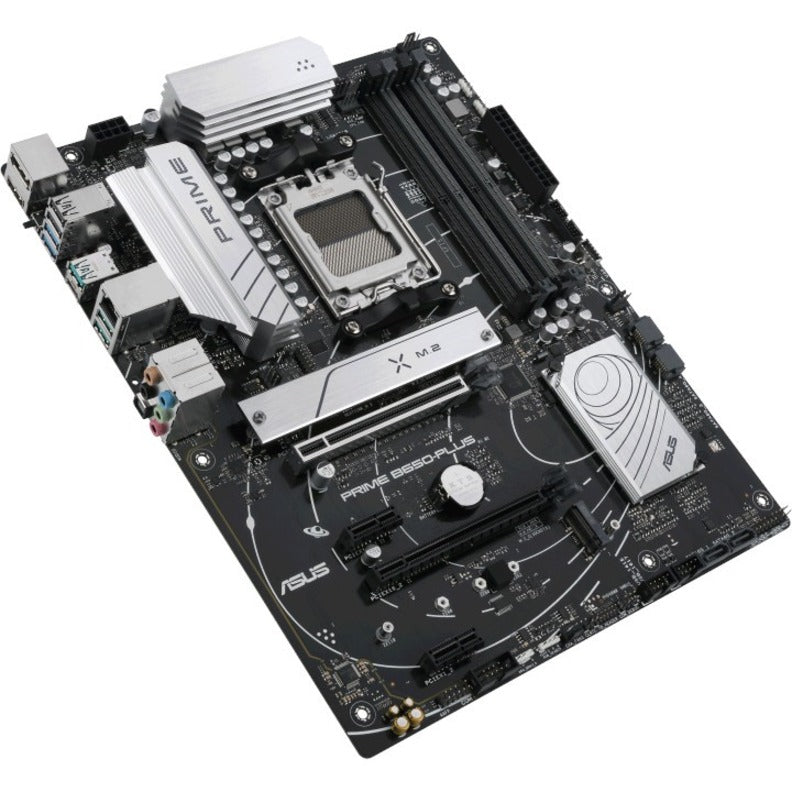

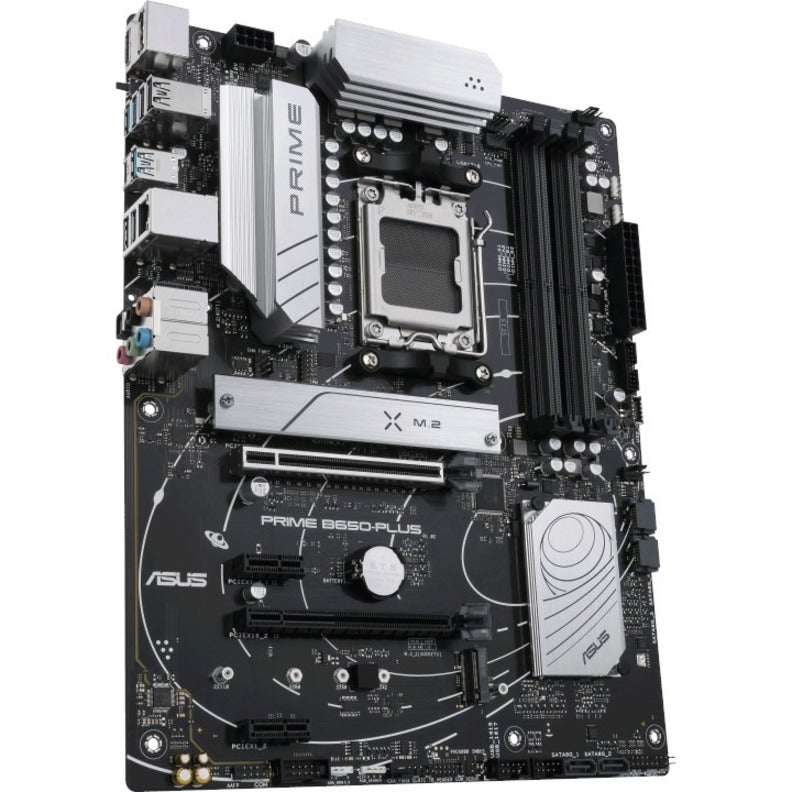

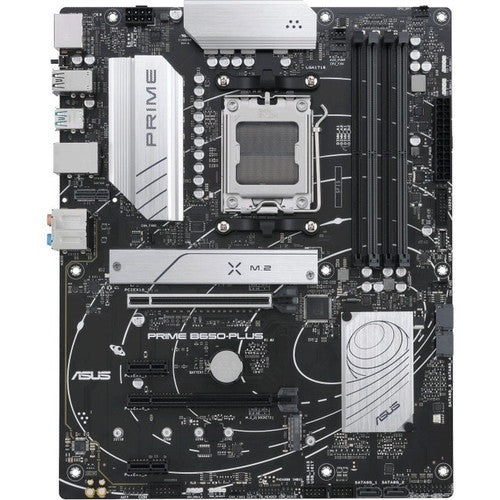

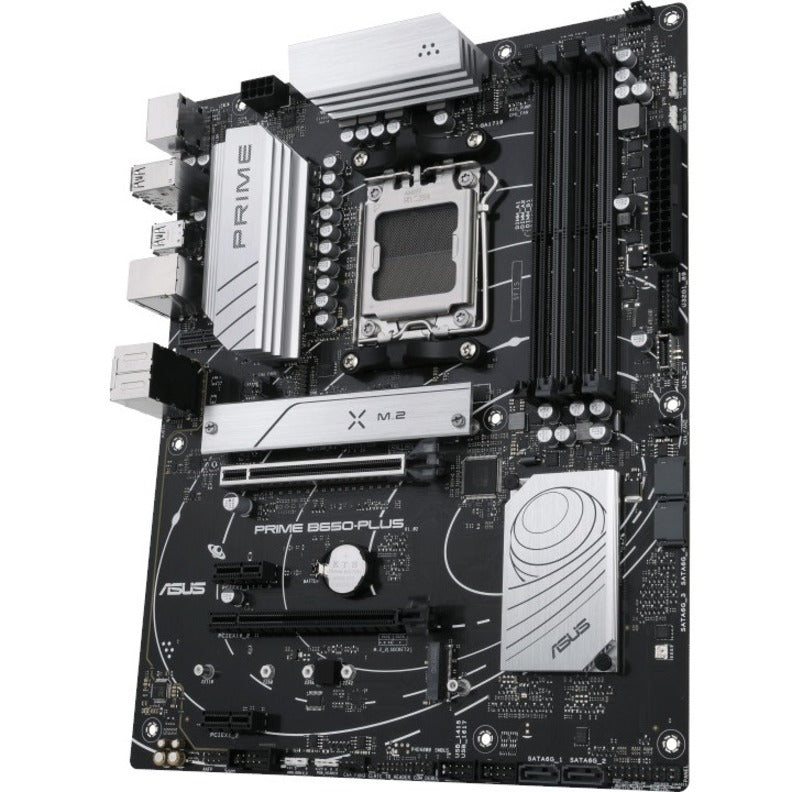

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B650-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to ramp up performance even higher.
COOLING
Prime B650 series are engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.
M.2 Heatsink
An M.2 heatsink takes care of the two M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws.
PERFORMANCE
The PRIME B650 series is built to handle the high core counts and bandwidth demands of AMD processors. ASUS B650 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.
PCIe 4.0 Slot
Prime B650 motherboards offer PCIe 4.0 Slot connectivity for the latest GPUs. The wide bandwidth and superfast transmission speeds allow you to create feature-rich builds that can handle high loads effortlessly.
Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.
Audio Shielding
Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
Dedicated Audio PCB Layers
Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
Premium Audio Capacitors
Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
- Compatible Ryzen 7 processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- ATX form factor brings a significant number of PCI slots, expansion slots, and peripheral ports with an enhanced heat dissipation capability
- With 2 USB 2.0 ports, connect devices for a quick data movement
- Chipset Manufacturer : AMD
- Number of SATA Interfaces : 4
- Processor Supported : Ryzen 7
- Memory Speed Supported : 6400 MHz,6200 MHz,6000 MHz,5800 MHz,5600 MHz,5400 MHz,5200 MHz,5000 MHz,4800 MHz
- Number of M.2 Interfaces : 2
- Controller Type : Serial ATA/600
- Chipset Model : B650
- Product Series : B650
- Number of USB 2.0 Ports : 2
- Maximum Memory Supported : 128 GB
- Total Number of USB Ports : 8
- S/PDIF : Yes
- RAID Supported : Yes
- Form Factor : ATX
- Memory Technology : DDR5 SDRAM
- Onboard Video : CPU Dependent Video
- Package Contents :
- Prime B650-PLUS Desktop Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O Shield
- 1 x M.2 Rubber Package
- 1 x Screw package for M.2 SSD
- 1 x User guide
- Manufacturer Website Address : http://www.asus.com
- Audio Channels : 7.1
- Total Number of Onboard USB Ports : 7
- HDMI Version : 2.1
- DisplayPort : Yes
- Processor Socket : Socket AM5
- PCI Express Standard : PCI Express 4.0
- Manufacturer : ASUS Computer International
- Product Model : B650-PLUS
- RAID Levels : 0,1,10
- 2.5Gigabit Ethernet : Yes
- Number of Memory Slots : 4
- Number of USB 3.2 Gen 2 Type-C Ports : 1
- Number of PCI Express x16 Slots : 2
- Memory Form Factor : UDIMM,DIMM
- Total Number of PCI Express Slots : 4
- Number of PCI Express x1 Slots : 2
- Number of USB 3.2 Gen 2 Type-A Ports : 3
- Product Type : Desktop Motherboard
- Total Processor Supported : 1
- Number of Total Expansion Slots : 4
- Number of USB 3.2 Ports : 6
- HDMI : Yes
- Thunderbolt : Yes
- Number of Network (RJ-45) Ports : 1
- Number of USB 3.2 Gen 1 Type-A Ports : 2
- Product Line : PRIME
- Gigabit Ethernet : Yes
- Number of Onboard USB 2.0 Ports : 4
- Number of Thunderbolt 4 Ports : 1
